7" Monitor display for reversing cameras - 3x 4 pin inputs | MON705

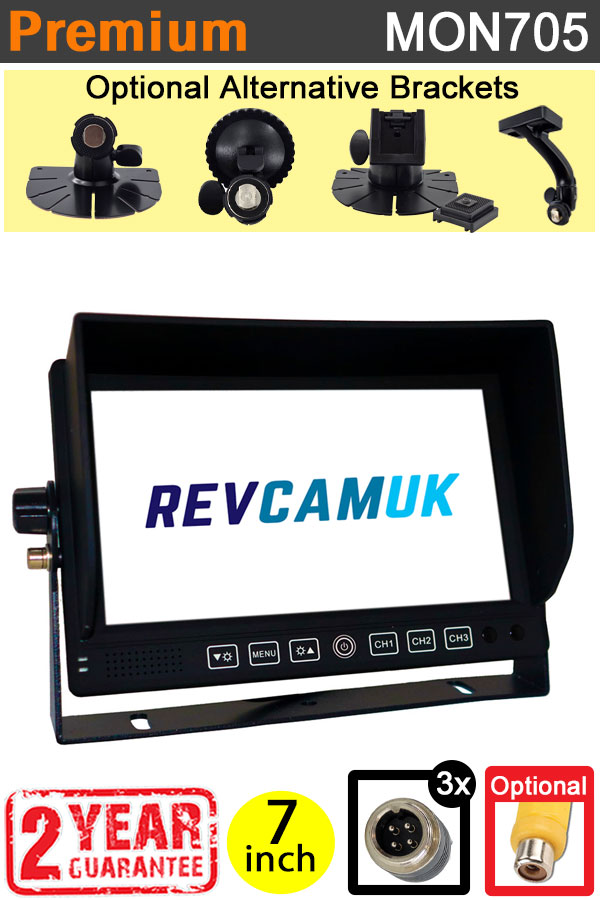

7-inch monitor display for reversing cameras – MON705

The MON705 vehicle display is a 3-channel monitor that provides a clear view of up to three rear-view, reversing, or auxiliary cameras. It is the most popular size (7 inches). A heavy-duty dash-mount display is particularly popular on motorhomes, vans, agricultural and commercial vehicles, where a more robust monitor with a larger casing is preferred. A removable sunshade is supplied as standard to reduce glare on the screen in sunny conditions. The monitor supports optional on-screen guidelines and is compatible with 12V and 24V vehicles, making it suitable for cars, vans, motorhomes, HGVs, and LGVs.

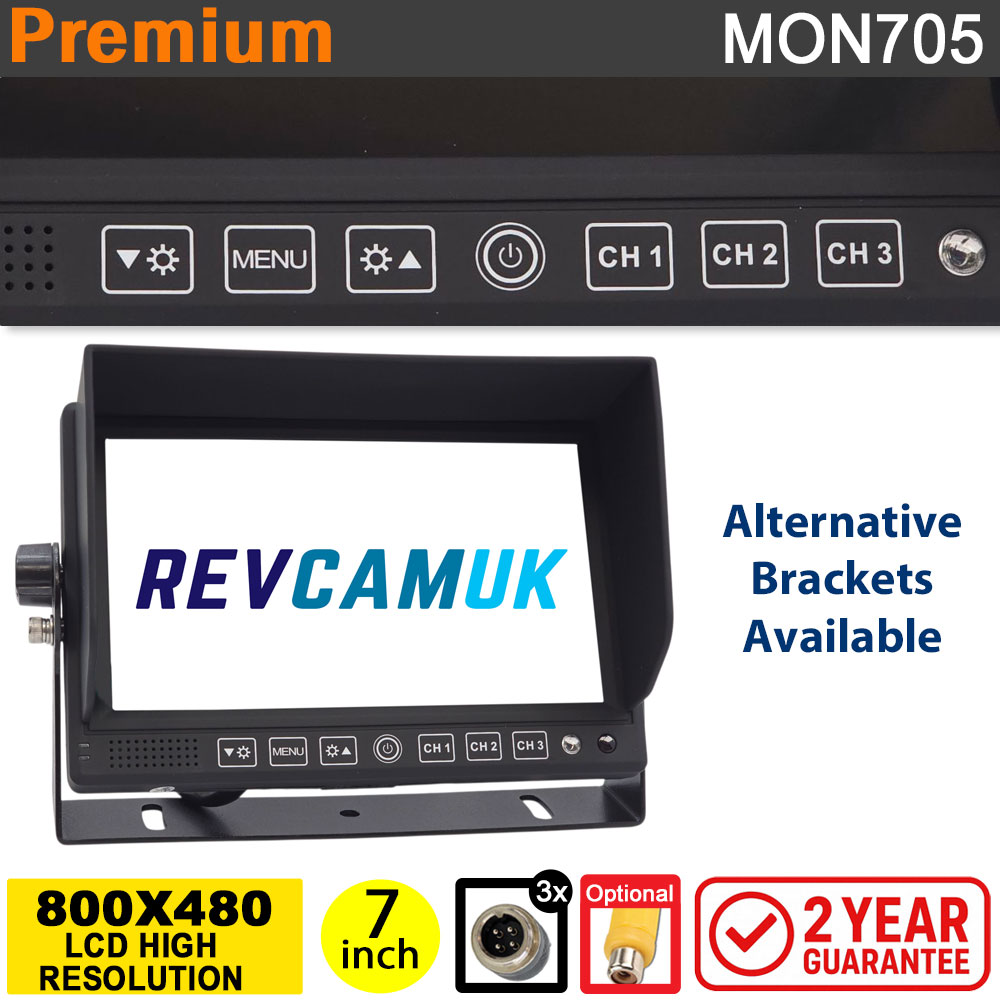

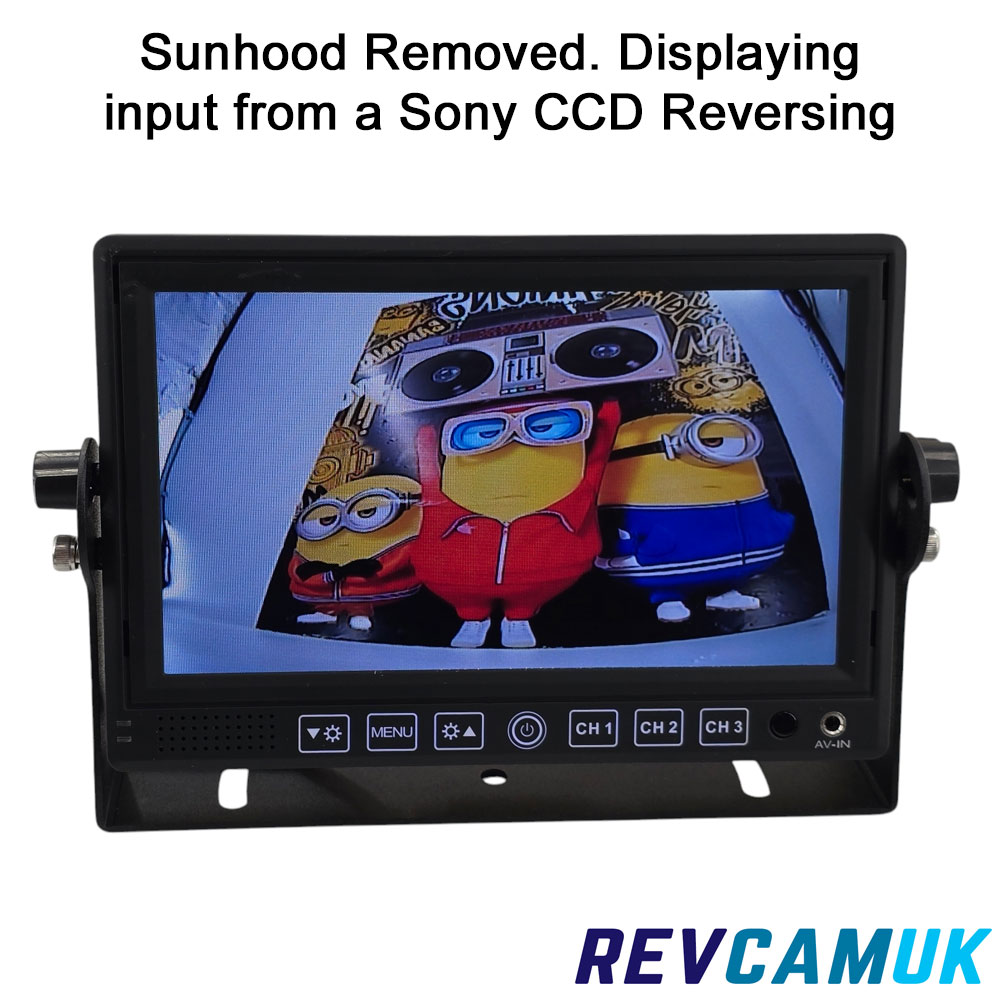

Large 7" Digital LCD Panel for Clear Image Display – This monitor is manufactured by one of our most trusted monitor suppliers, with whom we have worked for many years. The high-quality 7-inch LCD panel delivers a bright, clear image with good colour reproduction, allowing you to see the full output of your reversing camera clearly in a wide range of lighting conditions.

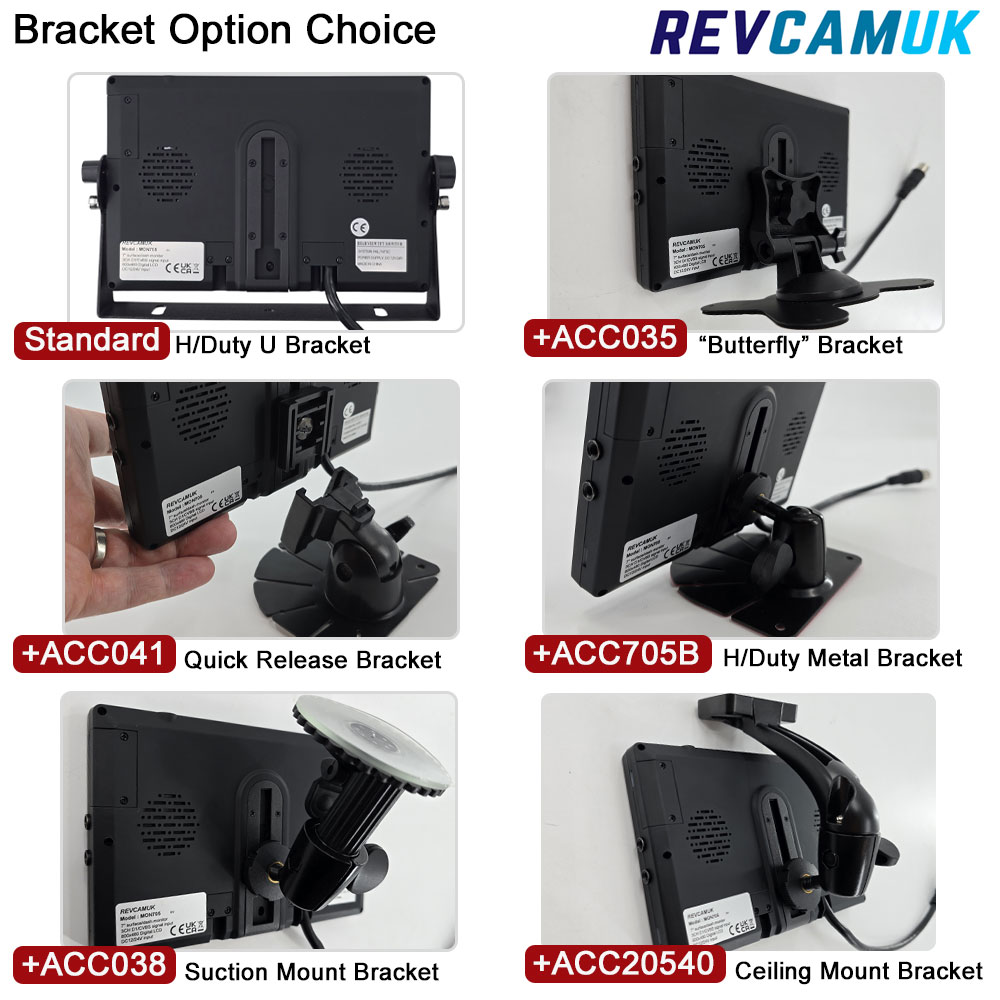

Heavy-Duty Dash Monitor Design – The MON705 uses a more substantial housing compared to slimline dash monitors. This makes it a popular choice for commercial vehicles, plant, agricultural machinery and motorhomes where durability and stability are important. The supplied mounting bracket allows secure installation on dashboards or flat surfaces.

3x 4-Pin Channel Inputs – The monitor is supplied with a fly lead that connects to a 200 cm wiring harness. This harness provides three 4-pin aviation camera inputs, three separate channel trigger wires and a fused DC power socket. A red/black hardwiring power lead is supplied as standard. Optional lighter plug and fuse tap power leads can be selected using the drop-down menu.

Automatic Screen Dimming via Built-In Light Sensor – The MON705 is equipped with an ambient light sensor that automatically adjusts screen brightness based on ambient light levels. When driving through tunnels or at night, the monitor dims to reduce glare and distraction, then increases brightness again in daylight.

Suitable for 12V & 24V Vehicles – Whether fitted to a car, van or motorhome, or installed in a larger HGV or commercial vehicle, the monitor will automatically detect the supplied voltage. It safely regulates the output to 12V for the connected cameras, protecting them even when the vehicle supply is 24V.

Two-Year REVCAMUK Quality Guarantee – This monitor is supplied with our full two-year guarantee. In the unlikely event of a fault during this period, the unit will be repaired or replaced. Ongoing UK-based support is provided by the UK's favourite specialist in reversing cameras.

If you are looking for a complete system that includes this monitor, please see our related products below or visit our Reversing Camera Kits with Heavy Duty Monitor category.

What’s in the box

• 7-inch reversing camera monitor (MON705)
• 200 cm monitor wiring harness with fly lead
• Three 4-pin aviation camera input connectors
• Three channel trigger wires for reverse or auxiliary activation
• Fused DC power socket with red/black hardwiring lead
• Dash mounting bracket and fixings
• Printed fitting and operating instructions
• Optional accessories if selected, such as fuse taps, 12V lighter plug, or RCA adaptor cables
