Adaptors for reversing cameras

Reversing Camera Adaptor Cable designed to allow a phono/RCA based reversing camera on to a 4 pin aviation connector monitor.

We very often get people who have an older system that has unusual connectors that wish to adapt their existing wiring to the industry standard - 4 pin aviation connector.  In the past, our customers used to purchase a 1M cable, which they would cut in half to connect each wire to their existing lead.  We decided to get our cable factory to make us a new 100cm length lead which has been pre-separated out to the individual wires.

This will convert our 4 pin cameras to a conventional RCA/2.1mm DC connection if you ever change to an RCA input monitor.

This will convert any of our 4 pin reversing cameras to a female Phono/RCA Video signal + 2.1mm/5.5mm DC socket for power (most commonly found on reversing cameras).

This adaptor cable is designed to convert a 4 pin aviation screw connector reversing camera to RCA Phono Connectors + power. This version has both a video signal and Audio connector (should you have a microphone on the camera).

This will convert our 4 pin cameras to a conventional RCA/2.1mm DC connection if you ever change to an RCA input monitor.

This will convert our 4 pin reversing cameras to a conventional RCA/2.1mm DC connection if you wish to connect to an RCA monitor or stereo headunit

Adaptor Cable designed to allow a phono/RCA based reversing camera on to a 4 pin aviation connector cabled system. This adaptor is approximately 100CM in length.

Female 4 Pin aviation connector to yellow video signal RCA Phono male plug, and 2.1/5.5mm DC plug for power.

Adaptor Cable designed to allow a phono/RCA based reversing camera on to a 4 pin aviation connector cabled system. This adaptor is approximately 100CM in length.

Female 4 Pin aviation connector to yellow video signal RCA Phono male plug, white audio signal RCA Phono male plug, and 2.1/5.5mm DC plug for power.

This will convert our 4 pin reversing camera cable in to a conventional RCA/2.1mm Red/Black power connection if you wish to connect an RCA Phono camera on to 4 pin cabling.

The RV-207 reverse camera is often seen on Swift, Autotrail, and Bessacarr motorhomes.  It is a twin camera system that runs to a Sargent Electrical EM5 series control box.  This bundle is for a compatible driving+reversing camera, plus the adaptor leads to convert it to the 6 pin connector required.  The cameras are fitted with a high spec 1/3" Sony CCD image sensor, one has an 8mm lens to give 45 degrees (the best angle for rear view/always on driving), the other has a wide angle lens for parking.  As our camera uses a 4 pin connector, this bundle includes discounted adaptors, which converts our 4 pin connectors to the same 6 pin connectors required on the original cabling.  We have sold many hundreds of these bundles over the years with total success.

The RV-207 reverse camera is often seen on Swift, Autotrail, and Bessacarr motorhomes.  It is a twin camera system that runs to a Sargent Electrical EM5 series control box.  This bundle is for a compatible driving camera, plus an adaptor lead to convert it to the 6 pin connector required.  The camera is fitted with a high spec 1/3" Sony CCD image sensor, and an 8mm lens to give 45 degrees (the best angle for rear view/always on driving).  As our camera uses a 4 pin connector, this bundle includes a discounted adaptor, which converts our 4 pin connector to the same 6 pin connector required on the original cabling.  We have sold many hundreds of these bundles over the years with total success.

The RV-207 reverse camera is often seen on Swift, Autotrail, and Bessacarr motorhomes.  It is a twin camera system that runs to a Sargent Electrical EM5 series control box.  This bundle is for a compatible driving camera, plus an adaptor lead to convert it to the 6 pin connector required.  The camera is fitted with a high spec 1/3" Sony CCD image sensor, and a wide angle lens to give 120 degrees.  As our camera uses a 4 pin connector, this bundle includes a discounted adaptor, which converts our 4 pin connector to the same 6 pin connector required on the original cabling.  We have sold many hundreds of these bundles over the years with total success.

For a number of years we have stocked these adaptors to support customers who have a 6 pin mini din (PS/2) cable in their vehicle.

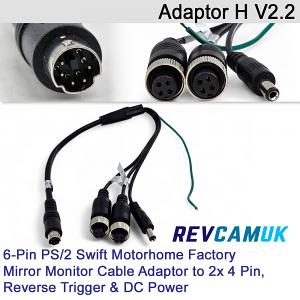

We have used this adaptor cable to support Swift and Autotrail Motorhome Owners when replacing their original failed factory-installed reversing camera. The adaptor is designed so that one of our 4 pin reversing cameras can be used in the replacement, simply adding this adaptor on to our camera so that it fits the original 6 pin socket on the main extension cable back to the original camera.

If you need to replace a faulty RV77 / CC-47 Reversing Camera, originally fitted to some Swift, Autotrail, or Bessacarr Motorhomes, then this is one of the bundles we have supplied customers with for many years. It is worth mentioning that our reversing camera has slightly different dimensions from the original camera. In this bundle, we will supply an adaptor cable to go from our 4-pin screw connector to the 6-pin PS2 connector that is fitted to the original cable. Our adaptor has been wired up the same way as the original was. The adaptor cable has a trigger wire added; if the original camera had an orange trigger lead connected at the back (to reverse feed), then you will need to connect our trigger wire to this (if not, insulate this wire).

Compatible replacement RV42 reversing camera bundle for Swift and Autotrail motorhomes. Includes compact ball-style camera and 6-pin PS/2 adaptor for easy plug-and-play installation.

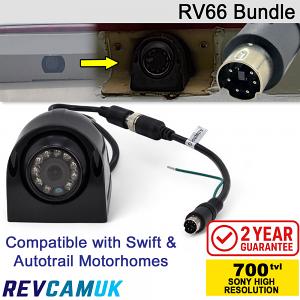

Compatible replacement reversing camera bundle for factory RV66 systems in selected Swift and Autotrail motorhomes. Includes a discreet direct replacement black pod camera and 6-pin PS/2 adaptor for true plug-and-play connection to the original connector, restoring a clear rear view without full rewiring. Features a 1/3" Sony CCD sensor, 700 TVL resolution, 120° wide angle, infrared night vision and IP68 waterproofing. This is a compatible replacement, not made by the original manufacturers—please check your vehicle uses the RV66 setup before ordering.

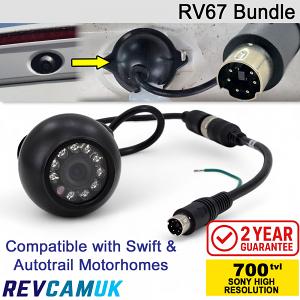

Compatible replacement RV67 reversing camera bundle for Swift and Autotrail motorhomes. Includes compact ball-style camera and 6-pin PS/2 adaptor for easy plug-and-play installation. Features night vision, wide-angle lens and waterproof housing, restoring clear reversing without a full system change.

If you need to replace a faulty RV77 / CC-47 Reversing Camera, originally fitted to some Swift, Autotrail, or Bessacarr Motorhomes, then this is one of the bundles we have supplied customers with for many years. It is worth mentioning that our reversing camera has slightly different dimensions from the original camera. In this bundle, we will supply an adaptor cable to go from our 4-pin screw connector to the 6-pin PS2 connector that is fitted to the original cable. Our adaptor has been wired up the same way as the original was. The adaptor cable has a trigger wire added; if the original camera had an orange trigger lead connected at the back (to reverse feed), then you will need to connect our trigger wire to this (if not, insulate this wire).

An adaptor bundle set, designed to replace the mirror monitor on Sargent Electrical reversing camera systems that use the EM5 series boxes.  Commonly seen on Swift, Autotrail, Bessacarr motorhomes.  Our mirror monitor uses a slimline 8 pin plug, which then fits to our Adaptor I (converts to a PS/2 connector, which we have had pinned out to match Sargent's cabling).

An adaptor bundle set, designed to replace the mirror monitor on Sargent Electrical reversing camera systems that use the EM5 series boxes.  Commonly seen on Swift, Autotrail, Bessacarr motorhomes.  Our mirror monitor uses a slimline 8 pin plug, which then fits to our Adaptor I (converts to a PS/2 connector, which we have had pinned out to match Sargent's cabling).

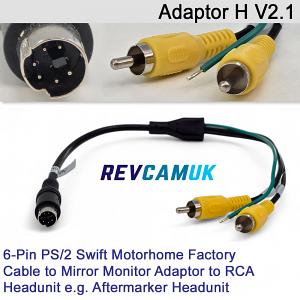

As part of our extensive range of motorhome reversing camera system support adaptors, this one allows people who have a RVM720/730 Mirror Monitor to change the monitor display to either a stereo headunit or a dash monitor with phono RCA inputs.

As part of our extensive range of motorhome reversing camera system support adaptors, this one allows people who have a RVM720/730 Mirror Monitor to change the monitor display to an alternative style e.g. Dashboard monitor.

• Compatible replacement for selected Dometic reversing cameras (e.g. CAM45, CAM50)
• Includes black compact Sony CCD bracket camera + 6-pin screw-lock adaptor
• Plug-and-play installation with matched pin configuration
• Superior picture quality and durability vs original cameras
• 2-year UK warranty included

• Compatible replacement for selected Dometic reversing cameras (e.g. CAM45, CAM50)
• Includes black Sony CCD bracket camera + 6-pin screw-lock adaptor
• Plug-and-play installation with matched pin configuration
• Superior picture quality and durability vs original cameras
• 2-year UK warranty included

• Compatible replacement for selected Dometic reversing cameras (e.g. CAM45, CAM50)
• Includes white compact Sony CCD bracket camera + 6-pin screw-lock adaptor
• Plug-and-play installation with matched pin configuration
• Superior picture quality and durability vs original cameras
• 2-year UK warranty included

• Compatible replacement for selected Dometic reversing cameras (e.g. CAM45, CAM50)
• Includes white Sony CCD bracket camera + 6-pin screw-lock adaptor
• Plug-and-play installation with matched pin configuration
• Superior picture quality and durability vs original cameras
• 2-year UK warranty included

These cable adaptors will convert the 2010 onwards Waeco cable fitted on vehicles like Baileys to a single 4 pin socket/plug like we use on our single camera systems. Both front and rear adaptors are provided. These cables are not made by Waeco, just compatible.  We only sell these as pairs because we have found the inside of the cables to be wired in differently, so you may not be able to just plug in one side and replace just one part, you would need to replace both monitor and camera.

These cable adaptors will convert the 2010 onwards Waeco cable fitted on vehicles like Baileys to a single 4 pin socket/plug like we use on our single camera systems. Both front and rear adaptors are provided. These cables are not made by Waeco, just compatible.  We only sell these as pairs because we have found the inside of the cables to be wired in differently.

These cable adaptors will convert the 2010 onwards Waeco cable fitted on vehicles like Baileys to twin 4 pin sockets/plugs like we use on the twin camera systems. Both front and rear adaptors are provided.

This is the 5 pin version adaptor for the Fendt Vario - designed to be plugged in to the connection at the back of the arm rest converting it to a 4 pin "aviation" connector (as seen on almost all reversing cameras nowadays - including all of our selection).

These adaptors are 100cm in length. We have various extensions that will plug in to extend this adaptor, and a wide range of cameras that can be used.

• Adaptor R 1-camera BNC lead for Case IH AFS Pro and New Holland IntelliView displays
• Connects 1x 4-pin screw connector cameras directly to OEM monitor
• Compatible with AFS Pro 200/300/700 & IntelliView II/III/IV
• Simple plug-and-play installation
