RV66 Compatible Replacement Reversing Camera Bundle with 6-Pin PS/2 Adaptor for Swift & Autotrail Motorhomes | RV66-Bundle

Category: Adaptors for reversing cameras

Description

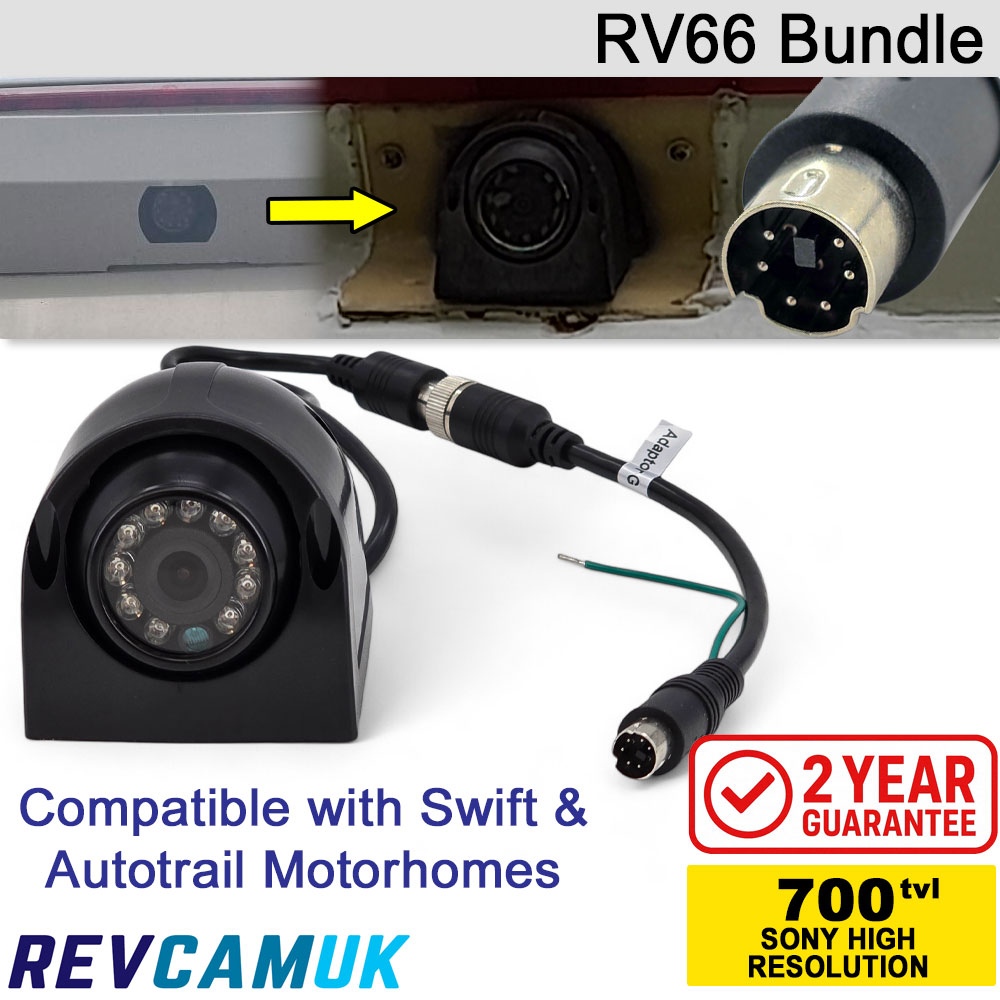

RV66 Compatible Replacement Reversing Camera with 6-Pin PS/2 Adaptor Bundle

A replacement bundle tailored for motorhome owners using the factory-fitted RV66 reversing camera system (especially in Swift and Autotrail vehicles). This package includes a black pod style reversing camera and a 6-pin PS/2 adaptor cable, allowing you to connect directly to your original wiring harness without needing a full rewiring job.

Key features

Direct replacement for factory-fitted RV66 pod camera systems
Black pod camera design, hidden behind trim (as per original)
Includes 6-pin PS/2 adaptor to convert from standard 4-pin fly lead to factory connection
Works with Swift and Autotrail motorhomes originally using Sargent / RV66 systems
Plug-and-play setup—no full rewiring required, just splice the adaptor to the reverse trigger wire if needed
UK tested / supported, premium quality replacement

More about this bundle

Designed for RV66 systems: This listing offers a camera built to replace the hidden black pod cameras used in many Swift and Autotrail setups. It restores reversing capability without the need to change the entire system.

Adaptor cable included: The kit includes a 6-pin PS/2 adaptor. This converts the camera’s 4-pin fly lead to the same connector format as the original factory wiring. If your original camera wiring had an orange trigger wire, you’ll need to splice the adaptor’s fly lead into the reverse trigger.

Camouflage pod design: The camera is designed to be hidden behind trim or covers, consistent with the factory aesthetic in many motorhomes.

Image quality & performance:
– 1/3" Sony CCD sensor
– 700 TVL resolution
– Infrared LEDs for night vision (0 Lux with IR)
– 120° wide angle lens
– Mirror image output (for rear view)
– IP68 waterproof rating

Specification snapshot

Camera type	Black pod reversing camera
Compatibility	Swift / Autotrail / Bessacarr RV66 factory systems
Adaptor type	6-pin PS/2 adaptor converting from 4-pin fly lead
Resolution / sensor	700 TVL, 1/3" Sony CCD
Lens / FOV	120° wide-angle
Night / IR	Infrared LEDs, 0 Lux with IR on
Waterproof rating	IP68

What’s in the box

Black pod reversing camera (RV66-compatible)
6-pin PS/2 adaptor cable (to convert from 4-pin fly lead)
Full instructions and wiring diagram

FAQ's

Ask a question about this product

Am I losing anything by using a 4 pin camera on a 6 pin connector?

Absolutely not. Most cameras only require between 3-4 pins to be in use. On the reversing camera, the adaptor does have a tail coming off (similar to what is on the original camera), this does allow the reverse light feed to run down one of the 6 pins to the EM 5 Series box at the front of the vehicle.

How many of these have you replaced with success

Many hundreds. We have had no issues in replacing the cameras with one of ours.

The adaptor cable has a wire coming of the lead, what do I do with that?

Approximately half of the installs had a reverse light connection (usually an orange coloured wire) connected up, the other half didn't. If yours did, you would solder/crimp our wire to this. If it didn't you would leave it unconnected, but please add insulation tape around the end to avoid it touching anything - it will connect to the reverse trigger pin of the 6-pin connector, so when the box at the front of the vehicle has reverse voltage, the trigger lead will also go live.
