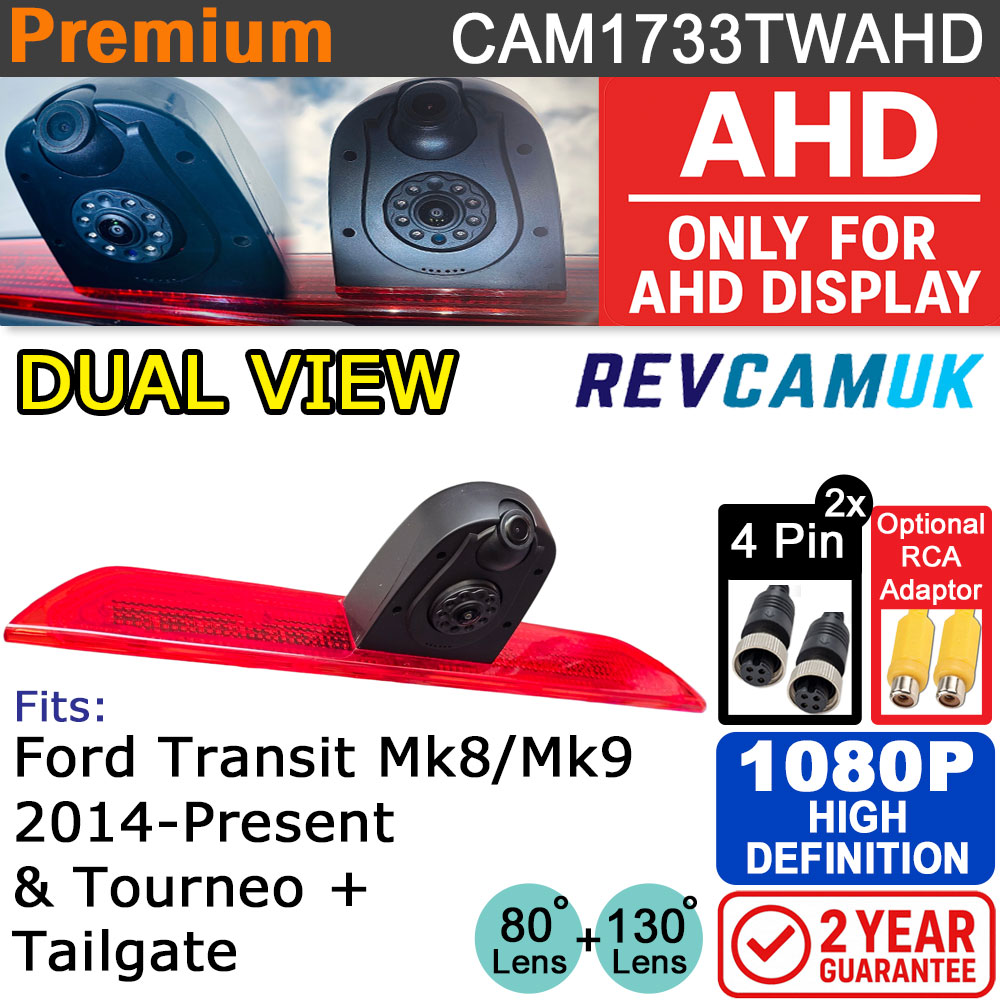

Ford Transit Dual-View Brake Light Reversing and Rear-View Camera 1080P AHD | CAM1733TW-AHD

Ford Transit Dual-View Brake Light Reversing and Rear-View Camera (1080P AHD) | CAM1733TW-AHD

The CAM1733TW-AHD Dual-View Brake Light Camera gives you both a wide reversing view and a rear-view driving perspective, making it useful throughout every journey. It replaces the upper brake light on Ford Transit (2014 – present) including Tailgate and Tourneo Custom models, combining two cameras in one neat factory-style unit. The downward lens shows a detailed 130° reversing image, while the second lens gives an 80° rear-view for more accurate distance judgement during driving.

Please note: This 1080P AHD twin-lens brake-light reversing and rear-view camera for Ford Transit is only compatible with AHD-compatible monitors and will not work with most factory or older displays. For the standard CVBS version, please see our Standard CVBS brake-light reversing camera for Ford Transit. You’ll find links to complete kits further down this page.

Key features

• Dual-view camera assembly – reversing and rear-view lenses in one brake-light unit
• Reversing lens: 130° horizontal view with infrared LED night vision
• Rear-view lens: 80° horizontal view for more accurate on-road perspective
• 1080P AHD picture quality using C2399 CMOS PAL sensors
• All-glass lenses for sharp detail and colour consistency
• Includes 10 m 7-pin cable (standard) and 7-pin → 2×4-pin adaptor
• IP68 rated housing for long-term durability
• Selectable on/off parking guidelines (loop wire)
• Compatible with AHD monitors
• Optional 4-pin → RCA adaptors and 10–15 m extension cables available

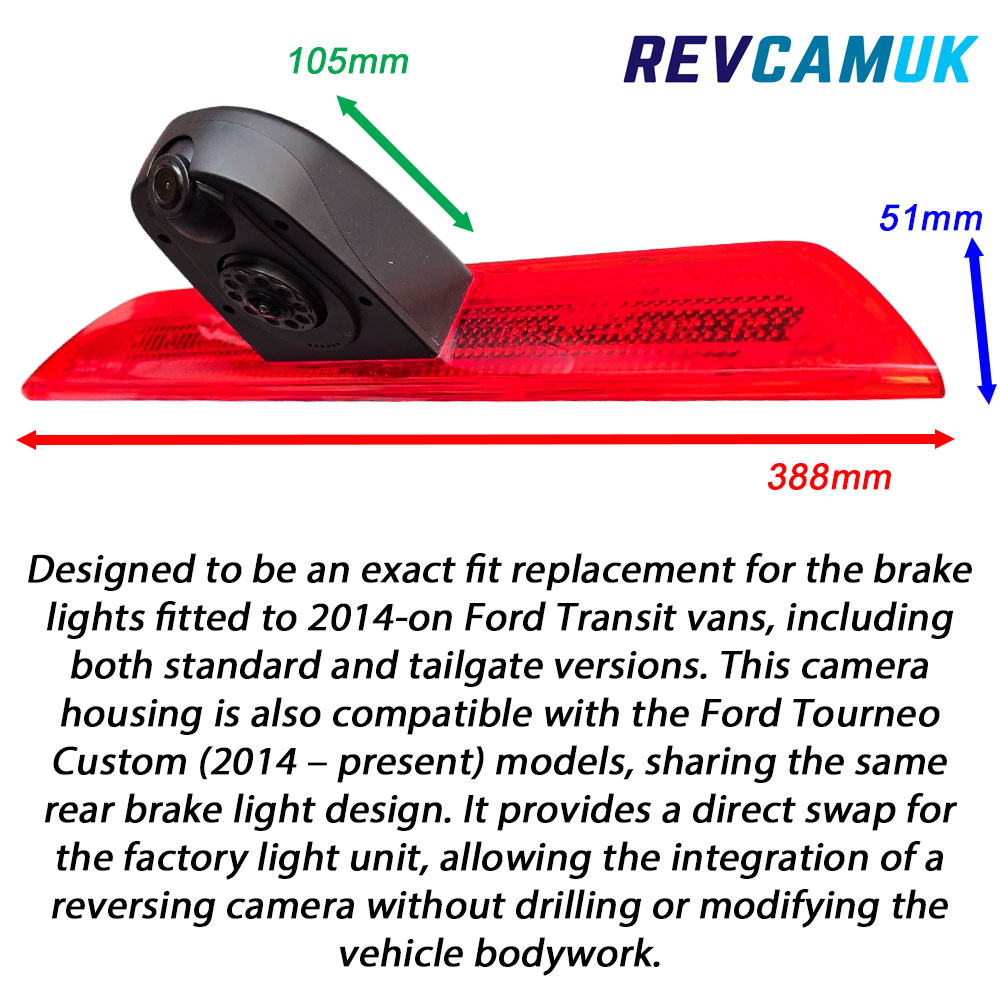

Vehicle fitment

AHD compatibility notice

Specification snapshot

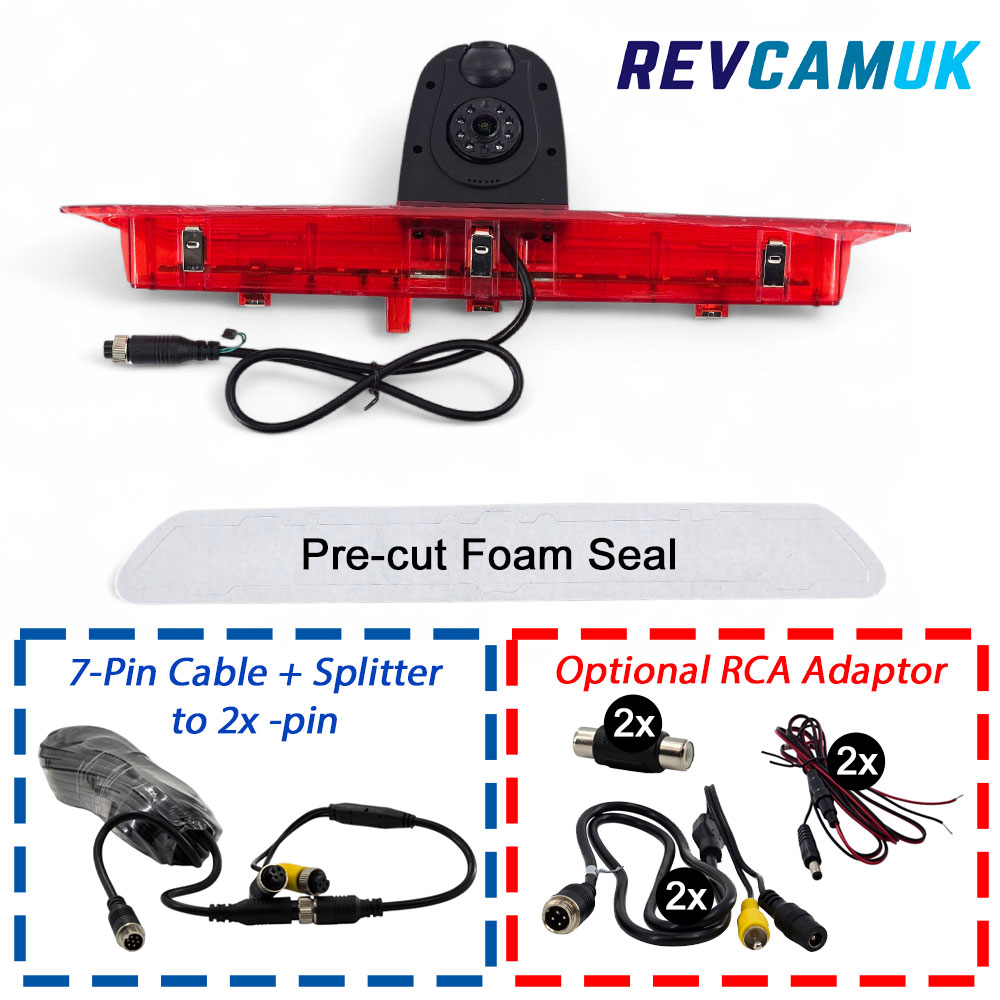

What’s in the box

• 1080P AHD Dual-View brake-light camera (CAM1733TW-AHD)
• 10 m 7-pin main cable (included)
• 7-pin → 2×4-pin adaptor (included)
• Optional 4-pin → RCA adaptors and extension cables (10–15 m, if selected)

Add a monitor and cable with one of our premium brake light reversing camera kits

If you would like a complete reversing camera kit for your van, including a display, please check out our links below. The kits come with this camera, a quality monitor, cabling, and a 2-year guarantee.

• With a mirror-monitor kit for Ford Transit Twin-View Brake Light Reversing Camera (select AHD option from drop-down menu)
• With a 7-inch monitor kit for Ford Transit Twin-Lens Brake Light Reversing Camera (select AHD option from drop-down menu)
• With a 5-inch monitor kit for Ford Transit Dual-View Brake Light Reversing Camera (AHD option unavailable but this kit will still be high quality)
