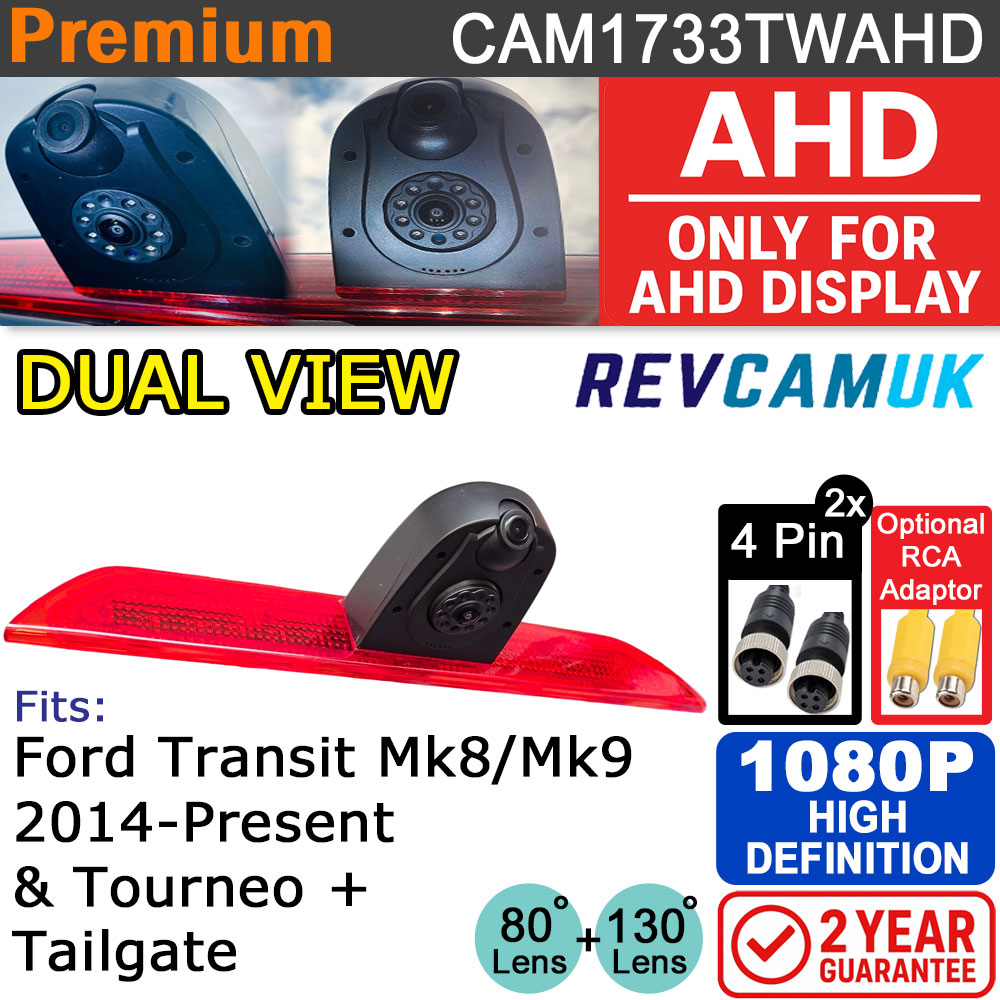

Ford Transit Dual-View Brake Light Reversing and Rear-View Camera 1080P AHD | CAM1733TW-AHD

Availability 10 item(s) available
Weight 0.50 kg
Product Code: CAM1733TWAHD
Price: £175.00
VAT Included £29.17

Ford Transit Dual-View Brake Light Reversing and Rear-View Camera (1080P AHD) | CAM1733TW-AHD

The CAM1733TW-AHD Dual-View Brake Light Camera gives you both a wide reversing view and a rear-view driving perspective, making it useful throughout every journey. It replaces the upper brake light on Ford Transit (2014 – present) including Tailgate and Tourneo Custom models, combining two cameras in one neat factory-style unit. The downward lens shows a detailed 130° reversing image, while the second lens gives an 80° rear-view for more accurate distance judgement during driving.

Please note: This 1080P AHD twin-lens brake-light reversing and rear-view camera for Ford Transit is only compatible with AHD-compatible monitors and will not work with most factory or older displays. For the standard CVBS version, please see our Standard CVBS brake-light reversing camera for Ford Transit. You’ll find links to complete kits further down this page.

Key features

  • Dual-view camera assembly – reversing and rear-view lenses in one brake-light unit
  • Reversing lens: 130° horizontal view with infrared LED night vision
  • Rear-view lens: 80° horizontal view for more accurate on-road perspective
  • 1080P AHD picture quality using C2399 CMOS PAL sensors
  • All-glass lenses for sharp detail and colour consistency
  • Includes 10 m 7-pin cable (standard) and 7-pin → 2×4-pin adaptor
  • IP68 rated housing for long-term durability
  • Selectable on/off parking guidelines (loop wire)
  • Compatible with AHD monitors
  • Optional 4-pin → RCA adaptors and 10–15 m extension cables available

Vehicle fitment

Compatible with the following vehicle models:

  • Ford Transit (2014 – present)
  • Ford Transit Tailgate Version (2014 – present)
  • Ford Tourneo Custom (2014 – present)

AHD compatibility notice

Please note: This is a high-definition 1080P AHD camera set. It must be used with a monitor or display that supports AHD video input. Standard-definition (CVBS) screens will not display an image. AHD-compatible displays are still relatively uncommon, but if you need one, please see our AHD monitor category.

Specification snapshot

Camera type Dual-view brake-light reversing and rear-view camera
Image sensors Two × C2399 CMOS (AHD 1080P, PAL)
Lenses All-glass optics (130° reversing / 80° rear-view)
Night vision Infrared LEDs on reversing camera only
Video format AHD 1080P (PAL)
Guidelines Selectable on/off (loop wire)
Waterproof rating IP68 sealed housing
Connector 7-pin aviation plug (with 7-pin → 2×4-pin adaptor included)
Cable length 10 m (main 7-pin cable included)
Guarantee 2-year UK warranty

What’s in the box

  • 1080P AHD Dual-View brake-light camera (CAM1733TW-AHD)
  • 10 m 7-pin main cable (included)
  • 7-pin → 2×4-pin adaptor (included)
  • Optional 4-pin → RCA adaptors and extension cables (10–15 m, if selected)

Add a monitor and cable with one of our premium brake light reversing camera kits

If you would like a complete reversing camera kit for your van, including a display, please check out our links below. The kits come with this camera, a quality monitor, cabling, and a 2-year guarantee.

Information correct as of 17:23, Thursday, November 20, 2025
