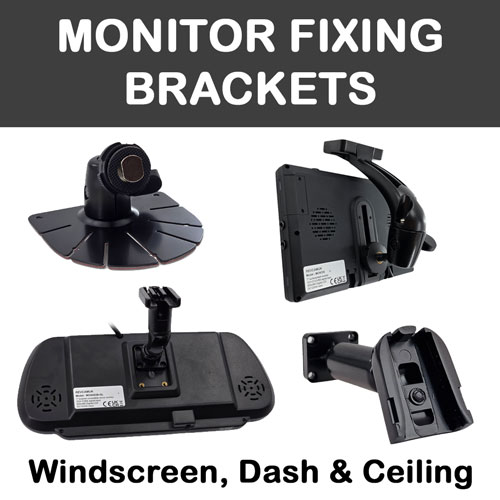

Fixing Brackets for Monitors

This bracket is quite common amongst lots of vehicle monitors.  The unit can swivel left and right as well as back and forth.  There is a square washer that will fit in to the rear channel of the monitor then the bolt will screw in to this square washer using the rear thumb screw.  There is also a thumb screw on the left of the bracket to tighten the movement back and forth of the monitor.  Supplied with a self adhesive base, the "butterfly wings" can be bent to match the curves of your dashboard.

This fits any of our monitors with the slide channel mounting on the back. Which is currently all our 5 and 7" monitors. It has a part that stays on the slider mechanism and clicks into place on the bracket, which remains on the dashboard. There is a thumb release switch on the back of the bracket that allows the user to unclick the monitor quickly from the bracket base.

We often get calls from people wishing to fit a dash monitor to a similar location to the rear view mirror. This bracket works with most of our monitors, the metal locator fits to the rear channel of the monitor and you twist the tightening wheel to lock the monitor in to position. The left hand side thumb screw allows the monitor to twist left or right and tilt up and down.

This fits any of our monitors with the slide mounting on the back.

This bracket is similar to our quick release bracket and is still quite easy to remove the monitor if needed by unscrewing the adjustment wheel behind the friction pad.  The metal groove slides in to the rear channels on most of our dash monitors, once at the desired position you will tighten the rear screw to lock the bracket and monitor in position.  The bracket can be spun left and right and monitor back and forth using the side thumb screw to tighten and loosen to allow adjustment.  The base is designed to be bent to shape for curvy dashboards and has a self adhesive pad on the base.  Screw holes are present if you wish to screw it down to a surface and the feet can be cut if placing in a compact space.

This bracket allows you to mount one of our stand / dash monitors to attach to the windscreen.  The bracket comes with a Ford/Universal metal mounting plate as standard to fit in to the bracket.  We have optional loctite 319 windscreen button mounting adhesive to fix this to the windscreen.  We also have optional mounting plates to convert some popular mounting plates/buttons in to the same shape as a Ford button for this bracket to attach to.

The metal groove slides in to the rear channels on most of our dash monitors, once at the desired position you will tighten the rear screw to lock the bracket and monitor in position.  The bracket has two ball joints for getting your desired angle.

We recommend not being too forceful when adjusting the angle whilst the bracket is attached to the windscreen.  This is out of an abundance of precaution to avoid stress cracking the glass.

• Swan-neck bracket for Mercedes Sprinter windscreen mounting plate
• Designed for vans with the hexagonal twist-fit OEM metal button
• Provides a clean factory-style mounting point for mirror monitors
• Supplied with screws for bracket-type mirror monitor attachment

• Swan-neck bracket for Ford and universal windscreen mounting plates
• Slides down onto OEM metal button for a secure factory-style fit
• Suitable for bracket-type mirror monitors (not clip-over monitors)
• Includes screws for attaching monitor to bracket
• Compatible with Transit, Custom, Connect and many other Ford models

• Hexagonal OEM-style windscreen mounting bracket
• Fits later Fiat Ducato, Peugeot Boxer, Citroen Relay and similar vans
• Also suitable for Dispatch, Expert and 2019+ Vivaro
• For bracket-style mirror monitors with 4 rear mounting screws
• Not compatible with clip-over mirror monitors

• Universal glue-on bracket kit for mirror monitors
• Includes metal button plate, ACCMB2 bracket and Loctite 319 adhesive
• Ideal for vehicles that do not have a factory windscreen mounting plate
• Suitable for vans, motorhomes and custom installations
• Bracket fits all mirror monitors with a 4-screw rear mounting plate
• Full instructions and downloadable PDF guide included

• Swan-neck bracket for VW Crafter, Transporter, Caddy and other models
• Twist-fit design locks onto the OEM windscreen mounting plate
• For bracket-type mirror monitors (not clip-over versions)
• Supplied with screws for attaching the monitor to the bracket
• Creates a neat, factory-style mounting position

• Swan neck mirror monitor bracket for selected Mercedes, Renault and Vauxhall/Opel vehicles
• Uses the factory windscreen mounting plate for a neat, OEM-style installation
• Compatible with our bracket-style mirror monitors (not clip-over types)
• Ideal for motorhomes, vans and conversions using these base vehicles
• Supplied with screws to secure the bracket to the rear of the mirror monitor

• Short ceiling-mounted bracket for bracket-style mirror monitors
• Ideal where a closer fit to ceiling mount position is preferred
• Compatible with our bracket-style mirror monitors (not clip-over types)
• Suitable for vans, motorhomes and commercial installations
• Includes screws to attach the bracket to the mirror monitor

• Universal ceiling-mounted swan neck bracket for mirror monitors
• Compatible with our bracket-style mirror monitors (not clip-over monitors)
• Allows secure, elevated mounting position inside the vehicle
• Ideal for vans, motorhomes, trucks, cabs and custom installations
• Supplied with screws to attach the bracket to the rear of the monitor

• Swan neck mirror monitor bracket for Fiat Ducato, Peugeot Boxer, Citroen Relay and Iveco Daily
• Designed to fit the common factory windscreen mounting plate on these vehicles
• Compatible with our bracket-style mirror monitors (not clip-over mirror monitors)
• Ideal for motorhomes, campervans and van conversions using these base vehicles
• Includes screws to secure the bracket to the rear of the mirror monitor

• Swan neck mirror monitor bracket for Renault, Nissan and Vauxhall/Opel vans
• Designed for the common windscreen mounting plate used across these models
• For bracket-style mirror monitors (not clip-over types)
• Includes screws for securing the bracket to the rear of the mirror monitor
• Ideal for commercial vans and campervan conversions

• Adaptor for factory-fitted metal windscreen plates
• Converts OEM plate into the same shape as ACCMB2
• Makes factory plate compatible with most universal mirror arms
• Works with Wolfbox, Autovox and similar “universal” style mounts
• Fits a wide range of vans including Ducato, Boxer, Relay, Expert and more
• Bracket not included – link provided below

• Adaptor for vehicles using the two-vertical-slot OEM windscreen plate
• Converts factory plate to ACCMB2-compatible universal mounting shape
• Makes OEM plate compatible with Wolfbox and similar universal mirror arms
• Locks to the original plate using the supplied Allen key
• Bracket not included – adaptor plate only
• Suitable for Mercedes, Renault, Nissan, Vauxhall and pre-2017 VW Crafter
