1920*1200 Full HD Monitor with MIMO Display for AHD Reversing Cameras - 3 Channel | MON709AHD

Price

£190.00

VAT Included £31.67
Availability IN STOCK
Product Code: MON709AHD
4 Pin to RCA Adaptor?
Add extra monitor bracket?
Add a lighter plug?
Add a fuse tap?
Quantity
(from 1 to 10)

If you'd like this by

Order within ::

(Please select Next Day Delivery Option - Mainland UK only) Terms Apply

Description

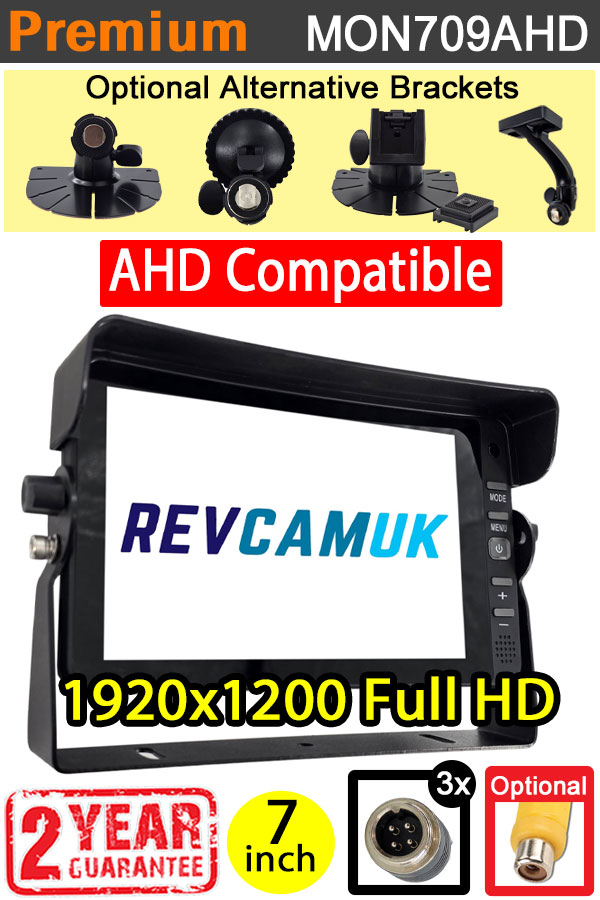

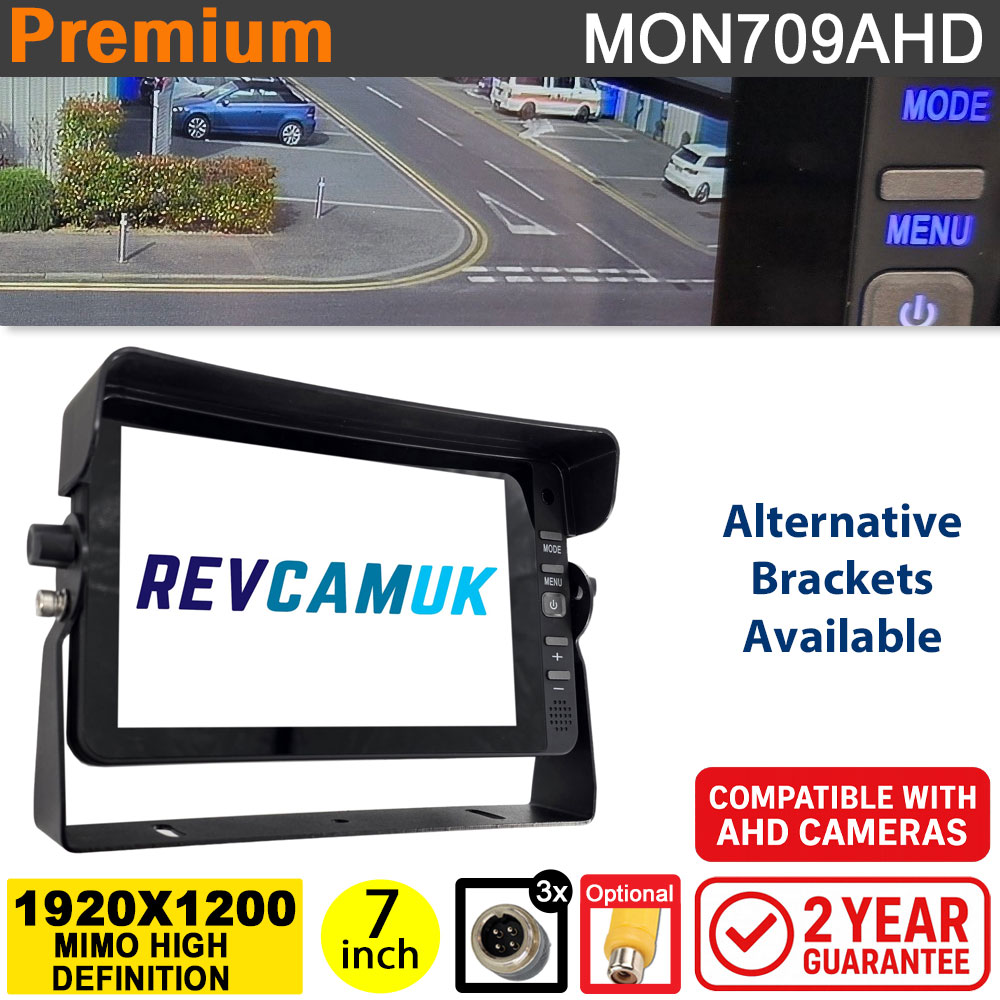

Full HD (1920x1200 Pixels) Monitor with 7" MIMO technology Display for High Definition Reversing cameras - 3x inputs (AHD-720P/1080P/CVBS)

  • Amazing 7" MIMO 1920x1200 Panel Display - We are very lucky to be able to acquire this monitor from one of our favourite manufacturers. They initially struggled to purchase the MIMO panels, as the minimum order quantity was so excessive. After some consistent persuasion they were finally able to get a sensible number to produce this amazing monitor. This panel is usually used for tablet displays, and as such will show off our range of 1080P AHD Reversing Cameras to their maximum definition.
  • 3 Channel Inputs (up to 1080P AHD) - The monitor wiring is fitted with 3 channel inputs, which can be selected between using either a button on the display, the remote control, or via trigger activation wires, e.g. reverse light (3 wires supplied if you wish to use).
  • Removable Sunshade - If you have a bright cabin in your vehicle, you can use the supplied sunshade to prevent glare on the screen. This is easily removable at any time. Please note that being a tablet style screen, the glass is more reflective than the matt finish we have on our alternative stand/dash monitors, so if you have a bright cab you would probably require this sunshade to be kept on.
  • Works on 12V and 24V Vehicles - This monitor can work on Vans, Motorhomes, HGV, LGV, etc., thanks to the 12-32V working voltage range. It will protect the cameras by ensuring a stabilised 12V supply is sent down the 4-pin cable.
  • Heavy-Duty Side Mounting Bracket Supplied - This monitor has a heavy-duty "u" bracket that attaches to the side mounting points. This durable bracket strongly holds the monitor securely in even the bumpiest environments. The bracket can be inverted to hang the monitor from the ceiling (if desired).
  • Optional Brackets Available to fit Rear - The monitor is equipped with a rear central channel, allowing our large range of vehicle monitor mounting brackets to be fitted.

Please kindly note :- Although the monitor can be used with traditional standard definition (SD) reversing cameras, we find that the result is not as good as a dedicated standard definition monitor. This monitor will perform at its best with AHD signal reversing cameras.

Video

High Definition Reversing Camera Display for AHD 1080P Vehicle Cameras

Our MIMI panel Monitor Display in action with Reversing Camera

Display Panel Technology : MIPI (Mobile Industry Processor Interface)
Screen Ratio : 16:9
Resolution : 1200*RGB*1920
Backlight Luminance : 450 cd/m2
Contrast : 1200:1
FPS : 1080P: P25f/s, N30f/s
Viewing Angle : UP-80°, DOWN 80°, LEFT 80°, RIGHT 80°
Working temperature -10~+60 ºC
Working humidity : 85%RH
Storage temperature -30~+70 ºC
Power supply : DC12-24V
Boot time : 2S
Current consumption : DC12V/320mA
OSD control : Image display, Reversing delay, Image mode, System setting
Power consumption : 4W
Signal input : 3CH AHD 1080P / 720P / CVBS input, 2CH audio input
Compatible with CVBS and AHD signals
Compatible with PAL and NTSC systems
Language : Simplified Chinese, English, Traditional Chinese (8 kinds of language)
Image display : 3CH single image display
Trigger : 3CH trigger control, could set reversing delay
System : PAL/NTSC automatically
Shockproof level : 4G
Size : 194*115*26MM
