7" Heavy Duty Dash Screen + Sony (CCD or CMOS option) Bullet Bumper/Flush Reversing Camera Kit - PM84

Price

£192.00

VAT Included £32.00
Availability IN STOCK
Product Code: KIT-PM84
Cable Length
Add extra monitor bracket?
Add a lighter plug?
Add a fuse tap?
Image Sensor Choice
Quantity
(from 1 to 17)

If you'd like this by

Order within ::

(Please select Next Day Delivery Option - Mainland UK only) Terms Apply

Description

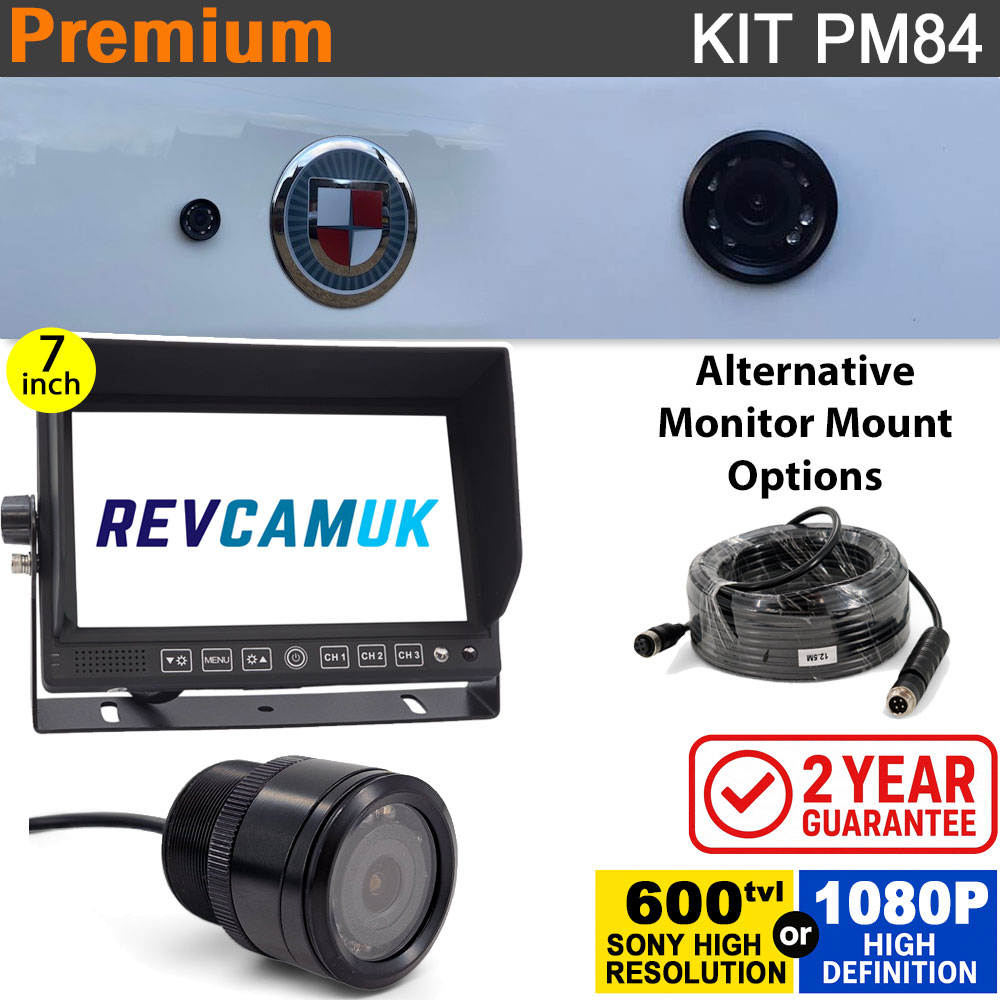

About the PM84 Bumper/Bullet Mount Reversing Camera Kit with 7 inch Heavy Duty monitor

Great Image Quality - Whether you choose the standard definition version with the Sony CCD image sensor, or you opt for the upgraded version with the 2399 camera image sensor fitted and the upgraded IPS panel display you can be assured of a great picture.

IP68 Waterproof Camera - Sometimes bumper cameras have a bad reputation for leaking, but not this camera. We have stocked this model from the same supplier for numerous years with no issues. We believe this is because this camera is constructed with mechanical seals versus applying sealant (common elsewhere). Please kindly note that on the Sony CCD option there is an inline voltage regulator on the cable that should be kept dry, if you aren't able to get this somewhere protected, please select the AHD upgrade version.

Night Vision IR LEDs - The camera is fitted with IR LEDs to provide the camera with a light source to illuminate the area behind the camera. This is not visible to the human eye, so won't disturb any drivers behind you, but it will be useful to the camera to provide you with an image showing any hazards in the dark.

Two-Year Guarantee - We stand behind our products. Performance and reliability are the most important factors for us when curating our range. This means if a factory defect shows itself during the 24-month period after sale, we will provide a replacement for the affected item.


    Add an additional monitor bracket/mount

    We can supply a discounted additional mount/bracket for the monitor when ordered at the same time as the kit.  Please see the photo below, and make your selection using the drop down menu above the add to cart button.

    Bracket selection for dashboard mounted rear view monitors

    See our video below for details about the brackets in the photo above.


    Choice of kit power options

    • On the monitor wiring harness is a 2.1mm DC socket. On the drop down menu of this product, you can select your desired power lead to plug in to this.
    • The standard hardwiring is supplied with all options, this terminates in a red wire (+12V/+24V), and black wire (earth).
    • For the ultimate quick install is a lighter plug option. Some people also order this just for the initial setup, before changing to the standard hardwiring/fuse tap.
    • Fuse taps aka piggyback fuse holders, are the most recent addition to our options. This allows you to "piggyback" off an existing circuit from your fuse box. The most common size fuse found in modern vehicles is the mini blade (size = 10.9mm wide x 16.4mm tall), older vehicles are likely to have the standard blade (size = 19.1mm wide x 18.8mm tall). Download and read our Fuse Tap installation instructions PDF for more information.
    • Our fuse taps were designed by us, they have a 200cm lead that connects directly to the monitor socket with no soldering / crimping required. There is a black wire with an earth terminal attached - designed to fix to a chassis bolt/screw.  This earth wire/terminal can be separated away from the red wire to enable you to find the most convenient ground/earth (although often this is next to the fuse box).
    Power Supply Options including lighter plug and piggyback fuse taps

    Easy-Fit Wiring

    • We have been using this type of cabling since 2007, and it has performed perfectly in all of this time. It is called the 4 pin aviation cable, and uses what is known as a 4 pin GX12 connector.
    • This type of connector is very durable, and can be kept outside exposed to rain and freezing temperatures.
    • It makes fitting easier, and avoids CANBUS issues due to the monitor powering the camera.
    • It keeps contacts clean and dry, plus prevents them from accidental separation.
    • It has become the industry standard connector, which means you aren't forced to buy future cameras/cables/upgrades from one retailer - as parts are interchangeable between numerous suppliers (although we are confident you will be impressed enough with us that you will choose us for any future upgrades/spare parts).
    • All of our aviation extension cables are high quality, with the inner cores consisting of pure copper. We do not use the cheaper CCA (Copper Coated Aluminium) or CCS (Copper Coated Steel) cables, because they are more prone to failure/degradation over time.

    Image Sensor for Camera

    An image sensor is the part of the camera that detects and captures information to make an image.  You have two choices (selectable using the drop down box).  The Sony CCD image sensor is coupled with a 90 degree lens, whilst the Sony CMOS image sensor is coupled with an even wider angle 120 degree lens.

    Sony CCD or Sony CMOS image sensor choice

    Monitor has Digital LCD Panel - Not Standard LCD

    The monitor uses a Hi-Res digital panel screen with more than 3 times the amount of pixels of the standard analogue LCD screens most other retailers sell.   (Please note some sellers multiply the first number by 3 for RGB, if we were to do that it sounds even more impressive (2400x480).  We prefer to keep it simple but check carefully our competitors, the last number is normally better to go by as this is the number of vertical lines of pixels.


    System Suitability

    Our systems work on either 12V or 24V, no switches it will adjust to the voltage automatically, this also protects the kit from any surges from the vehicle upto 32V, which is why we have such a good reliability record from these voltage protected kits.


    2 Year Guarantee

    We supply with a 2 year Guarantee with us, meaning we will repair or replace any non-user damaged parts that are deemed faulty.  Our failure rate is very low even beyond these two years, if you have a problem outside of 2 years we should still have compatible parts and possible repairs for reasonable amounts.


    Parts Tested in the UK

    The parts of this kit will have been tested twice, once by the factory and once by us.  We check all the items in the kit including all cables, trigger wires, IR leds and menu functions to reduce any chance of having a non working part.  Our fault rate is extremely low, and we just like to ensure that we avoid any imperfection slipping past.  This is why professional fitters love us.


    What cable length should I select?

    Rough guide:

    5M is good for a car

    10M is good for a medium length van (around 6M)

    12.5M is good for most vehicles up to around 8.5M long (covers most motorhomes except the super long)

    15M is good for vehicles up to around 10/11M eg rigid lorry, small coach.

    20M is good for super long vehicles


    Auto-dimming brightness on monitor

    The monitor is equipped with a light sensor which when the ambient light gets dark eg at night or when driving through the tunnel, the brightness of the picture will dim down slightly to help reduce glare as well as the backlight for the control buttons illuminating to assist with identifying the button functions.

    FAQ'S

    Yes you can, the monitor powers the camera, this means you can choose to watch the camera at any point, you can drive with it "always on".

    Our easy wire fuse tap options are new for 2023.  We designed a fuse tap that plugs in to a socket that is present on all of our monitor wiring harnesses.  The other side has a "piggyback" fuse holder aka fuse tap.  You identify a fuse in the fuse box that comes on/off with the ignition (see piggyback fuse holder / fuse tap instructions here - PDF download).  The original fuse is placed in to the new fuse tap, plus there is a new fuse already present for the reverse camera kit.  On the same wiring there is an earth terminal connector, simply attach this to a chassis bolt (usually near the fuse box, or add your own).

    Rough guide:

    • 5M is good for an average size car
    • 7.5M is good for large cars and shorter wheelbase vans
    • 10M is good for a medium length van (around 6M)
    • 12.5M is good for most vehicles up to around 8.5M long (covers most motorhomes except the super long)
    • 15M is good for vehicles up to around 10/11M eg rigid lorry, small coach.
    • 20M is good for super long vehicles

    The camera is fitted with angled spacer rings. If you place the thinner of the two on the outside of the mounting surface, then place the corresponding one on the opposite side behind the mounting surface, then tighten the locking securing ring, you will have approximately 15 degrees of adjustment to play with. Please note that this won't make the camera as flush as it does when you don't use the angled rings.

    Detailed Images

    Our general 4 pin cable based fitting instructions.

    4 pin reversing camera kit fitting instructions

    Our fitting instructions for installing a flush fitting bumper/bullet reversing camera on to a car, van, motorhome.

    Bumper Reverse Parking Cameras Instructions

    Monitor Specs (Sony CCD Option)

    Screen Ratio : 16:9
    Back Light Luminance : LED, 300 cd/㎡
    Resolution : 800 x RGB x 480
    Compatible System : NTSC & PAL (automatically)
    OSD Control : Colour, Brightness, Contrast, Volume, Language (English, Deutsch, French, Spanish, Portuguese, Italian, Dutch, Simplified Chinese)
    View Angle : Horizontal L(70) R(70), Vertical UP(50) DOWN(70)
    Image Reversion : UP/Down and Left/Right
    Power Requirement : 12V DC (12–24V DC optional)
    Power Consumption : 5W
    Storage Temperature : -30°C to 80°C
    Working Temperature : -20°C to 70°C
    Size : 180 x 121 x 23 mm
    Weight : 543g
    Key Colour : Black with blue light
    AV Inputs : 3-way video input, 2-way audio input
    Number of Trigger and Display : 3 triggers
    Other Features : Built-in speaker, with removable visor

    Monitor Specs (Upgrade 2399 1080P AHD Option)

    Screen ratio : 16:9
    Resolution : 1024*R.G.B*600 BOE
    Backlight Luminance : LED backlight
    Brightness : 400 cd/m²
    Contrast Ratio: 500:1
    Contrast : 500:1
    Frame rate 1080P : P25f/s / N30f/s
    Viewing angle : UP—85°,DOWN—85°,LEFT—85°,RIGHT—85°
    Working temperature : -20~+70 ºC
    Working humidity : 85%RH
    Storage temperature : -30~+85 ºC
    Power supply : DC12-24V
    Boot time : 2S
    Current consumption type : DC12V/500mA
    OSD control : Display image, reversing delay, image mode, system settings
    Power consumption : <4W
    Signal input : 3CH AHD 1080P / 720P / CVBS input, 2CH audio input (1+2), compatible with CVBS and AHD signals, compatible with PAL and NTSC systems
    Image display : 3CH single image display
    Trigger : 3CH trigger control, could set reversing delay
    System : PAL/NTSC automatically
    Shockproof level : 4G

    Camera Specs (Sony 1/3" 600tvl CCD Option)

    Image Device:1/3 Sony 600TVL CCD
    TV System: PAL
    Effective Pixels: 648H*488V
    Resolution: 600 TV lines
    Minimum Illumination:0.01 Lux (IR leds on)
    Lens Angle 90 degrees (D)
    Waterproof to Ip68
    Infra red LEDs to provide night view
    Mirror image

    Camera Specs (Upgrade 2399 1080P AHD Option)

    Image Sensor : 1/2.7 CMOS 2399
    Effective Pixels : 1920(H) * 1080(V)
    TV System : PAL
    Lens : 1.9mm
    Min illumination 0Lux (LED ON)
    IR LED : 10pcs
    Night Vision Distance : 10M
    Waterproof : IP68
    Viewing angle : 95°(D) x75°(H) x60°(V)
    Power Voltage : 12V
    Current Consumption : 150 mA
    Operating temperature : -20℃~+70℃
