7" Dash Monitor + Bullet Bumper/Flush Reversing Camera Kit - PM64
Description
About the 7 inch stand/dash monitor and flush bumper reversing camera kitOur complete reversing camera kit comprising of a 7 inch monitor with stand/bracket choice options, as well as a flush fitting bullet/bumper reversing camera with image sensor quality options, plus all the cabling required. Great Image Quality - Whether you choose the standard definition version with the Sony CCD image sensor, or you opt for the upgraded version with the 2399 camera image sensor fitted and the upgraded IPS panel display you can be assured of a great picture. IP68 Waterproof Camera - Sometimes bumper cameras have a bad reputation for leaking, but not this camera. We have stocked this model from the same supplier for numerous years with no issues. We believe this is because this camera is constructed with mechanical seals versus applying sealant (common elsewhere). Please kindly note that on the Sony CCD option there is an inline voltage regulator on the cable that should be kept dry, if you aren't able to get this somewhere protected, please select the AHD upgrade version. Night Vision IR LEDs - The camera is fitted with IR LEDs to provide the camera with a light source to illuminate the area behind the camera. This is not visible to the human eye, so won't disturb any drivers behind you, but it will be useful to the camera to provide you with an image showing any hazards in the dark. Two-Year Guarantee - We stand behind our products. Performance and reliability are the most important factors for us when curating our range. This means if a factory defect shows itself during the 24-month period after sale, we will provide a replacement for the affected item. Choice of kit power options
![]() Additional monitor bracket/mount optionsWe can supply a discounted additional mount/bracket for the monitor when ordered at the same time as the kit. Please see the photo below, and make your selection using the drop down menu above the add to cart button. ![]() See our video below for details about the brackets in the photo above. Easy-Fit Wiring
![]() Image Sensor for CameraAn image sensor is the part of the camera that detects and captures information to make an image. You have two choices (selectable using the drop down box). The Sony CCD image sensor is coupled with a 90 degree lens, whilst the Sony CMOS image sensor is coupled with an even wider angle 120 degree lens. ![]() Monitor has Digital LCD Panel - Not Standard LCDThe monitor uses a Hi-Res digital panel screen with more than 3 times the amount of pixels of the standard analogue LCD screens most other retailers sell. (Please note some sellers multiply the first number by 3 for RGB, if we were to do that it sounds even more impressive (2400x480). We prefer to keep it simple but check carefully our competitors, the last number is normally better to go by as this is the number of vertical lines of pixels. ![]() System SuitabilityOur systems work on either 12V or 24V, no switches it will adjust to the voltage automatically, this also protects the kit from any surges from the vehicle upto 32V, which is why we have such a good reliability record from these voltage protected kits. ![]() 2 Year GuaranteeWe supply with a 2 year Guarantee with us, meaning we will repair or replace any non-user damaged parts that are deemed faulty. Our failure rate is very low even beyond these two years, if you have a problem outside of 2 years we should still have compatible parts and possible repairs for reasonable amounts. ![]() Parts Tested in the UKThe parts of this kit will have been tested twice, once by the factory and once by us. We check all the items in the kit including all cables, trigger wires, IR leds and menu functions to reduce any chance of having a non working part. Our fault rate is extremely low, and we just like to ensure that we avoid any imperfection slipping past. This is why professional fitters love us. ![]() Optional Guidelines displayed when reverse selectedIf you want to see the guidelines you can turn these on and off in the menu and even change the location of the guidelines and the numbers, plus change the display from ft to M. The guidelines will only work on the reversing channel and when the trigger wire for this channel is active. It won't bother you when driving forward and wanting to view the camera on all the time. |
FAQ'S
Our easy wire fuse tap options are new for 2023. We designed a fuse tap that plugs in to a socket that is present on all of our monitor wiring harnesses. The other side has a "piggyback" fuse holder aka fuse tap. You identify a fuse in the fuse box that comes on/off with the ignition (see piggyback fuse holder / fuse tap instructions here - PDF download). The original fuse is placed in to the new fuse tap, plus there is a new fuse already present for the reverse camera kit. On the same wiring there is an earth terminal connector, simply attach this to a chassis bolt (usually near the fuse box, or add your own).
![]() | ![]() |
Rough guide:
- 5M is good for an average size car
- 7.5M is good for large cars and shorter wheelbase vans
- 10M is good for a medium length van (around 6M)
- 12.5M is good for most vehicles up to around 8.5M long (covers most motorhomes except the super long)
- 15M is good for vehicles up to around 10/11M eg rigid lorry, small coach.
- 20M is good for super long vehicles
The camera is fitted with angled spacer rings. If you place the thinner of the two on the outside of the mounting surface, then place the corresponding one on the opposite side behind the mounting surface, then tighten the locking securing ring, you will have approximately 15 degrees of adjustment to play with. Please note that this won't make the camera as flush as it does when you don't use the angled rings.
Detailed Images

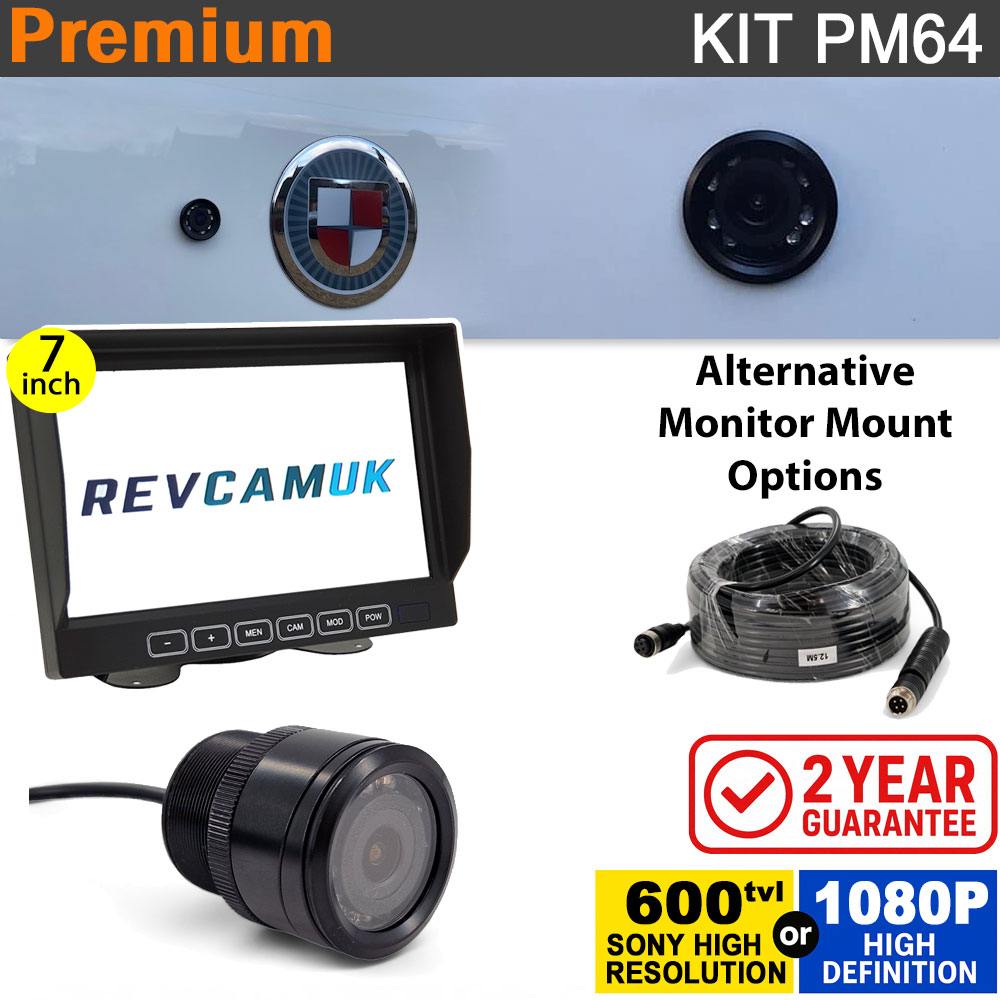

Many thanks to Apex Motorhome services for their photo of our bumper camera fitted to their customers vehicle

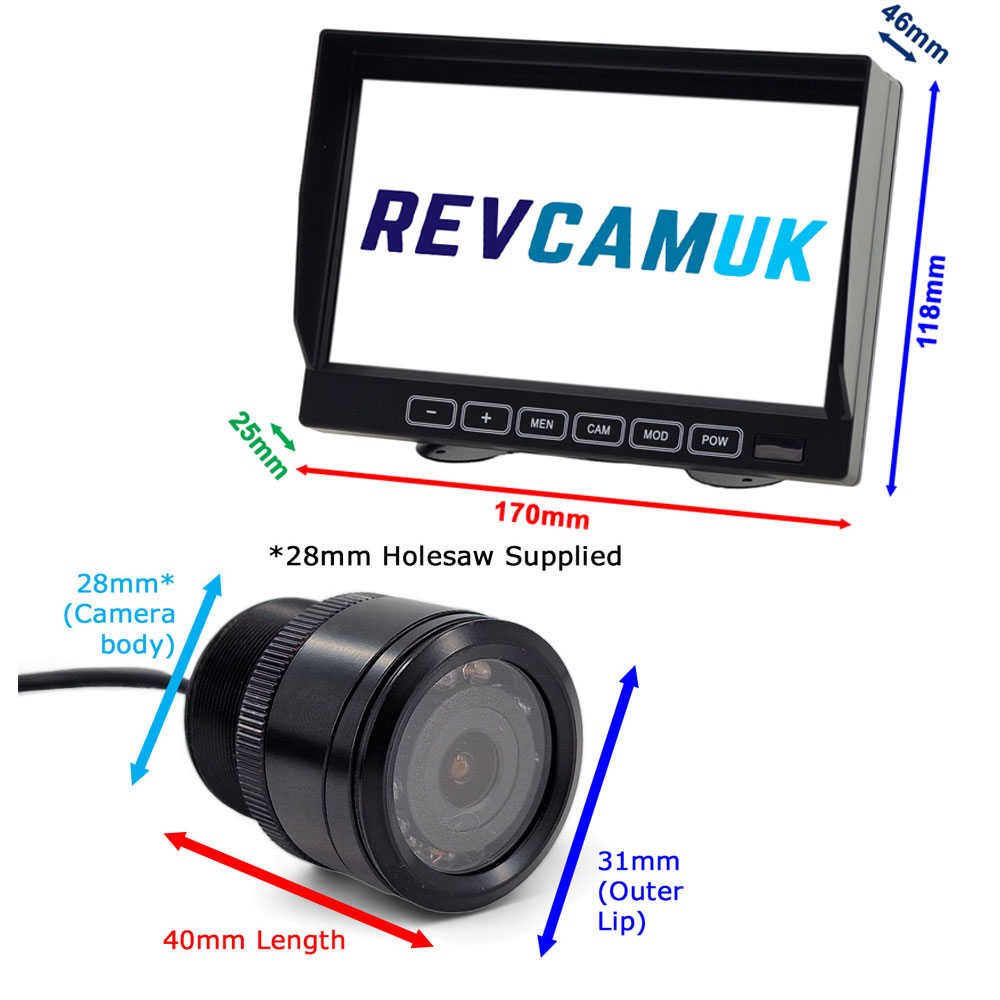

Monitor Dimensions

Camera Dimensions

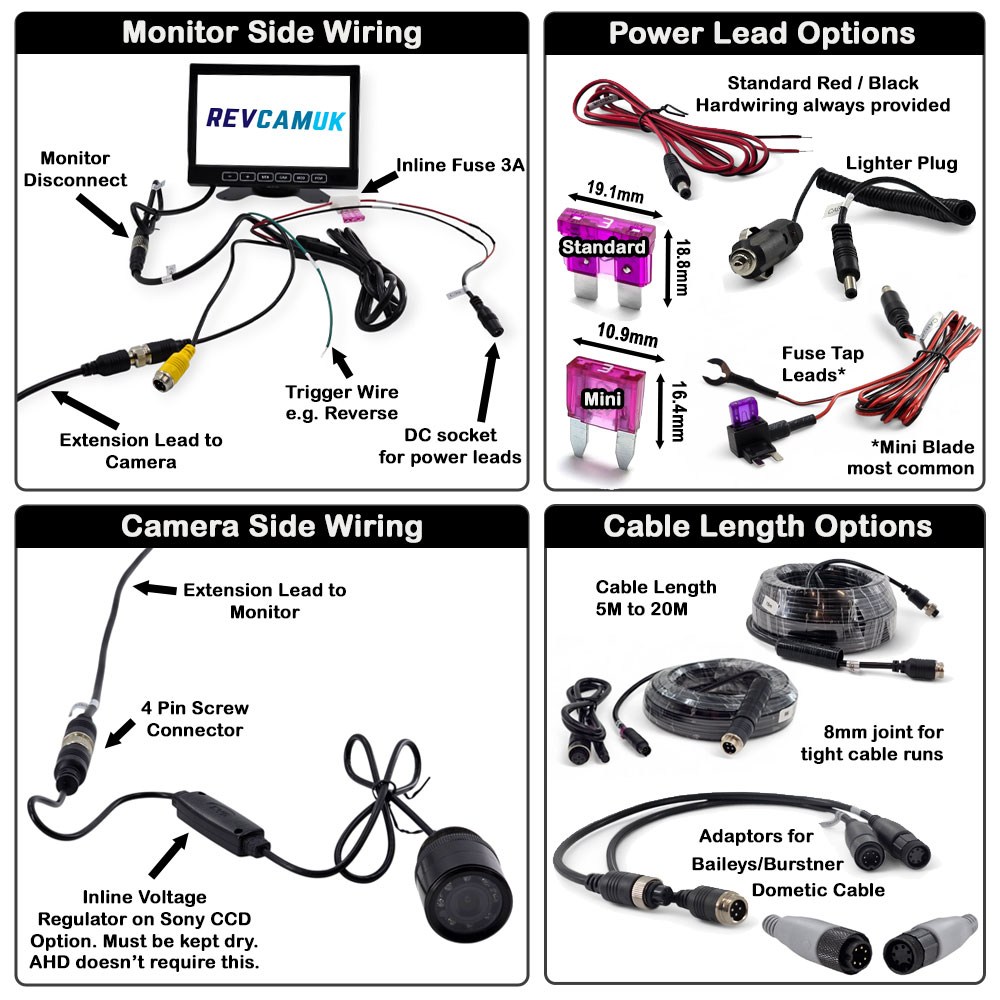

Wiring Layout (monitor side)

Wiring Layout (camera side)

Choice of power connection method to insert in to the monitor power socket (powers complete kit)

Selection of additional brackets that can be ordered to fit the monitor. Discount price when ordered with kit. Standard bracket is still supplied.

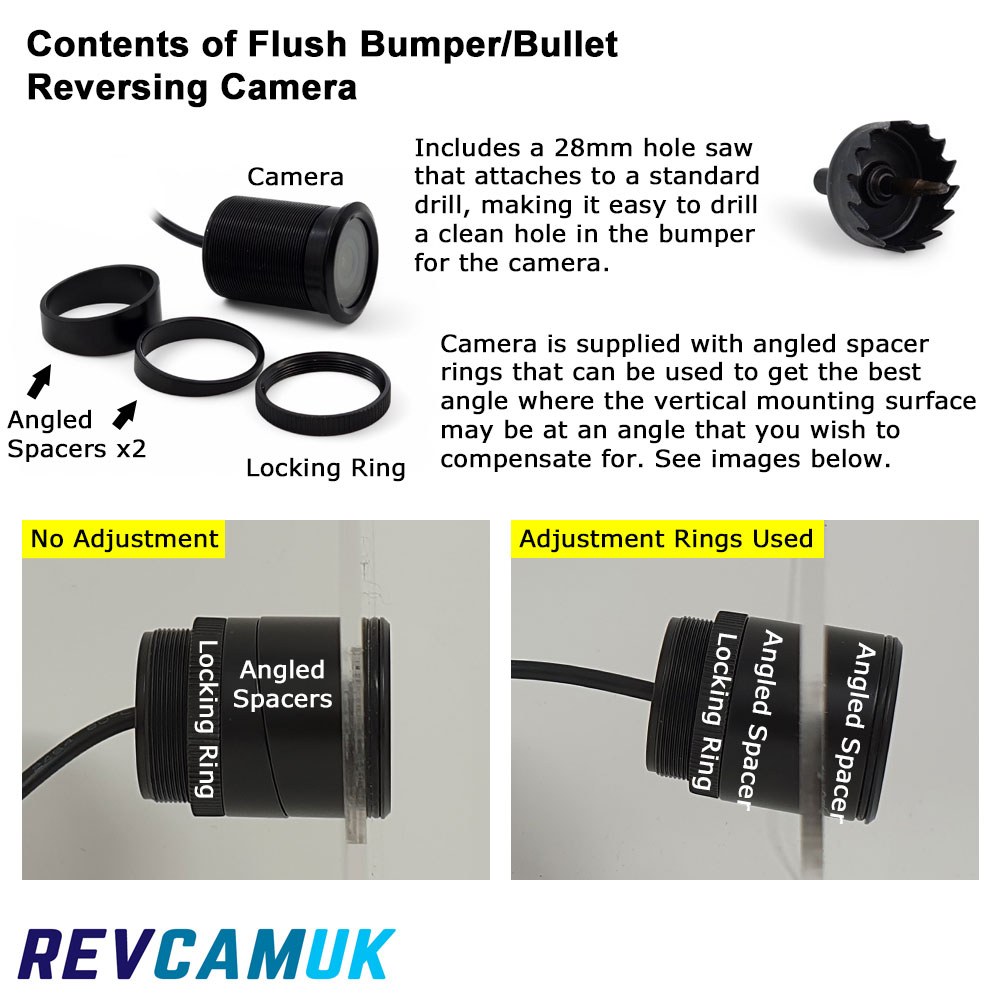

Flush Bumper Camera Contents and Angle Adjustment Rings
Monitor Specs (Sony CCD Option)7” Colour LCD screen Monitor Specs (Upgrade 2399 1080P AHD Option)7” Diagonally Measured Colour IPS screen Camera Specs (Sony 1/3" 600tvl CCD Option)Image Device:1/3 Sony 600TVL CCD Camera Specs (Upgrade 2399 1080P AHD Option)Image Sensor : 1/2.7 CMOS 2399 |
