Description

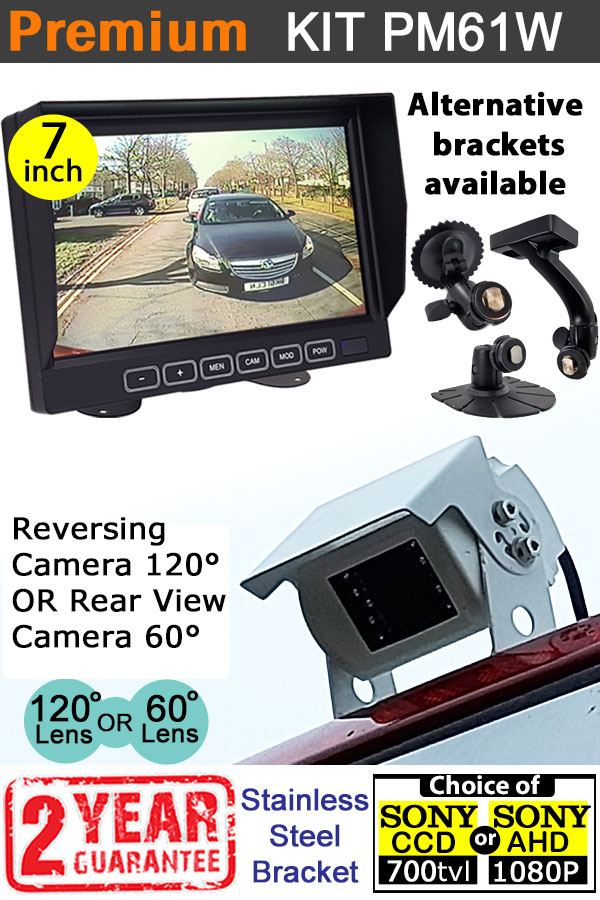

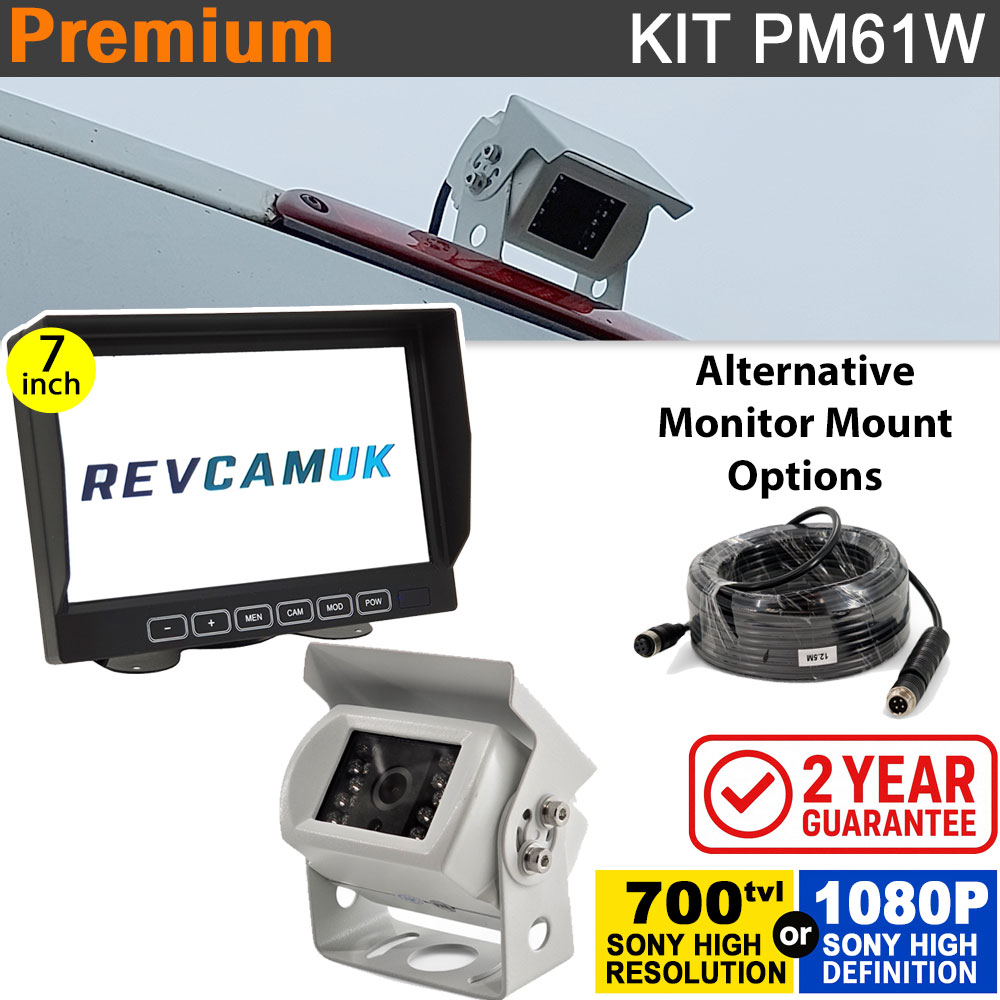

PM61W White Bracket Reversing Camera Kit with 7-inch Dash Monitor

A premium reversing camera kit designed for vans, motorhomes, and HGVs. It pairs a 7-inch dash-mounted display with a white stainless-steel bracket camera using a Sony CCD 700TVL image sensor for excellent image quality. Customers can choose between a 120° wide-angle lens for reversing or a 60° narrow-angle lens for constant rear-view driving. An optional Sony AHD 1080P upgrade is also available for higher definition, and even more vibrant colours.

Key features

7-inch dash monitor with high-resolution digital LCD panel
White stainless-steel bracket reversing camera
Choice of lens: 120° wide (reversing) or 60° narrow (rear-view driving)
Choice of Sony CCD 700TVL (standard) or Sony AHD 1080P upgrade
Infra-red assisted night vision
12–24 V DC input with built-in surge protection up to 32 V
Durable 4-pin aviation connectors for secure, weatherproof wiring
Optional lighter plug or fuse tap for quick installation
UK tested and supported, with 2-year guarantee

More about this kit

Camera Upgrade option: The Sony CCD sensor gives a great, colourful, high-resolution image. The AHD 1080P high-definition upgrade improves this even further.

Lens choice: The wide 120° lens is ideal for reversing, showing a larger field of view to improve safety. The narrower 60° lens is designed for constant rear-view driving, giving a clearer road perspective without distance distortion.

Lens Angle Choice 120 degrees Wide Angle vs 60 Degrees Narrow Angle

Rust-Resistant Camera Bracket Design: The stainless-steel bracket protects against corrosion, keeping your camera looking good for many years to come.

Rust Resistant Stainless Steel Bracket Icon

Monitor quality: The 7-inch display uses a true digital LCD panel with more than three times the pixel count of analogue screens, ensuring crisp, clear images in all light conditions. AHD upgrade increases this by a further 60% thanks to an IPS panel upgrade.

Easy installation: All-in-one aviation cable powers the camera directly from the monitor, avoiding CANBUS errors common with traditional reverse-light wiring. Optional lighter plug and fuse tap adaptors are also available.

UK-tested reliability: Each kit is tested twice, at factory and again in the UK, checking cables, IR LEDs, and menu functions to ensure consistent performance.

Specification snapshot

Monitor	7-inch digital LCD display, 800x480 resolution, 2 inputs, PAL/NTSC auto, remote control (1024x600 IPS if upgrade selected)
Camera	White stainless-steel bracket camera
Camera sensor	Sony CCD 700TVL (standard) or Sony AHD 1080P (upgrade)
Viewing angle	120° wide (reversing) or 60° narrow (rear-view driving)
Weatherproofing	IP68 waterproof housing, stainless bracket
Power	12–24 V DC, surge protected to 32 V
Guarantee	2-year UK warranty and lifetime support

What’s in the box

7-inch dash monitor with butterfly bracket
White bracket reversing camera (lens choice: 60° or 120°)
Main harness and 4-pin camera lead (12.5 m standard length)
Standard hardwire lead, optional lighter plug or fuse taps
Optional additional monitor bracket if selected

Cable length guide

5 m: cars and short vans
7.5 m: long cars and short vans
10 m: medium vans
12.5 m: long vans and motorhomes
15 m: long motorhomes
20 m: HGVs and long vehicles

Supplied with one 4-pin aviation cable – choose your preferred length at order.

Detailed Images

Photo from a customer of the kit mounted to his tractor inside a building

Monitor Dimensions

Camera Dimensions

Wiring Layout (monitor side)

Wiring Layout (camera side)

Choice of power connection method to insert in to the monitor power socket (powers complete kit)

Selection of additional brackets that can be ordered to fit the monitor. Discount price when ordered with kit. Standard bracket is still supplied.

Monitor Bracket Options

Additional monitor bracket/mount options

We can supply a discounted additional mount/bracket for the monitor when ordered at the same time as the kit. Please see the photo below, and make your selection using the drop down menu above the add to cart button.

See our video below for details about the brackets in the photo above.

Power Options Info

Choice of kit power options

On the monitor wiring harness is a 2.1mm DC socket. On the drop down menu of this product, you can select your desired power lead to plug in to this.
The standard hardwiring is supplied with all options, this terminates in a red wire (+12V/+24V), and black wire (earth).
For the ultimate quick install is a lighter plug option. Some people also order this just for the initial setup, before changing to the standard hardwiring/fuse tap.
Fuse taps aka piggyback fuse holders, are the most recent addition to our options. This allows you to "piggyback" off an existing circuit from your fuse box. The most common size fuse found in modern vehicles is the mini blade (size = 10.9mm wide x 16.4mm tall), older vehicles are likely to have the standard blade (size = 19.1mm wide x 18.8mm tall). Download and read our Fuse Tap installation instructions PDF for more information.
Our fuse taps were designed by us, they have a 200cm lead that connects directly to the monitor socket with no soldering / crimping required. There is a black wire with an earth terminal attached - designed to fix to a chassis bolt/screw. This earth wire/terminal can be separated away from the red wire to enable you to find the most convenient ground/earth (although often this is next to the fuse box).

Power Supply Options including lighter plug and piggyback fuse taps

FAQ's

Ask a question about this product

Can I run this all the time I'm driving?

Yes you can, the monitor powers the camera, this means you can choose to watch the camera at any point, you can drive with it "always on".

Can this camera fix to the rear wall of my motorhome/van?

Absolutely. This camera can be mounted both on a vertical surface eg rear wall/door, or on a horizontal surface eg roof/top of door.

What is a fuse tap? Do I need to order a Mini blade or Standard blade?

Our easy wire fuse tap options are new for 2023. We designed a fuse tap that plugs in to a socket that is present on all of our monitor wiring harnesses. The other side has a "piggyback" fuse holder aka fuse tap. You identify a fuse in the fuse box that comes on/off with the ignition (see piggyback fuse holder / fuse tap instructions here - PDF download). The original fuse is placed in to the new fuse tap, plus there is a new fuse already present for the reverse camera kit. On the same wiring there is an earth terminal connector, simply attach this to a chassis bolt (usually near the fuse box, or add your own).

What cable length should I select?

Rough guide:

5M is good for an average size car
7.5M is good for large cars and shorter wheelbase vans
10M is good for a medium length van (around 6M)
12.5M is good for most vehicles up to around 8.5M long (covers most motorhomes except the super long)
15M is good for vehicles up to around 10/11M eg rigid lorry, small coach.
20M is good for super long vehicles

Should I select the 1080P AHD upgrade option?

The standard high resolution camera/monitor is a very nice picture, it gives you everything you need for visibility. The only reason to upgrade to AHD is if you want to see even more detail such as the detail of gravel on the floor, or want the colours of cars etc to "pop" on the screen and be even more vivid. In terms of safety, both are on par with each other.

Instructions

Main Kit fitting instructions

Download

Our general 4 pin cable based fitting instructions.

4 pin reversing camera kit fitting instructions

Monitor Instructions (Sony CCD option)

Download

Instructions for our MON16 dash monitor, supplied with the Sony CCD option.

Monitor Instructions (Sony AHD option)

Download

Covers the operation of the AHD version of our 7 inch stand on dash monitor

MON16AHD AHD reversing camera monitor instructions

Technical Specs

Standard Definition Monitor
Vehicle monitor display: 7" colour LCD screen
Power supply: 12V/24V
Power consumption: 4W max
Digital screen resolution: 800 × 3(RGB) × 480
Contrast: 500:1
Brightness: 400 cd/m²
Viewing angle: U 50° / D 60° / L/R 70°
Operating temperature: −10°C to +65°C
Storage temperature: −30°C to +80°C (RH90%)
Video inputs: 2 (PAL/NTSC/AUTO)
Mirror/normal: Switch on both channels
Control: Full-function remote control

Standard Definition Camera
Image device: 1/3" Sony 811 CCD 960H 700TVL
TV system: PAL
Effective pixels: 976 × 582
Scanning system: 2:1 interlace
Sync system: Internal
Resolution: 700 TV lines
Minimum illumination: 0 Lux (IR LEDs on)
Video output: 1.0 Vp-p, 75 Ω
Gamma: 0.45
AGC: Auto
S/N ratio: > 48 dB
White balance: Auto
Electronic shutter: 1/50 sec – 12.5 μsec (PAL)
BLC: Auto
Current consumption: 100 mA
Weatherproof rating: IP68
Night vision: Infrared LEDs for night view
Image: Mirror image only
Bracket: Stainless steel (painted)

High Definition Monitor (AHD)
Screen: 7" diagonally measured colour IPS screen
Power supply: 12V/24V
Power consumption: 7.5W max
Audio output: 0.5W
Loudspeaker: One 15 × 40 mm round loudspeaker
Digital screen resolution: 1024 × 3(RGB) × 600
Video inputs: 2 hybrid (AHD/CVBS), PAL/NTSC/AUTO
Control: Full-function remote control

High Definition Camera (AHD)
Image sensor: Sony IMX307
Effective resolution: 1920 × 1080 (2 million pixels)
Night vision: 850 nm IR with IR-CUT filter
Wide dynamic range: Support (mobile frame rate 100 dB)
S/N ratio: > 52 dB (AGC OFF)
System: PAL
Image: Mirror image
Waterproof level: IP68
Shockproof level: 4G
Connectors: 4-pin aviation
Power supply: 12V (monitor loom supplies 12V to camera irrespective of input voltage)
Power consumption: Approx. 1.8W per camera
Video output: 1080P
Working temperature: −20°C to +70°C
Storage temperature: −30°C to +85°C
Bracket: Stainless steel (painted)
