9" Heavy Duty Dash Display + Sony CCD (or optional Sony AHD) White Bracket Reversing Camera Kit - PM91W

PM91W White Bracket Reversing Camera Kit with 9-inch Dash Monitor

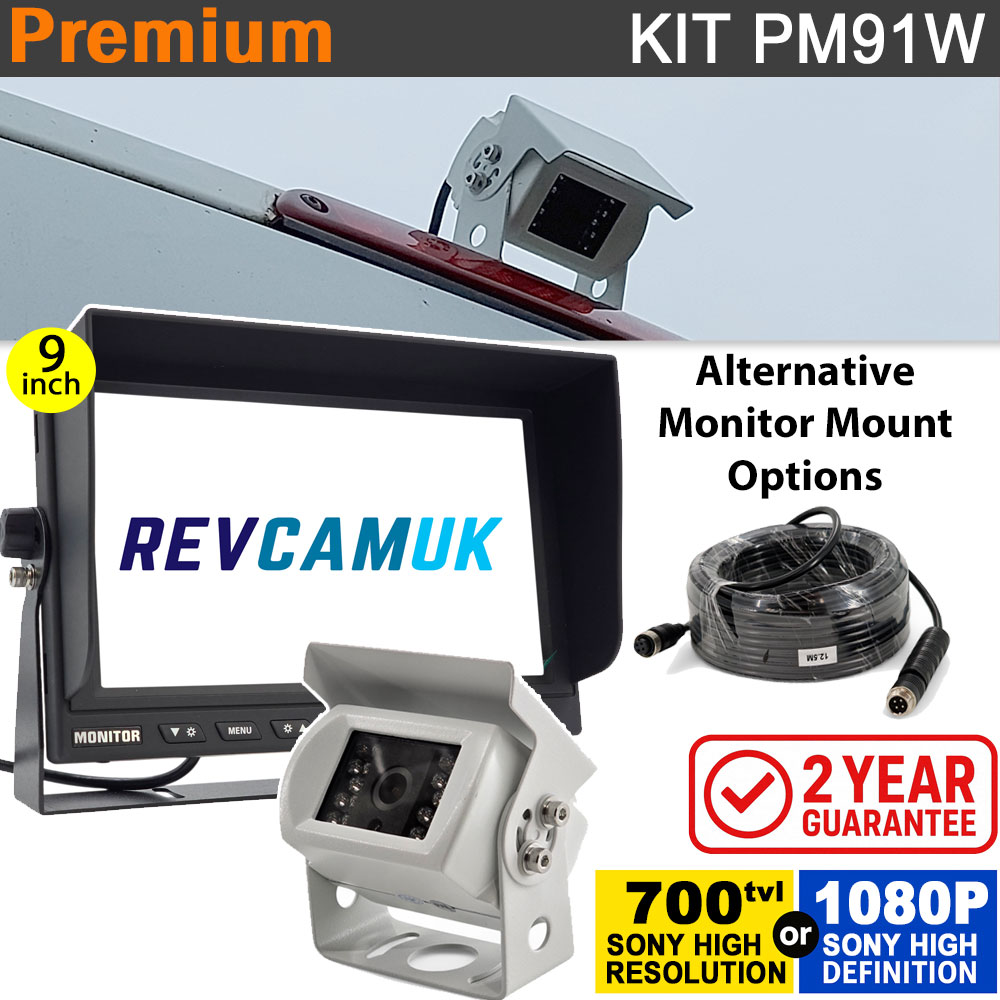

Designed for vans, motorhomes, and HGVs, the PM91W combines a 9-inch heavy-duty dash monitor with a white stainless-steel bracket camera. Choose between the standard Sony CCD or upgrade to Sony AHD 1080P for sharper detail and improved low-light performance. Built for long cable runs, daily use, and tough conditions.

Key features

• 9-inch dash monitor with clear, easy-view display
• Camera options: Sony CCD or Sony AHD 1080P high-definition upgrade
• Lens choices: 120° wide angle for reversing or 60° narrow angle for rear-view driving

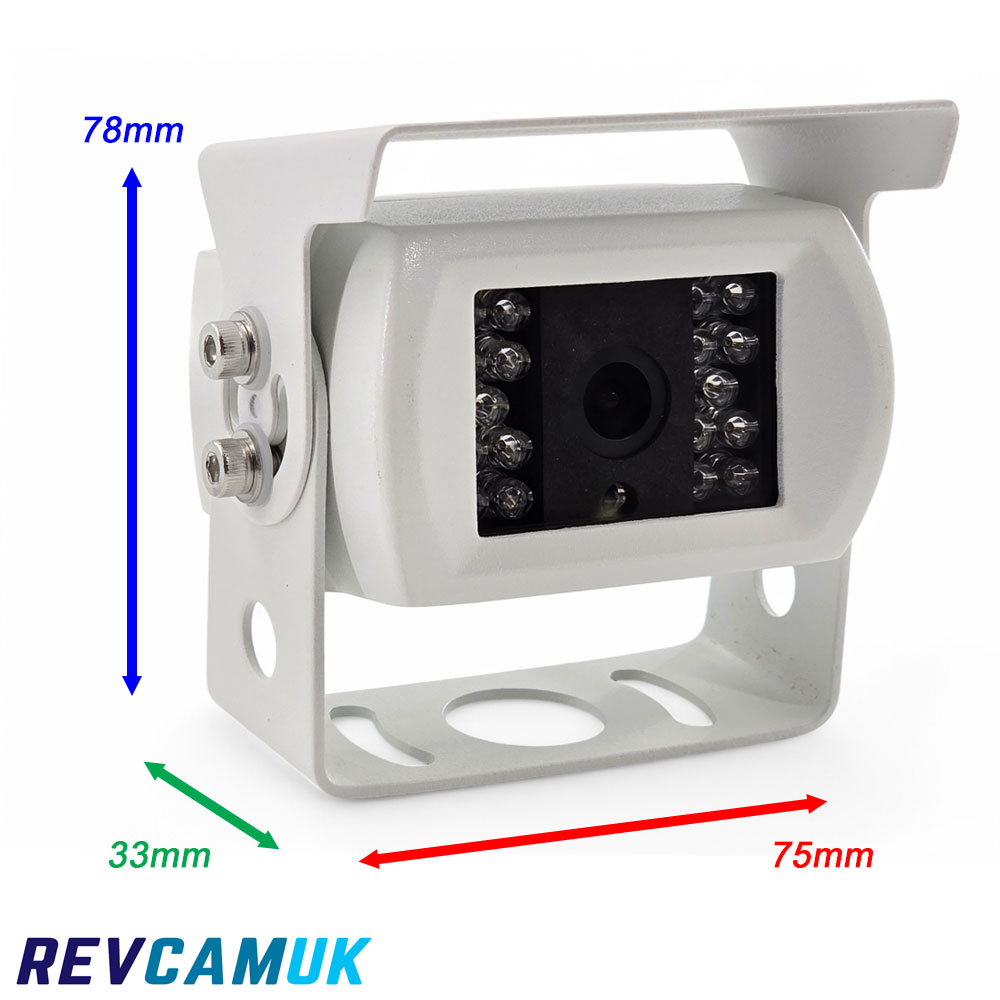

• White stainless-steel bracket mount with IP68 camera housing and anti-vibration design
• 12–24 V DC input with built-in over-voltage protection
• Durable 4-pin aviation connectors for secure, weather-resistant cabling
• Two video inputs for flexibility or adding extra cameras
• UK tested and supported, backed by a 2-year guarantee

More about this kit

Reversing or rear-view use: Configure the system for reversing or constant rear-view driving depending on your needs. The narrow-angle option is ideal for road view, while the wide-angle lens improves reversing safety by showing more of what’s behind you.

Increased safety: Reversing accidents account for almost 25% of road collisions in the UK. A clear rear-view camera system helps improve visibility and reduces risk, particularly in larger vehicles.

High-resolution display: The monitor uses one of the highest-grade LCD panels available, with crisp clarity in all light conditions. When paired with the Sony AHD 1080P sensor, image quality improves further with better colours, contrast, and night vision performance.

Easy installation: Secure 4-pin connectors and optional fuse tap or lighter plug adaptors make fitting straightforward, even for DIY users. Designed for long cable runs without signal loss.

Upgrade option – Sony CCD vs AHD 1080P: Sony CCD delivers excellent performance, but upgrading to AHD 1080P increases resolution by 60%, with improved dynamic range, colour accuracy, and low-light vision. AHD systems take around 2 seconds to switch channels, but deliver a noticeably sharper image.

Who it’s ideal for

• Motorhomes needing a dependable, stylish white bracket reversing camera
• Commercial vans or vehicles in all-weather conditions

Specification snapshot

What’s in the box

• 9-inch dash monitor with mounting bracket
• White bracket reversing camera
• Main harness and 4-pin camera lead (choice of length – default 12.5 m)
• Standard power lead and optional lighter plug or fuse taps
