White Bracket Rear View or Reversing Camera Kit with 7" Stand On Dash Monitor and Sony CCD/AHD image sensor | PM61W

Availability 54 item(s) available
Weight 2.50 kg
Product Code: PM61W-SD
Price: £180.00
VAT Included £30.00

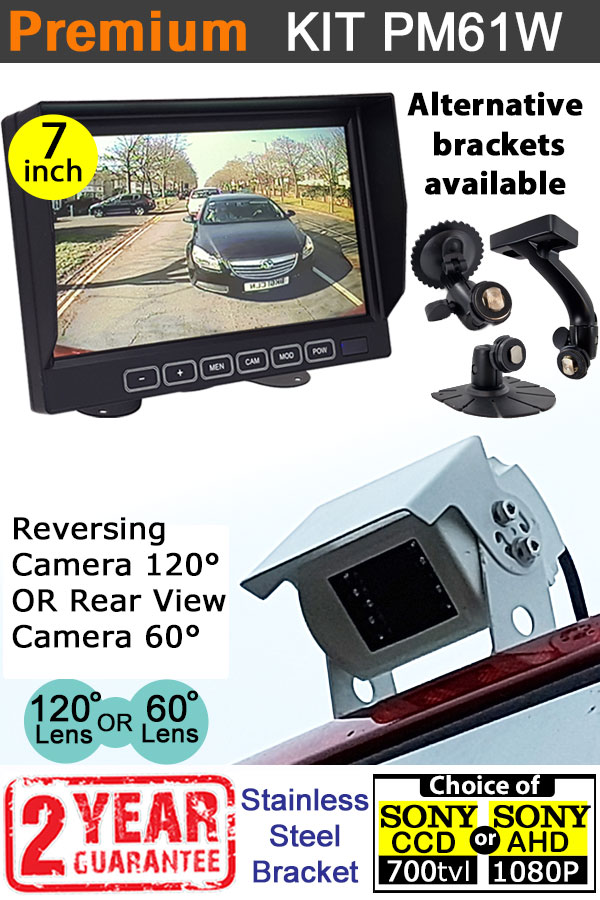

PM61W White Bracket Reversing Camera Kit with 7-inch Dash Monitor

A premium reversing camera kit designed for vans, motorhomes, and HGVs. It pairs a 7-inch dash-mounted display with a white stainless-steel bracket camera using a Sony CCD 700TVL image sensor for excellent image quality. Customers can choose between a 120° wide-angle lens for reversing or a 60° narrow-angle lens for constant rear-view driving. An optional Sony AHD 1080P upgrade is also available for higher definition, and even more vibrant colours.

Key features

  • 7-inch dash monitor with high-resolution digital LCD panel
  • White stainless-steel bracket reversing camera
  • Choice of lens: 120° wide (reversing) or 60° narrow (rear-view driving)
  • Choice of Sony CCD 700TVL (standard) or Sony AHD 1080P upgrade
  • Infra-red assisted night vision
  • 12–24 V DC input with built-in surge protection up to 32 V
  • Durable 4-pin aviation connectors for secure, weatherproof wiring
  • Optional lighter plug or fuse tap for quick installation
  • UK tested and supported, with 2-year guarantee

More about this kit

Camera Upgrade option: The Sony CCD sensor gives a great, colourful, high-resolution image. The AHD 1080P high-definition upgrade improves this even further.

Lens choice: The wide 120° lens is ideal for reversing, showing a larger field of view to improve safety. The narrower 60° lens is designed for constant rear-view driving, giving a clearer road perspective without distance distortion.

Lens Angle Choice 120 degrees Wide Angle vs 60 Degrees Narrow Angle

Rust-Resistant Camera Bracket Design: The stainless-steel bracket protects against corrosion, keeping your camera looking good for many years to come.

Rust Resistant Stainless Steel Bracket Icon

Monitor quality: The 7-inch display uses a true digital LCD panel with more than three times the pixel count of analogue screens, ensuring crisp, clear images in all light conditions. AHD upgrade increases this by a further 60% thanks to an IPS panel upgrade.

Easy installation: All-in-one aviation cable powers the camera directly from the monitor, avoiding CANBUS errors common with traditional reverse-light wiring. Optional lighter plug and fuse tap adaptors are also available.

UK-tested reliability: Each kit is tested twice, at factory and again in the UK, checking cables, IR LEDs, and menu functions to ensure consistent performance.

Specification snapshot

Monitor 7-inch digital LCD display, 800x480 resolution, 2 inputs, PAL/NTSC auto, remote control (1024x600 IPS if upgrade selected)
Camera White stainless-steel bracket camera
Camera sensor Sony CCD 700TVL (standard) or Sony AHD 1080P (upgrade)
Viewing angle 120° wide (reversing) or 60° narrow (rear-view driving)
Weatherproofing IP68 waterproof housing, stainless bracket
Power 12–24 V DC, surge protected to 32 V
Guarantee 2-year UK warranty and lifetime support

What’s in the box

  • 7-inch dash monitor with butterfly bracket
  • White bracket reversing camera (lens choice: 60° or 120°)
  • Main harness and 4-pin camera lead (12.5 m standard length)
  • Standard hardwire lead, optional lighter plug or fuse taps
  • Optional additional monitor bracket if selected

Cable length guide

  • 5 m: cars and short vans
  • 7.5 m: long cars and short vans
  • 10 m: medium vans
  • 12.5 m: long vans and motorhomes
  • 15 m: long motorhomes
  • 20 m: HGVs and long vehicles

Supplied with one 4-pin aviation cable – choose your preferred length at order.

Information correct as of 14:28, Friday, October 10, 2025
