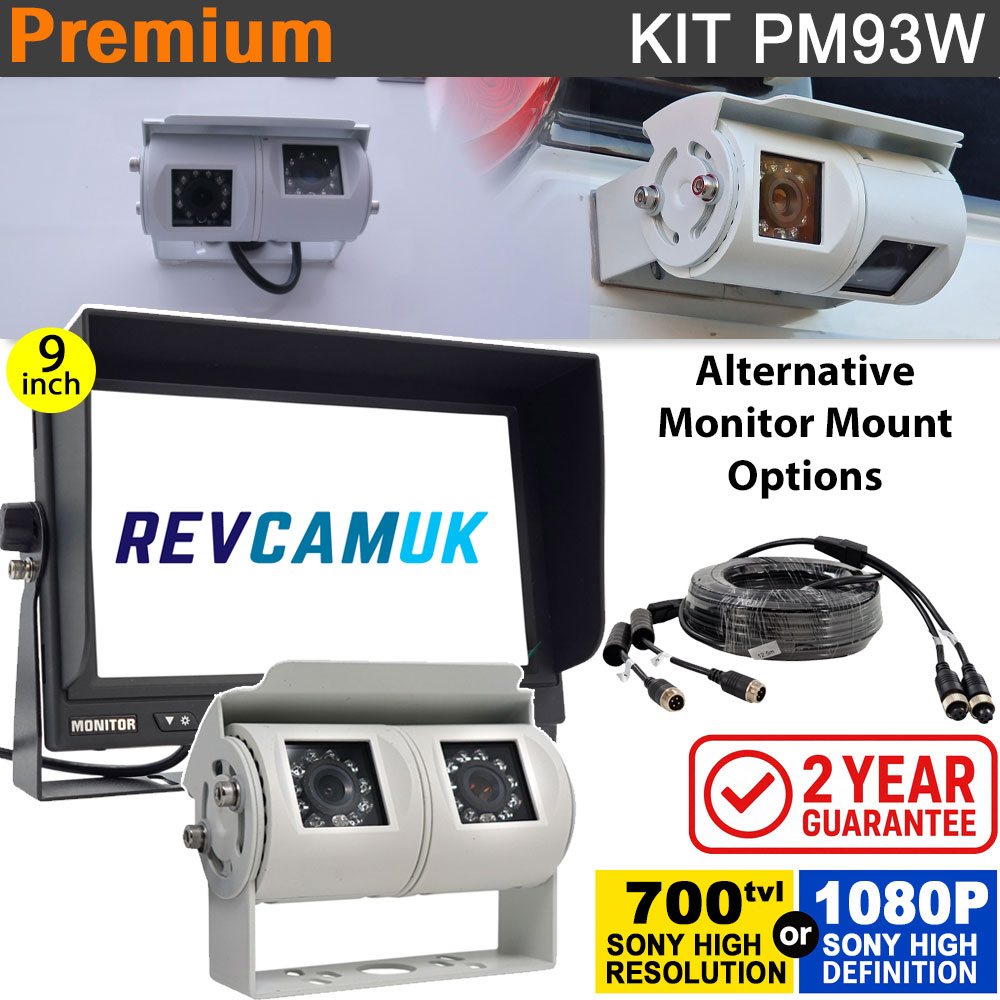

9" Heavy Duty Dash Display + Sony CCD (or optional Sony AHD) White Twin Lens Bracket Reversing & Rearview Camera Kit- PM93W
Description
PM93W Dual-Lens White Bracket Reversing & Rear-View Camera Kit with 9-inch Dash MonitorThe PM93W is a premium reversing and rear-view camera kit designed for larger vehicles, motorhomes, and HGVs. It combines a heavy-duty 9-inch dash-mounted monitor with a twin-lens white bracket camera, giving you both a 120° wide reversing view and a 45° narrow rear-view driving angle in one housing. Supplied with Sony CCD as standard or the upgraded Sony AHD 1080P option, this system is built for long cable runs, all-weather use, and everyday reliability. Key features
More about this kitDual-lens flexibility: The twin-lens camera provides both a wide-angle reversing view and a narrow driving view, making it ideal for road awareness and safe parking in one compact bracket. Sony CCD vs AHD 1080P upgrade: The Sony CCD sensor delivers excellent standard definition performance. The AHD 1080P upgrade increases resolution by 60%, with IPS panel display, improved dynamic range, and richer colours. Power options: Supplied with a standard hardwire lead. Optional lighter plug or fuse taps are available for quick installation. Fuse taps are available in standard, mini, or micro blade sizes, and include a 200 cm lead for direct connection to the monitor socket with a chassis ground terminal. Reliable 4-pin aviation cabling: GX12 4-pin connectors ensure secure, weatherproof performance and avoid CANBUS issues. Pure copper cores maintain signal quality even on long runs. Updated 2024 twin signal cable supports HD camera signals. 8 mm disconnect point: An 8 mm disconnect point is provided approximately 30 cm back from the camera to allow smaller cable entry holes. Note: this disconnect is not waterproof and must remain inside the vehicle. Customers may request the waterproof direct-to-4-pin version instead using the customer notes box in checkout. AHD Update: Please take note of an important update for 2024. Our latest production of cameras includes a change – specifically, the driving rear-view camera in the recent batch is now being manufactured without IR LEDs. In contrast, the parking camera will continue to have IR LEDs. This modification is a response to customer feedback regarding the sensitivity of the Sony Starvis sensors used in the AHD cameras. Some customers found that the camera's enhanced brightness, as the IR lit up nearby trees and bushes, made the image a bit bright when driving at night in a dark cabin. Following road tests, we concluded that eliminating IR LEDs from the rear-facing camera provides a better balance of functionality. When ordering the AHD upgrade kit, you may receive either the original type (with IR LEDs) or the new batch (without IR LEDs) on the rear-view camera. If you have a preference for a specific version, please leave us a customer note when placing your order. Specification snapshot
What’s in the box
Cable length guide
This kit is supplied with an all-in-one camera extension lead. |
Detailed Images
Fitted examples on Motorhomes of our white twin reversing + rear view camera
Wiring Layout of twin lens reverse and rear view camera. Take note of the 8mm disconnects not being waterproof and leave us a note during checkout if you require a version without the disconnects straight to the waterproof 4 pin connector.
Monitor Dimensions
Camera Dimensions
Thanks to Apex Motorhome Services for sending us a picture of our white twin lens fitted to their customers vehicle
Wiring Layout (camera side)
Video
Video showing the comparison between the standard Sony CCD option vs the upgrade Sony AHD option
Add an additional monitor bracket/mountWe can supply a discounted additional mount/bracket for the monitor when ordered at the same time as the kit. Please see the photo below, and make your selection using the drop down menu above the add to cart button.  See our video below for details about the brackets in the photo above. |
Choice of kit power options
 |
Yes you can. This kit has two cameras built in to one bracket. The one camera looks back down the road as your driving camera (acts as a rear view mirror). The other camera points downwards to the ground, you will select this camera when you are reversing/parking.
Absolutely. This camera can be mounted both on a vertical surface eg rear wall/door, or on a horizontal surface eg roof/top of door.
Our easy wire fuse tap options are new for 2023. We designed a fuse tap that plugs in to a socket that is present on all of our monitor wiring harnesses. The other side has a "piggyback" fuse holder aka fuse tap. You identify a fuse in the fuse box that comes on/off with the ignition (see piggyback fuse holder / fuse tap instructions here - PDF download). The original fuse is placed in to the new fuse tap, plus there is a new fuse already present for the reverse camera kit. On the same wiring there is an earth terminal connector, simply attach this to a chassis bolt (usually near the fuse box, or add your own).
Rough guide:
- 5M is good for a small van
- 10M is good for a medium length van (around 6M)
- 10M 8mm joint (same as above but with a small 8mm disconnect point on the front of the cable to allow cable to get through tight spots/bulkheads)
- 12.5M is good for most vehicles up to around 8.5M long (covers most motorhomes except the super long)
- 12.5M 8mm joint (same as above but with a small 8mm disconnect point on the front of the cable to allow cable to get through tight spots/bulkheads)
- 15M is good for vehicles up to around 10/11M eg rigid lorry, small coach.
- 15M 8mm joint (same as above but with a small 8mm disconnect point on the front of the cable to allow cable to get through tight spots/bulkheads)
- 20M is good for super long vehicles
Yes. Please select the option at the bottom of the cable length drop down menu. It will be labelled 2010+ Dometic/Waeco adaptors. Instead of a long cable, you will receive the twin channel Waeco/Dometic adaptor set. Kindly note that these adaptors will not work with the AHD upgrade option - due to the extra separated shielding requirements required for the two high-frequency 1080P AHD signals.
The standard high resolution camera/monitor is a very nice picture, it gives you everything you need for visibility. The only reason to upgrade to AHD is if you want to see even more detail such as the detail of gravel on the floor, or want the colours of cars etc to "pop" on the screen and be even more vivid. In terms of safety, both are on par with each other.
Standard Kit Sony CCD 700TVL Tech SpecsMonitor9” Colour LCD screen CameraImage Sensor :1/3 SONY CCD 960H 700TVL Upgrade Kit Sony AHD 1080P Tech SpecsMonitor9” Colour IPS screen Camera Image sensor and chips: FH8550M+C2398 |
