Vauxhall Vivaro / Renault Trafic Brake Light Reversing Camera 1080P AHD | CAM404AHD

Vauxhall Vivaro / Renault Trafic Brake Light Reversing Camera (1080P AHD) | CAM404AHD

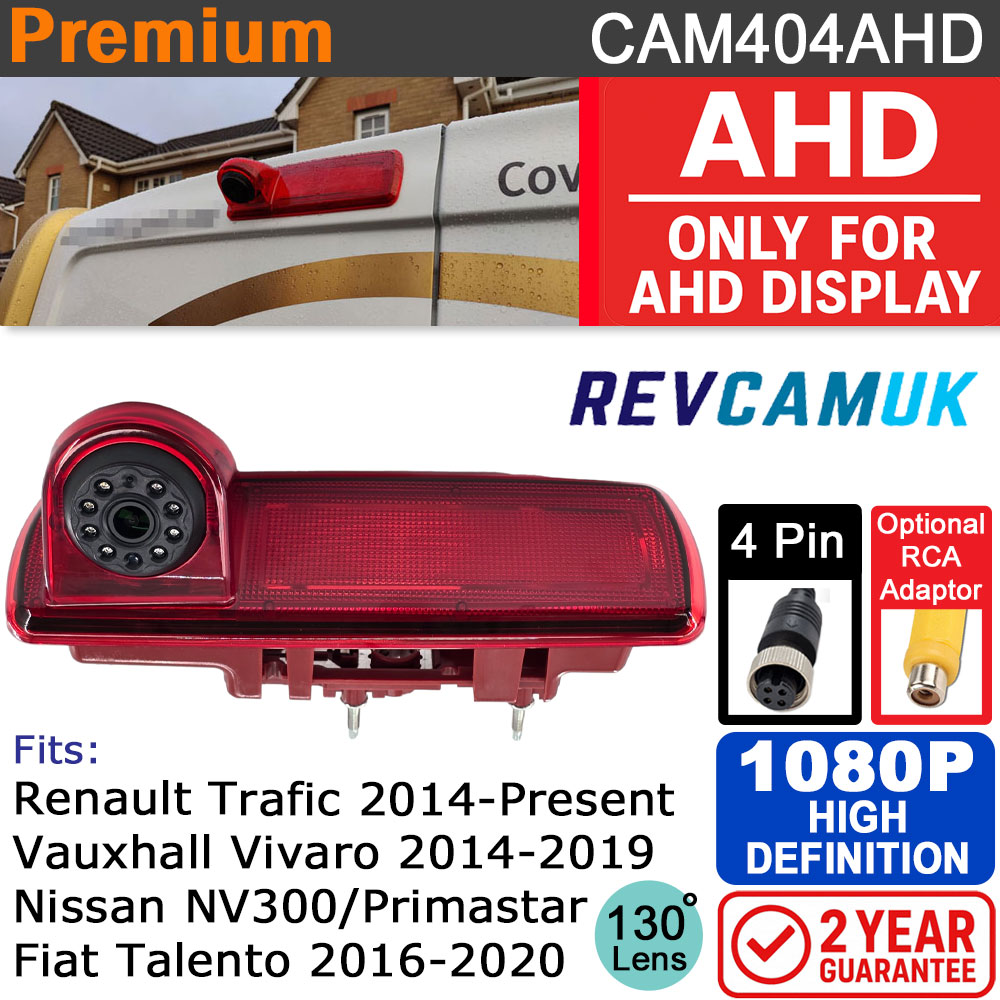

The CAM404AHD Brake Light Reversing Camera provides a clean, factory-style upgrade for Vauxhall Vivaro and Renault Trafic models, as well as selected Nissan NV300 / Primastar and Fiat Talento vans. It replaces the original upper brake light with a purpose-built housing that integrates a true 1080P AHD camera using the C2399 PAL image sensor and an all-glass lens for sharper detail and improved colour accuracy.

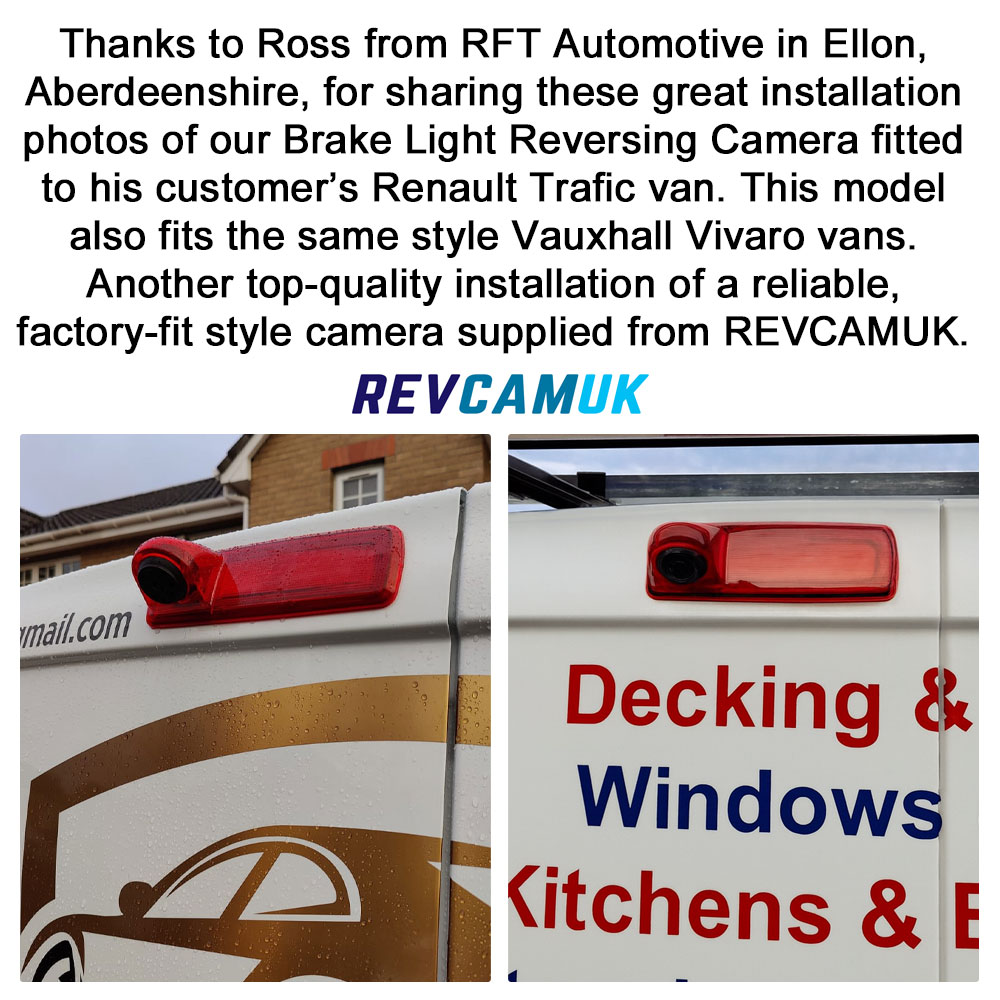

The installation reuses the factory mounting points and includes a shaped gasket for a proper watertight seal. The lens angle has been carefully matched to suit the rear-door layout of Vivaro/Trafic platform vans, giving a wide, useful reversing view without excessive distortion.

Please note: This 1080P AHD brake-light reversing camera for Vauxhall Vivaro, Renault Trafic, Nissan NV300/Primastar and Fiat Talento is only compatible with AHD-capable monitors and will not work with older CVBS-only displays. If you are unsure, or need a non-AHD version, please see our Standard CVBS Brake-Light Reversing Camera for Vivaro & Trafic.

Key features

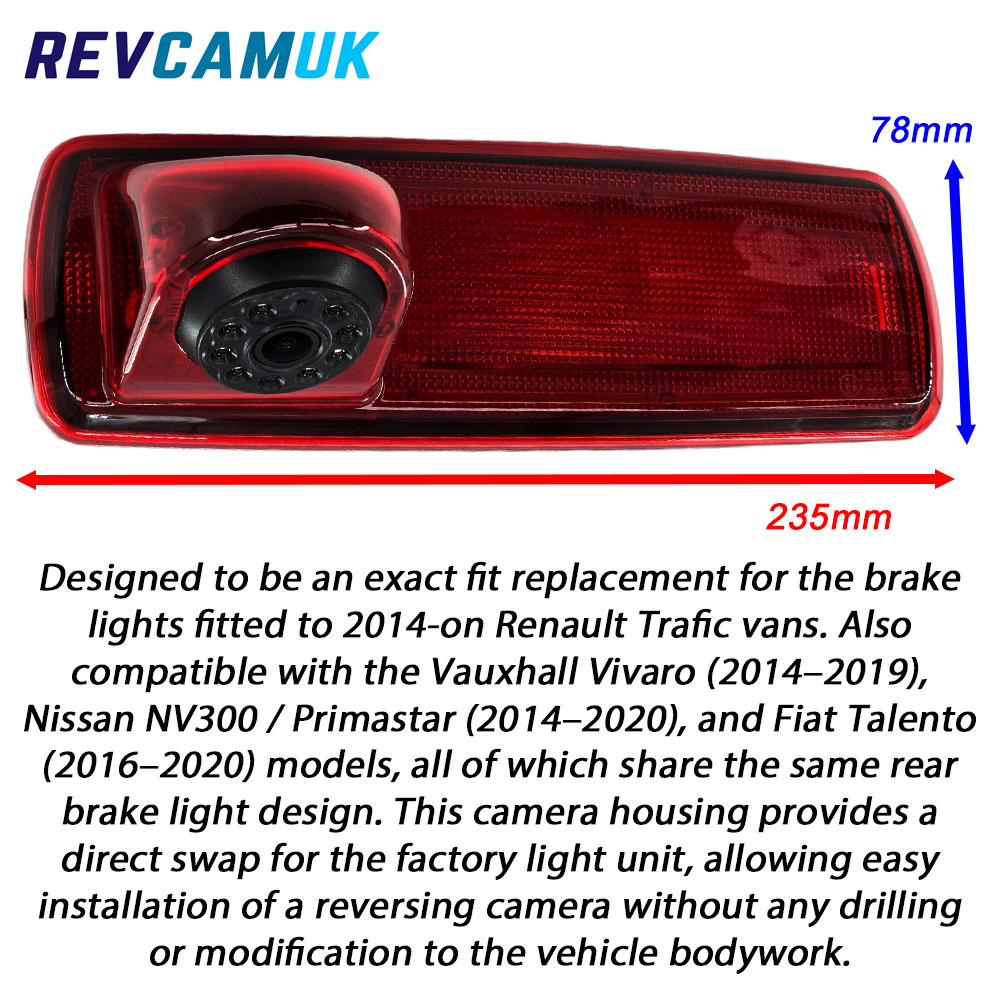

Direct replacement for the factory brake light – Installs in place of the original upper brake-light unit with no drilling or body modification required. Uses the same fixing points and includes a sealing gasket for a tidy, OEM-style finish.

True 1080P AHD image using C2399 sensor – The upgraded C2399 CMOS sensor delivers a much clearer, cleaner picture compared with older CVBS units. Ideal for modern AHD monitors or split-screen systems where detail and definition matter.

All-glass lens for sharper clarity – The optical glass lens improves contrast, colour accuracy and long-term durability. Unlike plastic lenses, it resists UV fade and maintains its sharpness over time.

Wide reversing angle – The 160° diagonal / 130° horizontal viewpoint provides a broad, confidence-boosting rear image while still keeping distances natural and easy to judge from the driver’s seat.

Infra-red night-vision LEDs – Designed for low-light and night-time use, the built-in IR LEDs improve visibility when reversing in dark car parks, unlit yards or rural locations.

Selectable parking guidelines – Loop-wire selectable on/off guidelines allow you to tailor the image to your preference or your monitor’s overlay system.

Ready for aftermarket systems – Features a standard 4-pin aviation connector, with optional 4-pin → RCA adaptors for stereos or screens that require phono video input.

Optional extension cable lengths – Choose from 5–15 m 4-pin extension cables for panel vans, kombi layouts or long-wheelbase conversions.

UK tested with 2-year guarantee – Fully tested and supported in the UK and covered by a 2-year warranty for peace of mind.

Vehicle fitment

Important fitment note

AHD compatibility notice

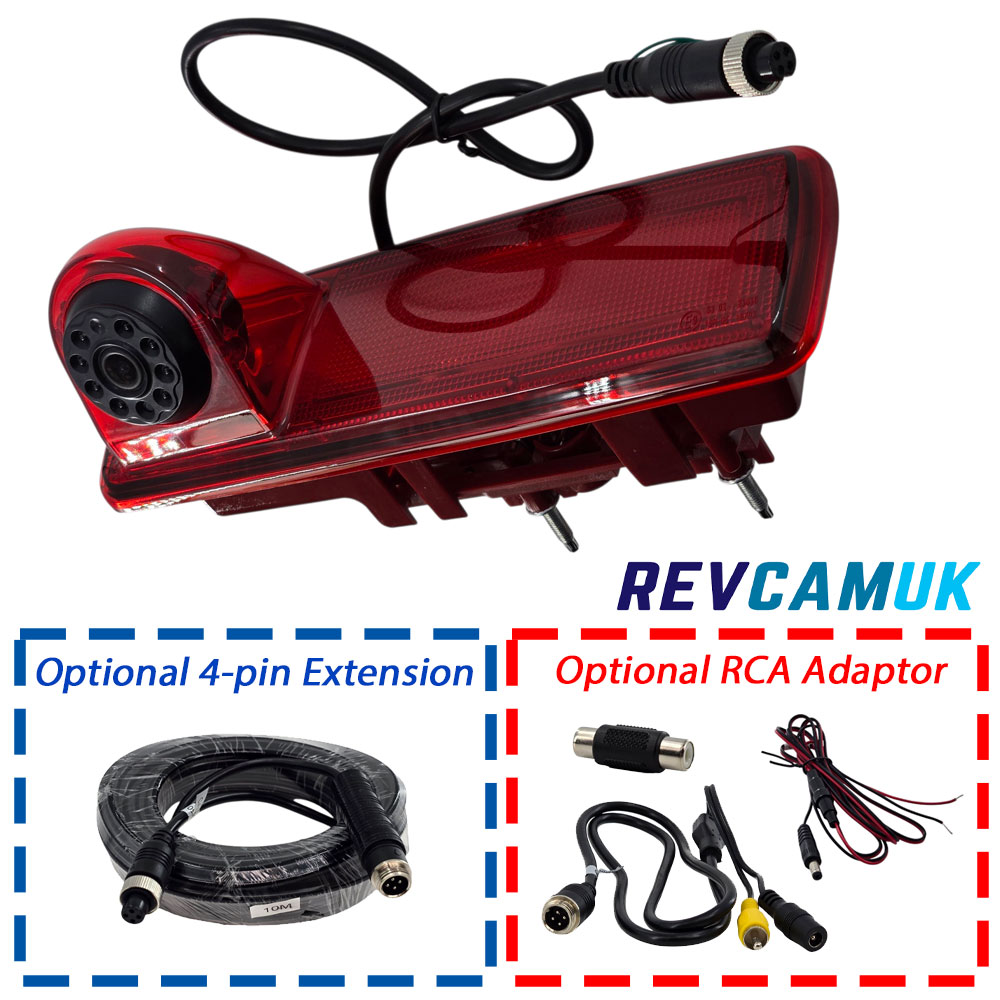

What’s in the box

• 1080P AHD brake-light reversing camera (CAM404AHD)
• Sealing gasket and mounting fixings
• Optional 4-pin → RCA adaptor and/or 5–15 m extension cable (if selected)

Add a monitor and cable with one of our premium brake light reversing camera kits

If you would like a complete reversing camera kit for your van—including display, cabling and accessories—please see the links below. All kits include a 2-year guarantee.

• 7-inch Mirror Monitor Kit for Vauxhall Vivaro / Renault Trafic (select AHD option)
• 7-inch Dash Monitor Kit for Vauxhall Vivaro / Renault Trafic (select AHD option)
• 5-inch Dash Monitor Kit for Vauxhall Vivaro / Renault Trafic (AHD option unavailable; uses high-quality CVBS version)
