Vauxhall Vivaro 2014-2019 / Renault Trafic 2014-Present Brake Light Reversing Camera | CAM404
Description
Vauxhall Vivaro / Renault Trafic Brake Light Reversing Camera (CVBS 700 TVL) | CAM404This CVBS version of the CAM404 brake light reversing camera provides a clean, factory-style upgrade for Vauxhall Vivaro and Renault Trafic vans, along with selected Nissan NV300 / Primastar and Fiat Talento models. It replaces the original upper brake light with a purpose-built housing that integrates a reversing camera while keeping an OEM-style appearance. The camera uses our long-proven PC4089 image sensor, paired with a high-quality all-glass composite lens, producing a clear and reliable 700 TVL CVBS image with good colour and contrast. We’ve used this sensor for many years because we know it performs reliably to a high standard and outperforms many lower-down versions commonly found in brake light cameras. The lens angle has been carefully matched to the Vivaro/Trafic rear door layout to give a wide, usable reversing view without excessive distortion. Key featuresDirect replacement for the factory brake light – Installs in place of the original upper brake-light unit using the factory mounting points. No drilling or body modification required, and a shaped gasket is included to ensure a proper watertight seal. Clear and reliable CVBS (NTSC) image from upgraded PC4089 sensor – Outputs a standard CVBS NTSC video signal compatible with the vast majority of aftermarket reversing camera monitors, dash displays and head units. The PC4089 sensor delivers a clear and reliable 700 TVL image with natural colours and good contrast, chosen for long-term performance. High-quality all-glass composite lens – Uses a proper all-glass composite lens instead of plastic. This helps maintain clarity over time and avoids the UV sun-fade and softening effects often seen with cheaper alternatives. Wide reversing angle – The 160° diagonal / 130° horizontal viewpoint provides a confidence-inspiring rear image to help avoid accidents and stressful situations. Infrared night-vision LEDs – Built-in IR LEDs assist when reversing in low-light or night-time conditions, such as unlit yards, rural locations or dark car parks. Selectable parking guidelines – Loop-wire selectable on/off guidelines allow you to enable or disable the overlay depending on your preference or the monitor being used. Ready for aftermarket systems – Supplied with a standard 4-pin aviation connector, with optional 4-pin to RCA adaptors available for screens or stereos that use phono video inputs. Optional extension cable lengths – 5 m to 15 m 4-pin extension cables are available to suit panel vans and longer wheelbase conversions. UK tested and supplied with a 2-year Revcamuk guarantee – With almost 20 years in the reversing camera industry, we’ve worked with a wide range of factories. This brake light camera comes from one of the best manufacturers we use and is fully supported with our 2-year Revcamuk guarantee. If a non-user-damage fault develops within two years, we’ll replace the camera to keep you reversing safely. Vehicle fitment Compatible with the following vehicle models:
Designed to replace the standard brake light on vans originally supplied without a factory camera. Important fitment note Not suitable as a direct replacement for an OEM camera-equipped brake light. This unit replaces the standard brake-light assembly. It will not replace an original factory camera module and will not plug into an OEM head unit or display. What’s in the box
Add a monitor and cable with one of our premium brake light reversing camera kitsIf you would like a complete reversing camera kit for your van, including display, cabling and accessories, the kits below pair this camera with suitable monitors and cables, all backed by our 2-year guarantee. |
Detailed Images
Brake light reversing camera fitted to a Renault Trafic van by Ross from RFT Automotive in Ellon, Aberdeenshire. The same camera also fits Vauxhall Vivaro vans, shown installed with a clean factory-fitted look.

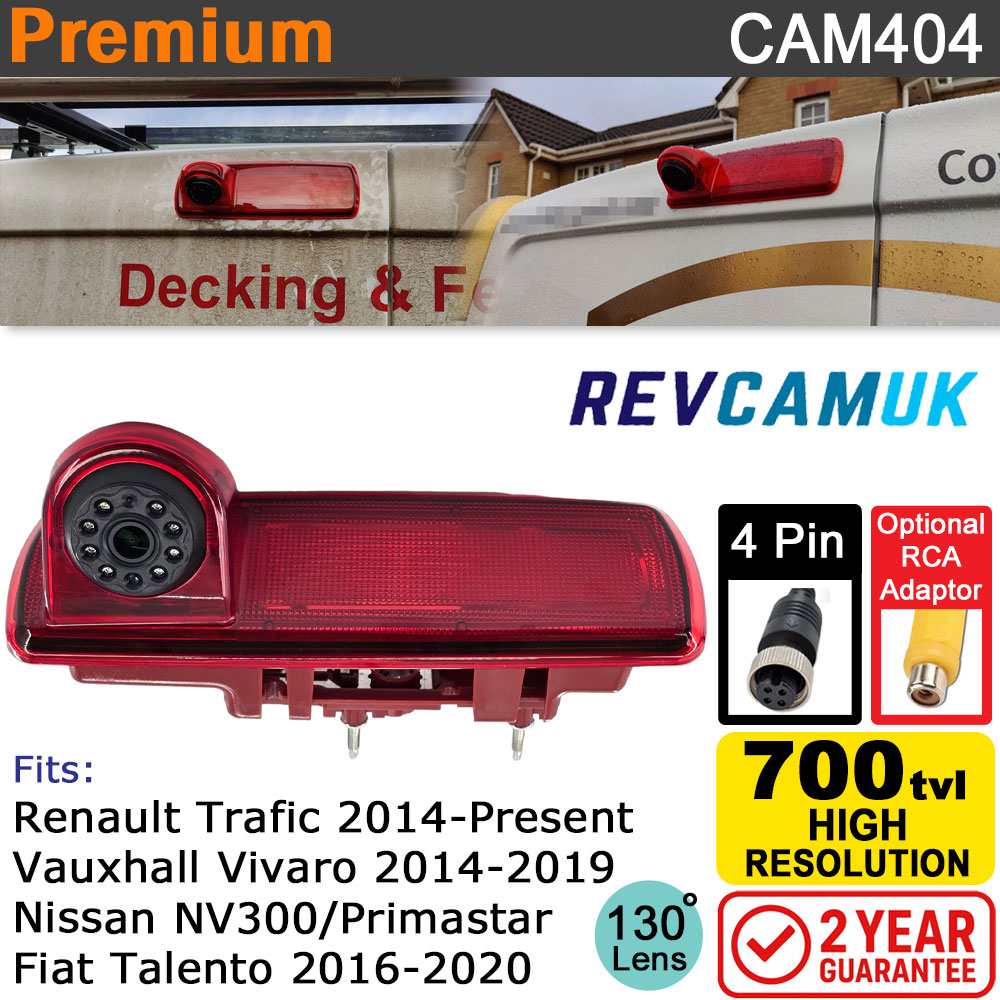

CAM404 brake light reversing camera for Vauxhall Vivaro, Renault Trafic, Nissan NV300 / Primastar and Fiat Talento, shown with optional 4-pin extension cable and optional RCA adaptor.
Brake light reversing camera dimensions for Renault Trafic (2014–present), Vauxhall Vivaro (2014–2019), Nissan NV300 / Primastar (2014–2020), and Fiat Talento (2016–2020) – REVCAMUK.
Our reverse camera for the brake light will fit the same entry point and fixings as the original camera making fixing the camera up a breeze.
There could be a number of reasons they may be cheaper than us, the most common are below :
- Rejected Production Runs - This is more common on the marketplaces where there are a lot of non-UK businesses (although the stock is often in the UK). When one of the larger factories produces a camera they will age-test a batch to ensure that the quality is sufficiently high to be able to send to their big customers (like us). If a production run fails this test with a high enough number having issues, the whole batch is often sold off for "recycling" the components. Sadly, these get placed in a container setting sail to the UK and other destinations, and eventually listed on a marketplace at crazy low prices - lower than we can buy hundreds at a time for. Sometimes you are lucky, sometimes you are not, depending on how badly the batch failed.
- Cheaper Components Used - There are different standards of image sensor, support chips, lenses and camera bodies. We opt for better quality; the results speak for themselves. We didn't earn our reputation by buying as cheap as we could; it's not what our customers want. Although at the same time we really do keep our prices as low as possible. The cheaper prices help us to sell more volume, which means we can bring the cameras in by ocean shipping, saving freight costs, which we pass to the consumer.
- Produced by a "Factory for the day" - We have seen some shocking quality cameras sent to us over the years by customers. There is a phenomenon in China where someone can rent factory space for a day or two in order to complete a production run. Often this is a factory employee that is trying to go it alone and start his own business. Sadly, they don't often have the best engineers, they usually buy the lowest price/quality components, have the lowest standard of production line worker, and they can't afford to reject a bad production run. These usually either end up on a Marketplace or sold directly from a Chinese website.
In short, trust us to find the best quality and support you for safety and peace of mind.
Our extra instructions for the Renault Trafic and Vauxhall Vivaro brake light reversing camera, including guidance on moving the original OEM bulb across to the new camera.
See our general guide to installing 4 pin reversing cameras. This includes fitting to stereos inc Kenwood / Sony / Pioneer etc.
| Sensor: 1/3" PC4089 CMOS |
