Vauxhall Vivaro / Renault Trafic Brake Light Reversing Camera 1080P AHD | CAM404AHD


Availability 10 item(s) available
Weight 0.50 kg
Product Code: CAM404AHD
Price: £110.00
VAT Included £18.33

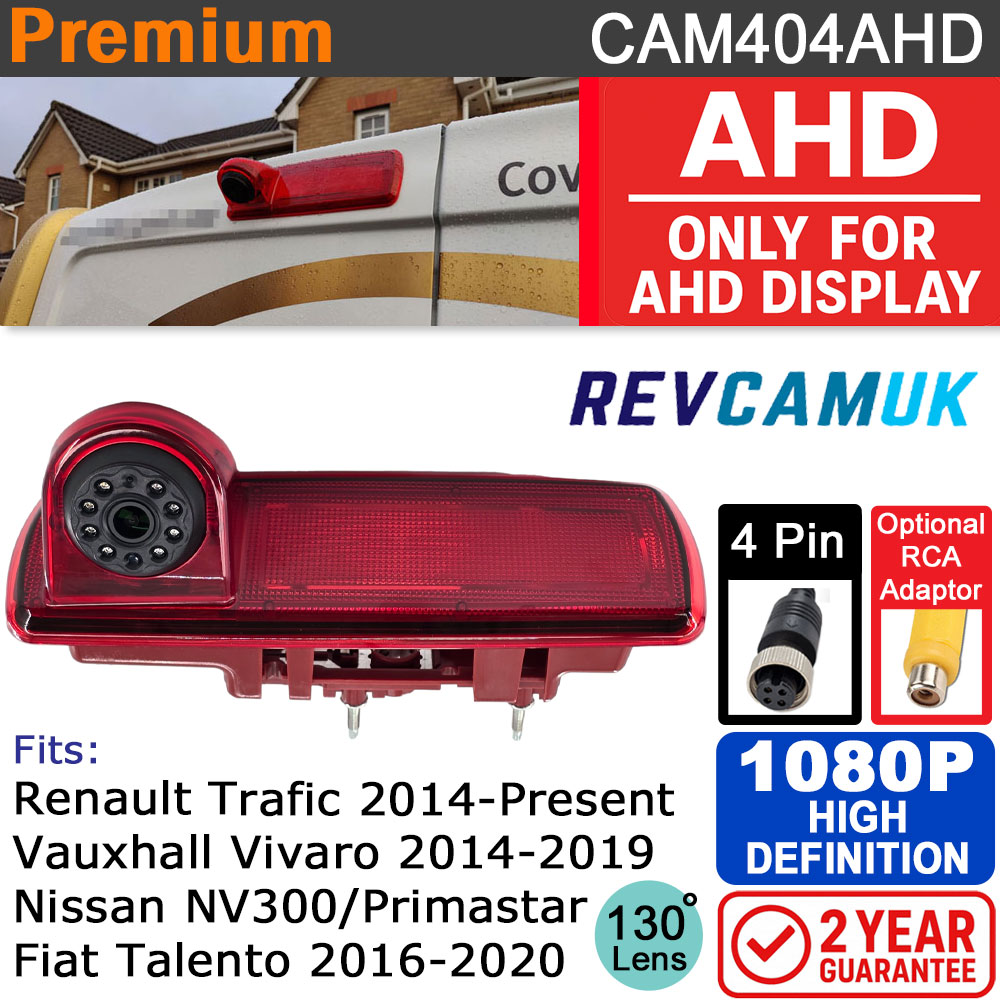

Vauxhall Vivaro / Renault Trafic Brake Light Reversing Camera (1080P AHD) | CAM404AHD

The CAM404-AHD Brake Light Reversing Camera provides a clean, integrated reversing solution for Vauxhall Vivaro and Renault Trafic models. It replaces the original upper brake light with a precision-moulded housing that contains a full 1080P AHD camera module for excellent image quality day or night. The installation reuses the existing mounting points and includes the required gasket for a watertight fit.

This AHD version also suits selected models of Nissan NV300, Nissan Primastar and Fiat Talento that share the same brake-light assembly, delivering the same factory-style fitment and viewing angle.

Please note: This 1080P AHD brake-light reversing camera for Vauxhall Vivaro and Renault Trafic is only compatible with AHD-compatible monitors and will not work with most factory or older displays. For the standard CVBS version, please see our Standard CVBS brake-light reversing camera with night-vision for Vauxhall Vivaro and Renault Trafic.

Key features

  • Direct-fit replacement for the original upper brake light – no drilling required
  • 1080P AHD output using the C2399 CMOS PAL image sensor
  • All-glass lens for improved clarity and accurate colour reproduction
  • 160° diagonal / 130° horizontal field of view
  • Infra-red night vision for low-light reversing
  • Selectable on/off parking guidelines (loop wire)
  • IP68 waterproof housing, proven to withstand the worst the British weather can throw at it
  • 4-pin aviation female connector for plug-and-play compatibility
  • Optional 4-pin → RCA adaptor and 5 m–15 m extension cables
  • Compatible with AHD and split-screen monitors
  • UK-tested and supplied with a 2-year warranty

Vehicle fitment

Compatible with the following vehicle models:

  • Renault Trafic (2014 – Present)
  • Vauxhall Vivaro (2014 – 2019)
  • Nissan NV300 / Primastar (2014 – 2020)
  • Fiat Talento (2016 – 2020)

Designed to replace the factory brake light with a combined light-and-camera assembly.


Important fitment note

Not suitable as a like-for-like replacement for an original OEM brake-light camera.
This unit replaces the standard brake light on vans that were originally supplied without a camera. If your van left the factory with a brake-light camera, this product will not directly replace that OEM camera assembly. Neither will it simply plug in to an original OEM display.

AHD compatibility notice

Please note: This is a high-definition 1080P AHD camera. It must be used with a monitor that supports AHD video input.
Standard-definition (CVBS) screens will not display an image.
If you need a compatible screen, please see our AHD monitor category.

Specification snapshot

Camera type Brake-light integrated reversing camera
Image sensor C2399 CMOS (AHD 1080P, PAL)
Lens All-glass optics with 160° diagonal / 130° horizontal field of view
Night vision Infra-red LED illumination for low-light reversing
Video format AHD 1080P (PAL)
Guidelines Selectable on/off (loop wire)
Waterproof rating IP68 sealed housing, proven to withstand the worst the British weather can throw at it
Connector 4-pin aviation female plug (camera end)
Cable length options Selectable 5 m – 15 m (optional)
Guarantee 2-year UK warranty

What’s in the box

  • 1080P AHD brake-light reversing camera (CAM404AHD)
  • All mounting fixings, gasket, and installation guide
  • Optional 4-pin → RCA adaptor and extension cable (5 – 15 m, if selected)

Add a monitor and cable with one of our premium brake light reversing camera kits

If you would like a complete reversing camera kit for your van, including a display, please check out our links below. The kits come with this camera, a quality monitor, cabling, and a 2-year guarantee.
