Black Roof / Overhang Driving Rear View + Reversing Camera | 4 pin connector | VANCAMB-AHD
Description

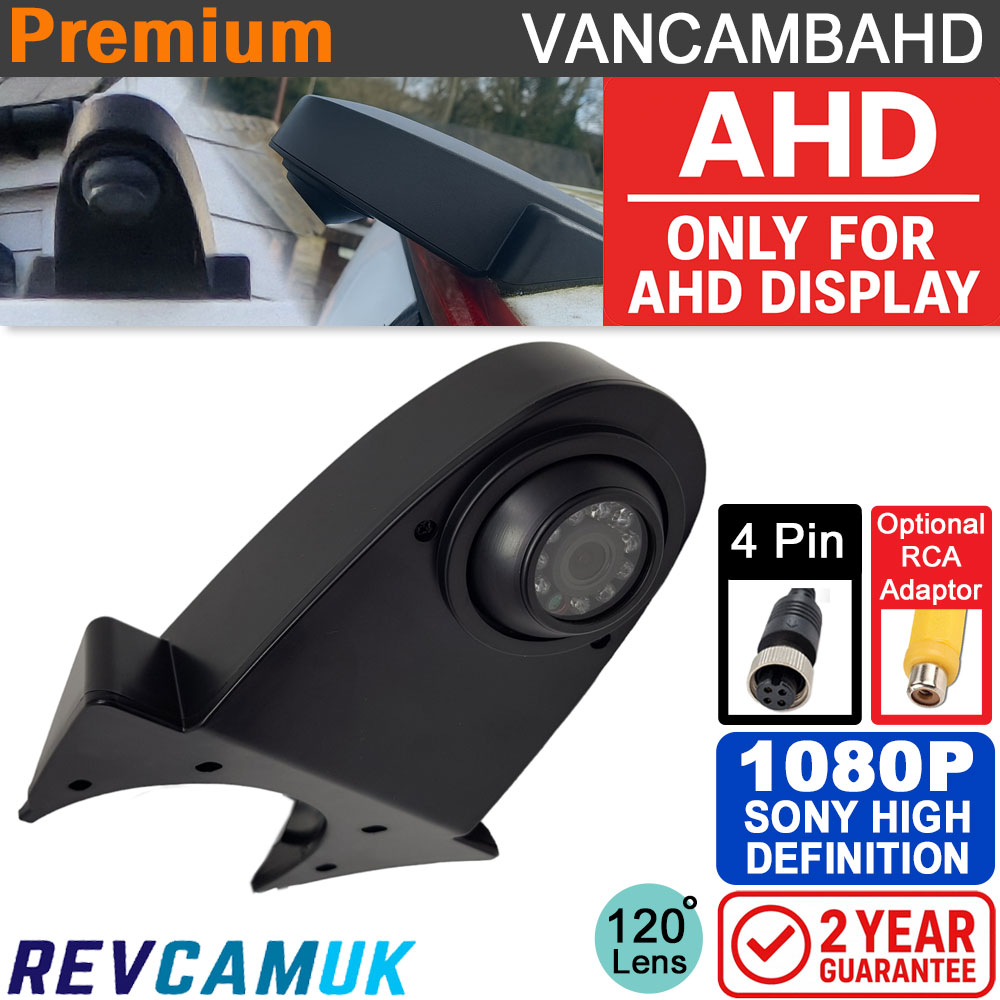

Roof-Mount 1080P Sony AHD Reversing Camera – BlackThis is our 1080P AHD roof-mount reversing camera designed for vans and motorhomes. It attaches neatly to the rear roof lip and gives a natural-looking view downwards behind the vehicle. The camera uses the Sony IMX307 1080P AHD sensor, giving a clear, detailed picture with very good low-light performance. It includes IR LEDs for night vision, is finished in black, and uses a 4-pin aviation connector. This camera must be used with an AHD-compatible monitor and includes our two-year Reversing Cameras UK guarantee. Key FeaturesPurpose-Built Roof-Mount Design - Designed to fit on the rear roof lip of vans and motorhomes, giving a high, central view ideal for reversing into bays, judging distances and monitoring the area directly behind the vehicle. Sony IMX307 1080P AHD Sensor - The Sony IMX307 1/2.8" CMOS sensor provides a sharp 1920×1080 image with strong daytime clarity and good low-light performance. 120° Wide Viewing Angle - The 120° lens gives a practical, wide reversing view without pushing into heavy fisheye distortion. It provides very good coverage of the area behind the vehicle, making it easier to see bollards, posts and passing pedestrians. IR Night Vision - Built-in infrared LEDs provide a usable image in low-light conditions or complete darkness. The IR illumination is invisible to the human eye and only picked up by the camera. Black Roof-Mount Housing - The black housing blends neatly with most factory roof trims and rear mouldings. It is designed to look OEM-like once installed. Optional ACC345 Stainless Steel Extension Plate - For vehicles with a wider or deeper roof overhang, you can add the ACC345 stainless steel extension plate. This extends the mounting footprint, ensuring a secure fit on a larger lip. Product link: ACC345 Extension Plate. IP68 Waterproof Rating - IP68 waterproof housing, proven to withstand the worst the British weather can throw at it. Suitable for vehicles parked outdoors all year round. 4-Pin Aviation Connector - Fitted with a standard 4-pin screw-type aviation connector for secure video and power transmission. Two-Year Reversing Cameras UK Guarantee - Supplied with our two-year Reversing Cameras UK guarantee for peace of mind. AHD compatibility notice Please note: This is a high-definition 1080P AHD camera and must be used with a monitor or head unit that supports AHD video input. Standard-definition CVBS screens will not display an image from this camera. If your monitor does not support AHD, you may prefer our standard-definition version: Standard Definition Roof-Mount Reversing Camera Extension cable optionsWe offer 4-pin extension cables from 1 m to 20 m to suit different installation routes. These cables are available in both standard-diameter and slim-joint 8 mm versions. The 8 mm joint is not waterproof and must remain inside the vehicle. Choose the style that best suits your cable-routing requirements. RCA adaptor set optionIf your monitor or stereo head unit uses RCA inputs, an optional discounted adaptor bundle can be added. It includes:
This provides everything needed to connect the camera to an RCA-based monitor. What’s in the box
|
Detailed Images

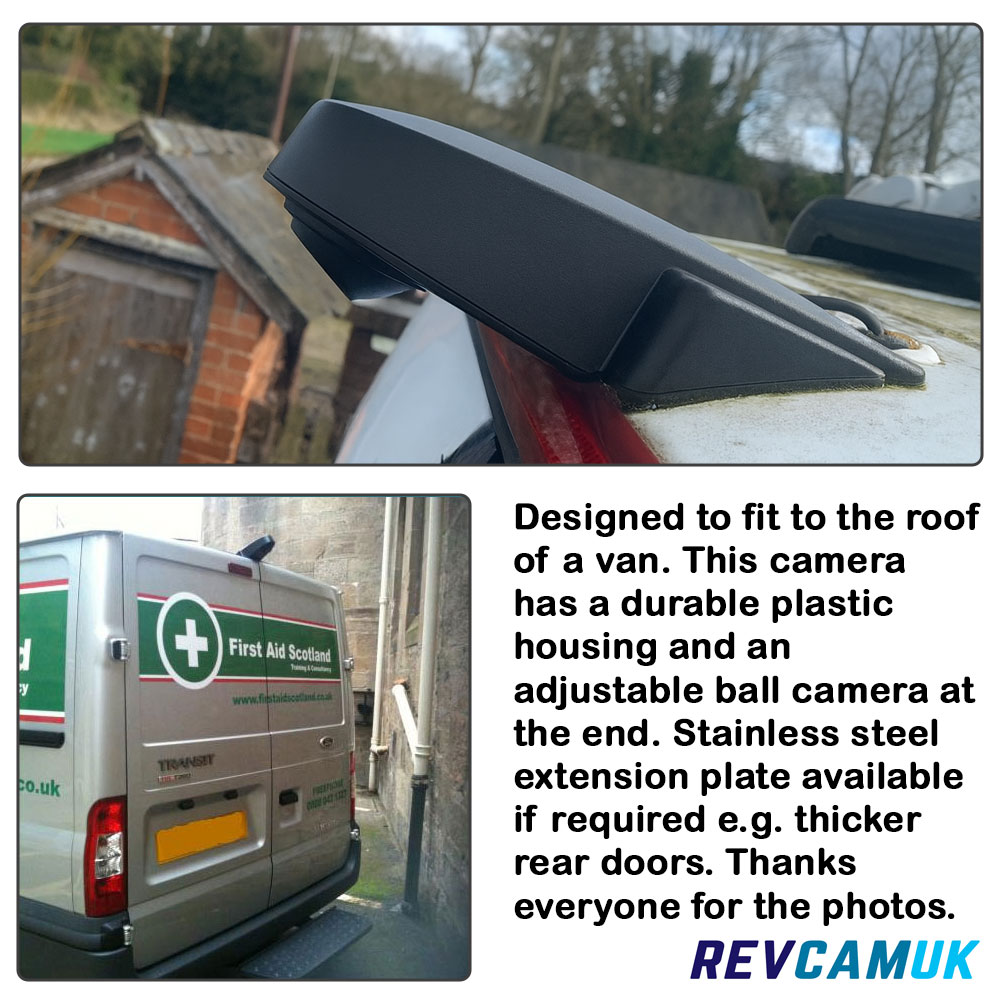

Roof-mounted van reversing camera with durable plastic housing and adjustable ball lens, shown installed on vehicles including a Mark 7 Transit van; stainless steel extension plate available for vans with thicker rear door

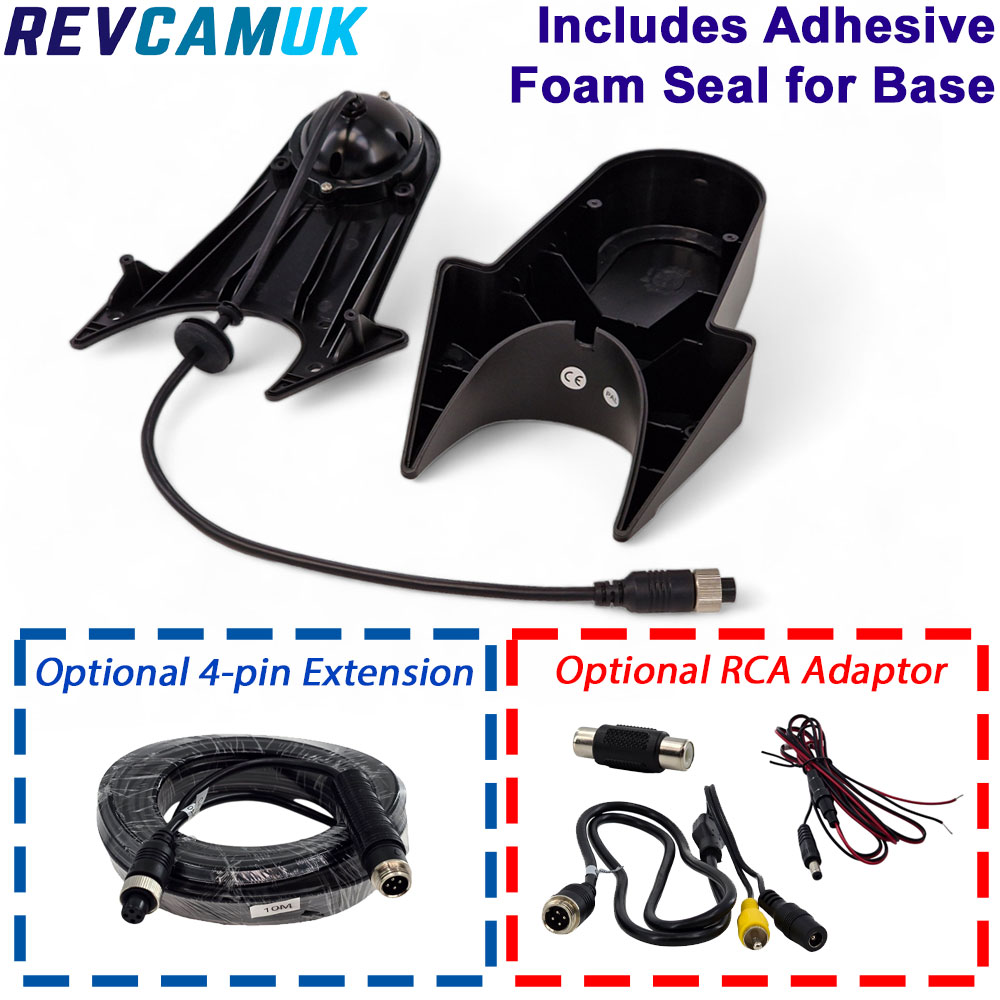

High-level van roof reversing camera with adhesive foam base seal, shown with upper and lower housing sections, 4-pin aviation connector, and optional accessories including a 4-pin extension cable and RCA adaptor set

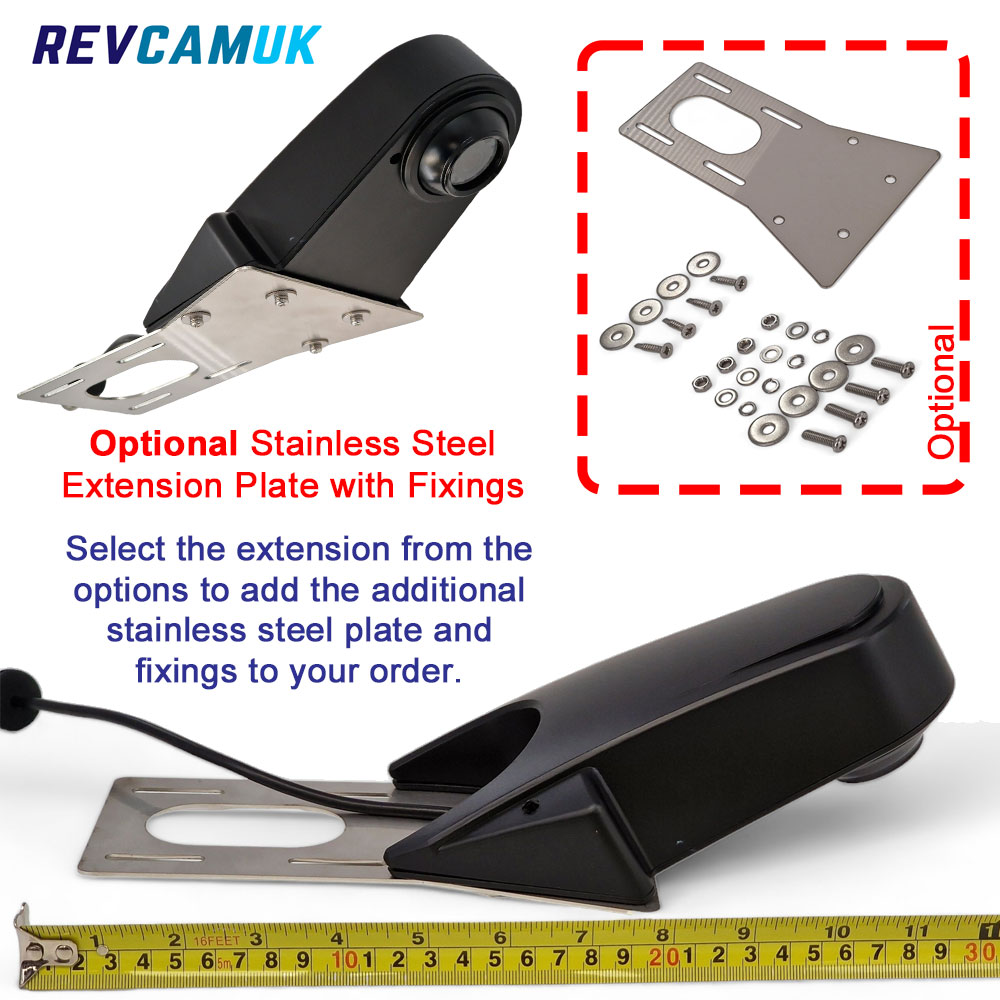

Roof-mounted van reversing camera shown with optional stainless steel extension plate and full fixing kit, including screws, washers and brackets, with measurement scale for size reference

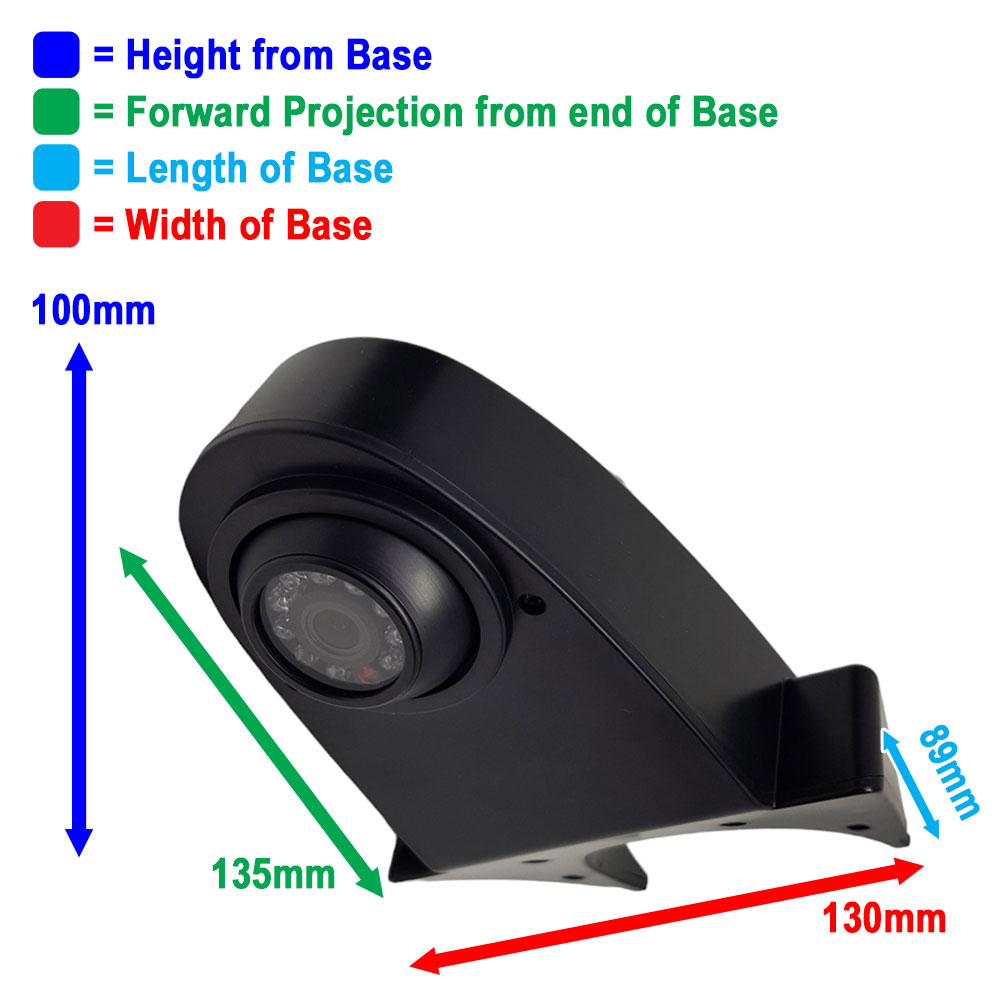

Black roof-mounted reversing camera showing 100mm height from base, 135mm forward projection, 89mm base length and 130mm base width, displayed with colour-coded dimension arrows
This camera outputs a true 1080P AHD signal. You’ll need a monitor compatible with AHD high-definition input — standard analogue (CVBS) monitors will not display the image.
Yes — it’s specifically designed for large vehicles like vans and motorhomes, with a robust housing and wide-angle lens suited for mounting high up and giving a clear view of the rear while reversing.
You’ll get full 1920×1080 resolution, which means a sharp, high definition picture. The wide-angle lens gives good coverage.
Absolutely — the housing is designed for external roof mounting, so it’s built to handle heavy rain, road spray and the British weather. Designed for large commercial van use.
The camera comes with a short fly-lead terminating in a 4-pin screw-locking aviation connector. You can choose extension cables from 1 m up to 20 m to suit your vehicle size and routing.
You can leave the camera on all the time, however the ball in the camera has limits to how far up it can view. If you are after a rear view in the same style pod, please see our dual lens roof mount AHD rear view camera listing.
| Image sensor: H8550+SONY IMX307 1/2.8" colour CMOS |
