7" Heavy Duty Dash Monitor + Sony CCD (or optional Sony AHD) Black Twin Lens Bracket Reversing & Rearview Camera Kit - PM83
Description
About the 7 inch dash monitor and black twin lens bracket reversing camera kit
Upgrade Option - Sony CCD vs Sony AHD 1080P
Rest assured that whichever option you select, you will have a lovely, good quality image! See our AHD (Analogue High Definition) FAQ page for more info Please take note of an important update for 2024. Our latest production of cameras includes a change – specifically, the driving rear-view camera in the recent batch is now being manufactured without IR LEDs, while the parking camera will continue to have IR LEDs. This modification is a response to customer feedback regarding the sensitivity of the Sony Starvis sensors used in the AHD cameras. Some customers found that the camera's enhanced brightness as the IR lit up nearby trees and bushes, made the image a bit bright when driving at night in a dark cabin. Following road tests, we concluded that eliminating IR LEDs from the rear-facing camera provides a better balance of functionality. When ordering the AHD upgrade kit, you may receive either the original type (with IR LEDs) or the new batch (without IR LEDs) on the rear-view camera. If you have a preference for a specific version, please leave us a customer note when placing your order. Choice of kit power options

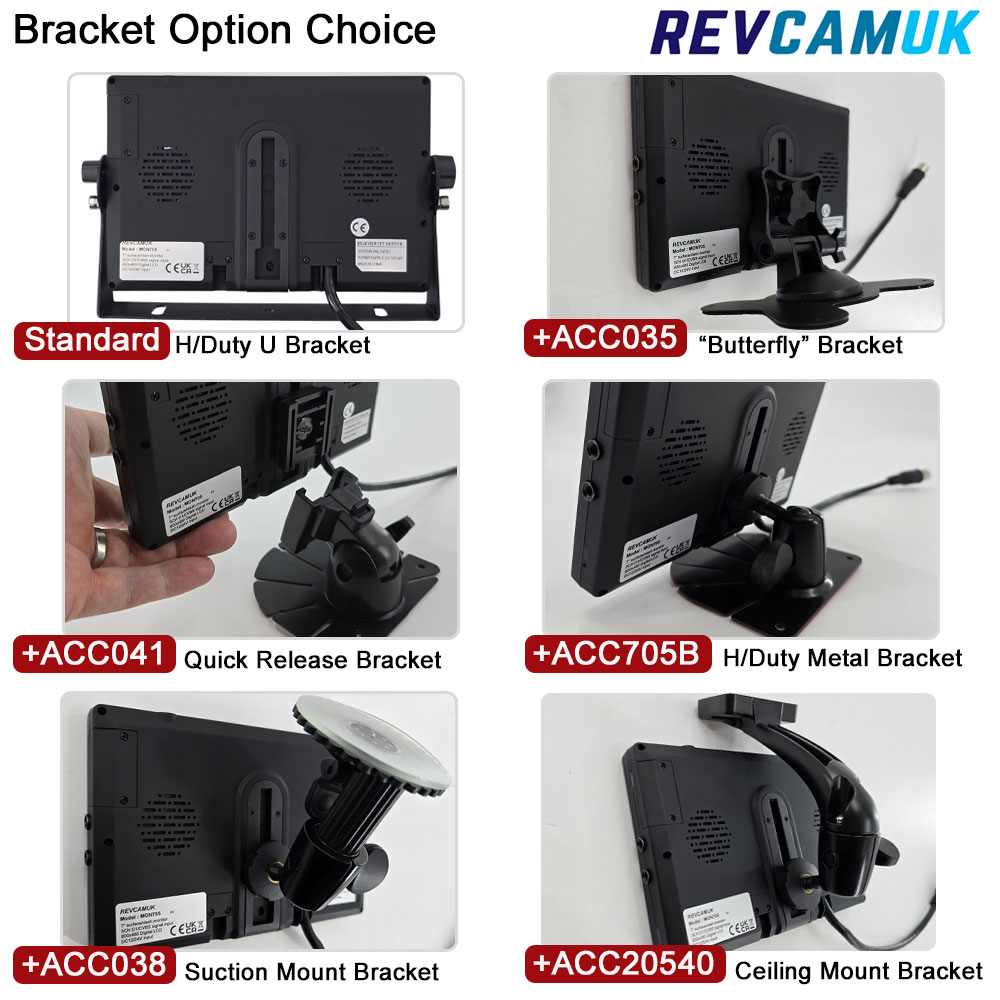

Add an additional monitor bracket/mountWe can supply a discounted additional mount/bracket for the monitor when ordered at the same time as the kit. Please see the photo below, and make your selection using the drop down menu above the add to cart button. See our video below for details about the brackets in the photo above. Easy-Fit Wiring
Disconnectable Connectors for smaller cable entry holesWe took the step of adding 8mm disconnect points between the 4 pin connectors and the camera. This allows you to drill smaller cable entry holes instead of the 19mm you would need if using the pre-attached cable rubber Grommet (we still have these grommets inserted for those that prefer to use this method). If you plan to keep the connections externally eg running the cables along the roof, please leave us a note informing us, so that we can ensure that either a waterproofed 8mm disconnect version is sent (or a version with no 8mm disconnect point at all). Anti-Corrosion Stainless Steel Camera BracketThe camera has a stainless steel bracket, which is shown to last a very long time without corrosion unlike mild steel we have seen from most other retailers, which tends to rust in a matter of a few months. 2 Year GuaranteeWe supply with a 2 year Guarantee with us, meaning we will repair or replace any non-user damaged parts that are deemed faulty. Our failure rate is very low even beyond these two years, if you have a problem outside of 2 years we should still have compatible parts and possible repairs for reasonable amounts. Parts Tested in the UKThe parts of this kit will have been tested twice, once by the factory and once by us. We check all the items in the kit including all cables, trigger wires, IR leds and menu functions to reduce any chance of having a non working part. Our fault rate is extremely low, and we just like to ensure that we avoid any imperfection slipping past. This is why professional fitters love us. |
Detailed Images
Thanks to Apex Motorhome Services for sending us a picture of our white twin lens fitted to their customers vehicle

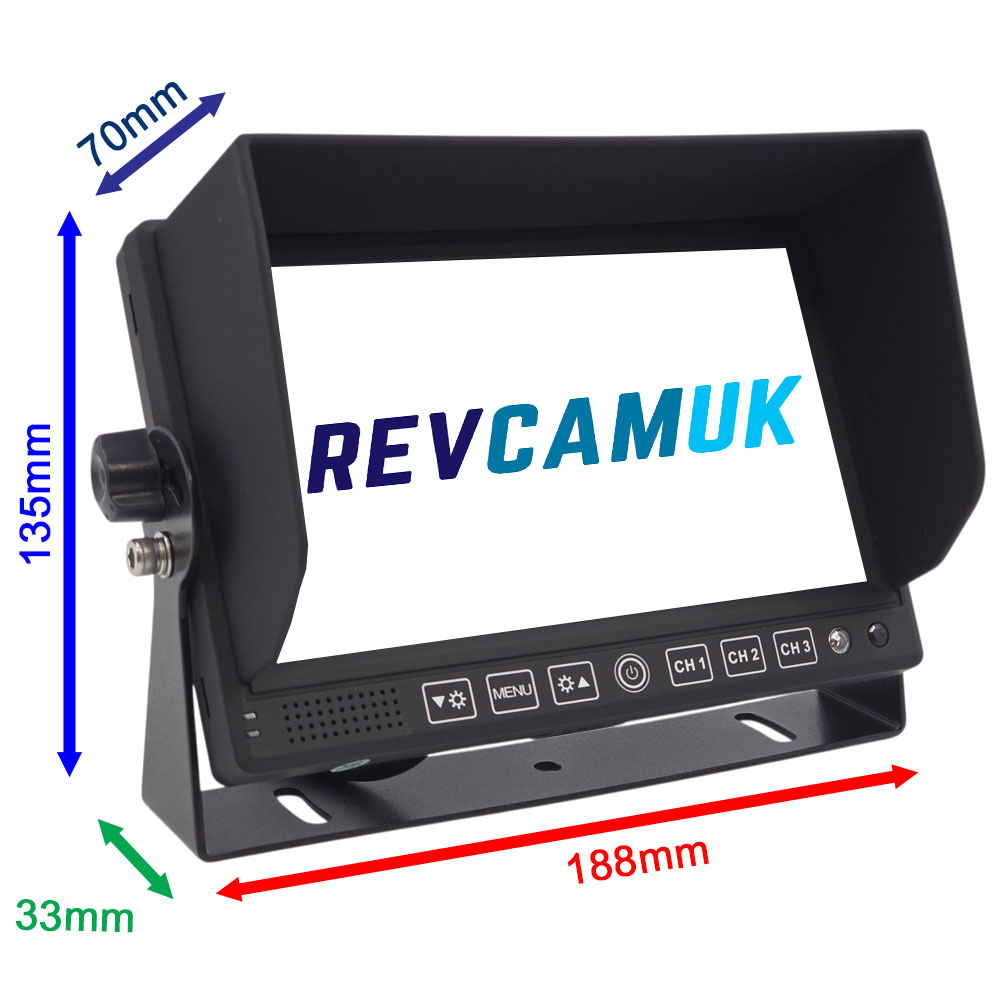

Monitor Dimensions
Camera Dimensions
Wiring Layout (camera side) (AHD option has two separate extension leads)
Wiring Layout (monitor side) (AHD option has two separate extension leads)
Select 8mm "joint" in the cable length option to select a cable with a small disconnect to fit through tight gaps
Waeco compatible 2010+ adaptors (common in Bailey Motorhomes as a pre-fit cable) can be ordered in the cable length box
Choice of power connection method to insert in to the monitor power socket (powers complete kit)
Yes you can, the monitor powers the camera, this means you can choose to watch the camera at any point, you can drive with it "always on".
Our easy wire fuse tap options are new for 2023. We designed a fuse tap that plugs in to a socket that is present on all of our monitor wiring harnesses. The other side has a "piggyback" fuse holder aka fuse tap. You identify a fuse in the fuse box that comes on/off with the ignition (see piggyback fuse holder / fuse tap instructions here - PDF download). The original fuse is placed in to the new fuse tap, plus there is a new fuse already present for the reverse camera kit. On the same wiring there is an earth terminal connector, simply attach this to a chassis bolt (usually near the fuse box, or add your own).
Rough guide:
- 5M is good for an average size car
- 7.5M is good for large cars and shorter wheelbase vans
- 10M is good for a medium length van (around 6M)
- 12.5M is good for most vehicles up to around 8.5M long (covers most motorhomes except the super long)
- 15M is good for vehicles up to around 10/11M eg rigid lorry, small coach.
- 20M is good for super long vehicles
Yes. Please select the option at the bottom of the cable length drop down menu. It will be labelled 2010+ Dometic/Waeco adaptors. Instead of a long cable, you will receive the twin channel Waeco/Dometic adaptor set.
The standard high resolution camera/monitor is a very nice picture, it gives you everything you need for visibility. The only reason to upgrade to AHD is if you want to see even more detail such as the detail of gravel on the floor, or want the colours of cars etc to "pop" on the screen and be even more vivid. In terms of safety, both are on par with each other.
|
