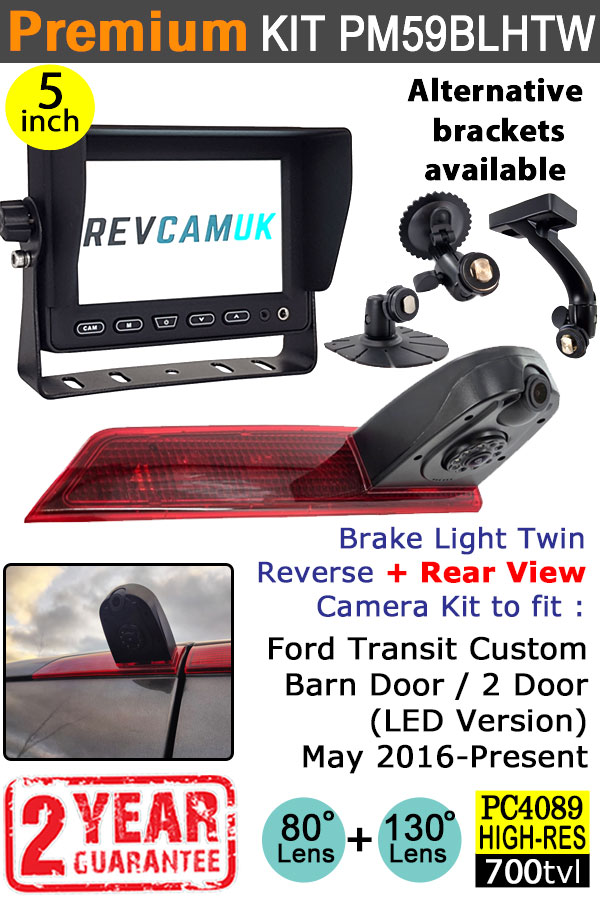

Ford Transit Custom (05/2016+) Twin Brake Light Rear View + Reverse Camera kit with 5" Monitor Display - PM59BLHTW
Description
About the Ford Transit Custom (barn door) brake light reversing + rear view camera with 5 inch dash monitor kitWhen somebody wants a reversing camera for a van, the most popular option these days is a brake light reversing camera. This is because of the following reasons:
The camera supplied in this kit is special, as it is also fitted with an always on rear view camera to monitor traffic. This makes the camera system useful 100% of the driving time, instead of just when in reverse. This particular camera kit is supplied with a 5 inch high resolution dash monitor, this is supplied with a U bracket mount as standard but a variety of other brackets can be selected here. Please check your brake light, this will fit the Transit customs that have the split type brake light with the LED lights (the LED's were typically installed on vans built after May 2016), if you have the normal Ford Transit, or a Ford Transit custom built before May 2016 fitted with bulb lights then we have separate listings for these. Please note that there is a subtle difference in the finish between the original remaining light, and the new light, we have a picture of this on the listing to help your decision. What vehicle does this fit?Ford Transit Custom with LED brake light May 2016+ Add an additional monitor bracket/mountWe can supply a discounted additional mount/bracket for the monitor when ordered at the same time as the kit. Please see the photo below, and make your selection using the drop down menu above the add to cart button. See our video below for details about the brackets in the photo above. Choice of kit power options
Easy-Fit Wiring
2 Year GuaranteeWe supply with a 2 year Guarantee with us, meaning we will repair or replace any non-user damaged parts that are deemed faulty. Our failure rate is very low even beyond these two years, if you have a problem outside of 2 years we should still have compatible parts and possible repairs for reasonable amounts. Parts Tested in the UKThe parts of this kit will have been tested twice, once by the factory and once by us. We check all the items in the kit including all cables, trigger wires, IR leds and menu functions to reduce any chance of having a non working part. Our fault rate is extremely low, and we just like to ensure that we avoid any imperfection slipping past. This is why professional fitters love us. |
Detailed Images
Thanks to Ross from RFT Automotive for this picture of the twin camera he installed on one of his customers Ford Transit Customs
Thanks to Ross from RFT Automotive for this picture of the twin camera he installed on one of his customers Ford Transit Customs
Thanks to Ross from RFT Automotive. Driving View shown on our mirror monitor. 5" Dash display provided with this kit instead of mirror monitor.
Thanks to Ross from RFT Automotive. Reversing View shown on our mirror monitor. 5" Dash display provided with this kit instead of mirror monitor.
Monitor Dimensions
Advice if you have an aftermarket spoiler
Monitor Wiring Layout
Yes you can, the monitor powers the camera, this means you can choose to watch the camera at any point, you can drive with it "always on".
Our easy wire fuse tap options are new for 2023. We designed a fuse tap that plugs in to a socket that is present on all of our monitor wiring harnesses. The other side has a "piggyback" fuse holder aka fuse tap. You identify a fuse in the fuse box that comes on/off with the ignition (see piggyback fuse holder / fuse tap instructions here - PDF download). The original fuse is placed in to the new fuse tap, plus there is a new fuse already present for the reverse camera kit. On the same wiring there is an earth terminal connector, simply attach this to a chassis bolt (usually near the fuse box, or add your own).
Rough guide:
- 10M is good for a medium length van (around 6M)
- 12.5M is good for most vehicles up to around 8.5M long (covers most motorhomes except the super long)
- 15M is good for vehicles up to around 10/11M eg rigid lorry, small coach
Yes, as standard the reversing camera is set to display static coloured guidelines on to the image produced. These can be removed if you prefer. Simply cut the small trigger loop close to the brake light camera connection. See sticker on box for more details as some models have more than one function loop available.
Our general 4 pin cable reversing camera kit based fitting instructions.
Our compact-sized heavy-duty monitor display. Guide to fitting and the on-screen menu.
Monitor5” Colour LCD screen
|
