Description

About the Ford Transit Custom brake light reversing + rear view camera

When somebody wants a reversing camera for a van, the most popular option these days is a brake light reversing camera. This is because of the following reasons:

Easy to fit because it uses the original location and fixing method that has already been installed by the manufacturer
No sealant required, as the new brake light reversing camera housing is fitted with a seal which is mechanically compressed against the original location of the old brake light
The reversing camera is tidy and "factory look"

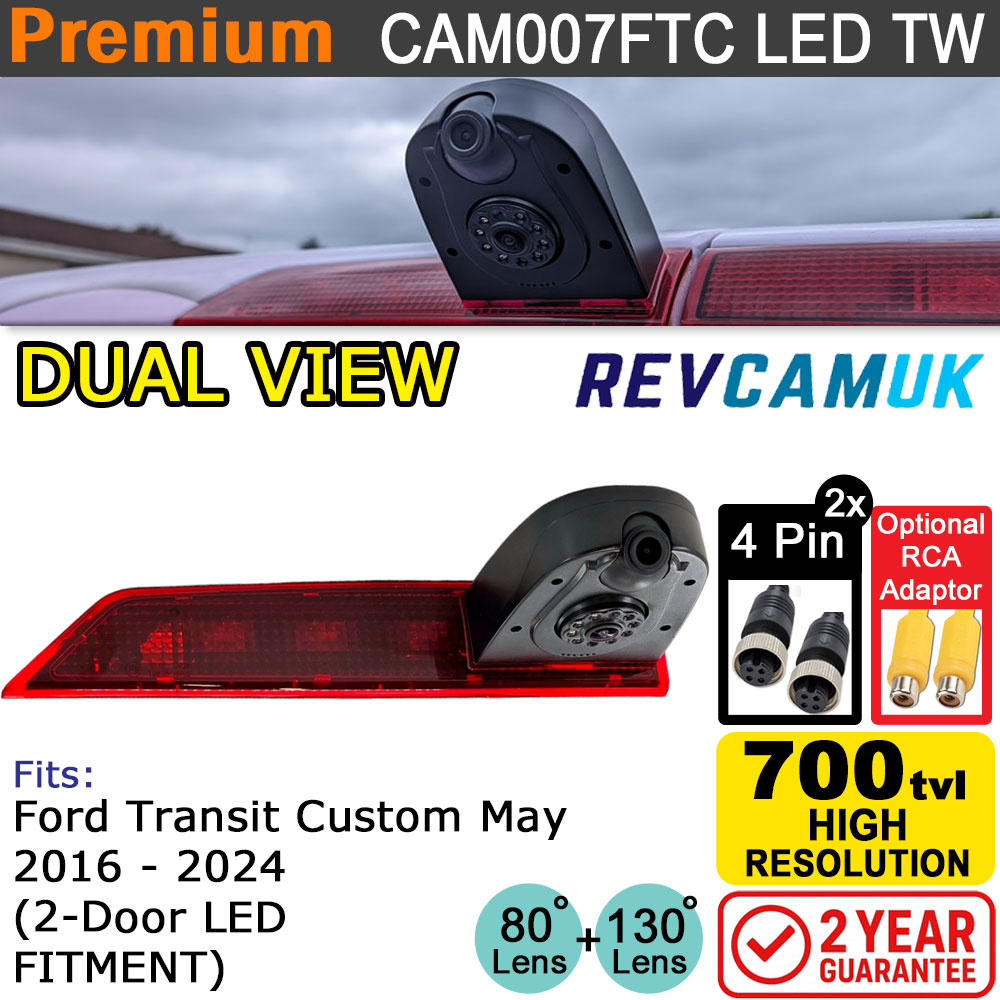

This brake light camera is also unusually fitted with a second camera for rear view. This second camera has a slightly narrower field of view, and can be aimed back down the road for an always on view of following vehicles.

The camera has been fitted with a 4 pin connector, which in the industry is widely considered to be the best connector. If you are using a phono connector monitor/stereo then we can provide adaptors, please see the drop down menu to order.

The camera is waterproof up to IP68.

What vehicle does this brake light reversing camera fit?

Ford Transit Custom with LED brake light May 2016-Present

This listing is for the Ford Transit custom brake light, designed to fit vehicles fitted with LED's, LED brake lights were typically installed on vans produced after May 2016.

Detailed Images

Ford Transit Custom 2016 to Present retrofit brake light twin reverse + rear view camera

Thanks to Ross from RFT Automotive for this picture of the twin camera he installed on one of his customers Ford Transit Customs

Thanks to Ross from RFT Automotive. Driving View shown on our mirror monitor.

Thanks to Ross from RFT Automotive. Reversing View shown on our mirror monitor.

Optional Extra - Adaptor Set (bundle discount included)

Advice if you have an aftermarket spoiler

Instructions

Fitting a 4 pin reverse camera - including using adaptors to RCA/Phono

Download

See our general guide to installing 4 pin reversing cameras. This includes fitting to stereos inc Kenwood / Sony / Pioneer etc.

Fitting guide for 4 pin reversing cameras including to stereo headunits

Technical Specs

Rear View Camera (Upper camera)

Sensor: 1/3 PC4089 CMOS
Effective Pixels: 976(H) x 592(V)
TV line: 700 TVL
Lens: 2.6mm
Min illumination: 0.1 LUX
Waterproof: IP68
View angle: V 65 degrees, H 80 degrees D 105 degrees
Camera lens adjustment: 20 degrees up and down
Voltage: 12 volts
Current consumption: 150mA
Operating temperature: -20 to 70 degrees C
Certificates: FCC, CE, E-mark, RoHS
Connector: 4 pin aviation

Reversing Camera (Lower camera)

Sensor: 1/3 PC4089 CMOS
Effective Pixels: 976(H) x 592(V)
TV line: 700 TVL
Lens: 1.9mm
Min illumination: 0.0 LUX (IR LED on)
IR LEDs: 8 pcs
Night vision: 10m
Waterproof: IP68
View angle: V 85 degrees, H 130 degrees D 160 degrees
Camera lens adjustment: 20 degrees up and down
Voltage: 12 volts
Current consumption: 150mA
Operating temperature: -20 to 70 degrees C
Guideline: Optional (some have a trigger wire to select)
Certificates: FCC, CE, E-mark, RoHS
Connector: 4 pin aviation
