9" Heavy Duty Dash Display + Numberplate Frame Reversing Camera Kit (option of 600TVL or 1080P AHD camera) - PM95F

Price

£195.00

VAT Included £32.50
Availability IN STOCK
Product Code: PM95F
AHD Upgrade to kit? (see description)
Cable Length Options
Add extra monitor bracket?
Add a lighter plug?
Add a fuse tap?
Quantity
(from 1 to 40)

If you'd like this by

Order within ::

(Please select Next Day Delivery Option - Mainland UK only) Terms Apply

Description

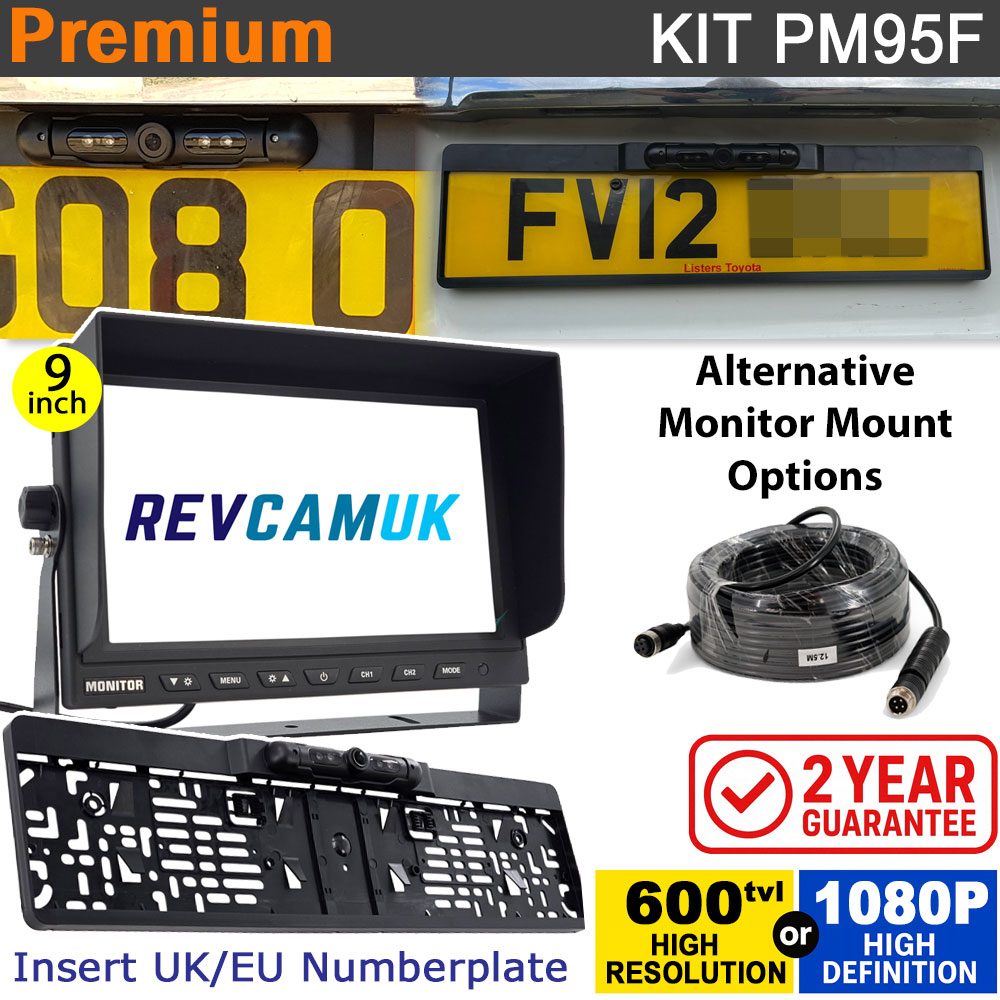

PM95F Numberplate Frame Reversing Camera Kit with 9-inch Dash Monitor

The PM95F kit combines a heavy-duty 9-inch dash monitor with a discreet numberplate frame reversing camera. Choose between the standard 600TVL CMOS sensor or upgrade to the GalaxyCore AHD 1080P option for higher resolution, sharper detail, and better low-light performance. With IP69K waterproofing, aspheric wide-angle lens, and easy fitment into your existing numberplate position, this system is ideal for cars, vans, and motorhomes needing a neat reversing solution.

Key features

  • 9-inch dash monitor with clear LCD display (IPS panel on AHD upgrade)
  • Numberplate frame style reversing camera for discreet installation
  • Choice of 600TVL CMOS or GalaxyCore 1080P AHD upgrade
  • 150° wide-angle aspheric lens reduces fish-eye distortion
  • IP69K waterproof rating – highest available for durability
  • 12–24 V DC input with built-in over-voltage protection
  • Durable 4-pin aviation connectors for secure, weatherproof cabling
  • Optional lighter plug or fuse tap for quick installation
  • UK tested and supported, with 2-year guarantee

More about this kit

Camera options: The standard 600TVL CMOS sensor provides a clear reversing image, while the GalaxyCore 1080P AHD upgrade increases monitor resolution by 60% with an IPS panel, giving improved dynamic range, colour accuracy, and low-light vision.

Lens design: A 150° aspheric wide-angle lens maximises visibility while minimising distortion. Perfect for parking in tight spaces.

Waterproof reliability: Unlike many cheaper numberplate cameras prone to leaking, this model uses robust mechanical seals and has proven long-term reliability. Rated IP69K for the toughest conditions.

Simple fitting: Installation is straightforward – remove your existing numberplate, slide it into the new frame camera, and reattach using the same screw positions. The wire feeds in neatly using the supplied grommet or a small notch near the numberplate light.

Power options: Supplied with a standard hardwire lead. Optional lighter plug or fuse tap adaptors (standard, mini, or micro blade) are available for quick installation. Fuse taps include a pre-crimped 200 cm lead with chassis ground terminal.

4-pin aviation cabling: GX12 connectors ensure secure, weatherproof connections that resist CANBUS interference and maintain signal quality over long runs. High-quality pure copper cores are used for long-term reliability.

How to install the numberplate frame camera

  1. Unscrew your existing numberplate from the vehicle.
  2. Slide the plate into the new numberplate frame camera.
  3. Reattach the numberplate and frame to the vehicle using the same screws.
  4. Route the cable inside via the light cluster or supplied grommet channel.

Mounting takes only a few minutes. See our video guide for step-by-step fitting instructions.

Download our fitting guide for the number plate frame camera

Specification snapshot

Monitor 9-inch LCD dash display (IPS panel on AHD upgrade)
Camera Numberplate frame style reversing camera
Camera sensor 600TVL CMOS (standard) or GalaxyCore 1080P AHD (upgrade)
Viewing angle 150° wide-angle, aspheric lens
Weatherproofing IP69K rated – maximum waterproof protection
Power 12–24 V DC with over-voltage protection up to 32 V
Connection 4-pin aviation cable
Guarantee 2-year UK warranty and lifetime support

What’s in the box

  • 9-inch dash monitor with U-shape mounting bracket
  • Numberplate frame reversing camera
  • Main harness and 4-pin camera cable (12.5 m standard length)
  • Standard hardwire lead, optional lighter plug or fuse taps
  • Optional additional monitor bracket if selected

Cable length guide

  • 5 m: cars
  • 10 m: medium vans (around 6 m length)
  • 12.5 m: most vehicles up to 8.5 m (typical motorhomes)
  • 15 m: larger vehicles up to 10–11 m (rigid lorries, small coaches)
  • 20 m: very long vehicles (super long motorhomes, coaches, HGVs)

Supplied with one 4-pin camera extension lead – choose your preferred length when ordering.

Detailed Images

Add an additional monitor bracket/mount

We can supply a discounted additional mount/bracket for the monitor when ordered at the same time as the kit.  Please see the photo below, and make your selection using the drop down menu above the add to cart button.

Bracket selection for dashboard mounted rear view monitors

See our video below for details about the brackets in the photo above.

Choice of kit power options

  • On the monitor wiring harness is a 2.1mm DC socket. On the drop down menu of this product, you can select your desired power lead to plug in to this.
  • The standard hardwiring is supplied with all options, this terminates in a red wire (+12V/+24V), and black wire (earth).
  • For the ultimate quick install is a lighter plug option. Some people also order this just for the initial setup, before changing to the standard hardwiring.
  • Fuse taps aka piggyback fuse holders, are the most recent addition to our options. This allows you to "piggyback" off an existing circuit from your fuse box. We have standard blade, mini blade, or micro blade available to match your fuse box. Read our Fuse Tap installation instructions PDF for more information.
Reversing Camera Kit Power Options

Yes you can, the monitor powers the camera, this means you can choose to watch the camera at any point, you can drive with it "always on".

The standard high resolution camera/monitor is a very nice picture, it gives you everything you need for visibility.  The only reason to upgrade to AHD is if you want to see even more detail such as the detail of gravel on the floor, or want the colours of cars etc to "pop" on the screen and be even more vivid.  In terms of safety, both are on par with each other.

Our easy wire fuse tap options are new for 2023.  We designed a fuse tap that plugs in to a socket that is present on all of our monitor wiring harnesses.  The other side has a "piggyback" fuse holder aka fuse tap.  You identify a fuse in the fuse box that comes on/off with the ignition (see piggyback fuse holder / fuse tap instructions here - PDF download).  The original fuse is placed in to the new fuse tap, plus there is a new fuse already present for the reverse camera kit.  On the same wiring there is an earth terminal connector, simply attach this to a chassis bolt (usually near the fuse box, or add your own).

Rough guide:

  • 5M is good for an average size car
  • 7.5M is good for large cars and shorter wheelbase vans
  • 10M is good for a medium length van (around 6M)
  • 12.5M is good for most vehicles up to around 8.5M long (covers most motorhomes except the super long)
  • 15M is good for vehicles up to around 10/11M eg rigid lorry, small coach.
  • 20M is good for super long vehicles

Our general 4 pin cable based fitting instructions.

4 pin reversing camera kit fitting instructions

Our fitting guide to installing this style of number plate reversing camera

Instructions for installing number plate reversing camera CAM103 and CAM104

Monitor – Standard Definition Option
Screen Ratio: 16:9
Back Light Luminance: LED, 300 cd/m²
Resolution: 1024 x RGB x 600
Compatible System: NTSC & PAL (automatically)
OSD Control: Colour, Brightness, Contrast, Volume, Language (English, Deutsch, French, Spanish, Portuguese, Italian, Dutch, Simplified Chinese)
View Angle: Horizontal L(70) R(70), Vertical UP(50) DOWN(60)
Image Reversion: UP/Down and Left/Right
Power Requirement: DC 12–24V
Power Consumption: 5W
Storage Temperature: -30°C to 80°C
Working Temperature: -20°C to 70°C
Size: 240 x 163 x 26 mm
Weight: 547g
Key Colour: Black
AV Inputs: 2-way video input, 2-way audio input
Number of Trigger and Display: 2-way trigger
Optional Functions: 4 PIN connector
Other Features: Sunshade design, OSD menu, Built-in speaker

Monitor – High Definition Upgrade Option
Screen Ratio: 16:9
Back Light Luminance: LED, 300 cd/㎡
Resolution: 1024 x RGB x 600
Compatible System: NTSC & PAL (automatically)
OSD Control: Brightness, Contrast, Saturation, Volume, Language (English, Simplified Chinese)
View Angle: Horizontal L(70) R(70), Vertical UP(50) DOWN(70)
Image Reversion: UP/Down and Left/Right
Power Requirement: DC 12–24V
Power Consumption: 5W
Storage Temperature: -30°C to 80°C
Working Temperature: -20°C to 70°C
Size: 240 x 163 x 26 mm
Weight: About 680g
Key Colour: Black
AV Inputs: 3 channel HD video input, single image display, support 720P@25/30, 720P@50/60, 1080P@25/30
Number of Trigger and Display: 3 triggers
Optional Functions: 4 PIN connector or RCA connector
Other Features: OSD menu, Remote control, Sunshade design around
Accessories: Remote controller, Power supply cable, User manual, Bracket, Hexagon wrench

Camera – Standard Definition Option
TV System: PAL
Effective Pixels: 960 (H) x 576 (V)
Resolution: 600TV Lines
Sensing Area: 4.880mm x 3.670mm
Scanning System: 2:1 Interlace
Sync. System: Internal
Minimum Illumination: 0 lux (LED ON)
Horizontal Sync Frequency: 15.625KHz
Vertical Sync Frequency: 50Hz
Video Output: 1.0 Vp-p, 75 Ohm
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 43.3dB
White Balance: Auto
Electronic Shutter: 1/50(PAL) ~ 1/10,000 Seconds
BLC: Auto
Power Supply: DC12V
Operating Temperature: -20°C~70°C, RH95% MAX
Storage Temperature: -40°C~80°C, RH95% MAX
Camera Fly Lead Length: 90cm
Lens Angle: 150° Approx (real world may be different as monitors crop the image)

Camera – High Definition Upgrade Option
Image Sensor: Galaxy Core 2053
Image Device: 1/2.9” CMOS
Frame Rate: 25fps
Effective Pixels: 1920 (H) x 1080 (V)
Pixel Pitch: 2.8 μm x 2.8 μm
Scanning System: Progressive Scanning
Sync. System: Internal
Resolution: 1080P
Minimum Illumination: 0.1 Lux (day), 0 Lux (with IR)
Microphone: Yes
Video Output: 1.0 Vp-p, 75 Ohm
Gamma Consumption: 0.45
AGC: Auto
Dynamic Range: 81dB
White Balance: Auto
Electronic Shutter: 1/30(1/25)~1/50,000 Seconds
BLC: Auto
Current Consumption: Max. 130mA
Power Supply: DC 12 V
Connection: 4 PIN
Operating Temperature: -20°C~70°C, RH 95% MAX
Lens: f=2.1mm / f=1.98 mm
Camera Fly Lead Length: 90cm
Lens Angle: 150°
