Number Plate Frame Reversing Camera Kit with 7″ Dash Monitor – 600TVL or 1080P High Definition Camera | PM65F
Description
PM65F Numberplate Frame Reversing Camera Kit with 7-inch Dash MonitorThe PM65F is a premium reversing camera kit combining a 7-inch dash-mounted monitor with a discreet numberplate frame camera. The camera neatly integrates with your existing plate, providing a factory-style fit. It is available with either a high-quality 600TVL PC1058 CMOS sensor or the upgraded GalaxyCore 1080P AHD version for sharper detail and more vibrant colours. With IP69K waterproofing, a premium aspheric lens, and aviation-grade wiring, this system is designed for reliability on cars, vans, and motorhomes. Key features

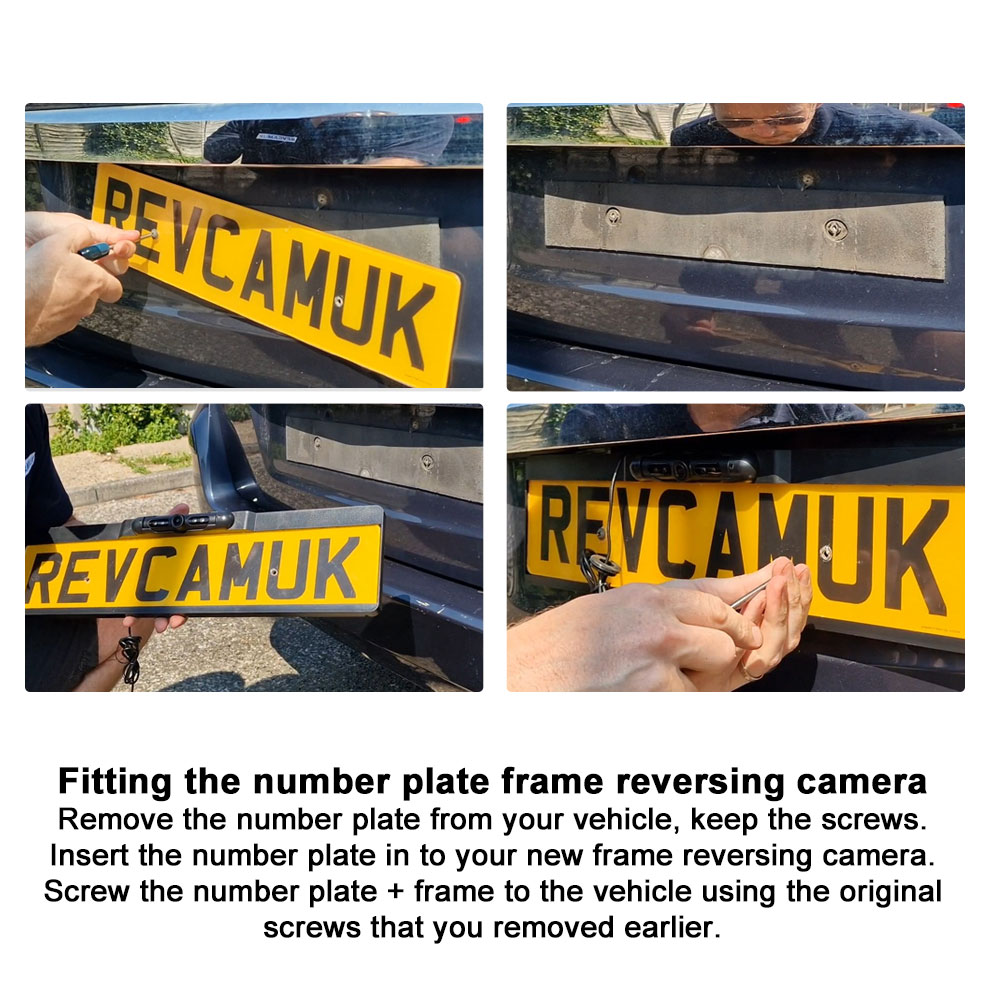

More about this kitUpgrade option: The 600TVL CMOS sensor already gives a crisp, colourful image. The AHD 1080P upgrade improves definition by 60% with an IPS display panel, giving sharper images and richer colour reproduction. Easy installation: The numberplate frame camera is straightforward to fit. Remove your existing plate, insert it into the frame, re-attach using the original screws, and route the cable through the numberplate light recess using the pre-fitted grommet. Only one power connection is required to operate the full system. Monitor quality: The 7-inch display uses a digital LCD panel with over three times the resolution of standard analogue screens. The IPS upgrade (included with AHD version) further enhances higher definition and colour accuracy. UK-tested reliability: All kits are factory-tested and then re-tested in the UK. We check cables, IR LEDs, connectors, and menu functions to ensure every unit is ready for long-term use before dispatch. Specification snapshot
What’s in the box
Cable length guide
Supplied with a 4-pin aviation extension cable – choose your required length at order. See our video below to see the installation of the number plate reversing camera. For best viewing, ensure the playback quality is set to HD. Download our fitting guide for the number plate frame camera |
Detailed Images

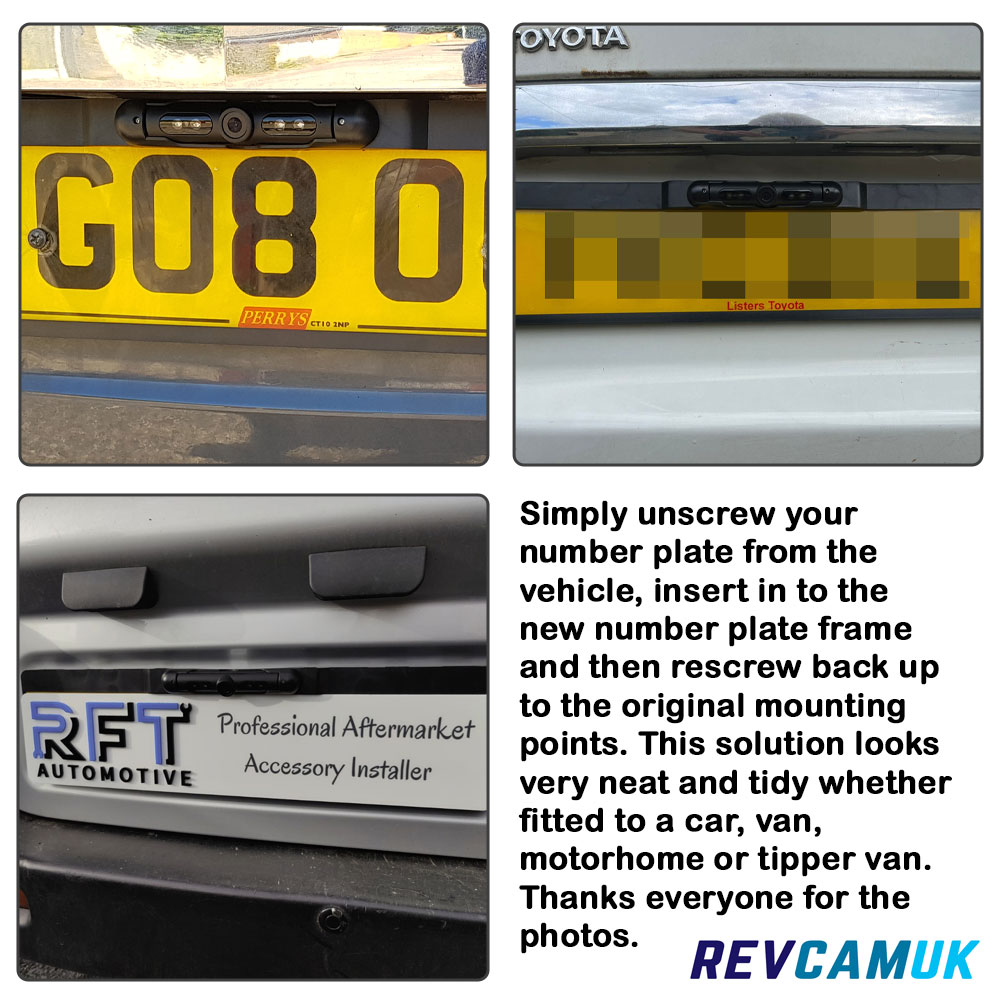

Camera fitted to vehicle

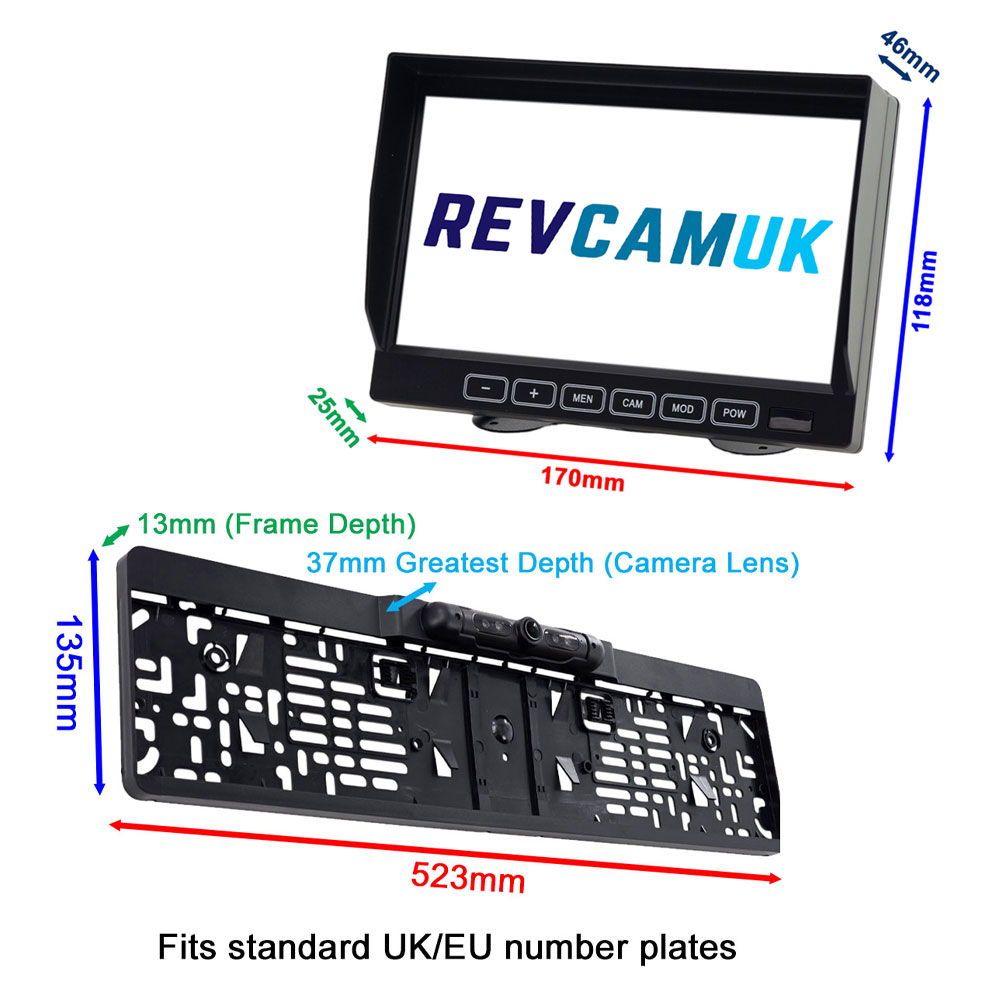

Monitor Dimensions
Camera Dimensions
Numberplate frame without numberplate fitted

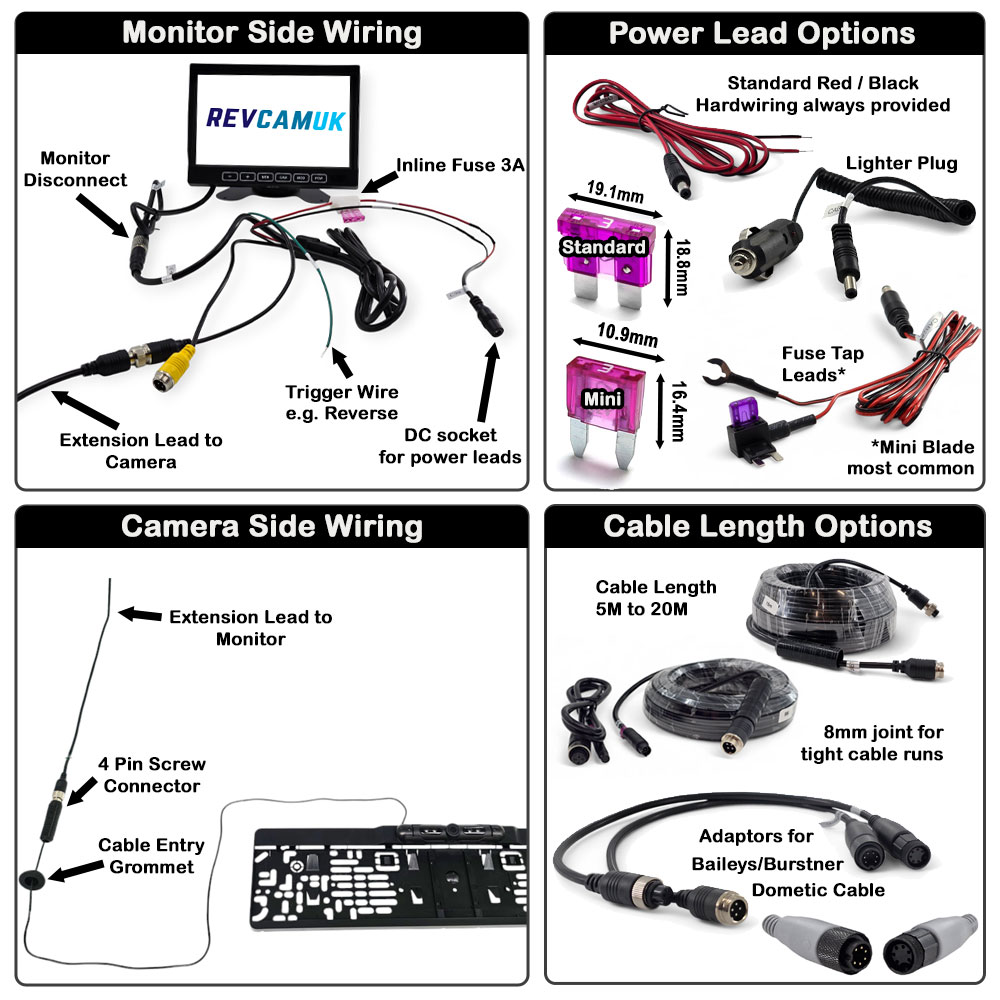

Wiring Layout (monitor side)
Wiring Layout (camera side)
Choice of power connection method to insert in to the monitor power socket (powers complete kit)

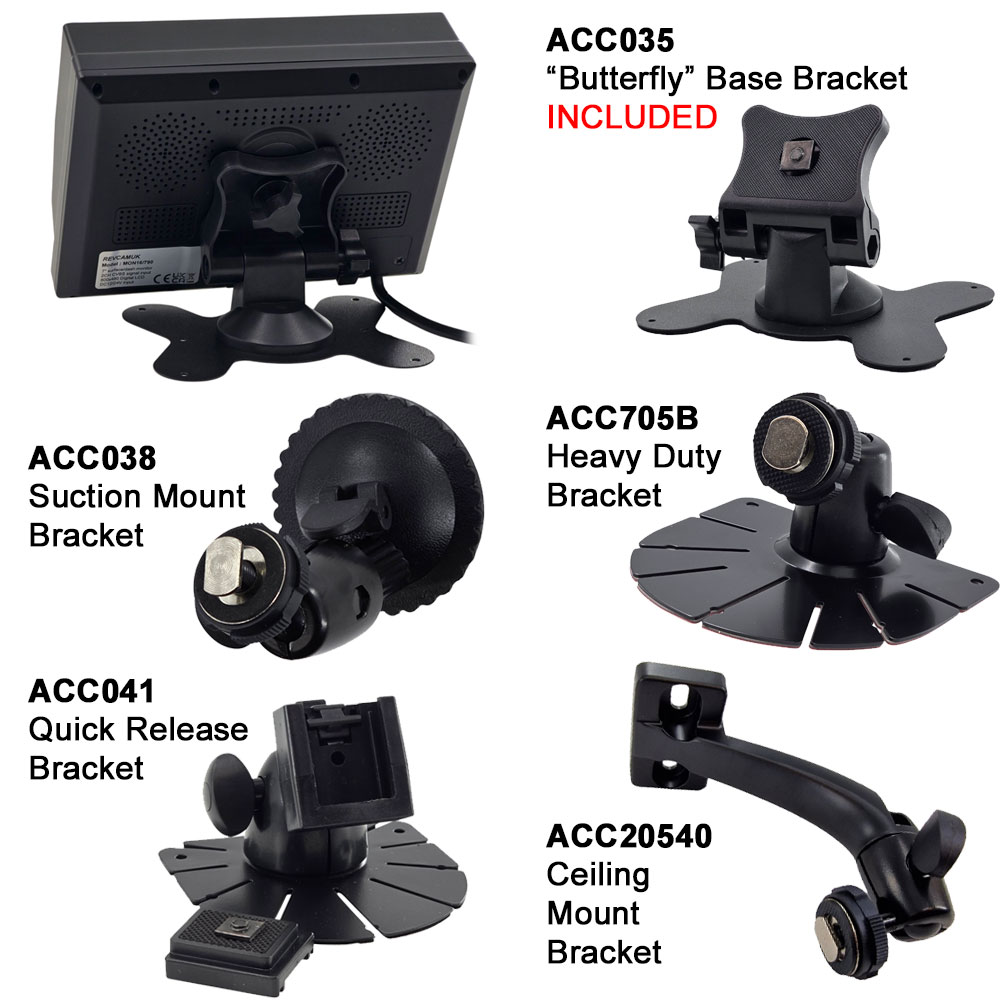

Selection of additional brackets that can be ordered to fit the monitor. Discount price when ordered with kit. Standard bracket is still supplied.
Additional monitor bracket/mount optionsWe can supply a discounted additional mount/bracket for the monitor when ordered at the same time as the kit. Please see the photo below, and make your selection using the drop down menu above the add to cart button.  See our video below for details about the brackets in the photo above. |
Choice of kit power options
 |
Yes you can, the monitor powers the camera, this means you can choose to watch the camera at any point, you can drive with it "always on".
The standard high resolution camera/monitor is a very nice picture, it gives you everything you need for visibility. The only reason to upgrade to AHD is if you want to see even more detail such as the detail of gravel on the floor, or want the colours of cars etc to "pop" on the screen and be even more vivid. In terms of safety, both are on par with each other.
Our easy wire fuse tap options are new for 2023. We designed a fuse tap that plugs in to a socket that is present on all of our monitor wiring harnesses. The other side has a "piggyback" fuse holder aka fuse tap. You identify a fuse in the fuse box that comes on/off with the ignition (see piggyback fuse holder / fuse tap instructions here - PDF download). The original fuse is placed in to the new fuse tap, plus there is a new fuse already present for the reverse camera kit. On the same wiring there is an earth terminal connector, simply attach this to a chassis bolt (usually near the fuse box, or add your own).
 |  |
Rough guide:
- 5M is good for an average size car
- 7.5M is good for large cars and shorter wheelbase vans
- 10M is good for a medium length van (around 6M)
- 12.5M is good for most vehicles up to around 8.5M long (covers most motorhomes except the super long)
- 15M is good for vehicles up to around 10/11M eg rigid lorry, small coach.
- 20M is good for super long vehicles
The standard high resolution camera/monitor is a very nice picture, it gives you everything you need for visibility. The only reason to upgrade to AHD is if you want to see even more detail such as the detail of gravel on the floor, or want the colours of cars etc to "pop" on the screen and be even more vivid. In terms of safety, both are on par with each other.
Instructions for our MON16 dash monitor, supplied with the Sony CCD option.
Covers the operation of the AHD version of our 7 inch stand on dash monitor
Our fitting guide to installing this style of number plate reversing camera
Standard Kit Tech Specs 600TVLMonitor7” Colour LCD screen CameraTV System: PAL Upgrade Kit Tech Specs 1080PMonitor7” Diagonally Measured Colour IPS screen CameraImage sensor: Galaxy Core 2053 |
