7" Mirror monitor display to fit swan neck brackets 2x 4 pin inputs | MON293B

7-inch mirror reversing camera monitor with rear bracket mounting point - MON293B

This listing is for our MON293B 7-inch mirror-style monitor, designed to mount using a rear bracket fixing point rather than clipping over your existing mirror. It is a 2-channel displaythat allows you to connect a reversing camera and a rear-view or side camera. This style is popular on motorhomes and vans, where you would prefer the monitor to mount to the windscreen button or an interior bracket rather than clip onto the original mirror. The monitor works on both 12V and 24V vehicles and uses 4-pin aviation screw connector camera inputs. A range of optional brackets is available using the drop-down menu. Please see images for more information.

Bright, clear image thanks to its high-quality digital 7-inch panel

This monitor is fitted with an 800 x 480 pixel bright, high-quality digital LCD panel. It is excellent at recreating colour detail and provides a very clear, high-resolution image. When coupled with a good quality camera, for instance, a Sony CCD camera, it creates a very capable kit. Digital panels have the advantage of delivering a more stable picture and improved colour replication compared to older-style displays.

Dual camera inputs with manual and automatic switching

This monitor is fitted with two 4-pin aviation screw connector inputs, suitable for any standard CVBS reversing camera, whether PAL or NTSC. Channels can be changed using the V1 and V2 buttons on the front of the monitor, or by using the supplied remote control, which is useful if the monitor is mounted slightly away from the driver. The green trigger wire on the monitor wiring harness can also be connected, allowing channel 2 to automatically activate when reverse gear is selected, ensuring your reversing camera is displayed when needed.

12V & 24V compatibility with built-in voltage regulation

This monitor is compatible with both 12V and 24V vehicles and provides regulated 12V back to the camera to help protect it. This makes it suitable for vans, motorhomes and cars, as well as larger commercial vehicles including trucks and HGVs.

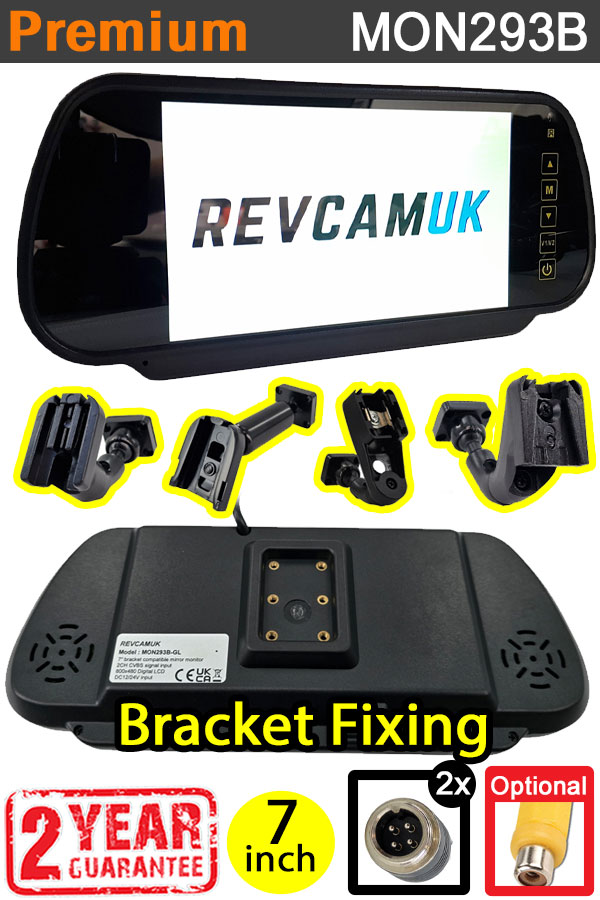

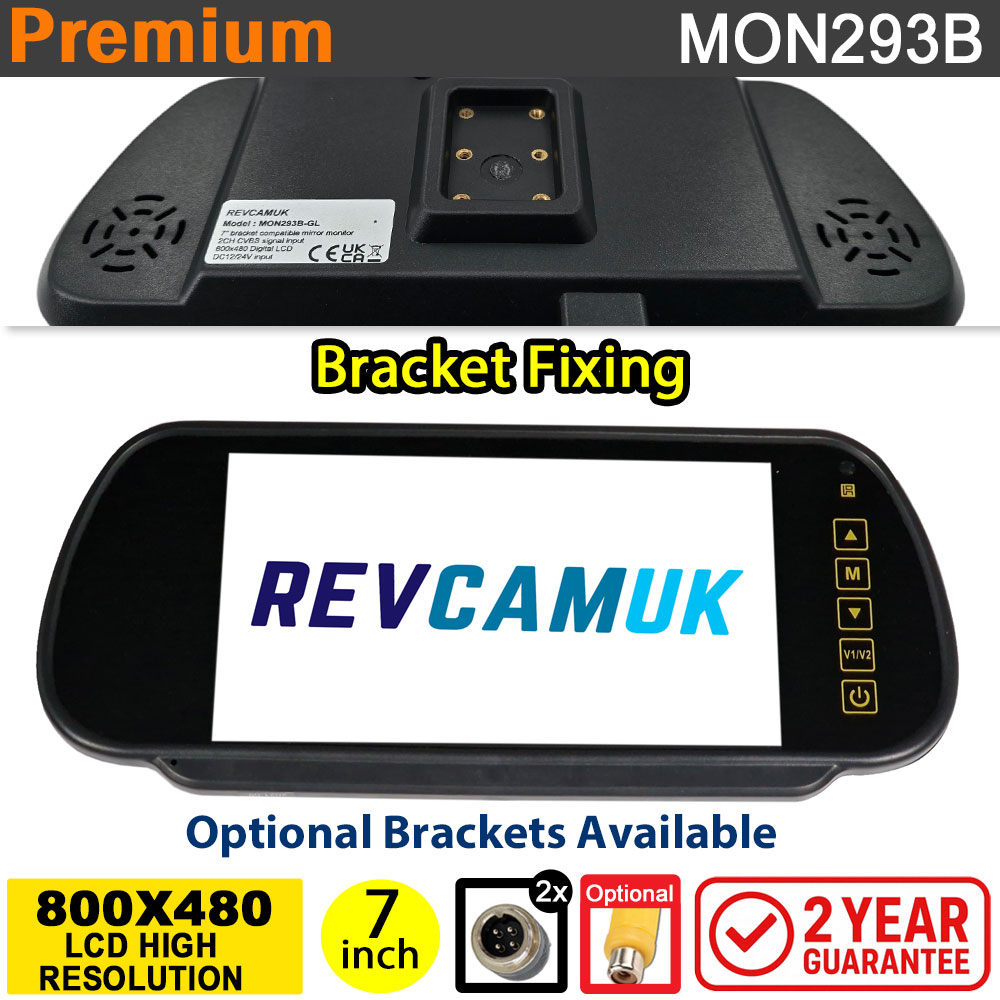

Rear bracket mounting point for windscreen and interior bracket installations

Unlike clip-over mirror monitors, the MON293B features a rear mounting point designed to attach to a range of windscreen and interior brackets. This allows you to mount the monitor in a fixed position using the correct bracket for your vehicle, which can be selected via the drop-down menu. Please see the bracket ordering guide below and the product images for more details.

Supported by the Revcam UK 2-year guarantee

This monitor is supported by our well-respected Revcam UK 2-year guarantee. Should anything occur within this period, we will either repair or replace the unit. We only purchase from very reputable manufacturers with whom we have long-established partnerships, and we select from the best factories available, so it is unlikely you will ever need to use this guarantee. However, it is always reassuring to know that support is there. Even beyond the two-year period, we aim to keep spare parts available for many years after your purchase.

What’s in the box

• 7-inch rear bracket mount mirror monitor display (MON293B)

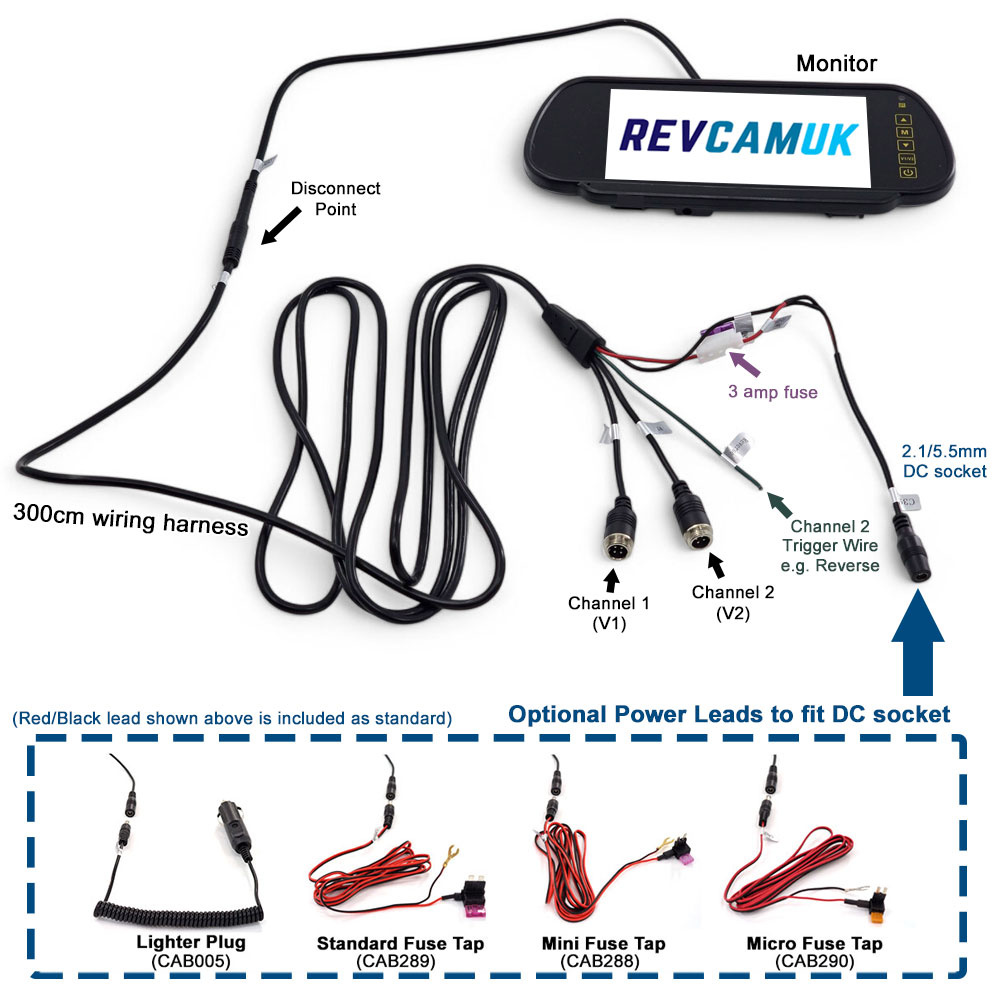

• Monitor wiring harness with two 4-pin aviation camera inputs, channel trigger wire for reverse activation and power socket
• Hardwiring power lead terminating in red and black power wires
• Remote control
• Printed fitting and operating instructions
• Optional accessories if selected, such as piggyback fuse taps, 12V lighter plug, RCA adaptor cables or optional mounting brackets

Bracket Ordering Guide (see images for more info)

This monitor will fit with the following windscreen or interior mounting brackets. If selected via the drop-down menu, the bracket is supplied at a discounted bundle price.

ACCMB1

Commonly found on Mercedes Sprinter vans fitted with automatic wipers and/or lights.

ACCMB2

Often used on Ford Transits and other vehicles with a universal windscreen button.

ACCMB2 + MP35

Typically found on later Fiat Ducato, Peugeot Boxer and Citroën Relay vans without rain sensors.

ACCMB2 + Button + Glue

For vehicles without a windscreen button, supplied with Loctite 319 mirror bonding adhesive.

ACCMB3

Seen on some Volkswagen vans and later VW Crafters.

ACCMB5

Common on earlier Mercedes Sprinter and VW Crafter models.

ACCMB6S

Short ceiling mount option for discreet interior installations.

ACCMB6

Universal ceiling mount for vehicles with suitable fixing points.

ACCMB7

Often found on earlier Fiat Ducato, Peugeot Boxer and Citroën Relay vans.

ACCMB8

Common on Renault Master, Nissan NV400 and Vauxhall Movano / Vivaro vans.
