Fiat Ducato, Citroen Relay, Peugeot Boxer & Vauxhall Movano Slimline Brake Light Reversing Camera (1080P AHD) | CAM1722AHD

Price

£110.00

VAT Included £18.33
Availability IN STOCK
Product Code: CAM1722AHD-Version1
Camera Mounting Option (Both Will Fit)
Cable Options
4 Pin to RCA/Phono Adaptor?
Quantity
(from 1 to 10)
Description

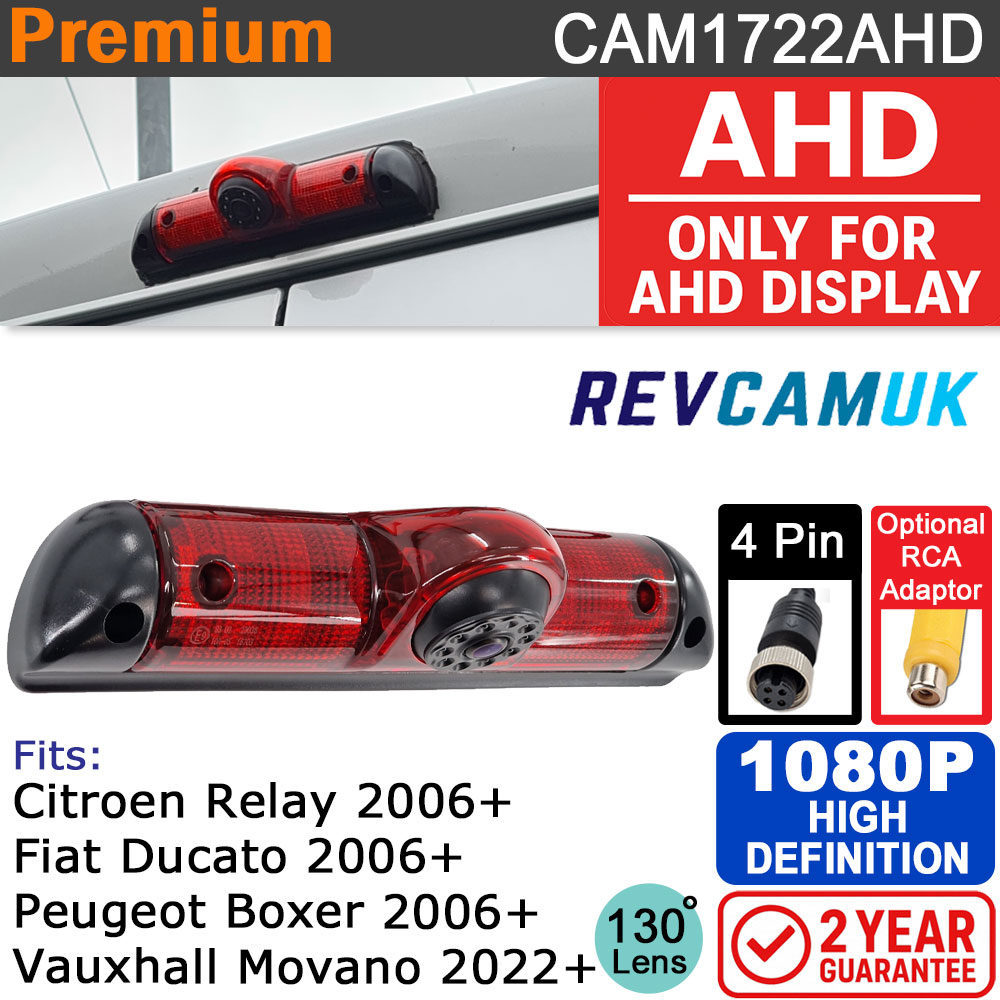

Fiat Ducato, Citroen Relay, Peugeot Boxer & Vauxhall Movano Slimline Brake Light Reversing Camera (1080P AHD) | CAM1722-AHD

This upgraded 1080P AHD Slimline Brake Light Reversing Camera provides a detailed high-definition image while maintaining a clean, factory-style look. It replaces the upper brake light unit on Fiat Ducato, Citroen Relay, Peugeot Boxer and Vauxhall Movano (2022 onwards), offering a slimmer housing design and a clearer view behind the vehicle when reversing or manoeuvring.

Key features

  • Slimline design for a neater factory-fit appearance
  • Direct replacement for the original upper brake light
  • High-definition C2399 CMOS PAL sensor for true 1080P AHD picture quality
  • All-glass lens for accurate colour reproduction and long-term durability
  • 160° diagonal ultra-wide viewing angle for a detailed rear perspective
  • Selectable on/off parking guidelines (loop wire)
  • IP68 weatherproof housing for year-round protection
  • Compatible with AHD monitors and split-screen systems
  • Choice of two versions - version 1 secures by rear bolts, version 2 secured at the front of the camera with two screws

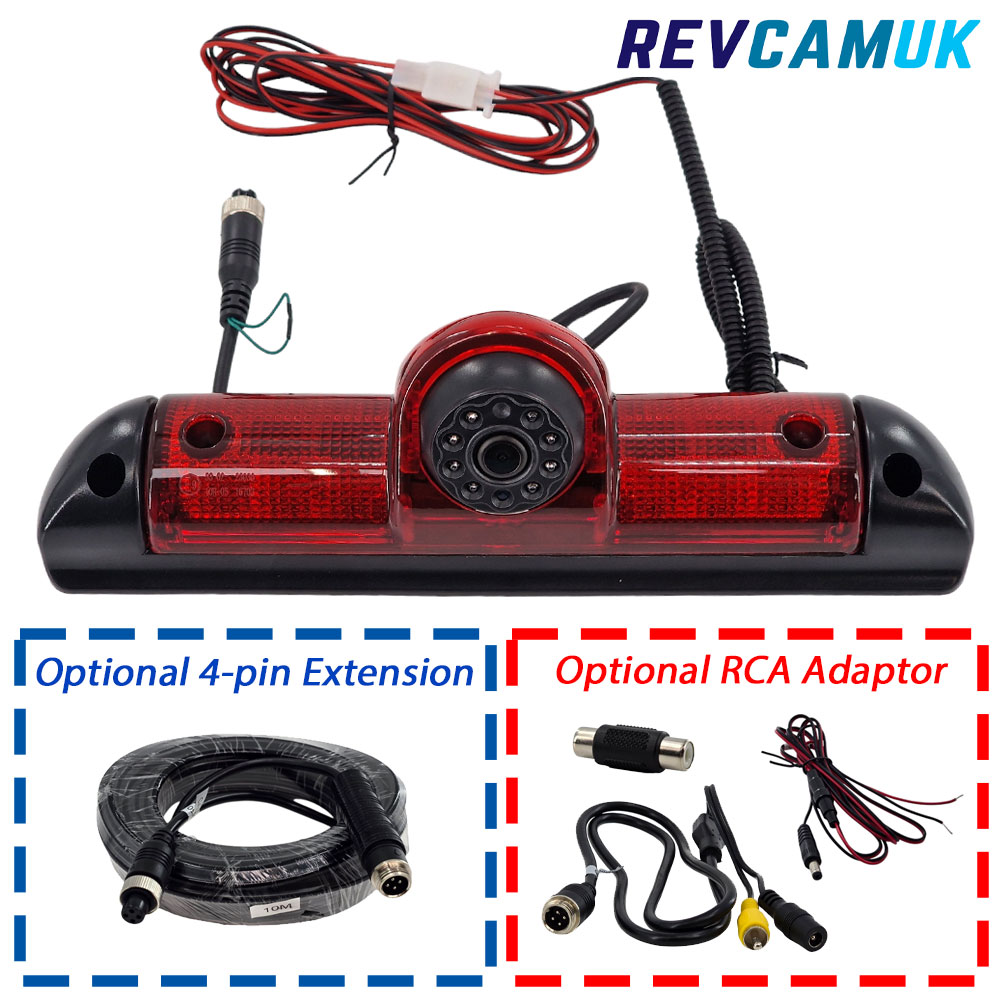

  • Optional 4-pin → RCA adaptor for use with aftermarket displays
  • Optional extension cables available in 5 m – 15 m lengths
  • UK tested and supported, with 2-year warranty

Vehicle fitment

Compatible with the following vehicle models:

  • Citroen Relay (2006 – present)
  • Peugeot Boxer (2006 – present)
  • Fiat Ducato (2006 – present)
  • Vauxhall Movano (2022 – present)

AHD compatibility notice

Please note: This is a high-definition 1080P AHD camera. It must be used with a monitor or display that supports AHD video input. Standard definition (CVBS) screens will not display an image. AHD-compatible displays are still relatively uncommon, but if you need one, please see our AHD monitor category.

Specification snapshot

Camera type Slimline brake-light integrated reversing camera
Image sensor C2399 CMOS (AHD 1080P, PAL)
Lens All-glass optics for a clear, detailed rear image
Viewing angle 160° diagonal ultra-wide
Video format AHD 1080P (PAL)
Guidelines Selectable on/off (loop wire)
Waterproof rating IP68 sealed housing
Connector 4-pin aviation female plug (camera end)
Cable length options Selectable 5 m – 15 m (optional)
Guarantee 2-year UK warranty

What’s in the box

  • 1080P AHD Slimline brake-light reversing camera (CAM1722-AHD)
  • Optional 4-pin → RCA adaptor and/or extension cable (5 – 15 m, if selected)

Image Sensor: 1/2.9" 2399 AHD
Effective Pixels: 1920(H) x 1080P(V)
Resolution: 1080P High Definition
Lens: 1.9mm
Min illumination: 0.0 LUX (IR LED on)
IR LEDs: 8 pcs
Night vision: 10m
Waterproof: IP68
View angle: V 85 degrees, H 130 degrees D 160 degrees
Camera lens adjustment: 20 degrees up and down
Voltage: 12 volts
Current consumption: 150mA
Operating temperature: -20 to 70 degrees C
Guideline: Optional (trigger wire to select)
Connector: 4 pin aviation
