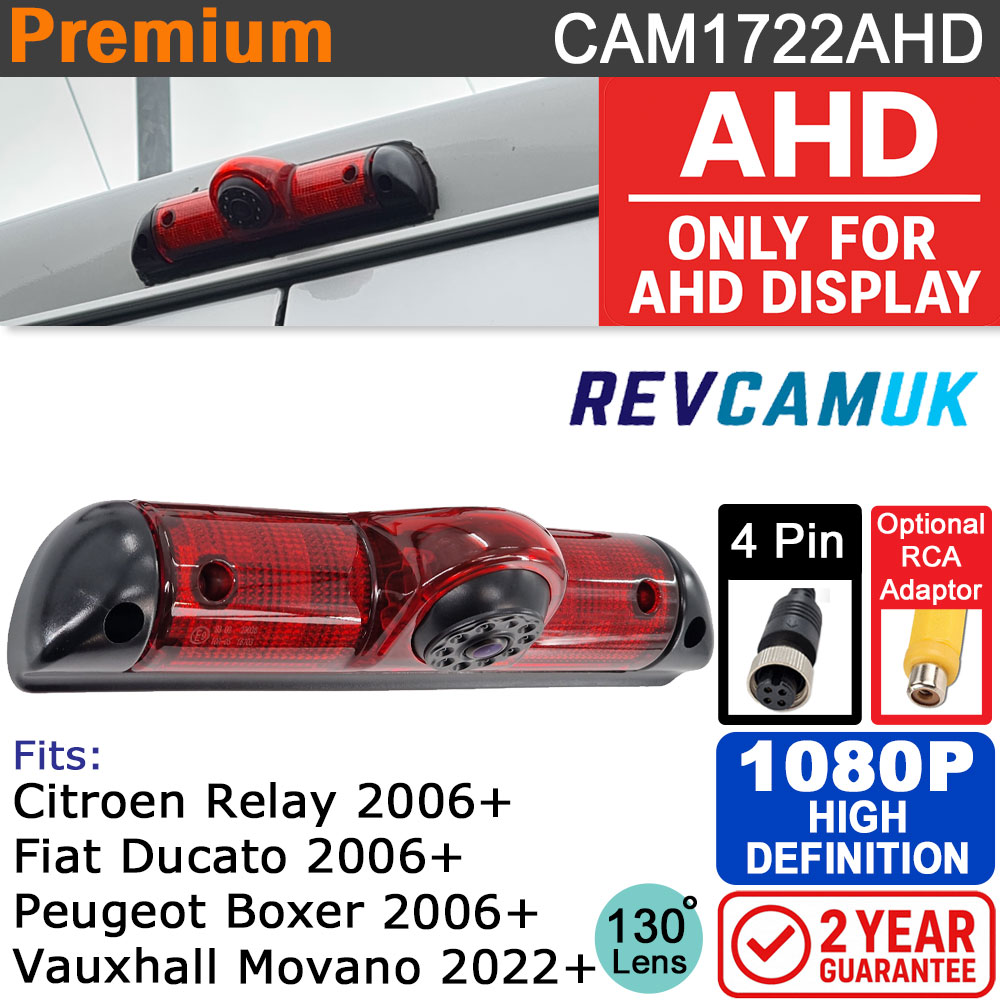

Fiat Ducato, Citroen Relay, Peugeot Boxer & Vauxhall Movano Slimline Brake Light Reversing Camera (1080P AHD) | CAM1722AHD

This upgraded 1080P AHD slimline brake light camera is designed as a direct replacement for the upper brake light unit on Fiat Ducato, Citroen Relay, Peugeot Boxer and 2022+ Vauxhall Movano. It offers a cleaner, slimmer appearance compared with the bulkier factory-style housings while giving you a noticeably sharper, clearer reversing image thanks to its modern AHD 1080P sensor.

The camera uses the C2399 AHD sensor paired with an all-glass lens to provide excellent colour, contrast and detail. It gives a wide rear view for parking and manoeuvring. Two mounting versions are available: one that secures from the rear using bolts, and a second version that fixes with two screws from the front of the unit.

Key features

Factory-style slimline design – A more modern, slimmer housing that replaces the upper brake light without affecting the vehicle’s appearance. Designed to look like a factory-fit component rather than an add-on.

Direct replacement for the original brake light – No drilling through metalwork; the unit sits exactly where the factory brake light goes, using either rear bolt fixings or the two-screw front-mount version depending on your preference.

Excellent Image quality from 1080P AHD C2399 image sensor – The image sensor is one of the most important aspects for image quality; the fitted C2399 produces a crisp, detailed image with very natural colours.

Extra Clear All-glass lens – The camera uses a proper all-glass lens for improved clarity and long-term durability. Unlike plastic lenses, it resists UV fade and maintains its sharpness over time.

160° diagonal wide viewing angle – Offers a generous, detailed rear view when reversing or lining up to a pitch. Wide enough to give good coverage without being excessively distorted.

IP68 weatherproof construction – IP68 waterproof housing, proven to withstand the worst the British weather can throw at it. Built for year-round outdoor use.

AHD system compatibility – Designed exclusively for AHD 1080P monitors and DVR systems. It will not work with older CVBS-only displays. If you are unsure, please check the AHD notice below.

Two mounting version options – Before ordering you can choose between the bolt-through rear-fixing version or the front-screw version. Both provide a secure, tidy installation.

Optional 4-pin → RCA adaptor – Allows use with many aftermarket stereos or screens that only accept RCA/phono video inputs.

Optional extension cables – 5 m to 15 m 4-pin aviation extension cables available for longer motorhomes or panel vans.

UK tested with 2-year guarantee – Fully tested and supported in the UK for reliability and peace of mind.

Vehicle fitment

AHD compatibility notice

What’s in the box

• 1080P AHD Slimline brake-light reversing camera (CAM1722-AHD)
• Optional 4-pin → RCA adaptor and/or extension cable (5 – 15 m, if selected)

Add a monitor and cable with one of our premium brake light reversing camera kits

If you would like a complete reversing camera kit for your van, including a display, please check out our links below. The kits come with this camera, a quality monitor, cabling, and a 2-year guarantee.

• With a 7-inch Mirror Monitor Kit for Fiat Ducato, Citroen Relay, Peugeot Boxer (select AHD option from drop-down menu)
• With a 5-inch Dash Monitor Kit for Fiat Ducato, Citroen Relay, Peugeot Boxer (AHD option unavailable but still very high quality)
• With a 7-inch Display Kit for Fiat Ducato, Citroen Relay, Peugeot Boxer & Vauxhall Movano (select AHD option from drop-down menu)
