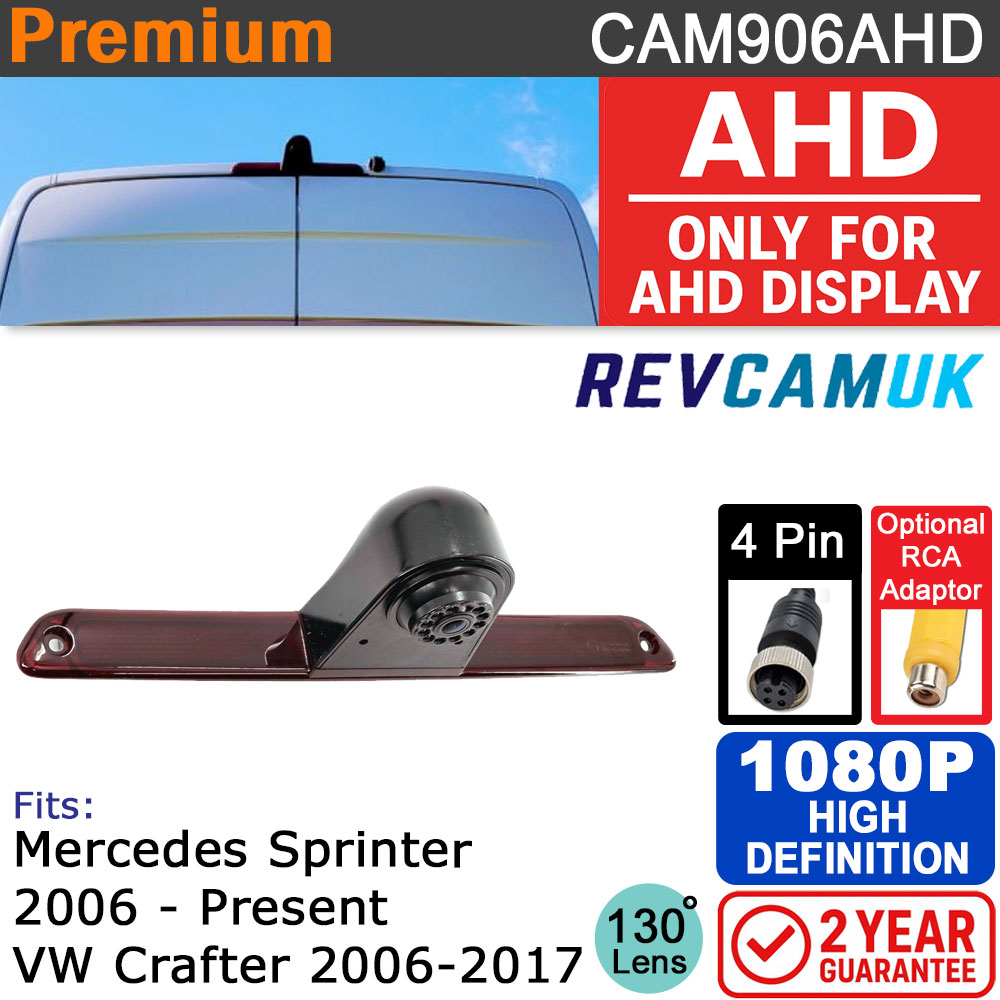

Mercedes Sprinter / VW Crafter Brake Light Reversing Camera 1080P AHD | CAM906AHD

Price

£110.00

VAT Included £18.33
Availability IN STOCK
Product Code: CAM906AHD
Cable Options
4 Pin to RCA/Phono Adaptor?
Quantity
(from 1 to 10)
Description

Mercedes Sprinter / VW Crafter Brake Light Reversing Camera (1080P AHD) | CAM906-AHD

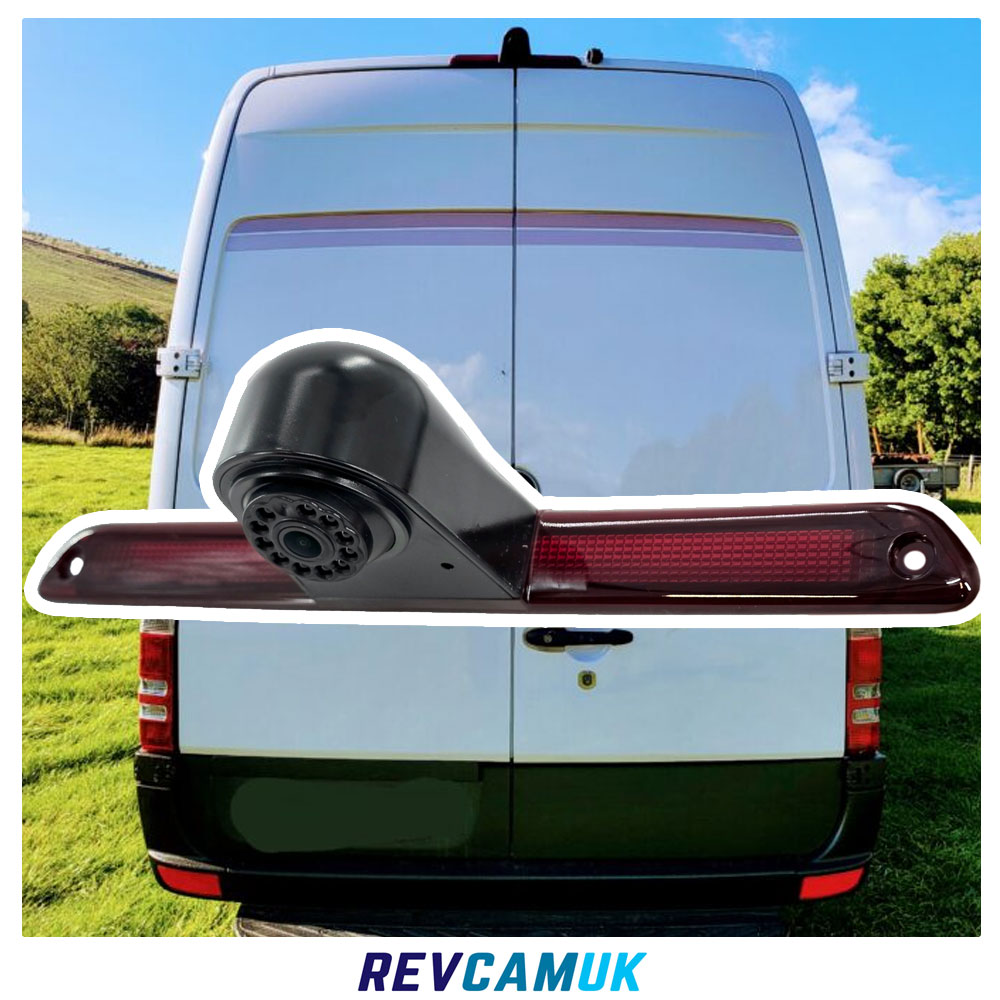

The CAM906-AHD Brake Light Reversing Camera provides a factory-style upgrade for Mercedes Sprinter (2006-Present) and VW Crafter vans (2006–2017). It replaces the original upper brake light with a purpose-built housing that integrates a 1080P AHD camera using a C2399 PAL image sensor and all-glass lens for clear, detailed images when reversing.

Key features

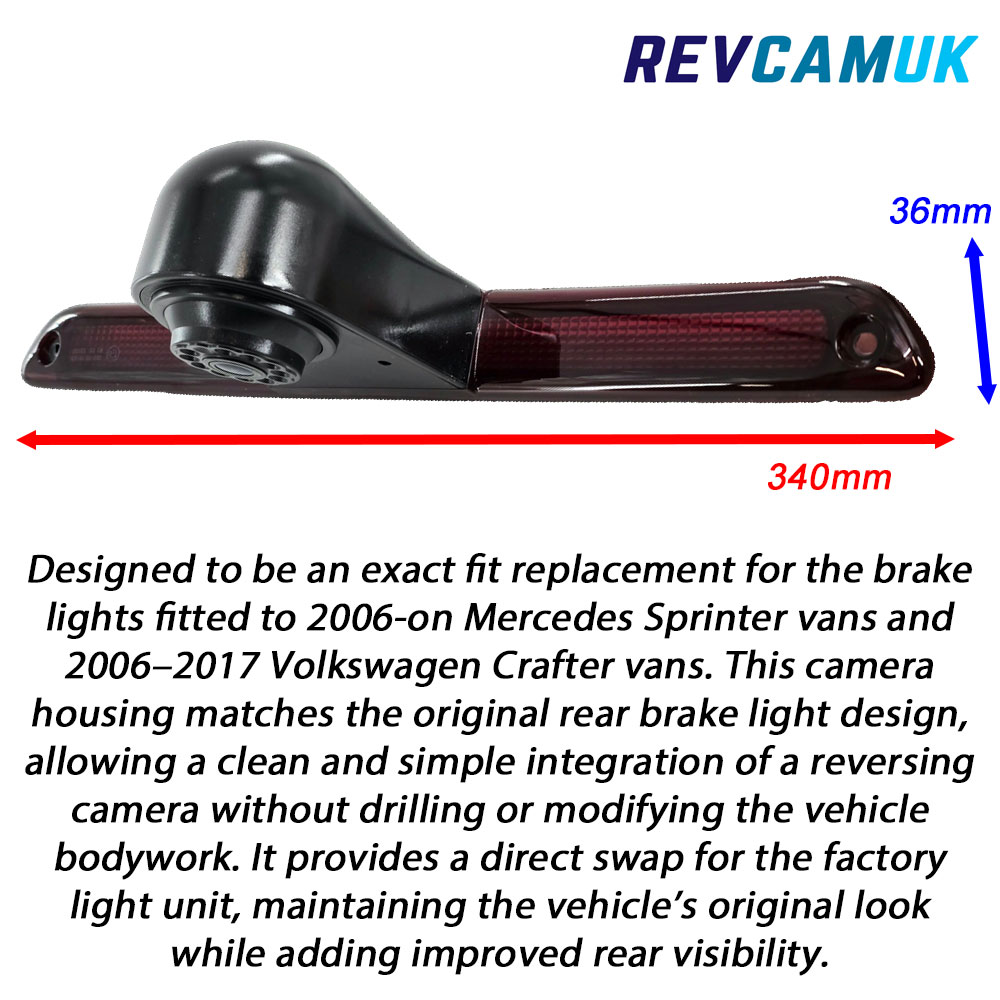

  • Direct replacement for the upper brake light – no drilling required
  • 1080P AHD video output using C2399 CMOS PAL sensor
  • All-glass lens delivers sharp, realistic colour detail
  • 160° diagonal wide-angle field of view
  • Selectable on/off parking guidelines (loop wire)
  • IP68 waterproof housing, proven to withstand the worst the British weather can throw at it
  • 4-pin aviation female connector for plug-and-play use
  • Optional 4-pin → RCA adaptor and 5 m–15 m extension cables
  • Compatible with AHD and split-screen monitors
  • UK-tested with 2-year warranty

Vehicle fitment

Compatible with the following vehicle models:

  • Mercedes Sprinter (2006 – Present)
  • Volkswagen Crafter (2006 – 2017)

Not suitable for 2018-on models of VW Crafter – please see our later Crafter camera range for this version.


AHD compatibility notice

Please note: This is a high-definition 1080P AHD camera. It must be used with a monitor or display that supports AHD video input.
Standard-definition (CVBS) screens will not display an image.
AHD-compatible displays are still relatively uncommon, but if you need one, please see our AHD monitor category.

Specification snapshot

Camera type Brake-light integrated reversing camera
Image sensor C2399 CMOS (AHD 1080P, PAL)
Lens All-glass optics for detailed, high-clarity viewing
Viewing angle 160° diagonal wide-angle
Video format AHD 1080P (PAL)
Guidelines Selectable on/off (loop wire)
Waterproof rating IP68 sealed housing, proven to withstand the worst the British weather can throw at it
Connector 4-pin aviation female plug (camera end)
Cable length options Selectable 5 m – 15 m (optional)
Guarantee 2-year UK warranty

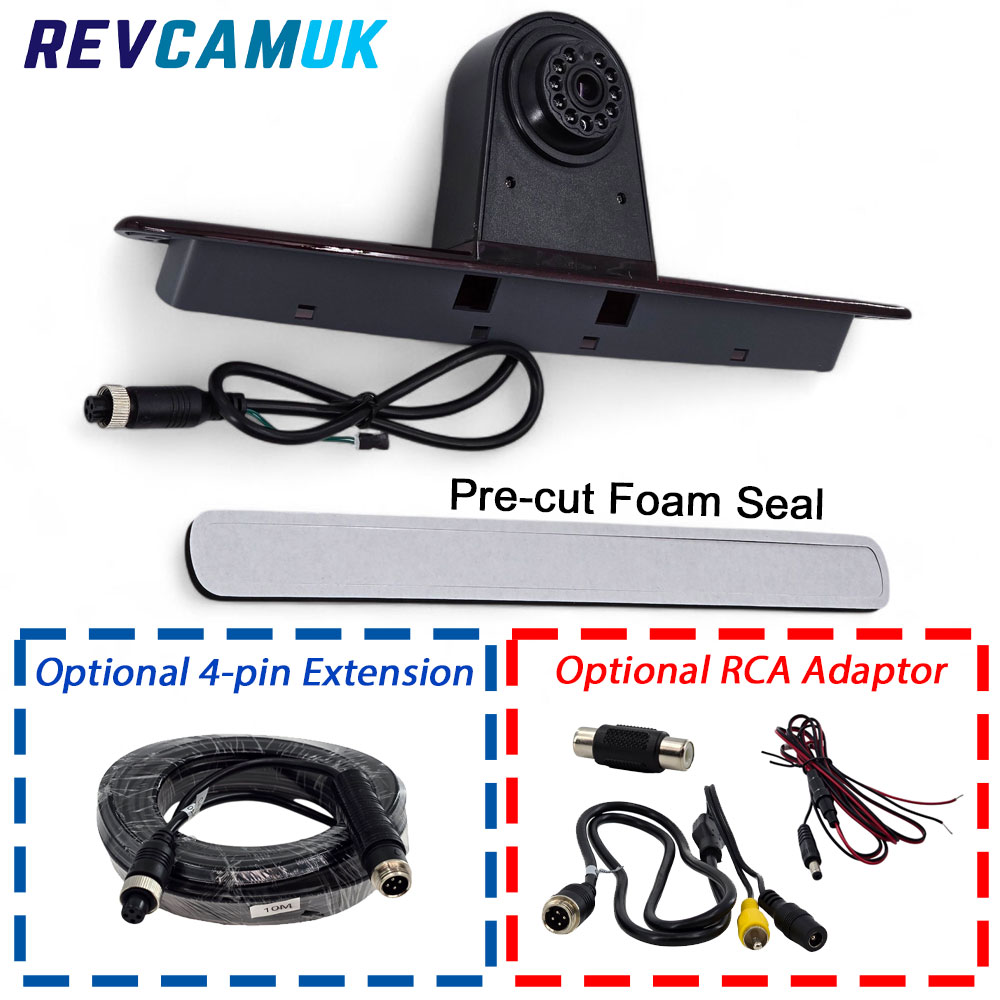

What’s in the box

  • 1080P AHD brake-light reversing camera (CAM906-AHD)
  • Optional 4-pin → RCA adaptor and/or extension cable (5 – 15 m, if selected)

Image Sensor: 1/2.9" 2399 AHD
Effective Pixels: 1920(H) x 1080P(V)
Resolution: 1080P High Definition
Lens: 1.9mm
Min illumination: 0.0 LUX (IR LED on)
IR LEDs: 8 pcs
Night vision: 10m
Waterproof: IP68
View angle: V 85 degrees, H 130 degrees D 160 degrees
Camera lens adjustment: 20 degrees up and down
Voltage: 12 volts
Current consumption: 150mA
Operating temperature: -20 to 70 degrees C
Guideline: Optional (trigger wire to select)
Connector: 4 pin aviation
