Mercedes Sprinter / VW Crafter Brake Light Reversing Camera 1080P AHD | CAM906AHD

Availability 10 item(s) available
Weight 0.50 kg
Product Code: CAM906AHD
Price: £110.00
VAT Included £18.33

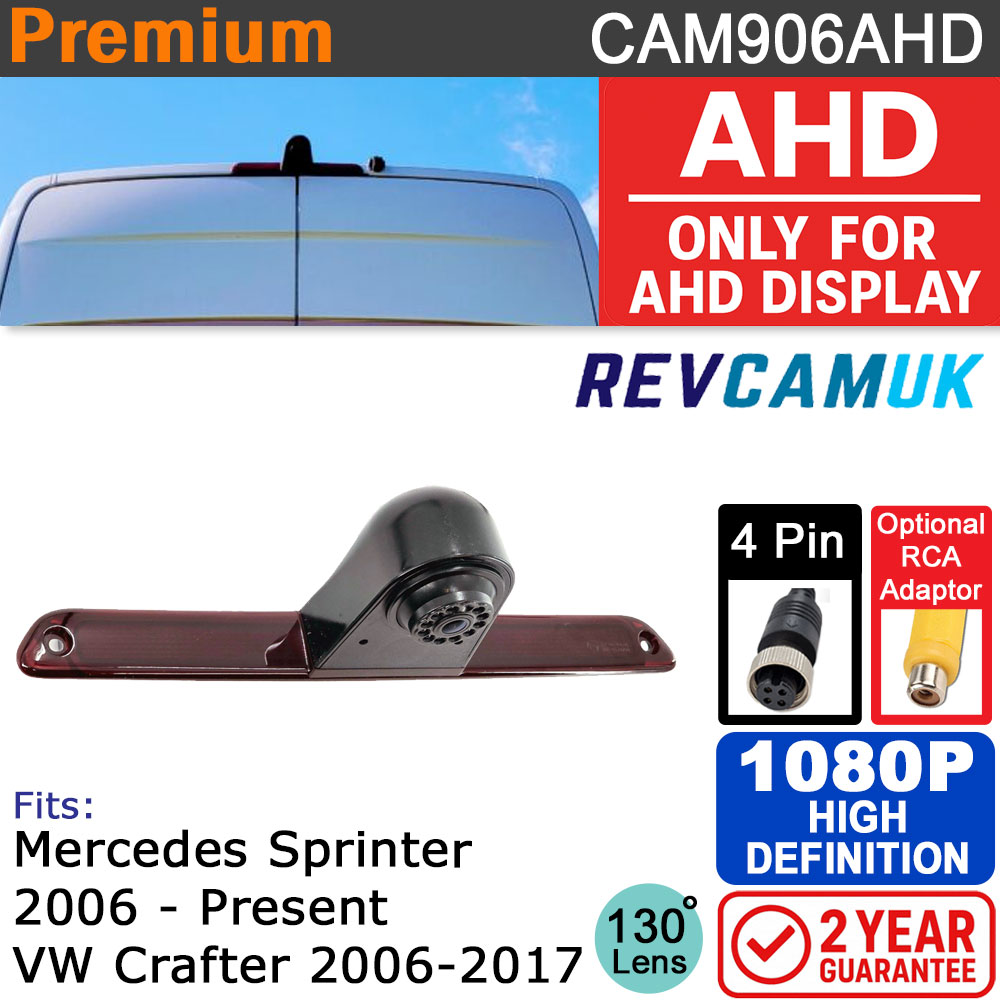

Mercedes Sprinter / VW Crafter Brake Light Reversing Camera (1080P AHD) | CAM906-AHD

The CAM906-AHD Brake Light Reversing Camera provides a factory-style upgrade for Mercedes Sprinter (2006-Present) and VW Crafter vans (2006–2017). It replaces the original upper brake light with a purpose-built housing that integrates a 1080P AHD camera using a C2399 PAL image sensor and all-glass lens for clear, detailed images when reversing.

Key features

  • Direct replacement for the upper brake light – no drilling required
  • 1080P AHD video output using C2399 CMOS PAL sensor
  • All-glass lens delivers sharp, realistic colour detail
  • 160° diagonal wide-angle field of view
  • Selectable on/off parking guidelines (loop wire)
  • IP68 waterproof housing, proven to withstand the worst the British weather can throw at it
  • 4-pin aviation female connector for plug-and-play use
  • Optional 4-pin → RCA adaptor and 5 m–15 m extension cables
  • Compatible with AHD and split-screen monitors
  • UK-tested with 2-year warranty

Vehicle fitment

Compatible with the following vehicle models:

  • Mercedes Sprinter (2006 – Present)
  • Volkswagen Crafter (2006 – 2017)

Not suitable for 2018-on models of VW Crafter – please see our later Crafter camera range for this version.

AHD compatibility notice

Please note: This is a high-definition 1080P AHD camera. It must be used with a monitor or display that supports AHD video input.
Standard-definition (CVBS) screens will not display an image.
AHD-compatible displays are still relatively uncommon, but if you need one, please see our AHD monitor category.

Specification snapshot

Camera type Brake-light integrated reversing camera
Image sensor C2399 CMOS (AHD 1080P, PAL)
Lens All-glass optics for detailed, high-clarity viewing
Viewing angle 160° diagonal wide-angle
Video format AHD 1080P (PAL)
Guidelines Selectable on/off (loop wire)
Waterproof rating IP68 sealed housing, proven to withstand the worst the British weather can throw at it
Connector 4-pin aviation female plug (camera end)
Cable length options Selectable 5 m – 15 m (optional)
Guarantee 2-year UK warranty

What’s in the box

  • 1080P AHD brake-light reversing camera (CAM906-AHD)
  • Optional 4-pin → RCA adaptor and/or extension cable (5 – 15 m, if selected)
