Mercedes Sprinter 2006-present and VW Crafter 2006-2017 Brake Light Reversing Camera | CAM906
Description
Mercedes Sprinter / VW Crafter Brake Light Reversing Camera (CVBS 700 TVL) | CAM906This brake light camera is designed as a factory-style replacement for Mercedes Sprinter (2006–present) and Volkswagen Crafter (2006–2017). It replaces the upper brake light with an OEM-style housing that integrates a reversing camera, giving a tidy appearance while adding a clear and reliable parking view. The camera uses our long-proven PC4089 image sensor, paired with a high-quality all-glass composite lens, producing a clear and reliable 700 TVL CVBS image with good colour and contrast. We’ve used this sensor for many years because we know it performs reliably to a high standard and it outperforms many lower-down versions commonly found elsewhere. A 160° diagonal viewing angle provides generous coverage behind the van, helping with everyday parking and manoeuvring. Key featuresOEM-style replacement – Installs directly in place of the factory brake light without drilling or modification, retaining a clean, built-in factory look. Clear and reliable CVBS (NTSC) image from upgraded PC4089 sensor – Outputs a standard CVBS NTSC video signal compatible with the vast majority of aftermarket reversing camera monitors, dash displays and head units. The PC4089 sensor delivers a clear and reliable 700 TVL image with great colour replication and good contrast. High-quality all-glass composite lens – Uses an all-glass composite lens rather than plastic-glass alternatives. This helps maintain clarity over time and avoids the UV sun-fade and “milky” look often seen with cheaper lenses. 160° diagonal wide viewing angle – Provides a wide and usable rear view when reversing, offering good coverage behind the vehicle to avoid any hazards. IP68 waterproof construction – Fully sealed IP68 housing, proven to withstand the worst the British weather can throw at it and suitable for vehicles that live outside year-round. 4-pin aviation connector – Supplied with a standard 4-pin aviation connector, compatible with most aftermarket CVBS monitors and extension cables. Optional extension cables – 5 m to 15 m 4-pin extension cables are available to suit short, medium and long wheelbase vans. UK tested and supplied with a 2-year Revcamuk guarantee – With almost 20 years in the reversing camera industry, we’ve worked with a wide range of factories. These brake light cameras come from one of the best manufacturers we use and are fully supported with our 2-year Revcamuk guarantee. If a non-user-damage fault develops within two years, we’ll replace the camera to keep you reversing safely. Vehicle fitment Compatible with the following vehicle models:
Not suitable for the 2018-onward new-shape Volkswagen Crafter. For newer Crafter models, please see our 2017+VW Crafter Brake Light Reversing Camera Listing. What’s in the box
Add a monitor and cable with one of our premium brake light reversing camera kitsIf you would like a complete reversing camera system with monitor and cabling included, the kits below pair this camera with suitable displays and cables, all backed by our 2-year guarantee. |
Detailed Images

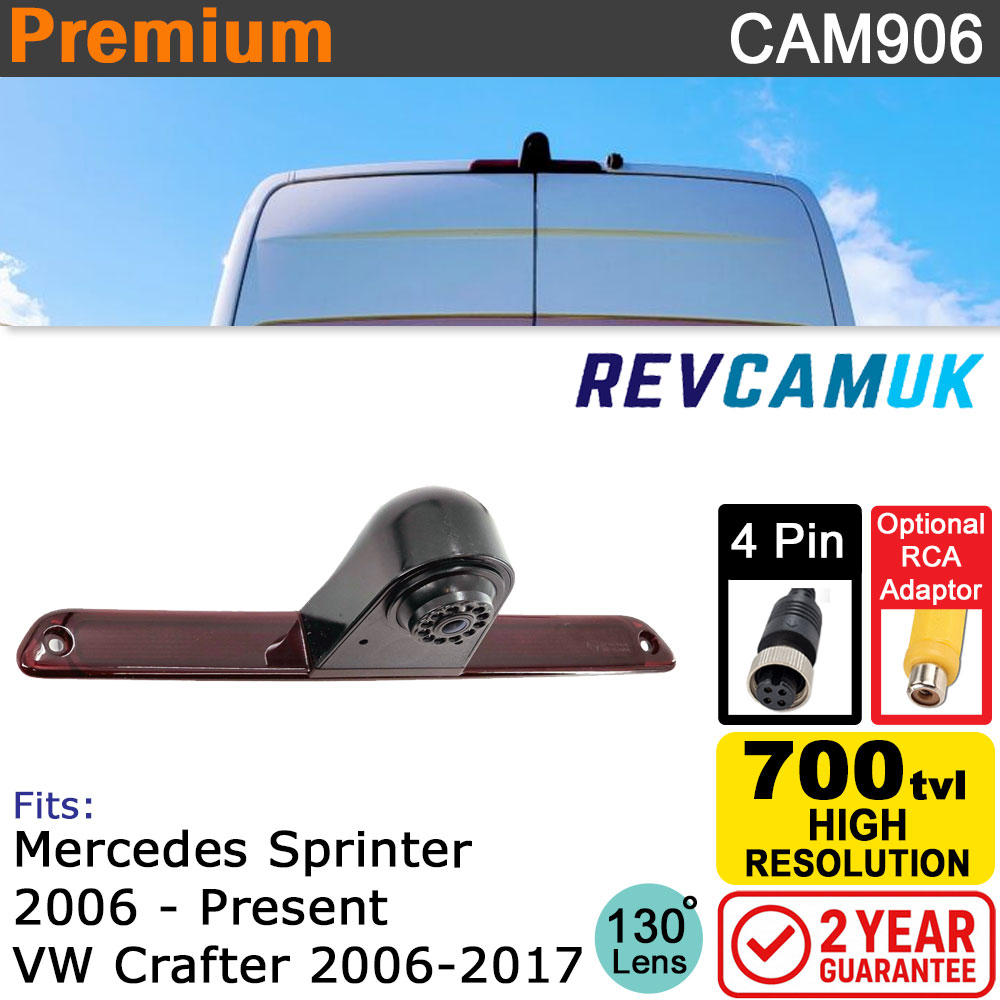

Brake light reversing camera designed to fit Mercedes Sprinter and VW Crafter vans, shown mounted.
Single-lens reversing brake light camera for Mercedes Sprinter (2006–present) and Volkswagen Crafter (2006–2017), showing the camera unit, pre-cut foam seal, optional 4-pin extension cable, and optional RCA adaptor – REVCAMUK.
Mercedes Sprinter and Volkswagen Crafter brake light reversing camera with dimensions 340mm wide and 36mm high, shown as a direct fit replacement unit supplied by REVCAMUK for 2006-on Sprinter and 2006–2017 Crafter models.
Our reverse camera will fit the same location/entry point as the original brake light. The original light strip will be transplanted from the old brake light into the new brake light reverse camera housing. This helps prevent CANBUS issues, which are common with these vans when changing rear brake light LEDs.
There could be a number of reasons they may be cheaper than us, the most common are below :
- Rejected Production Runs - This is more common on the marketplaces where there are a lot of non-UK businesses (although the stock is often in the UK). When one of the larger factories produces a camera they will age-test a batch to ensure that the quality is sufficiently high to be able to send to their big customers (like us). If a production run fails this test with a high enough number having issues, the whole batch is often sold off for "recycling" the components. Sadly, these get placed in a container setting sail to the UK and other destinations, and eventually listed on a marketplace at crazy low prices - lower than we can buy hundreds at a time for. Sometimes you are lucky, sometimes you are not, depending on how badly the batch failed.
- Cheaper Components Used - There are different standards of image sensor, support chips, lenses and camera bodies. We opt for better quality; the results speak for themselves. We didn't earn our reputation by buying as cheap as we could; it's not what our customers want. Although at the same time we really do keep our prices as low as possible. The cheaper prices help us to sell more volume, which means we can bring the cameras in by ocean shipping, saving freight costs, which we pass to the consumer.
- Produced by a "Factory for the day" - We have seen some shocking quality cameras sent to us over the years by customers. There is a phenomenon in China where someone can rent factory space for a day or two in order to complete a production run. Often this is a factory employee that is trying to go it alone and start his own business. Sadly, they don't often have the best engineers, they usually buy the lowest price/quality components, have the lowest standard of production line worker, and they can't afford to reject a bad production run. These usually either end up on a Marketplace or sold directly from a Chinese website.
In short, trust us to find the best quality and support you for safety and peace of mind.
See our general guide to installing 4 pin reversing cameras. This includes fitting to stereos inc Kenwood / Sony / Pioneer etc.
Instructions on how to fit the reversing brake light camera supplied, including removing light strip from existing brake light and placing in to the new brake light housing.
| Sensor: 1/3" PC4089 CMOS |
