Ford Transit Brake Light Reversing Camera 1080P AHD | CAM1733-AHD

Ford Transit Brake Light Reversing Camera (1080P AHD) | CAM1733AHD

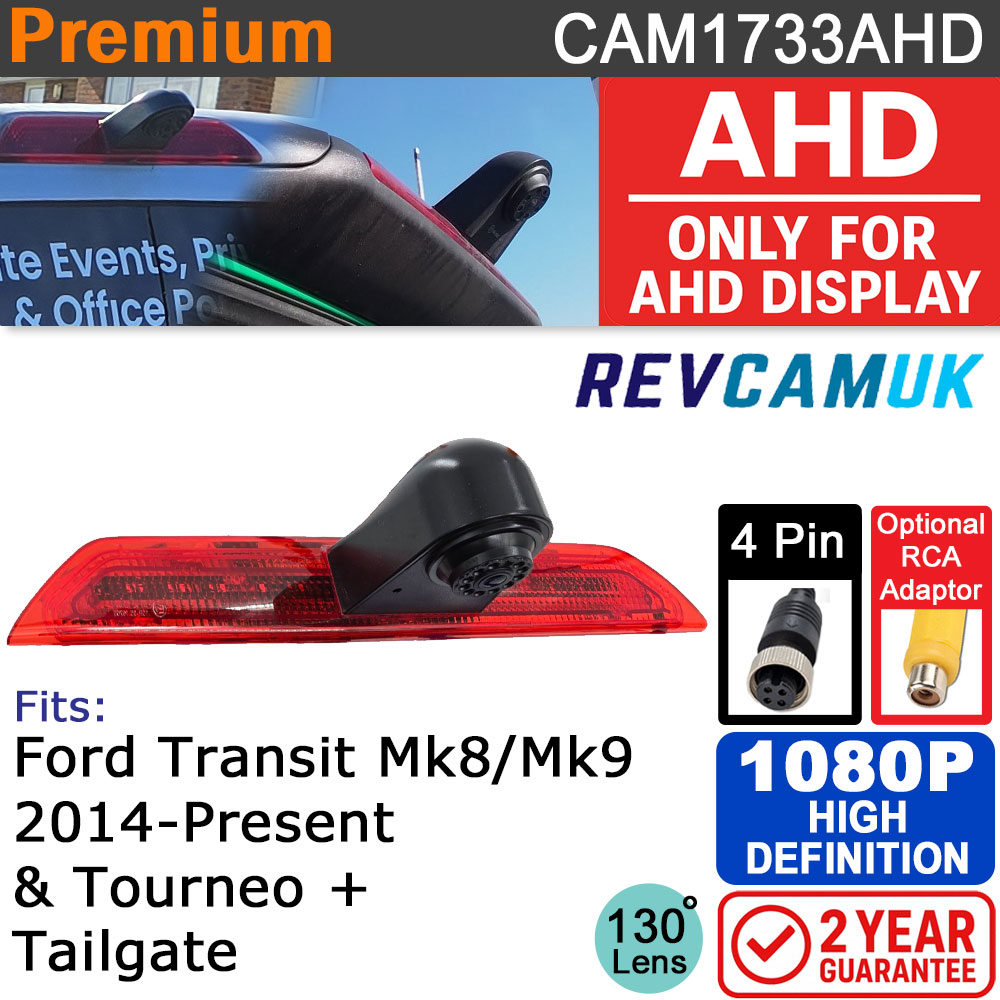

The CAM1733AHD is our upgraded high-definition replacement camera designed specifically for the upper brake light position on compatible Ford Transit models. It provides a noticeably sharper reversing image compared with the older CVBS version and gives the van a clean, factory-style finish once installed.

It uses the C2399 AHD sensor paired with an all-glass lens for improved clarity, colour accuracy and low-light handling. The housing is fully sealed to IP68 standards, making it ideal for year-round use in British weather.

Key features

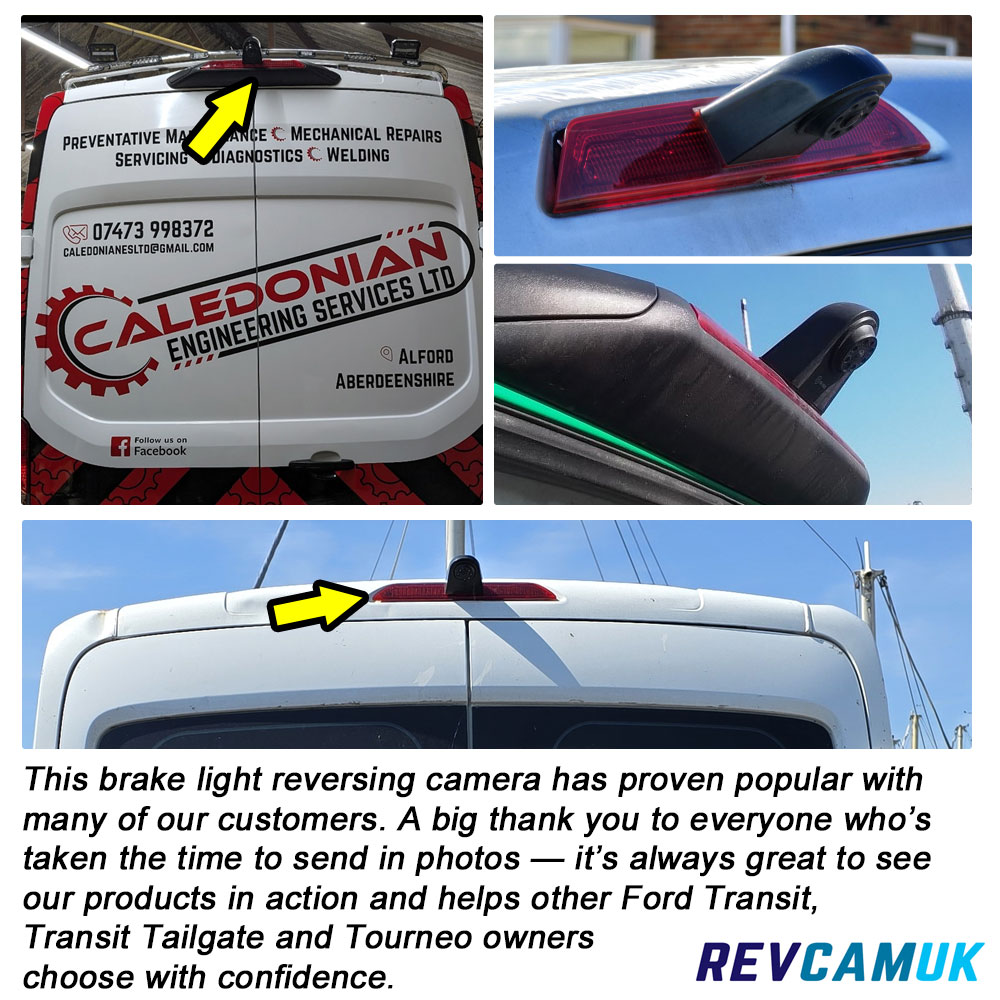

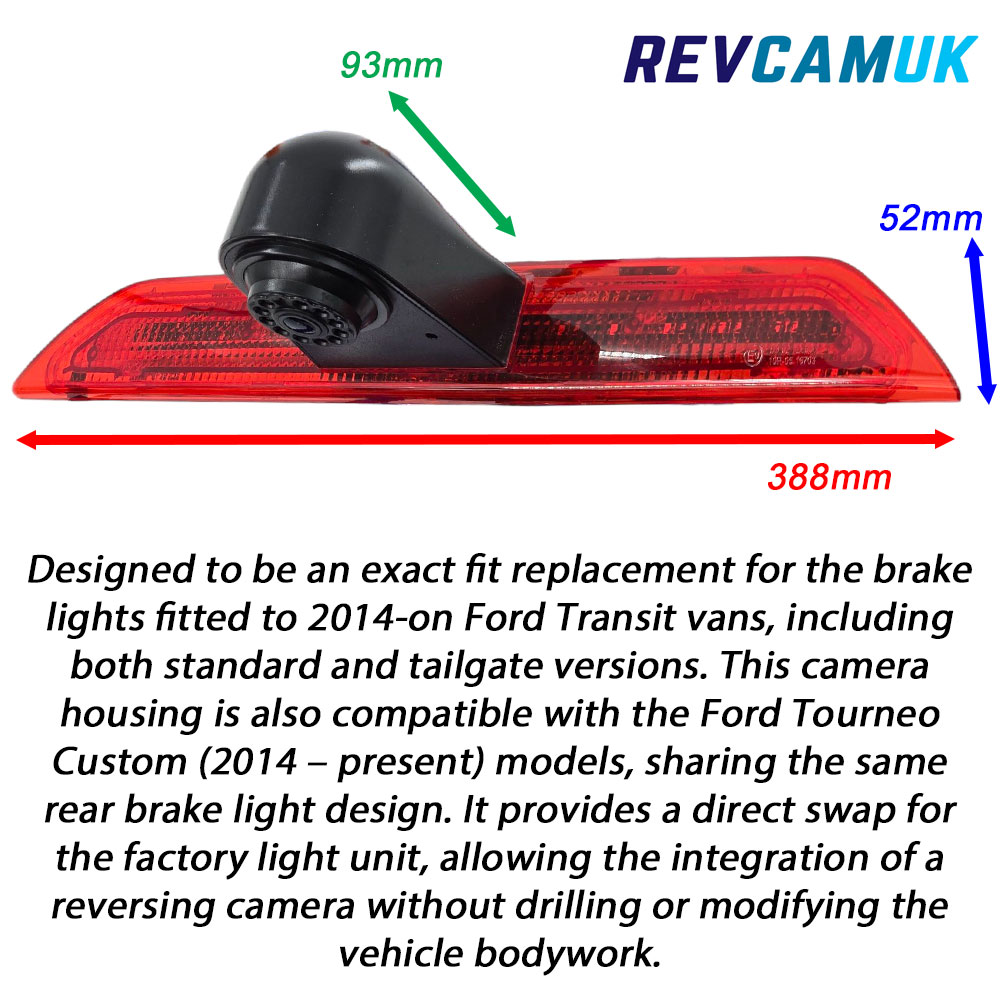

OEM-style replacement – Designed to directly replace the original upper brake light without drilling or modifying bodywork. It fits neatly into the existing aperture for a proper factory-finish look.

High-definition 1080P AHD image – Uses the trusted C2399 AHD image sensor to deliver a noticeably sharper, clearer picture. Ideal for manoeuvring larger vans safely.

All-glass lens – The camera uses a true glass lens for improved sharpness, long-term durability, and better performance.

160° diagonal viewing angle – Provides a generous wide rear view for reversing while keeping distortion to a minimum, making parking and tight manoeuvres easier.

Weatherproof IP68 housing – IP68 waterproof housing, proven to withstand the worst the British weather can throw at it.

AHD system compatibility – This camera is designed exclusively for AHD-compatible monitors. It will not work with factory displays or older CVBS-only screens. See the AHD notice below if unsure.

Optional RCA adaptor and extensions – A 4-pin to RCA adaptor is available for aftermarket stereos, along with 5–15 m extension cables for long wheelbase vans.

UK tested with 2-year guarantee – Tested and supported in the UK for long-term reliability.

Vehicle fitment

AHD compatibility notice

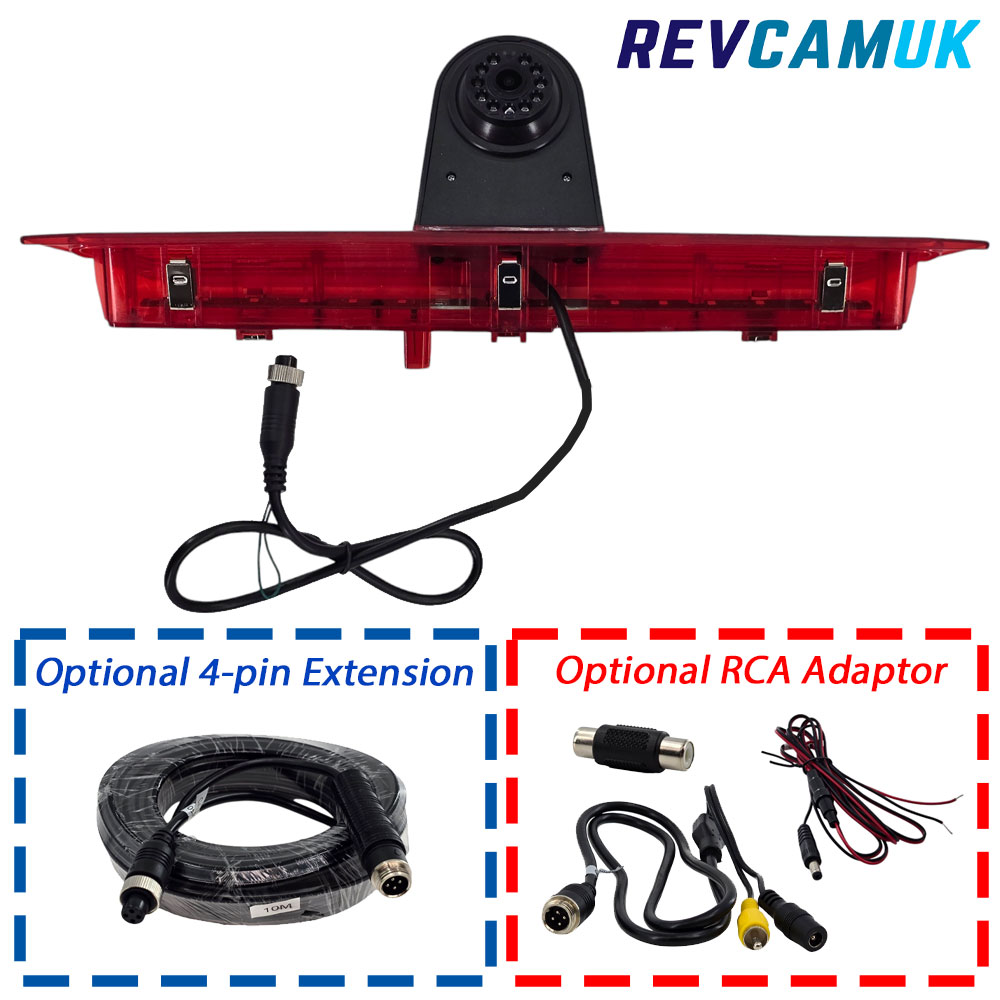

What’s in the box

• 1080P AHD brake-light reversing camera (CAM1733AHD)
• Optional 4-pin → RCA adaptor (if selected)
• Optional 4-pin extension cable (5–15 m, if selected)

Add a monitor and cable with one of our premium brake light reversing camera kits

If you would like a complete reversing camera kit for your Transit, including a display, please check out our recommended options below. These include the camera, monitor, cables, and a 2-year guarantee.

• 7-inch Clip-Over Mirror Monitor Kit for Ford Transit (select AHD option from drop-down)
• 7-inch Dash Monitor Kit for Ford Transit (select AHD option from drop-down)
• 5-inch Dash Monitor Kit for Ford Transit (AHD option unavailable but still very high quality)
