Ford Transit Brake Light Reversing Camera (1080P AHD) | CAM1733AHD

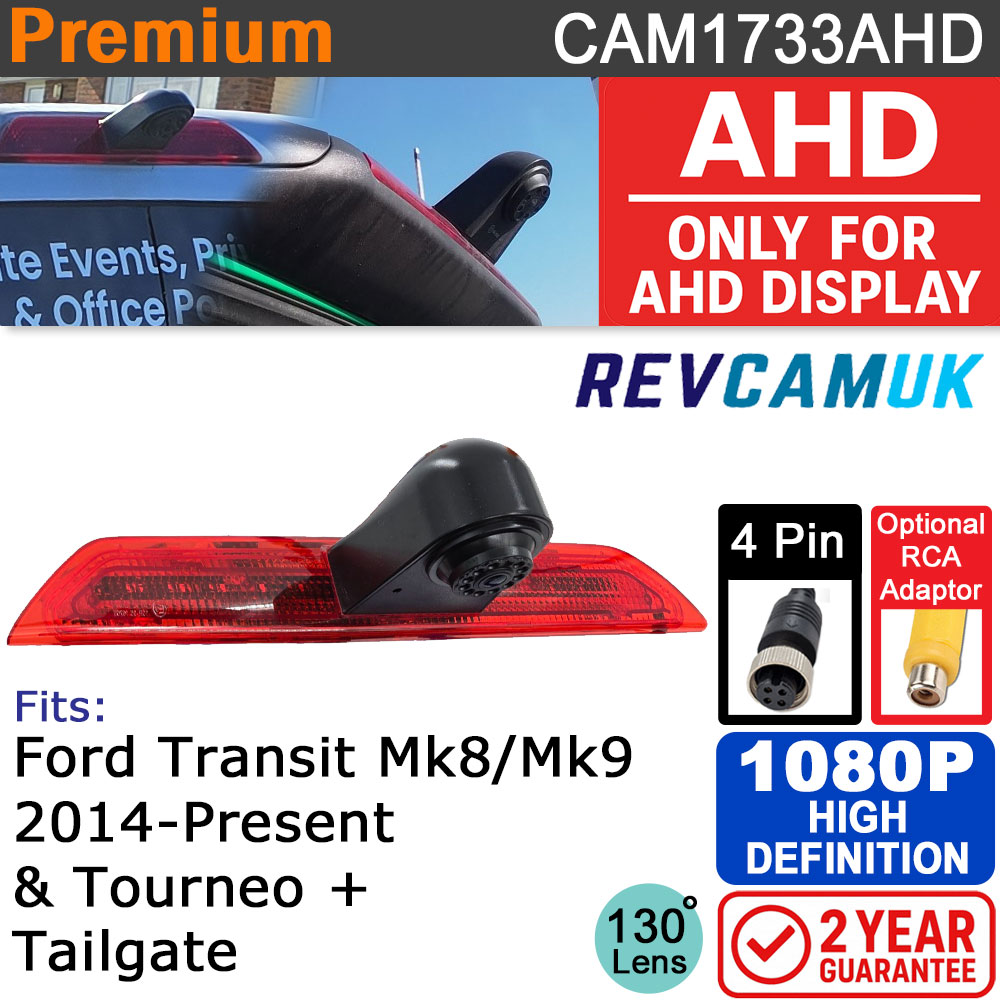

The CAM1733AHD is our upgraded high-definition replacement camera designed specifically for the upper brake light position on compatible Ford Transit models. It provides a noticeably sharper reversing image compared with the older CVBS version and gives the van a clean, factory-style finish once installed.

It uses the C2399 AHD sensor paired with an all-glass lens for improved clarity, colour accuracy and low-light handling. The housing is fully sealed to IP68 standards, making it ideal for year-round use in British weather.

1080P AHD compatibility: This camera is designed for AHD 1080P PAL systems only and requires an AHD-compatible monitor or DVR. It is not suitable for most aftermarket stereos or head units and will not display on standard monitors. If you need the more universal CVBS version, please see CAM1733 CVBS Ford Transit brake light reversing camera compatible with standard monitors.

Key features

OEM-style replacement – Designed to directly replace the original upper brake light without drilling or modifying bodywork. It fits neatly into the existing aperture for a proper factory-finish look.

High-definition 1080P AHD image – Uses the trusted C2399 AHD image sensor to deliver a noticeably sharper, clearer picture. Ideal for manoeuvring larger vans safely.

All-glass lens – The camera uses a true glass lens for improved sharpness, long-term durability, and better performance.

160° diagonal viewing angle – Provides a generous wide rear view for reversing while keeping distortion to a minimum, making parking and tight manoeuvres easier.

Weatherproof IP68 housing – IP68 waterproof housing, proven to withstand the worst the British weather can throw at it.

AHD system compatibility – This camera is designed exclusively for AHD-compatible monitors. It will not work with factory displays or older CVBS-only screens. See the AHD notice below if unsure.

Optional RCA adaptor and extensions – A 4-pin to RCA adaptor is available for aftermarket stereos, along with 5–15 m extension cables for long wheelbase vans.

UK tested with 2-year guarantee – Tested and supported in the UK for long-term reliability.

Vehicle fitment

AHD compatibility notice

What’s in the box

• 1080P AHD brake-light reversing camera (CAM1733AHD)
• Optional 4-pin → RCA adaptor (if selected)
• Optional 4-pin extension cable (5–15 m, if selected)

Add a monitor and cable with one of our premium brake light reversing camera kits

If you would like a complete reversing camera kit for your Transit, including a display, please check out our recommended options below. These include the camera, monitor, cables, and a 2-year guarantee.

• 7-inch Clip-Over Mirror Monitor Kit for Ford Transit (select AHD option from drop-down)
• 7-inch Dash Monitor Kit for Ford Transit (select AHD option from drop-down)
• 5-inch Dash Monitor Kit for Ford Transit (AHD option unavailable but still very high quality)
