Number Plate Frame 1080P AHD Reversing Camera | CAM104AHD

CAM104AHD – 1080P AHD Number Plate Frame Reversing Camera with Night Vision

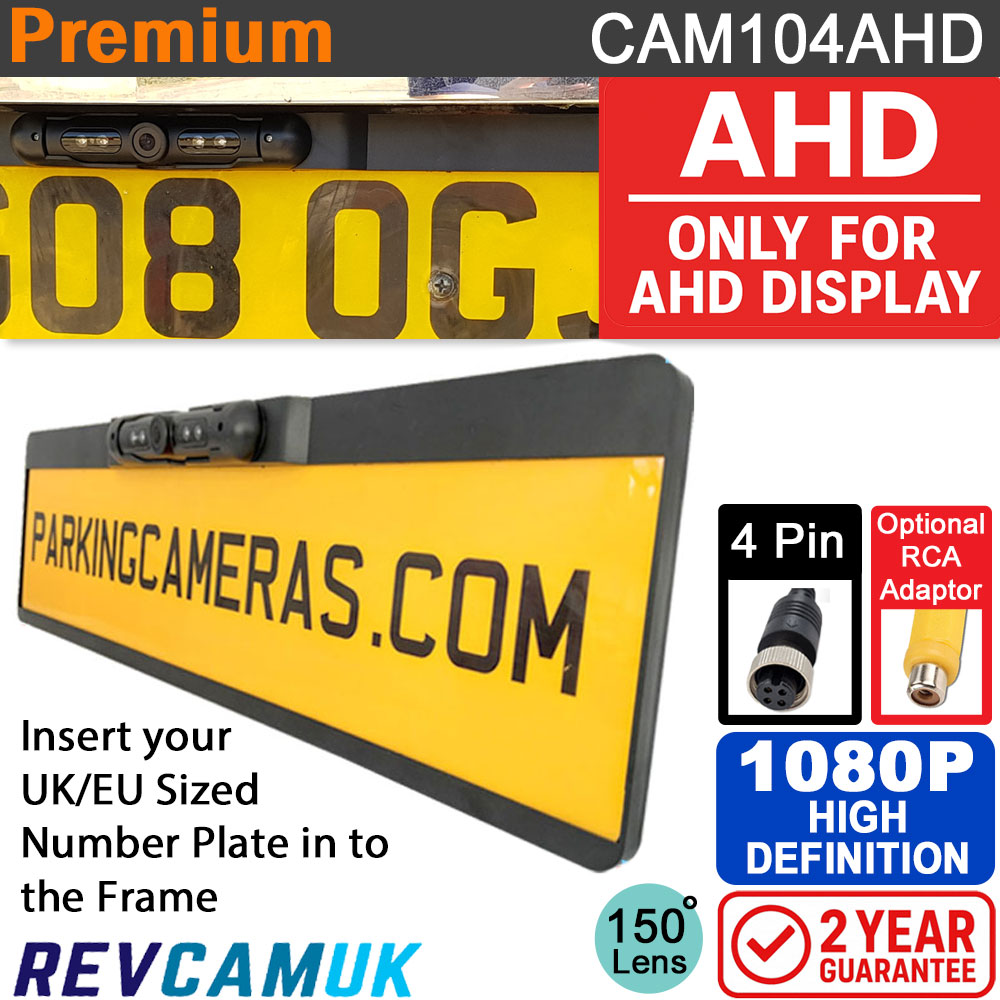

This is our CAM104AHD, a high-definition number plate frame reversing camera fitted with a premium Galaxy Core 2053 1080P AHD image sensor for a crisp, detailed picture. It combines a number plate frame design with an adjustable tilt mechanism so you can fine-tune the viewing angle, a high-quality 150° aspheric wide-angle lens and built-in IR LEDs for night vision. It works well on almost any vehicle with a standard number plate, including cars, vans, motorhomes, luton vans and pick-up trucks. If the vehicle has a UK or EU standard size number plate, this camera will fit.  This camera must be used with an AHD-compatible monitor and comes with our two-year Reversing Cameras UK guarantee.

Key Features

1080P AHD Galaxy Core 2053 Image Sensor - The Galaxy Core 2053 1080P AHD sensor provides a sharp, genuinely high-definition image with very good colour accuracy and clarity. It is a clear step up from standard-definition number plate cameras and suits customers who want a more modern, detailed picture.

High-Quality 150° Aspheric Lens - The aspheric lens offers a wide 150° field of view without the over-the-top “fishbowl” distortion that some ultra-wide lenses suffer from. It gives excellent usable coverage behind the vehicle for everyday reversing and manoeuvring.

Number Plate Frame Design - The camera is built into a neat number plate frame, helping it blend in around the plate area rather than looking like a bolt-on box. It is ideal where you want a tidy, integrated appearance.

Superb Build Quality - Many number plate frame cameras on the market suffer from poor sealing and short lifespans. This model is different. Installers and auto electricians who have tried it have been pleasantly surprised by its robust construction, better sealing and consistent long-term reliability.

Adjustable Tilt Mechanism - The camera angle can be rotated and locked, allowing you to set the most useful viewing angle for your vehicle. This is especially handy for number plate-level installs and situations where mounting height or lighting conditions vary.

IP69K Waterproof Rating - Designed to withstand high-pressure washing, road spray and wet weather. IP69K is the highest level of water and dust ingress protection available, giving long-term durability in demanding conditions.

Flexible Mounting Options - The frame can be mounted on vertical surfaces (such as rear walls) or horizontal surfaces (such as under number plate trims or crossbars). The internal camera module can be repositioned to ensure the image is the correct way up, regardless of how it is fitted.

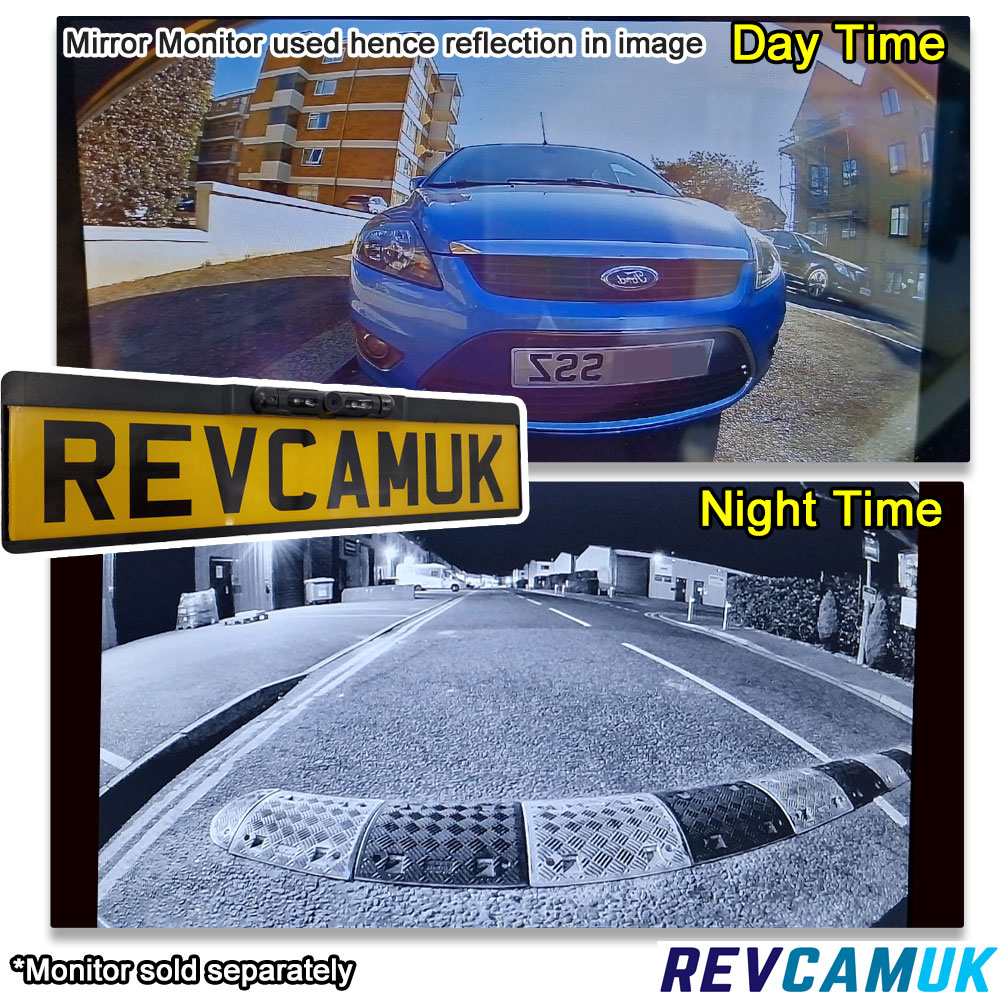

Night Vision IR LEDs - Unlike many number plate frames, this model includes infrared LEDs to illuminate the area behind the vehicle when light levels drop. The IR light is invisible to the human eye, but the camera uses it to help you reverse safely at night.

Built-In Microphone - A useful extra if you are using a monitor with a built-in speaker, allowing you to hear what is happening behind the vehicle as well as see it.

4-Pin Aviation Connector with Optional RCA Adaptors - The camera uses the popular 4-pin screw connector for video, power and audio. If you need to connect to an RCA-based monitor or stereo head unit, a discounted adaptor bundle is available.

Two-Year Reversing Cameras UK Guarantee - This camera includes our two-year Reversing Cameras UK guarantee for added peace of mind.

AHD compatibility notice

Extension cable options

We offer extension cables from 1 m to 20 m to suit different installation routes. Selected lengths can be supplied with a slim 8 mm disconnect joint, positioned approximately 1 m from the monitor end, making routing through tight spaces such as grommets, headlining and factory trunking much easier. This joint is not waterproof and must remain inside the vehicle.

RCA adaptor set option

If your monitor or stereo head unit uses RCA inputs, an optional discounted adaptor bundle can be added. It includes:

• 1 × CAB0020 4-pin to RCA adaptor (video and power breakout)
• 1 × CAB101 1.5 m power lead with inline fuse (red +12 V and black earth)
• 1 × RCA/Phono coupler for converting male-to-male RCA connections

This provides everything needed to connect the camera to an RCA-based monitor.

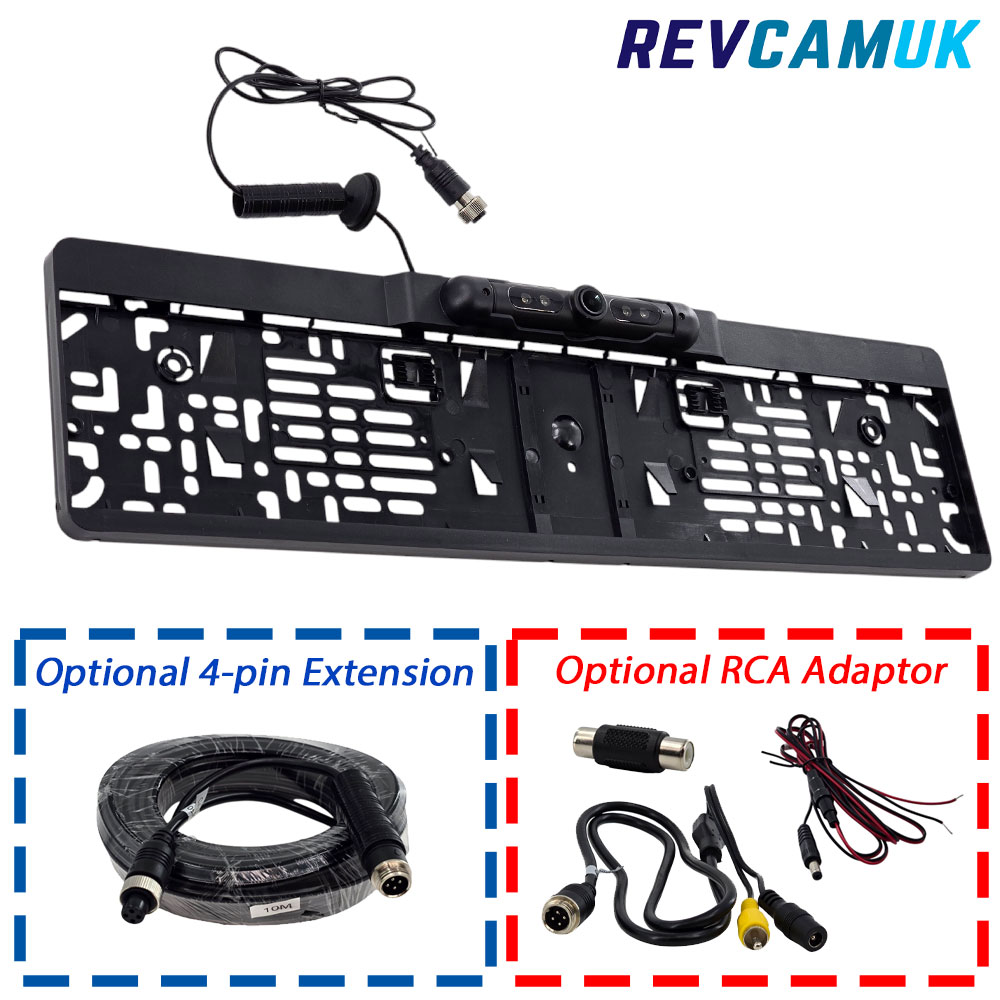

What’s in the box

• 1080P AHD number plate frame reversing camera (CAM104AHD)
• Mounting screws and fittings
• Optional 1 m–20 m extension cable (with 8 mm disconnect option on selected lengths)
• Optional RCA adaptor bundle (CAB0020, CAB101, RCA coupler)

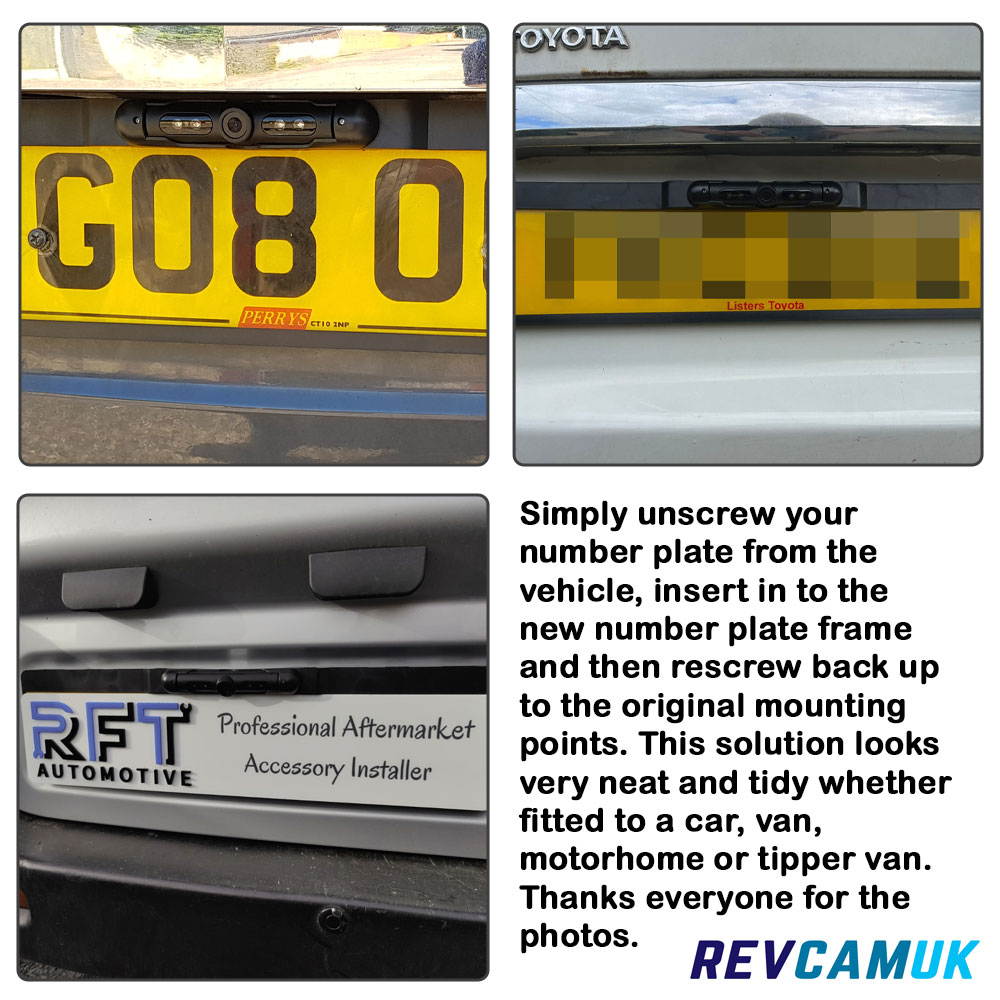

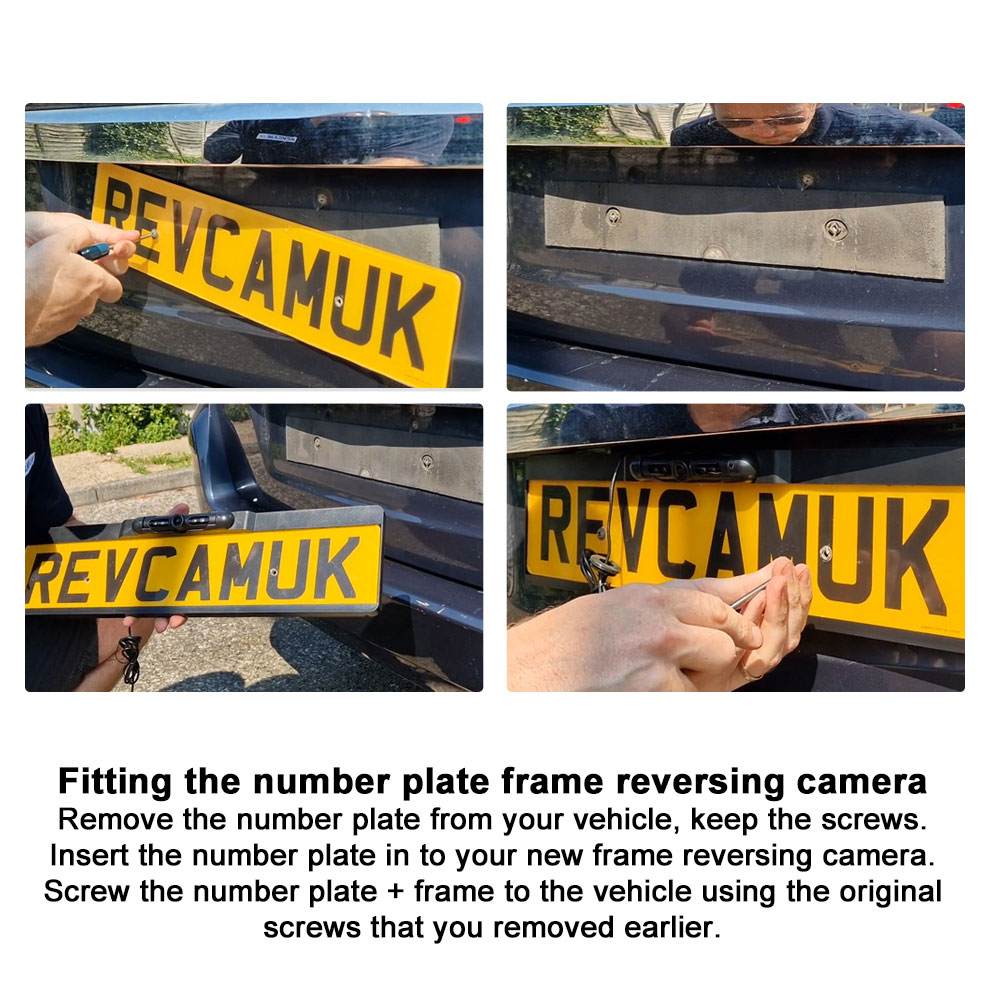

How to fit the number plate frame reverse camera to your vehicle

This camera is very easy to install.

1. Unscrew your existing number plate from your vehicle

2. Slide the number plate in to the new number plate frame camera

3. Fix the number plate + frame camera to the vehicle using the original screws

4. Make a small channel on the number plate light to allow the wire to enter the vehicle without getting crushed (or use the attached grommet).

See our video below to see the installation of the number plate reversing camera. For best viewing, ensure the playback quality is set to HD.

Download our fitting guide for the number plate frame camera
