CAM064 - 4 pin Connector - Narrow Angle White Bracket Rear View Camera

CAM064 - 4 pin Connector - Narrow Angle White Bracket Rear View Camera


PRICE INCLUDES VAT £60.00
VAT 20.00 % (£10.00)
Please Select 4 Pin cable length
Quantity (13 available)



Availability 13 item(s) available
Weight 0.50 kg

Product Ref:

CAM064

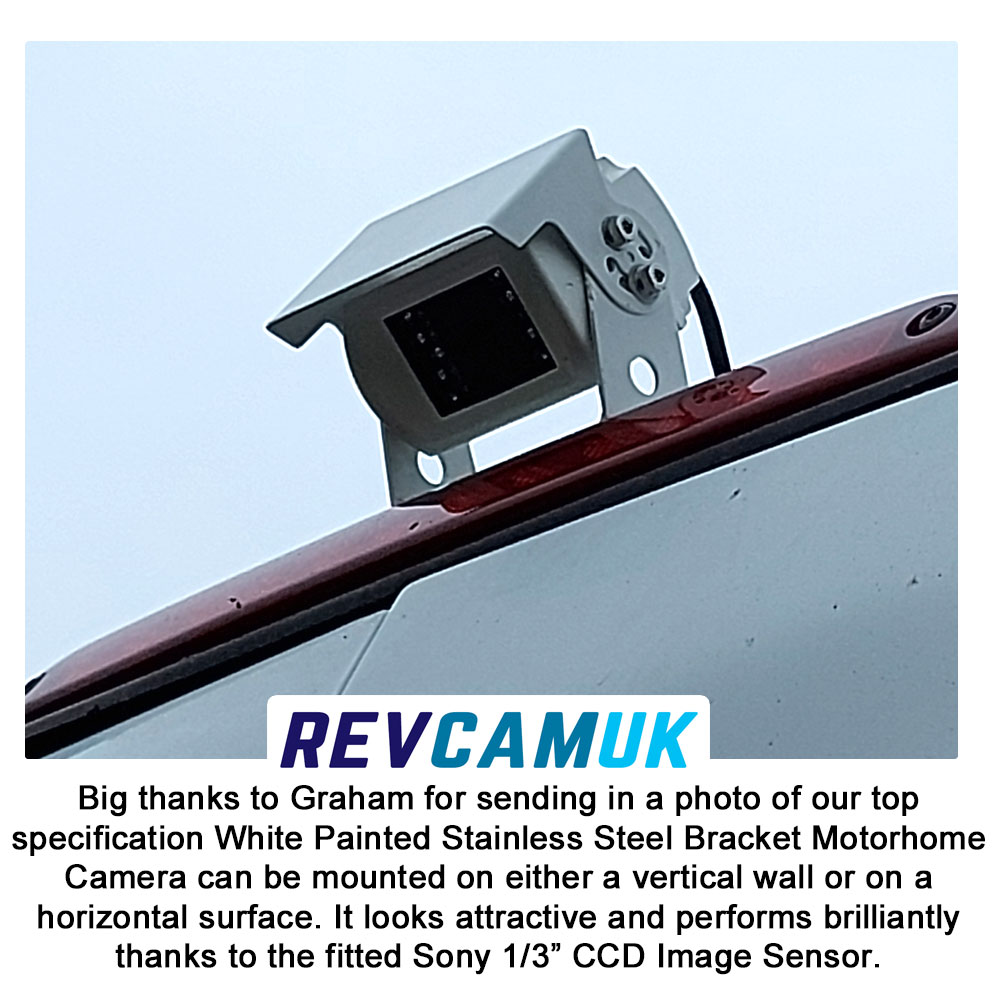

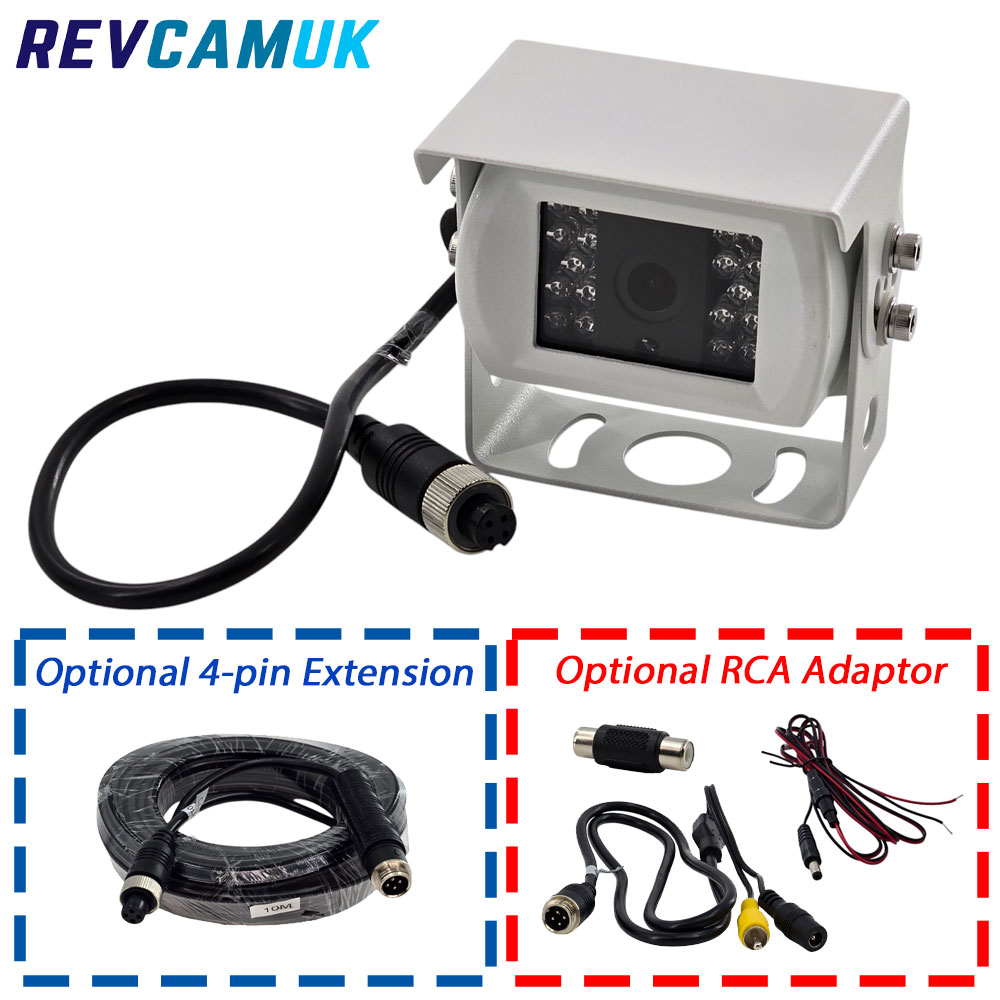

This camera is the staple of our premium camera systems.  The camera is very durable and heavy duty and is using on both agricultural machinery and normal road going vehicles.

The camera angle is 60 degrees, which makes this good as a rearview camera.  If you want this camera as a parking camera please find the 120 degree version.

The bracket is made from Stainless Steel which is then painted (this is very hard to do and most of our competitors use mild steel due to the technical difficulties painting S/Steel).

The image sensor we have installed is one of the best available from Sony, it is their 818 960H 700TVL CCD.  It is the larger image sensor at 1/3".



The camera has the 4 pin plug on it's fly lead, this is waterproof.

The camera is waterproof up to IP68.

Camera works on 12V but if you buy with a 12V/24V monitor, the monitor reduces the voltage down to 12V.  This is the norm, and most 24V systems actually only supply 12V to the camera.

Technical Specs

Image Device:1/3 SONY 818 CCD 960H 700TVL
TV System: PAL
Effective Pixels: 976*582
Scanning System: 2:1 Interlace
Sync. System: Internal
Resolution: 700 TV lines
Minimum Illumination:0 Lux (IR leds on)
Video Output:1.0vp-p,75Ohm
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/50Sec-12.5μSec (PAL)
BLC: Auto
Current Consumption:100mA
Waterproof to Ip68
18 Infra red LEDs to provide night view
Waterproof with adjustable shade to prevent glare from sun
Mirror image only
Stainless Steel Bracket (painted)

: *
: *
: *
