White Motorhome Sony 1080P AHD Bracket Reversing Camera | CAM061AHD
Description

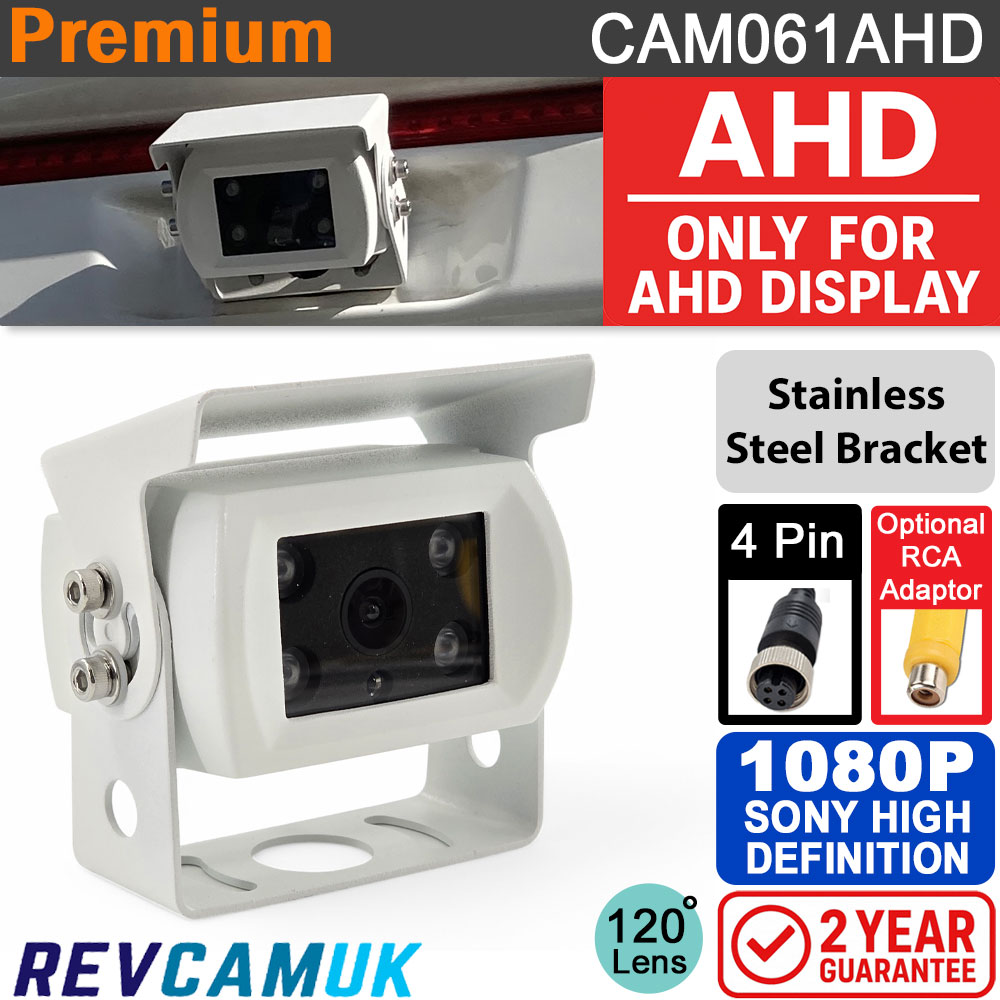

CAM061AHD - White 1080P AHD Bracket Reversing CameraThis is our CAM061AHD, a white bracket reversing camera that uses the Sony IMX307 1080P AHD image sensor to provide a sharp, high-definition image with excellent colour reproduction. It is ideal for lighter-coloured vans, motorhomes and commercial vehicles where a white camera blends in better with the bodywork. The camera is mounted on a stainless steel bracket with a matt white painted finish and can be angled precisely to give a clear view behind the vehicle. Infrared LEDs provide night vision so you can still see what is behind you in low-light conditions. It uses a standard 4-pin connector and can be ordered with extension cables and RCA adaptor sets at discounted rates through this listing. The camera comes with a two-year guarantee and forms part of our well-regarded Reversing Cameras UK range. Key Features1080P Sony IMX307 AHD Image Sensor - Produces a detailed, high-definition picture with natural colour balance and very good low-light performance. Discreet White Bracket Design - The compact bracket housing with matt white finish looks neat on white and lighter-coloured vehicles. Stainless Steel Bracket - The bracket is made from stainless steel and painted white to resist rust and maintain a clean appearance over time. Infrared Night Vision - IR LEDs around the lens provide useful illumination directly behind the vehicle at night, helping the camera to deliver a usable reversing image. IP68 Waterproof Housing - IP68 waterproof housing, proven to withstand the worst the British weather can throw at it. Mirror Image Output - Outputs a mirror-reversed image suitable for rear-facing use so the orientation feels natural to the driver. Wide Viewing Coverage - Designed to give a wide view of the area behind the vehicle to help reduce blind spots. 4-Pin Waterproof Screw Connector - Uses the common 4-pin aviation connector, ensuring a secure, weatherproof connection and compatibility with our range of cables and monitors. AHD compatibility notice Please note: This is a high-definition 1080P AHD camera. It must be used with a monitor that supports AHD video input. Standard-definition CVBS screens will not display an image from this camera. If you need an AHD-capable screen, please see our AHD monitor category. Extension cable optionsWe offer extension cables from 1M to 20M, so you can select a length that suits your vehicle and routing path. Some lengths are available with a slim 8 mm disconnect joint approximately 1M from the monitor end to help feed the cable through tight grommets and internal trim. RCA adaptor set optionThe discounted RCA adaptor set includes a CAB0020 4-pin to RCA adaptor, a CAB101 1.5M power lead with inline 3A fuse and a small RCA coupler, giving you everything needed to connect this camera to an RCA-based monitor or head unit. What’s in the box
|
Detailed Images

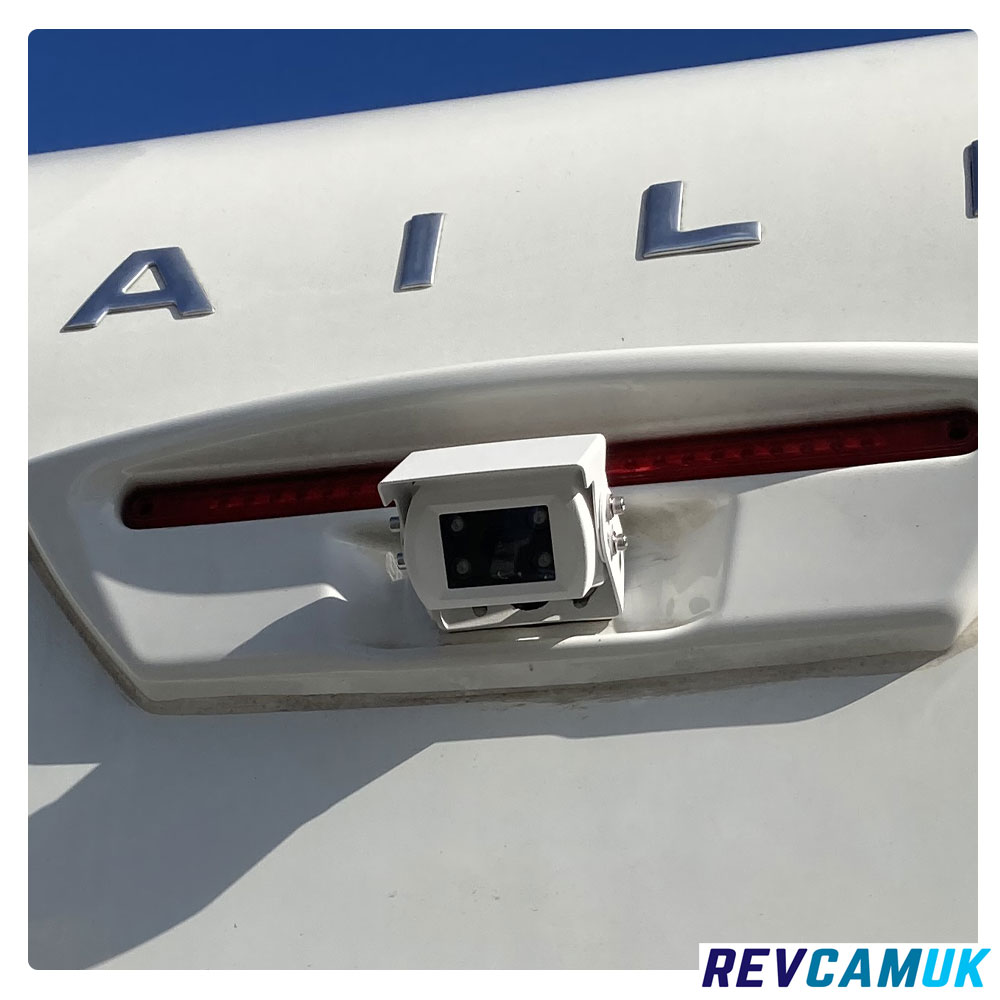

CAM061AHD white 1080P Sony AHD reversing camera installed on a motorhome rear panel

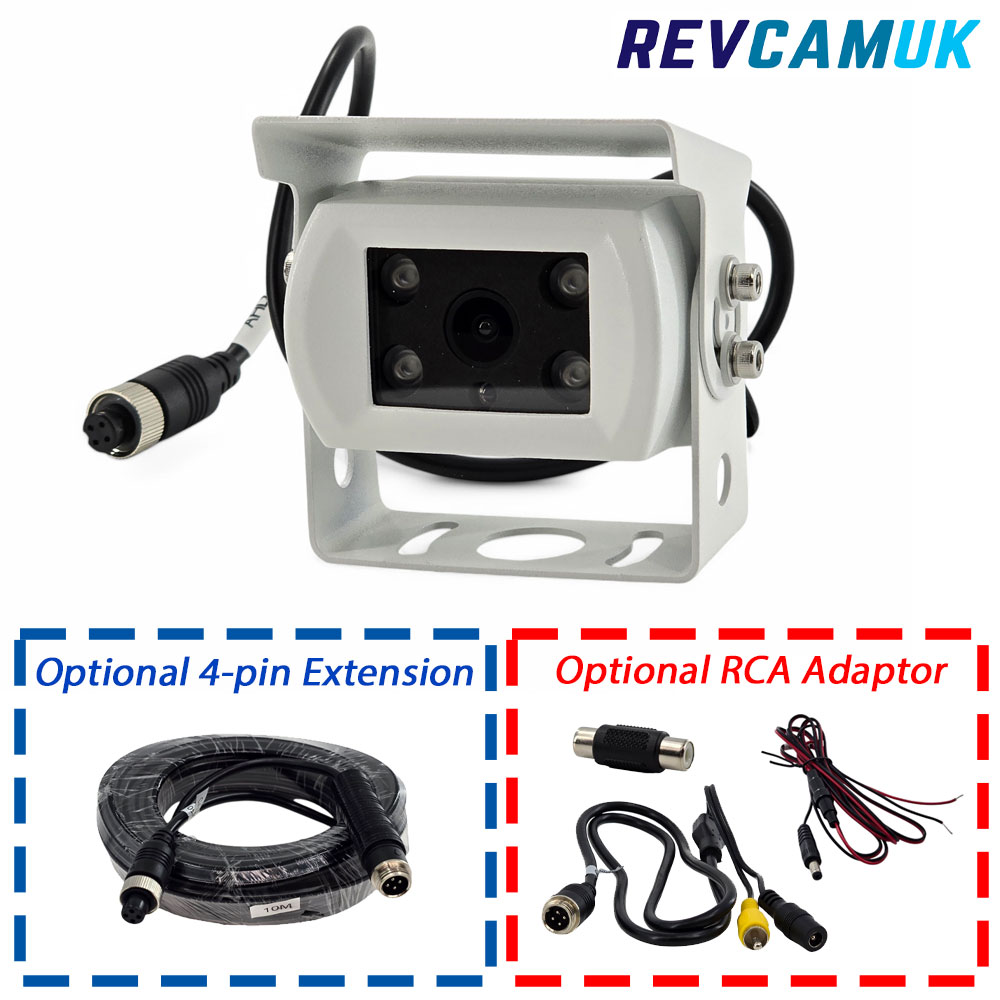

Contents image showing the CAM061AHD white 1080P Sony AHD reversing camera with optional 4-pin extension cable and optional RCA adaptor

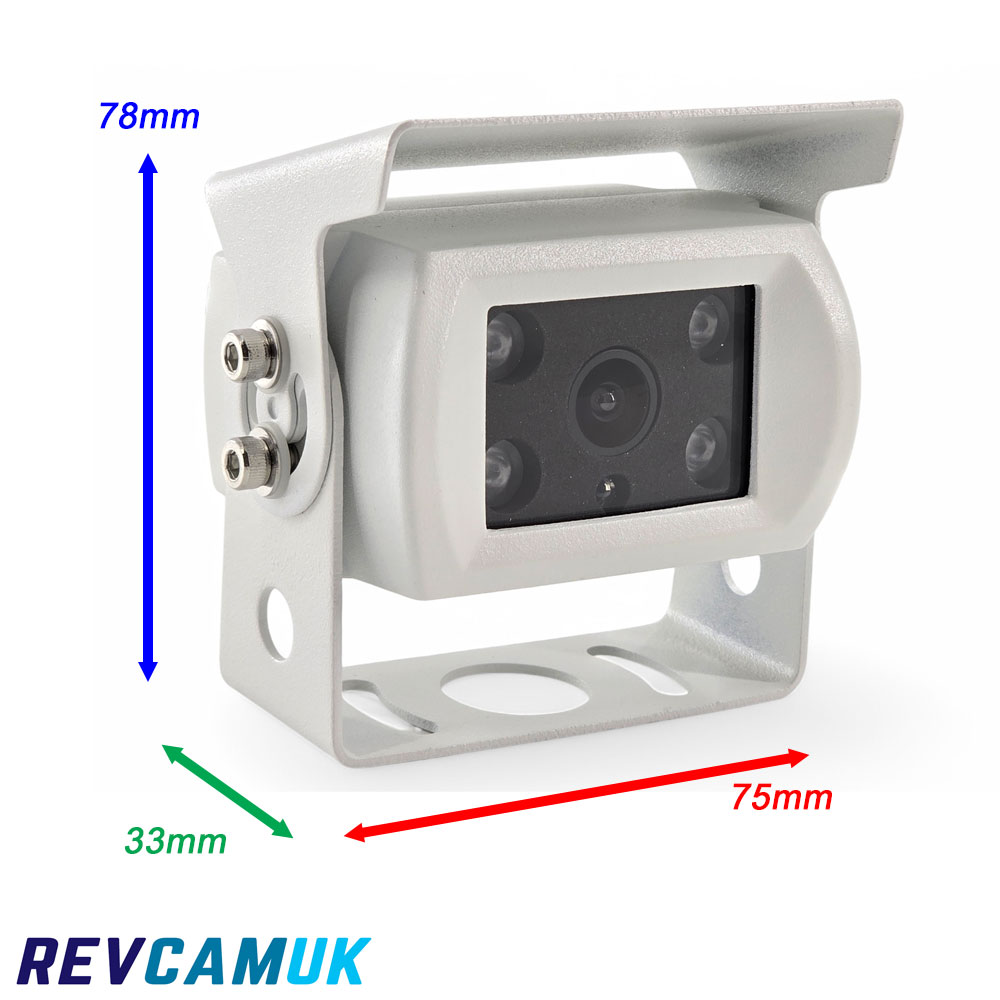

Dimensions image showing measurements of the CAM061AHD white 1080P Sony AHD universal bracket reversing camera
Yes — as long as your monitor accepts 1080P AHD (analogue high-definition) signals. This camera outputs a 1920×1080P image using the Sony IMX307 sensor. If your monitor only supports standard analogue (CVBS) input, you will not get a picture.
Yes — it uses the IMX307 sensor plus a mechanical IR-cut filter during the day and 4 IR LEDs for night time. So in dusk or unlit parking areas you’ll still get a clear image.
The camera comes with a short fly lead (~45 cm) terminating in a 4-pin aviation connector (screw-locking) suitable for extension cables. When ordering you can select extension cables from 1 m up to 20 m. Some options include the “8 mm small joint” version for tight routing.
Yes. The body has an IP68 waterproof rating — meaning it’s built to withstand heavy rain, road spray, frost, and typical British conditions. The bracket is stainless steel and painted white to resist rust or corrosion.
The bracket is versatile — you can mount on horizontal or vertical surfaces (e.g., rear door of a motorhome, van wall, top or side of a vehicle, under-run bar). The bracket design gives you flexibility for location and angle.
| Image sensor and chips: FH8550M + Sony IMX307, 1/2.8" CMOS |
Related Products

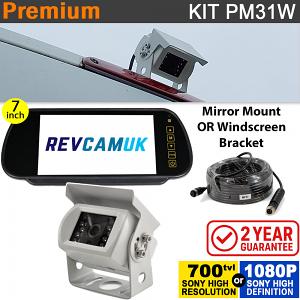

White Motorhome Reversing Camera Kit with Sony CCD or AHD image sensor + Mirror Monitor - PM31W
