Ford Transit Custom Dual-View Brake Light Reversing and Rear-View Camera 1080P AHD (LED Type) | CAM007FTC LED TW-AHD

Ford Transit Custom Dual-View Brake Light Reversing & Rear-View Camera – LED Version (1080P AHD) | CAM007FTC LED TW-AHD

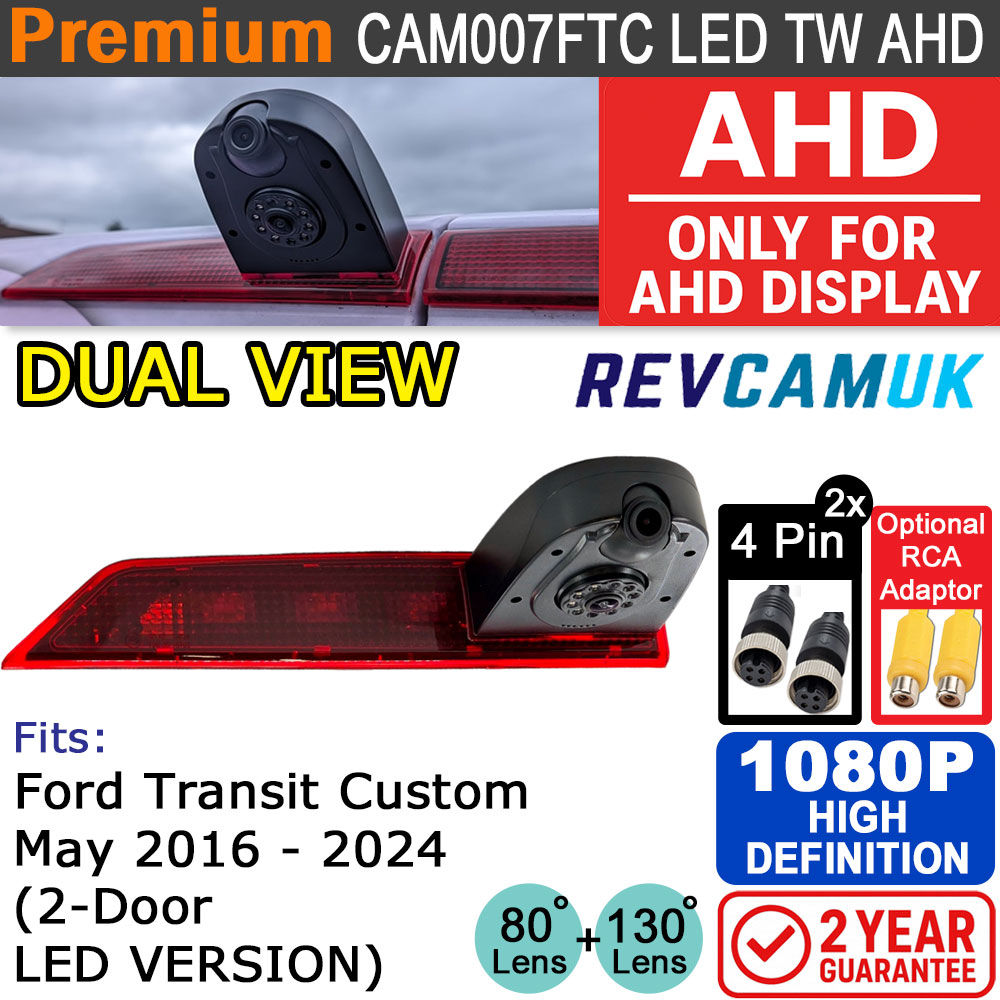

The CAM007FTC LED TW-AHD Dual-View Brake Light Camera is designed for Ford Transit Custom vans from approximately May 2016 to 2024 that use the later LED-type centre brake light. It replaces the original factory LED brake light and integrates two separate cameras: a downward-facing reversing camera and a horizontally-aimed rear-view driving camera.

This upgraded AHD version uses two high-quality C2399 1080P sensors to deliver crisp detail and improved colour accuracy. If your Transit Custom has the earlier bulb-type brake light (2012–May 2016), please use our Bulb version instead.

Please note: This 1080P AHD twin-lens camera for Ford Transit Custom is only compatible with AHD-compatible monitors and will not work with older CVBS-only screens. For the standard-definition version, please see:
Standard CVBS Twin-Lens Brake Light Camera (LED Version).

Key features

LED brake-light replacement – Direct-fit design for Transit Custom vans with the factory LED brake-light assembly fitted from May 2016 onwards.

Dual-camera system – Two independent cameras in one housing: a wide reversing lens and a narrower rear-view lens for driving visibility.

Reversing lens (downward): 130° horizontal field of view with infrared LEDs for night-time use.

Rear-view driving lens (horizontal): 80° horizontal view with no IR illumination for natural daytime colour and clarity.

1080P AHD image output – Both lenses use the C2399 CMOS sensor for a detailed, high-resolution picture.

All-glass lenses – Superior clarity, reduced glare and long-term durability in all weather conditions.

IP68 waterproof construction – Fully sealed housing suitable for year-round outdoor exposure.

Includes 7-pin → dual 4-pin adaptor – Suitable for two-input and split-screen AHD monitor systems.

Optional extension cables – 10 m or 15 m lengths available for longer cable runs.

UK tested and supported – Sold with a 2-year warranty for peace of mind.

Vehicle fitment

AHD compatibility notice

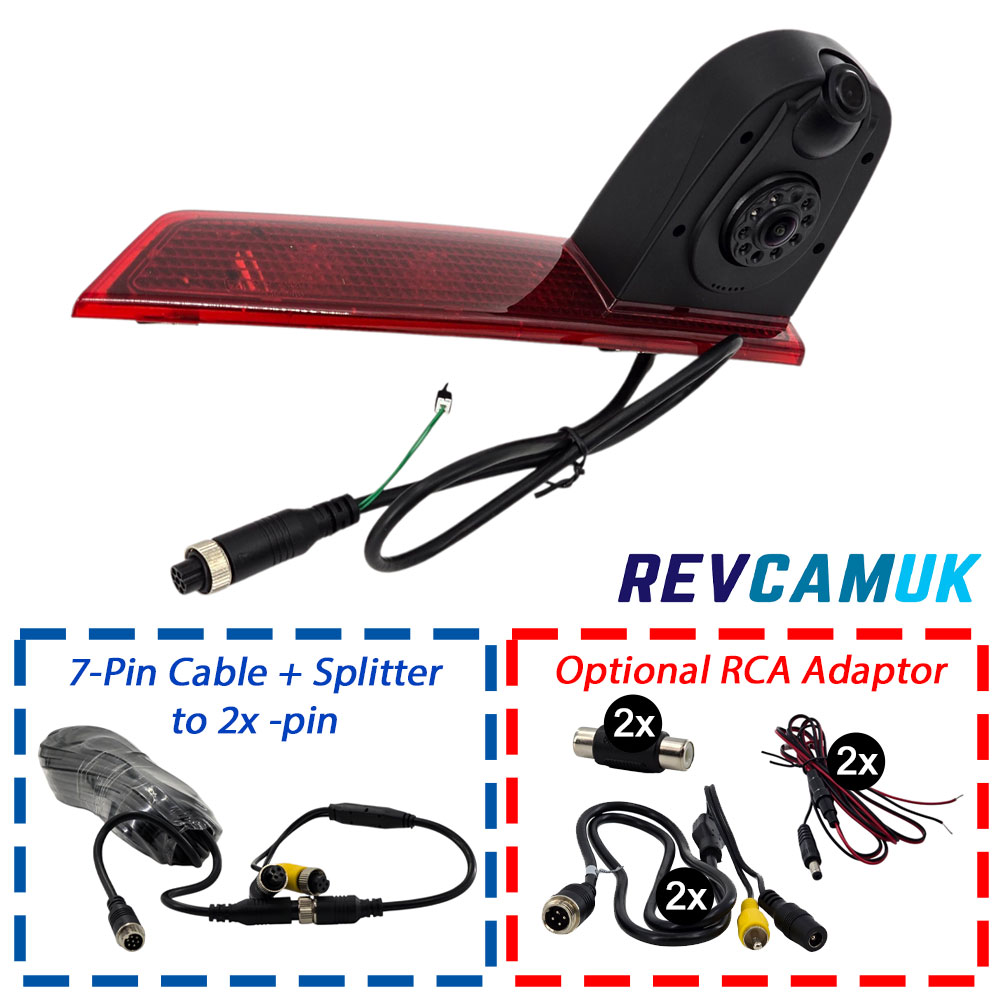

What’s in the box

• 1080P AHD Dual-View brake-light camera (CAM007FTC LED TW-AHD)
• 7-pin main connector
• 7-pin → dual 4-pin adaptor
• Optional 4-pin → RCA adaptors and/or 10–15 m extension cables (if selected)

Add a monitor and cable with one of our premium brake light reversing camera kits

If you’d like a complete reversing camera kit for your Transit Custom, including a display, the kits below pair this camera with suitable monitors and cabling, all backed by our 2-year guarantee.

• Dual Lens Rear View Camera + Reversing Camera with Mirror Monitor Display for Ford Transit Custom (select LED + AHD options)
• Dual Lens Rear View Camera + Reversing Camera with 7" Monitor Display for Ford Transit Custom (select LED + AHD options)
• Dual Lens Rear View Camera + Reversing Camera with 5" Monitor Display for Ford Transit Custom (AHD option unavailable but image still high quality)
