Bolt-on Numberplate Reversing Camera Kit with 7″ Dash Monitor | PM65J
Fitting Images of the number plate bolt reverse camera
Wiring Layout and Options Information
Dimensions of Reversing Camera Kit for Numberplate
Monitor Bracket Choice Image
Gallery Ask a question about this product
Price

£165.00

VAT Included £27.50
Availability IN STOCK
Product Code: PM65J-SD
Cable Length Options
Add extra monitor bracket?
Add a lighter plug?
Add a fuse tap?
Quantity
(from 1 to 28)

If you'd like this by

Order within ::

(Please select Next Day Delivery Option - Mainland UK only) Terms Apply

Description

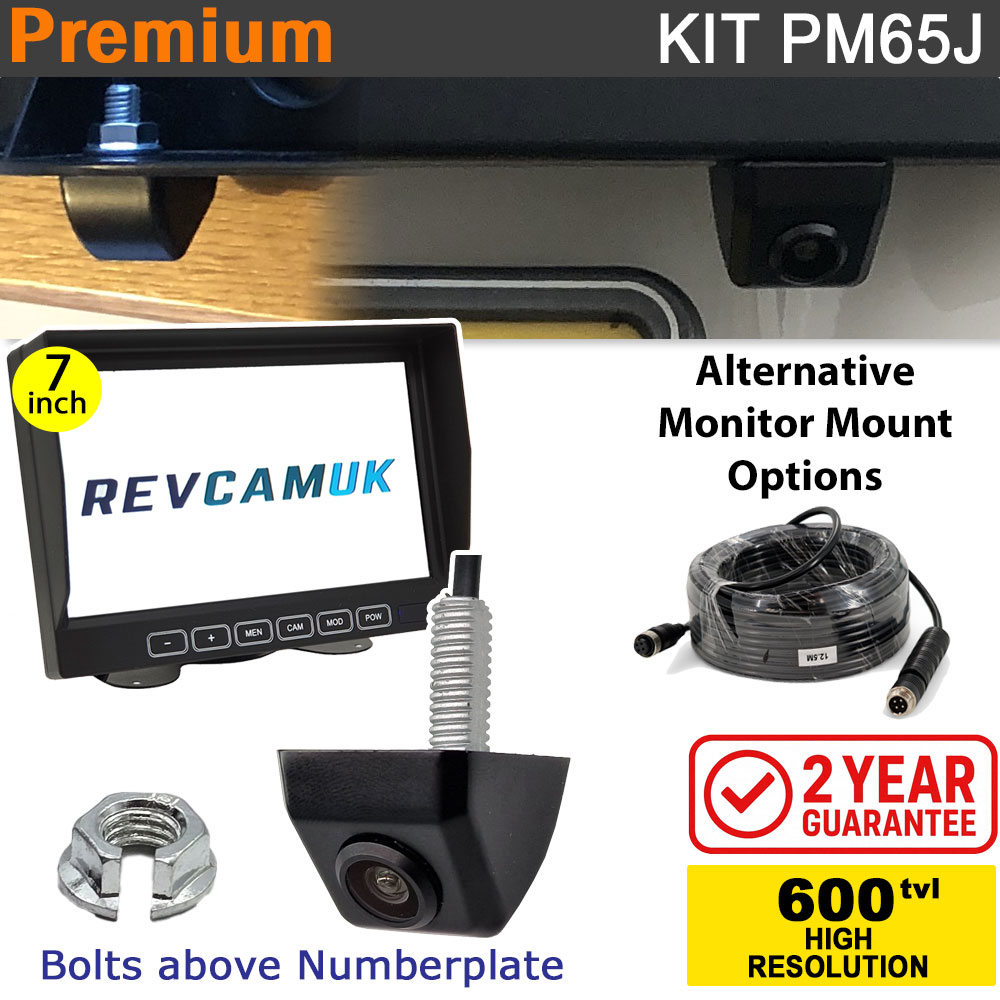

PM65J Bolt-to-Numberplate Reversing Camera Kit with 7-inch Dash Monitor

The PM65J is designed for a clean, secure bolt-on camera installation above your numberplate. It pairs a 7-inch dash-mounted display with a PC4089 700TVL CMOS sensor camera, fitted via bolt & nut through your numberplate light area. Built with all-glass composite lenses for clarity, IP68 housing, and all-in-one 4-pin wiring, this kit delivers reliable, clear reversing visibility with minimal fuss.

Key features

  • 7-inch dash monitor with high-resolution digital LCD panel
  • Bolt-on numberplate camera (bolt & nut fit) mounted via numberplate light area
  • PC4089 700TVL CMOS sensor – excellent definition with vibrant colour
  • All-glass composite lens for better clarity and durability
  • Very wide viewing angle for good rear-vision coverage
  • IP68 waterproof camera housing for tough weather conditions
  • Aviation 4-pin cabling (pure copper) — robust wiring to avoid issues
  • Optional lighter plug or fuse tap available for easier installations
  • 2-year UK guarantee with UK testing on all kits

More about this kit

Image quality: The use of the PC4089 700TVL CMOS sensor and all-glass composite lenses provides sharp, vibrant images. Ideal for backing up and parking clearly.

Installation simplicity: Bolt fitment is straightforward: camera bolts through near the numberplate light, wire routed internally. Monitor supports guidelines via reverse trigger wiring and adjustable in the menu.

Monitor suitability: The 7-inch display is bright and clear, perfect for dash mounting. Designed to handle outdoor light glare and indoor dash shading.

Robust build: IP68 rating plus durable connectors means this kit can take rain, spray and weather without failing. Tested both at the factory and again in the UK.

Specification snapshot

Monitor 7-inch LCD, 2 inputs, PAL/NTSC auto, remote control
Camera Bolt-to-numberplate camera, PC4089 700TVL CMOS sensor
Viewing angle Very wide angle (~150° diagonal)
Weatherproofing IP68 camera housing
Cable & connectors Aviation quality 4-pin cable, pure copper cores
Guarantee 2-year UK warranty & lifetime support

What’s in the box

  • 7-inch dash monitor with bracket
  • Bolt-type numberplate reversing camera (PC4089 700TVL CMOS)
  • Main harness and 4-pin aviation cable (12.5 m standard length)
  • Standard hardwire lead; optional lighter plug or fuse tap
  • Instructions & fittings for bolt installation
Detailed Images

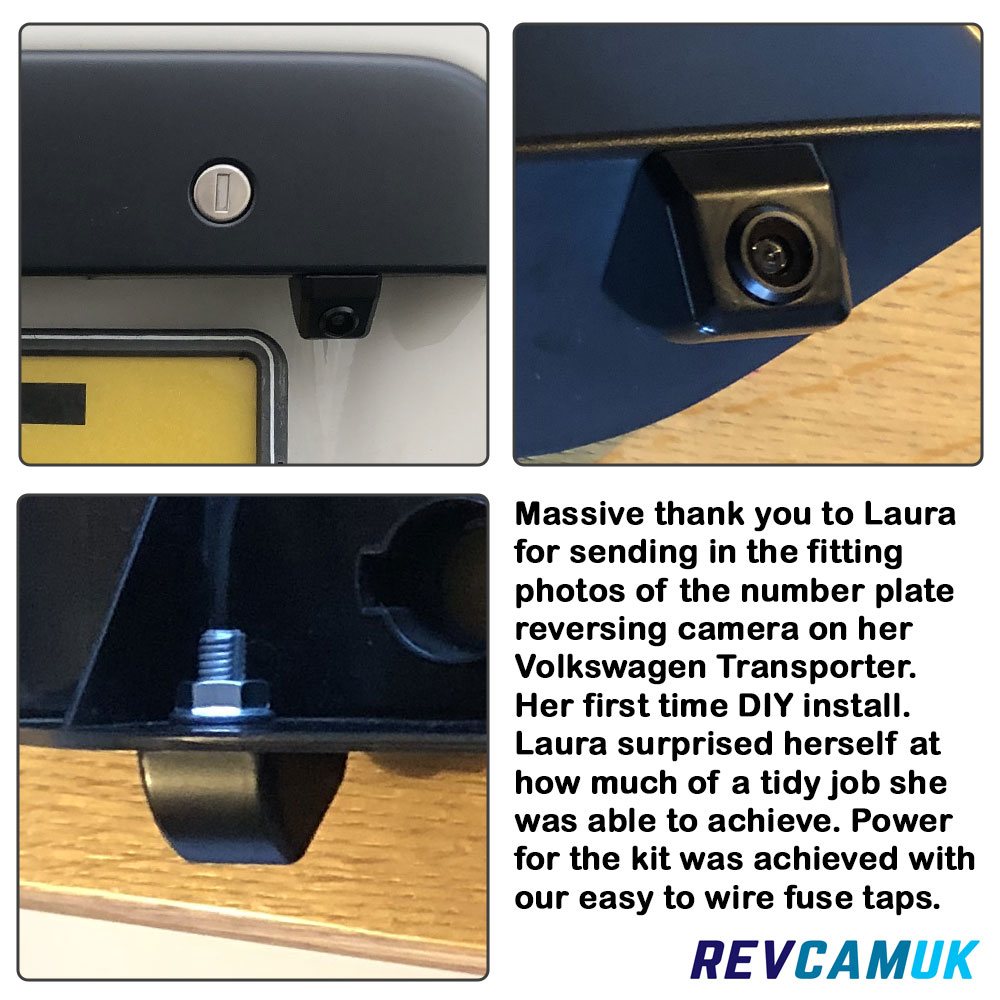

Fitting Images of the number plate bolt reverse camera

Fitting Images of the number plate bolt reverse camera

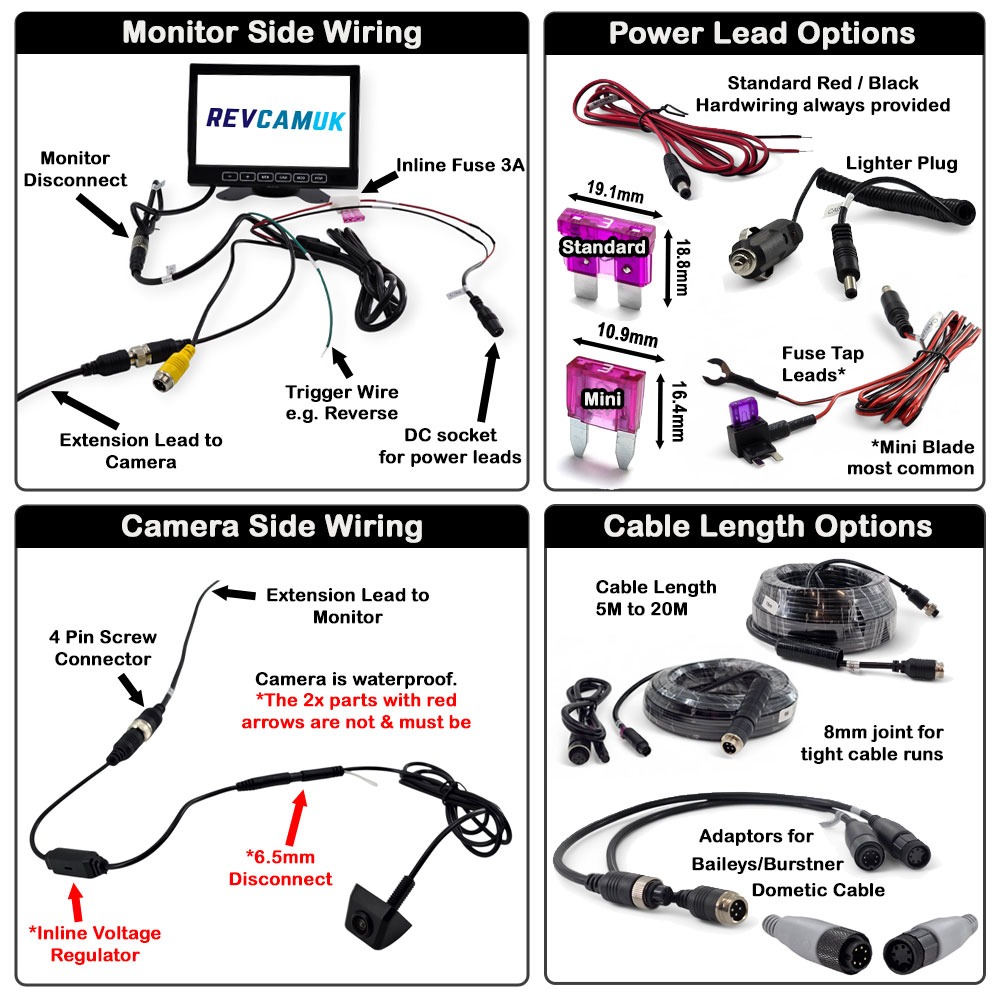

Wiring Layout and Options Information

Wiring Layout and Options Information

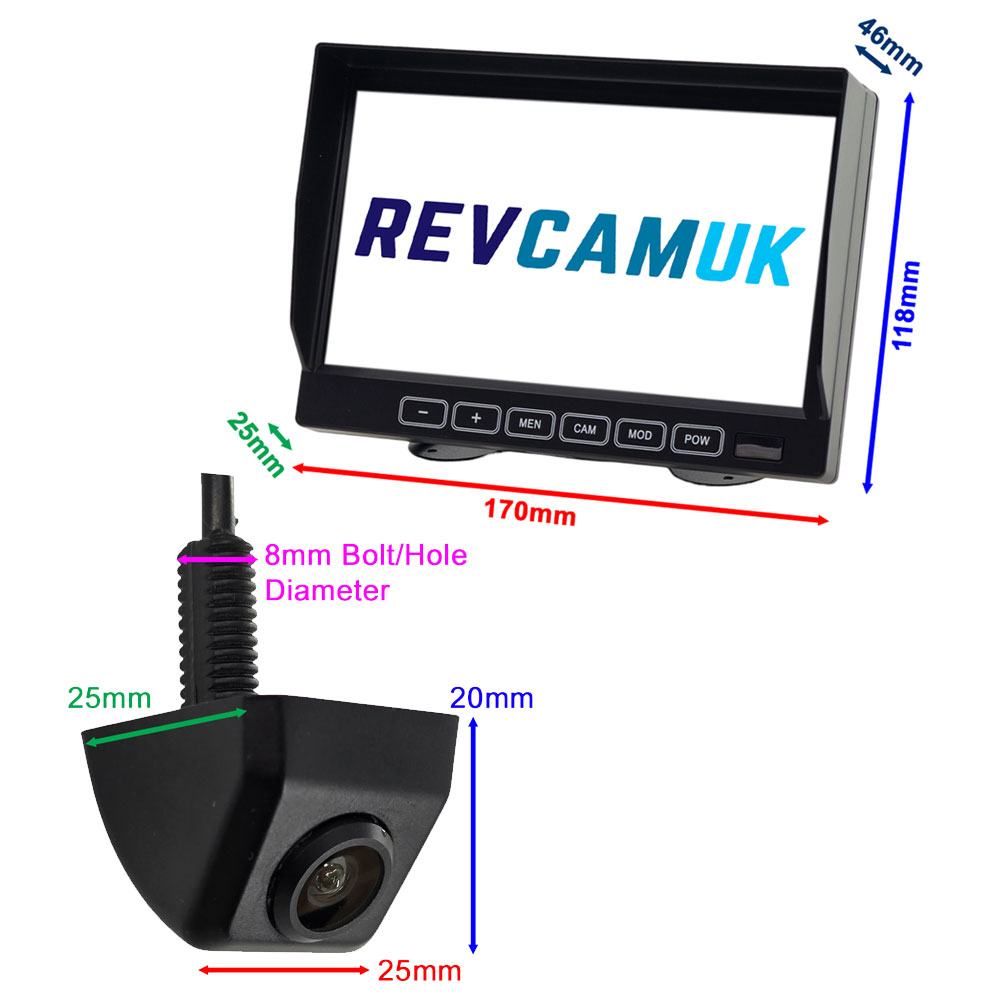

Dimensions of Reversing Camera Kit for Numberplate

Dimensions of Reversing Camera Kit for Numberplate

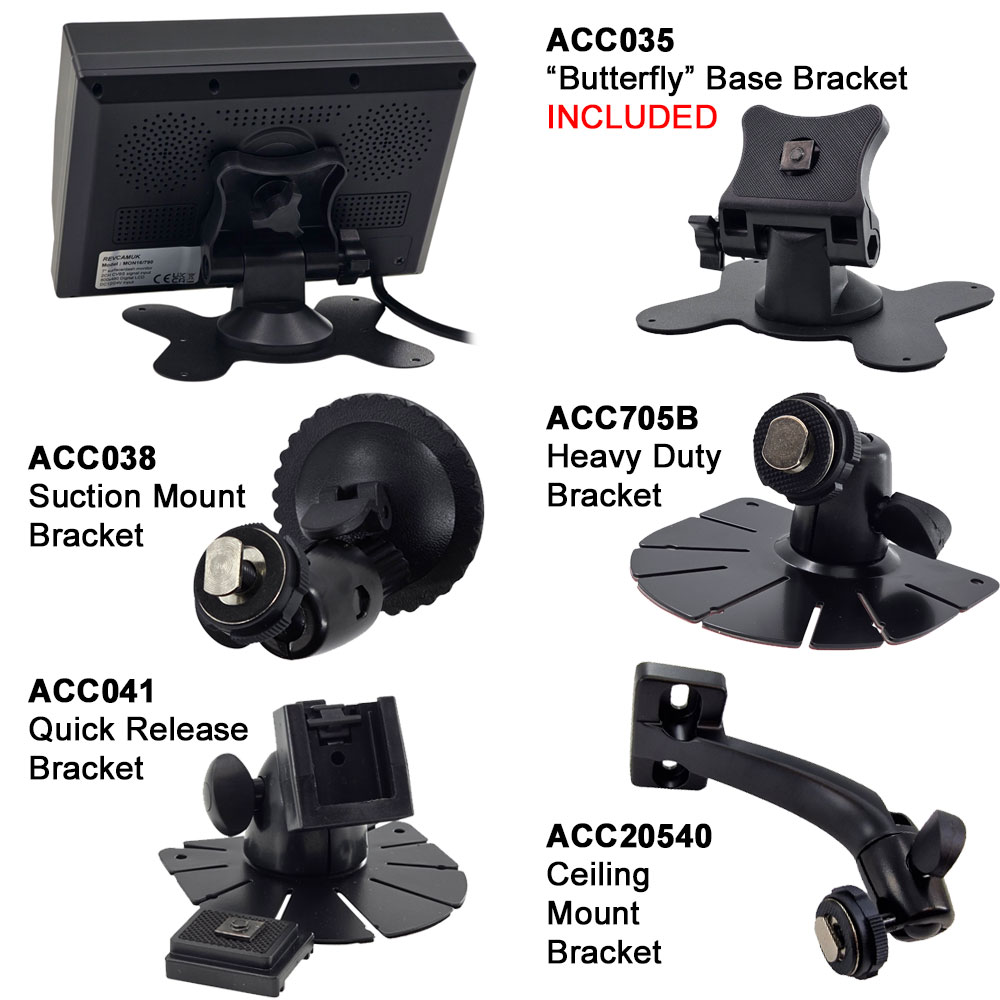

Monitor Bracket Choice Image

Monitor Bracket Choice Image

Additional monitor bracket/mount options

We can supply a discounted additional mount/bracket for the monitor when ordered at the same time as the kit.  Please see the photo below, and make your selection using the drop down menu above the add to cart button.

See our video below for details about the brackets in the photo above.

Choice of kit power options

  • On the monitor wiring harness is a 2.1mm DC socket. On the drop down menu of this product, you can select your desired power lead to plug in to this.
  • The standard hardwiring is supplied with all options, this terminates in a red wire (+12V/+24V), and black wire (earth).
  • For the ultimate quick install is a lighter plug option. Some people also order this just for the initial setup, before changing to the standard hardwiring/fuse tap.
  • Fuse taps aka piggyback fuse holders, are the most recent addition to our options. This allows you to "piggyback" off an existing circuit from your fuse box. The most common size fuse found in modern vehicles is the mini blade (size = 10.9mm wide x 16.4mm tall), older vehicles are likely to have the standard blade (size = 19.1mm wide x 18.8mm tall). Download and read our Fuse Tap installation instructions PDF for more information.
  • Our fuse taps were designed by us, they have a 200cm lead that connects directly to the monitor socket with no soldering / crimping required. There is a black wire with an earth terminal attached - designed to fix to a chassis bolt/screw.  This earth wire/terminal can be separated away from the red wire to enable you to find the most convenient ground/earth (although often this is next to the fuse box).
Power Supply Options including lighter plug and piggyback fuse taps
Ask a question about this product

Our easy wire fuse tap options are new for 2023.  We designed a fuse tap that plugs in to a socket that is present on all of our monitor wiring harnesses.  The other side has a "piggyback" fuse holder aka fuse tap.  You identify a fuse in the fuse box that comes on/off with the ignition (see piggyback fuse holder / fuse tap instructions here - PDF download).  The original fuse is placed in to the new fuse tap, plus there is a new fuse already present for the reverse camera kit.  On the same wiring there is an earth terminal connector, simply attach this to a chassis bolt (usually near the fuse box, or add your own).

Rough guide:

  • 5M is good for an average size car
  • 7.5M is good for large cars and shorter wheelbase vans
  • 10M is good for a medium length van (around 6M)
  • 12.5M is good for most vehicles up to around 8.5M long (covers most motorhomes except the super long)
  • 15M is good for vehicles up to around 10/11M eg rigid lorry, small coach.
  • 20M is good for super long vehicles

Reversing Camera Kit Instructions

Download

Instructions for fitting our 4 pin based reversing camera kits

Monitor Operation Instructions

Download

Manual for operation of the 7" dashboard mounted monitor supplied in this kit

Monitor

7” Colour LCD screen
Audio Output: 0.5W
Loudspeaker: one 15x40mm round loudspeaker
Power supply: 12V/24V
Power Consumption: 4W Max
Digital Screen Resolution: 800 x3(RGB)x480
Contrast: 500:1
Brightness: 400cd/m2
Viewing Angle: U: 50 degrees/ D: 60 degrees, R/L: 70 degrees
Operating Temperature: -10C to +65C
Storage Temperature: -30C to +80C RH90%
2 Inputs
PAL/NTSC/AUTO
Mirror/Normal Switch on both channels
Full function Remote Control

Camera

Image device:- PC4089 CMOS sensor
Effective pixels: 976(H) x 592(V)
Resolution: 700 TVL
Selectable guidelines
PAL format
IP rating: Ip68
Lens angle: 150° diagonal
Minimum illumination 0.1 Lux
Video output: 1.0VP-P.75Ohm
Power supply: DC12V
Operating Temperature: -20°C to +70°C
