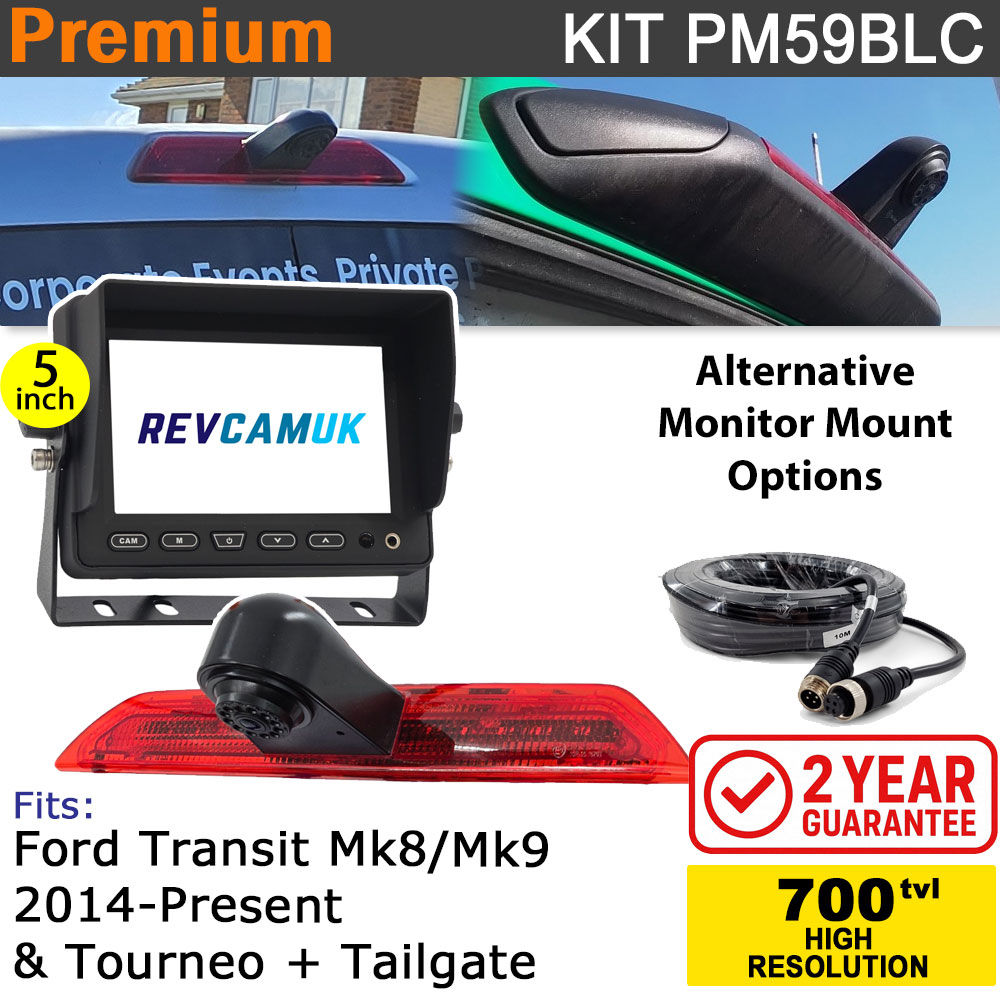

Ford Transit Mk8 (2014+) Brake Light Reversing Camera kit with 5" Monitor Display - PM59BLC
Description
About the Ford Transit Mk8 2014+ brake light reversing camera kit with 5 inch displayBrake light reversing cameras have quickly become the most popular type of reversing camera system for vans. This particular camera kit is supplied with a 5 inch high resolution dash monitor, this is supplied with a U bracket mount as standard but a variety of other brackets can be selected here. Please check your brake light, this will fit the Transits that have one large brake light, if you have the smaller Transit custom this tends to have the split type brake light in the door, we do have these, please type transit custom in the search bar to find all available kits (we have LED and Bulb versions depending on year). What vehicle does this fit?Ford Transit 2014-Present Ford Transit Tailgate Version 2014-Present Please note :- if you have a small Transit custom with the split type brake light, then this won't fit (we do carry the split Transit Custom brake light on other listings). Add an additional monitor bracket/mountWe can supply a discounted additional mount/bracket for the monitor when ordered at the same time as the kit. Please see the photo below, and make your selection using the drop down menu above the add to cart button. See our video below for details about the brackets in the photo above. Choice of kit power options
Easy-Fit Wiring
Image Sensor for CameraThis particular system uses the PC4089 1/3" Hi-Res CMOS image sensor (not to be confused with the older technology low res CMOS), this runs at 700TVL and gives a really crisp picture with a good colour replication. We use 4xglass composite lens instead of the cheaper 2xglass, 2xplastic lenses, which cloud/fade over time due to UV exposure. With our camera you can be assured of good performance and long term reliability. Monitor has Digital LCD Panel - Not Standard LCDThe monitor uses a Hi-Res digital panel screen with more than 3 times the amount of pixels of the standard analogue LCD screens most other retailers sell. (Please note some sellers multiply the first number by 3 for RGB, if we were to do that it sounds even more impressive (2400x480). We prefer to keep it simple but check carefully our competitors, the last number is normally better to go by as this is the number of vertical lines of pixels. 2 Year GuaranteeWe supply with a 2 year Guarantee with us, meaning we will repair or replace any non-user damaged parts that are deemed faulty. Our failure rate is very low even beyond these two years, if you have a problem outside of 2 years we should still have compatible parts and possible repairs for reasonable amounts. Parts Tested in the UKThe parts of this kit will have been tested twice, once by the factory and once by us. We check all the items in the kit including all cables, trigger wires, IR leds and menu functions to reduce any chance of having a non working part. Our fault rate is extremely low, and we just like to ensure that we avoid any imperfection slipping past. This is why professional fitters love us. |
Detailed Images
Monitor Dimensions
Wiring Layout (monitor side)
Yes you can, the monitor powers the camera, this means you can choose to watch the camera at any point, you can drive with it "always on". However, most of our single brake light reversing cameras have limited adjustability - so you might only be seeing the ground near the bumper whilst driving (not traffic).
Our easy wire fuse tap options are new for 2023. We designed a fuse tap that plugs in to a socket that is present on all of our monitor wiring harnesses. The other side has a "piggyback" fuse holder aka fuse tap. You identify a fuse in the fuse box that comes on/off with the ignition (see piggyback fuse holder / fuse tap instructions here - PDF download). The original fuse is placed in to the new fuse tap, plus there is a new fuse already present for the reverse camera kit. On the same wiring there is an earth terminal connector, simply attach this to a chassis bolt (usually near the fuse box, or add your own).
Rough guide:
- 7.5M is good for shorter wheelbase vans
- 10M is good for a medium to long wheelbase vans (around 6M)
- 12.5M is good for most vans up to around 8.5M long
- 15M is good for even the longest vans on the market
Yes, as standard the reversing camera is set to display static coloured guidelines on to the image produced. These can be removed if you prefer. Simply cut the small trigger loop close to the brake light camera connection. See sticker on box for more details as some models have more than one function loop available.
Our general 4 pin cable reversing camera kit based fitting instructions.
Our compact-sized heavy-duty monitor display. Guide to fitting and the on-screen menu.
|
