White "Diamond" Reversing Camera | 700TVL | 4 pin connector | CAM918W-RCA

Price

£90.00

VAT Included £15.00
Availability IN STOCK
Product Code: CAM918W-RCA
Video cable length
Quantity
(from 1 to 10)

If you'd like this by

Order within ::

(Please select Next Day Delivery Option - Mainland UK only) Terms Apply

Description

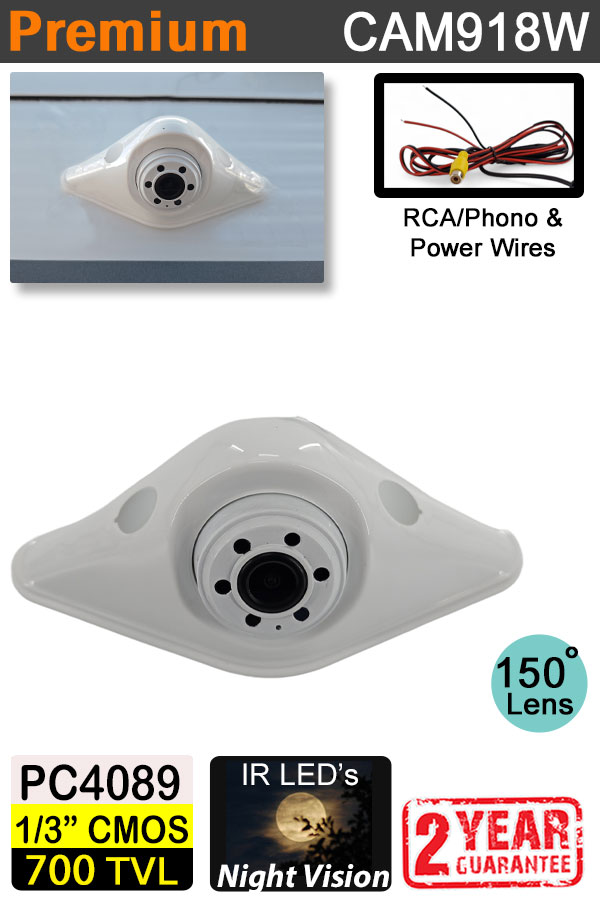

White Diamond Reversing Camera with 700TVL premium CMOS image sensor and night vision

This listing is for the white diamond shaped reversing camera, this style of camera is popular with people who don't wish to have the usual square shaped bracket camera on the back of their vehicle.

  • The camera can be adjusted to tilt viewing down, or angled up slightly to see close following traffic (not all the way down the road).
  • The camera is fitted with IR Infra Red LED's for night vision. These are not visible to the human eye, but will provide light that the camera can see at night.
  • The camera has a RCA phono plug on the end of the fly lead, combined with a red (+12V) and black (earth) bare wire .
  • The camera is supplied with a rubber gasket to fit on to the base of the camera, as well as a cable grommet pre-fitted to aid waterproof cable entry.
  • The camera is waterproof up to IP68.
  • The approximate viewing angle of the camera is 150 degrees (diagonal).
  • The camera is mirror image, this means that it will replicate what you expect to see in your normal mirrors.
  • The camera provides a colour image in the day, and a black and white image at night. The image sensor is very high spec, see below for more details on this.

Image Sensor for Camera

An image sensor is the part of the camera that detects and captures information to make an image, there are various sizes of sensor usually between 1/4" and 1/3" with the larger sensors able to capture more detail.  We consider this the joint best image sensor in terms of picture quality you can get on a traditional CVBS reversing camera (this is the signal type most reversing camera systems use, as well as stereo head units eg Kenwood/Pioneer/Sony).

Image sensor used inside the reversing camera
Detailed Images

See our general guide to installing 4 pin reversing cameras.  This includes fitting to stereos inc Kenwood / Sony / Pioneer etc.

Fitting guide for 4 pin reversing cameras including to stereo headunits

Image Sensor : CMOS4089
Effective Pixels : 976(H) * 592(V)
TV Lines : 700TVL
TV System : PAL
Lens : 1.9mm
Min illumination 0Lux (LED ON)
IR LED's : 6pcs
Night Vision Distance : 30ft
Waterproof : IP68
Viewing angle : 150°(D)
Dimensions : 122*57*49.4 (mm)
Camera lens adjustable : 20° (up&down)
Power Voltage : 12V
Current Consumption : 150mA
Operating temperature : -20℃~+70℃
