Sony 1080P AHD Signal Compact White Reversing Camera with Polished Stainless Steel bracket | 4 pin connector | CAM111W-AHD-120

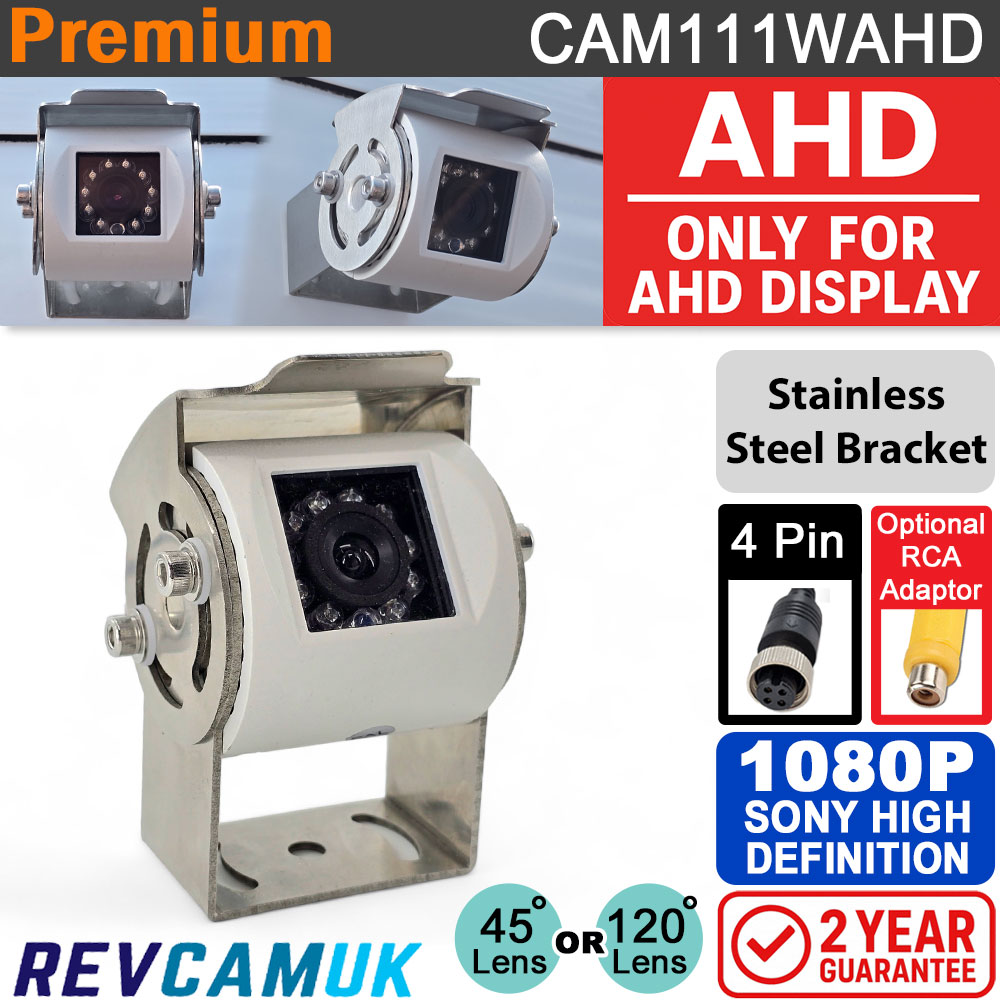

CAM111W-AHD – Compact White 1080P AHD Rear View / Reversing Camera with Polished Stainless Bracket

This is our CAM111WAHD, a compact rear view / reversing camera built into a polished stainless steel bracket with a white camera body, designed for motorhomes, coachbuilts, caravans and light-coloured vans. It uses the Sony IMX307 1080P AHD image sensor for a sharp, detailed picture and is available in the same lens-angle choices shown in the dropdown menu above: a wide 120° parking view or a narrower 45° rear-view driving lens (with or without IR LEDs). The stainless bracket offers excellent corrosion resistance, and the camera is rated to IP68, making it suitable for year-round use. This camera must be used with an AHD-compatible monitor and includes our two-year Reversing Cameras UK guarantee.

Key Features

Compact Polished Stainless Steel Bracket - The camera is housed in a compact bracket made from polished stainless steel, offering a smart appearance and long-term resistance to corrosion. It is a good option where you want a tidy but durable camera for white motorhomes, coachbuilts, caravans and vans.

Sony IMX307 1080P AHD Image Sensor - The Sony IMX307 1/2.8" CMOS sensor provides a true 1920×1080 high-definition picture with very good colour reproduction.

Choice of Lens Angles – Matches the Options in the Menu Above -
You can select the same options shown in the dropdown menu:
• 120 Degrees – General/Parking (wide view for low-speed manoeuvring)
• 45 Degrees – Rear View/Driving (With IR LEDs)
• 45 Degrees – Rear View/Driving (Without IR LEDs)

The 120° 3.6 mm lens is ideal for reversing and parking. The 45° 8.0 mm lens gives a more traditional rear-view driving perspective, helping you see further down the road behind you.

Night Vision Options – Wide Angle and Optional Rear View IR - The 120° parking version includes IR LEDs as standard. The 45° rear-view driving version is available with IR LEDs or without. The no-IR option is popular for customers who want to avoid night-mode switching on an always-on rear-view setup. If you have a preference, please leave a note at checkout.

Mirror Image Output - The camera outputs a mirror image as standard, so objects on your left appear on the left of the screen, just like a normal interior mirror. This is ideal for any rear-facing installation.

IP68 Waterproof Housing - IP68 waterproof housing, proven to withstand the worst the British weather can throw at it. The stainless bracket and sealed body make it well suited to vehicles that live outside all year round.

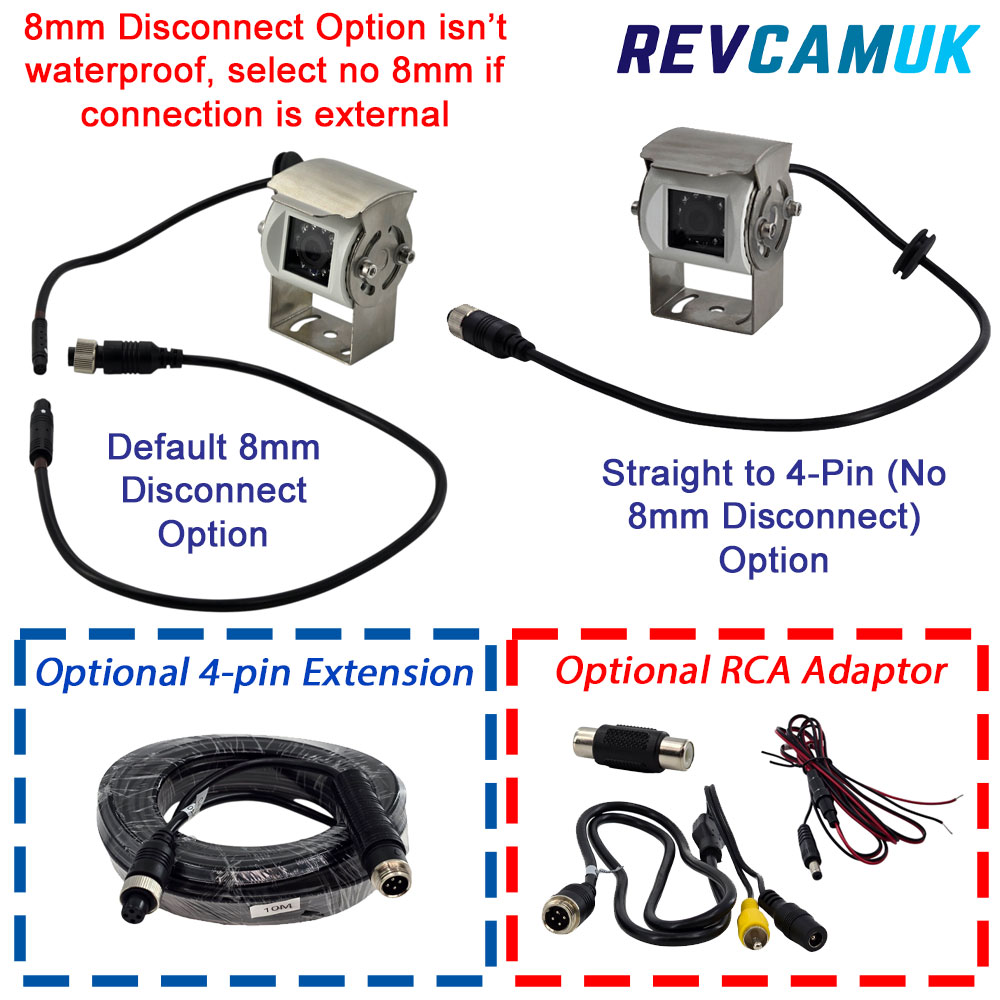

4-Pin Aviation Connector and 8 mm Disconnect - The camera has a short fly lead with a 4-pin screw-type aviation connector, plus a small 8 mm disconnect partway along the fly lead. This smaller joint allows the cable to pass through small holes when bringing it into the vehicle. The 8 mm disconnect is not waterproof and must remain inside. If you need a version without this disconnect, please leave a note at checkout saying “no 8 mm disconnect on camera fly lead”.

Robust, Shock-Resistant Design - Built to a 4G shockproof level and designed for automotive use, making it suitable for larger vehicles that experience more vibration, such as motorhomes, box vans and HGVs.

Two-Year Reversing Cameras UK Guarantee - Supplied with our two-year Reversing Cameras UK guarantee for extra peace of mind.

AHD compatibility notice

Extension cable options

We offer extension cables from 1 m to 20 m to suit different installation routes. Selected lengths can be supplied with a slim 8 mm disconnect joint positioned approximately 1 m from the monitor end, making it easier to route the cable through tight spaces such as grommets, headlining and factory trunking. This 8 mm joint is not waterproof and must remain inside the vehicle.

RCA adaptor set option

If your monitor or stereo head unit uses RCA inputs, an optional discounted adaptor bundle can be added. It includes:

• 1 × CAB0020 4-pin to RCA adaptor (video and power breakout)
• 1 × CAB101 1.5 m power lead with inline fuse (red +12 V and black earth)
• 1 × RCA/Phono coupler for converting male-to-male RCA connections

This provides everything needed to connect the camera to an RCA-based monitor.

What’s in the box

• Compact polished stainless bracket 1080P AHD camera (CAM111W-AHD, white body)
• Polished stainless steel mounting bracket
• Camera fly lead with 4-pin aviation connector and 8 mm disconnect
• Optional 4-pin extension cable (1 m–20 m, if selected)
• Optional RCA adaptor bundle (CAB0020, CAB101, RCA coupler, if selected)
