VW Volkswagen Crafter (2017+) Brake Light Reversing Camera kit with 7" Monitor Display - PM69BLJ

Price

£195.00

VAT Included £32.50
Availability IN STOCK
Product Code: PM69BLJ-SD
High Definition Upgrade?
Cable Length
Add extra monitor bracket?
Add a lighter plug?
Add a fuse tap?
Quantity
(from 1 to 35)

If you'd like this by

Order within ::

(Please select Next Day Delivery Option - Mainland UK only) Terms Apply

Description

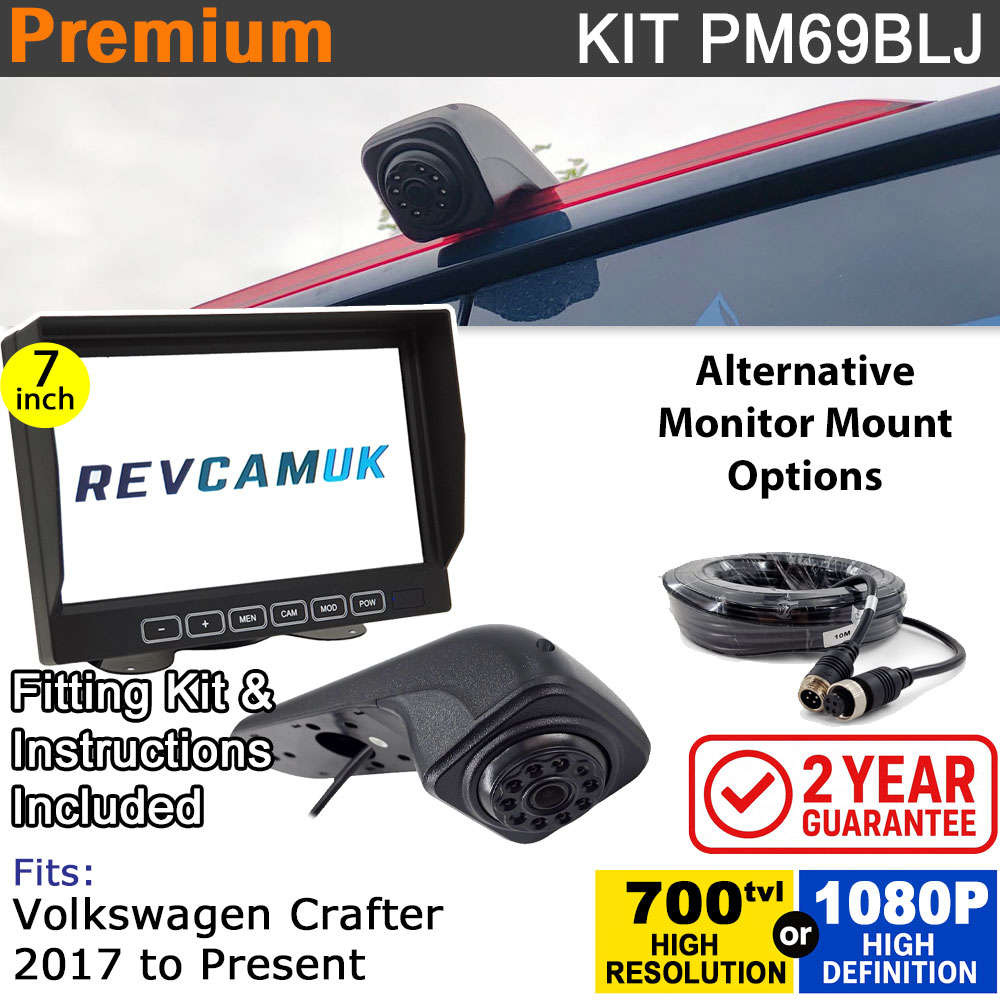

VW Volkswagen Crafter 2017–on Brake Light Mounted Reversing Camera Kit (PC4089 or AHD 1080P C2399) | PM69BLJ

This reversing camera kit is designed for the VW Crafter (2017 onwards), providing a factory-style solution by mounting directly to the OEM brake light area without replacing the light itself. The camera uses a wide 160° diagonal lens with infra-red night vision, ensuring clear rear visibility day and night. Supplied with installation instructions and a hole saw, the kit comes with a 10 m aviation cable as standard, with optional 12.5 m or 15 m upgrades available.

Key features

  • Designed specifically for VW Crafter 2017–present
  • Mounts to the OEM brake light housing (camera does not replace the light)
  • Standard: 1/3" PC4089 CMOS sensor, 976×592 effective pixels, 700 TVL, 7-inch LCD monitor (800×480)
  • Upgrade: C2399 CMOS AHD 1080P sensor + 7-inch IPS monitor (1024×600)
  • Lens angles: 85° vertical, 130° horizontal, 160° diagonal
  • 20° lens adjustment up/down for best alignment
  • 8 IR LEDs provide up to 10 m night vision (0.0 lux with IR on)
  • IP68 waterproof housing for all-weather reliability
  • Supplied with 10 m 4-pin aviation cable (12.5 m or 15 m selectable)
  • Guidelines optional – can be enabled or disabled
  • Low power consumption (12 V DC, 150 mA)
  • UK tested and supported with 2-year guarantee

More about this kit

Neat OEM-style fitment: Designed to mount directly to the existing brake light area, preserving the factory appearance of your Crafter.

Sensor quality: The PC4089 CMOS offers sharper clarity than common budget sensors, while the C2399 CMOS AHD 1080P upgrade provides true high definition when paired with the IPS monitor.

Monitor options: Choose between the standard 7-inch LCD (800×480) or the IPS digital display (1024×600) supplied with the AHD upgrade, offering higher pixel density, colour accuracy, and contrast.

Installation made easy: Supplied with a hole saw and instructions for precise, professional fitting.

Durability: Built to withstand rain, spray, and dust with IP68 waterproofing, operating reliably from -20°C to +70°C.

Specification snapshot

Vehicle fit VW Volkswagen Crafter (2017–present)
Camera sensor 1/3" PC4089 CMOS, 976×592 pixels, 700 TVL
Optional: C2399 CMOS AHD 1080P
Monitor 7-inch LCD (800×480) or IPS 1024×600 with AHD upgrade
Viewing angle 85° V / 130° H / 160° D
Lens 1.9 mm, adjustable ±20°
Night vision 8 IR LEDs, 10 m night vision (0.0 lux with IR on)
Waterproof rating IP68
Power 12 V DC, 150 mA consumption, surge protected
Operating temp -20 °C to +70 °C
Connector 4-pin aviation
Certifications FCC, CE, E-mark, RoHS

What’s in the box

  • VW Crafter 2017–on brake light mounted reversing camera (PM69BLJ)
  • 7-inch monitor (LCD standard or IPS with AHD upgrade)
  • 10 m 4-pin aviation cable (12.5 m or 15 m optional)
  • Monitor connection lead
  • Installation instructions and hole saw
Detailed Images

Absolutely. Our monitors and rear view cameras are all suitable for leaving on all the time. We would like to mention that the single reversing cameras have been setup to provide an optimal view down towards the bumper area, and as such can not be used to view back down the road at following traffic.

Definitely. Our monitor wiring harnesses all have a power socket attached. You will always be supplied with a standard hard wire kit, plus there are fuse tap options available.  It would be a case of unplugging the lighter plug and using the standard hard wire kit instead. A lot of customers tell us they are ordering the lighter plug just for trying it out before fitting.

Our easy wire fuse tap options are new for 2023.  We designed a fuse tap that plugs in to a socket that is present on all of our monitor wiring harnesses.  The other side has a "piggyback" fuse holder aka fuse tap.  You identify a fuse in the fuse box that comes on/off with the ignition (see piggyback fuse holder / fuse tap instructions here - PDF download).  The original fuse is placed in to the new fuse tap, plus there is a new fuse already present for the reverse camera kit.  On the same wiring there is an earth terminal connector, simply attach this to a chassis bolt (usually near the fuse box, or add your own).

All of our brake light cameras have fixed guidelines that will display on the picture.  These can be removed by snipping a little loop of wire near the 4 pin screw connector.  You can choose to have no guidelines, or you can add the monitor guidelines.  The monitor guidelines can be customised inside the menu settings (please see the downloadable PDF manual for the dash monitor supplied with this kit).

There could be a number of reasons they may be cheaper than us, the most common are below :

  • They may be Rejected Production Runs - This is more common on the marketplaces where there are a lot of non-UK businesses (although the stock is often in the UK). When one of the larger factories produces a camera they will age-test a batch to ensure that the quality is sufficiently high to be able to send to their big customers (like us). If a production run fails this test with a high enough number having issues, the whole batch is often sold off for "recycling" the components. Sadly, these get placed in a container setting sail to the UK and other destinations, and eventually listed on a marketplace at crazy low prices - lower than we can buy hundreds at a time for. Sometimes you are lucky, sometimes you are not, depending on how badly the batch failed.
  • They likely Use Cheaper/Poorer Grade Components - With the cameras, there are different standards of image sensor, support chips, lenses and camera bodies. With the monitors, there are different grades of LCD panels, and main boards. For both camera and monitor, we prioritise quality; the results speak for themselves. We didn't earn our reputation by buying as cheap as we could; it's not what our customers want. Although at the same time we really do keep our prices as low as possible. The cheaper prices help us to sell more volume, which means we can bring the cameras in by ocean shipping, saving freight costs, which we pass to the consumer.
  • Produced by a "Factory for the day" - We have seen some shocking quality cameras sent to us over the years by customers. There is a phenomenon in China where someone can rent factory space for a day or two in order to complete a production run. Often this is a factory employee that is trying to go it alone and start his own business. Sadly, they don't often have the best engineers, they usually buy the lowest price/quality components, have the lowest standard of production line worker, and they can't afford to reject a bad production run. These usually either end up on a Marketplace or sold directly from a Chinese website.

In short, trust us to find the best quality and support you for safety and peace of mind.

Our general 4 pin cable based fitting instructions.

4 pin reversing camera kit fitting instructions

Instruction manual for the 7 inch monitor display covering installation and the menu system - including using adjustable guidelines from the monitor (requires reverse trigger connection)

instructions for our 7 inch dash mount monitor for rear view and reversing cameras

Monitor

7” Colour LCD screen
Audio Output: 0.5W
Loudspeaker: one 15x40mm round loudspeaker
Power supply: 12V/24V
Power Consumption: 4W Max
Digital Screen Resolution: 800 x3(RGB)x480
Contrast: 500:1
Brightness: 400cd/m2
Viewing Angle: U: 50 degrees/ D: 60 degrees, R/L: 70 degrees
Operating Temperature: -10C to +65C
Storage Temperature: -30C to +80C RH90%
2 Inputs
PAL/NTSC/AUTO
Mirror/Normal Switch on both channels
Full function Remote Control

Camera

Sensor: 1/3" PC4089 CMOS
Effective Pixels: 976(H) x 592(V)
TV line: 700 TVL
Lens: 1.9mm
Min illumination: 0.0 LUX (IR LED on)
IR LEDs: 8 pcs
Night vision: 10m
Waterproof: IP68
View angle: V 85 degrees, H 130 degrees D 160 degrees
Camera lens adjustment: 20 degrees up and down
Voltage: 12 volts
Current consumption: 150mA
Operating temperature: -20 to 70 degrees C
Guideline: Optional
Certificates: FCC, CE, E-mark, RoHS
Connector: 4 pin aviation
