Case IH / New Holland 3-Camera Adaptor Cable for AFS Pro and IntelliView Displays | Adaptor R

Price

£36.00

VAT Included £6.00
Availability IN STOCK
Product Code: Adaptor R
Quantity
(from 1 to 15)

If you'd like this by

Order within ::

(Please select Next Day Delivery Option - Mainland UK only) Terms Apply

Description

Case IH / New Holland 3-Camera Adaptor Cable for AFS Pro and IntelliView Displays | Adaptor R

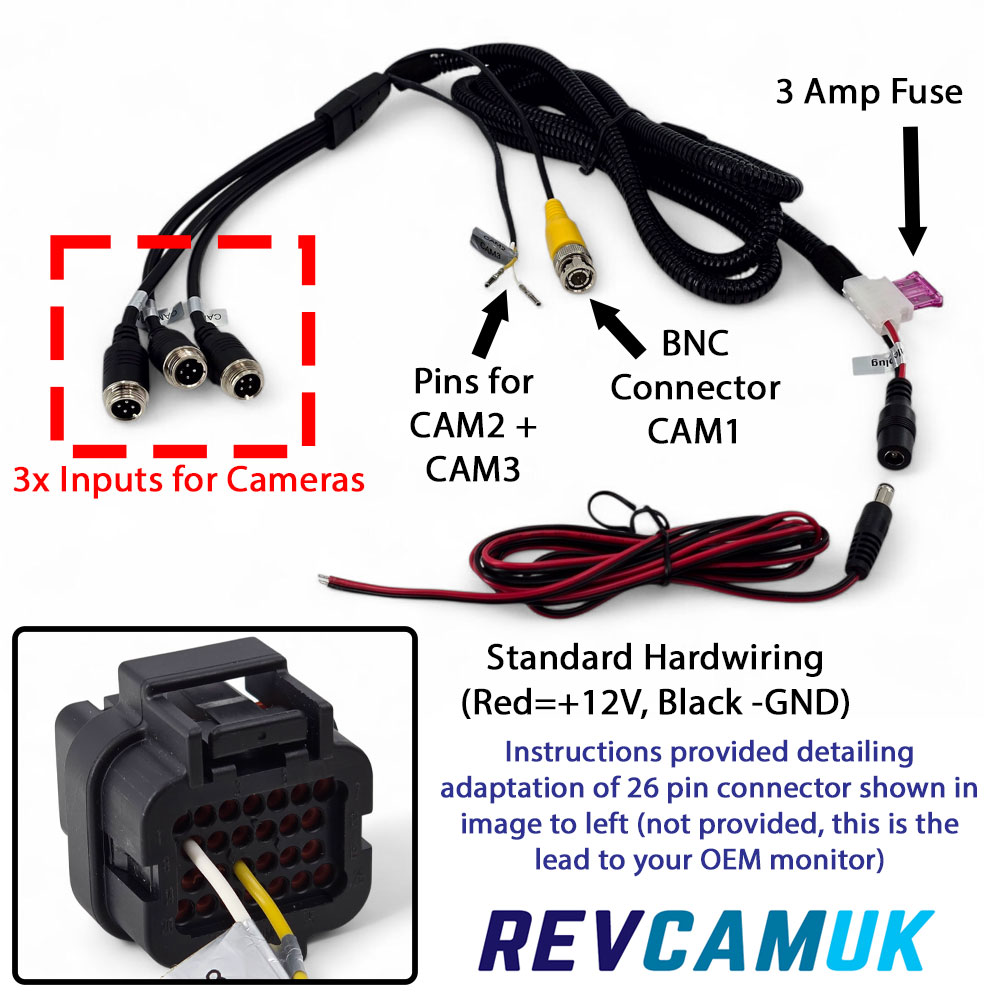

The REVCAMUK Adaptor R cable enables you to connect up to three external cameras directly to selected Case IH and New Holland tractor displays. It plugs into both the BNC port and the 26-pin socket on the rear of the monitor, activating the built-in video inputs so that reversing, implement, or forward-view cameras can be viewed on the OEM screen without the need for a separate display. Full instructions provided for the addition of the Channel 2 and Channel 3 wires/pins in to the 26 socket connector.

Compatible Displays

  • Case IH AFS Pro 200
  • Case IH AFS Pro 300
  • Case IH AFS Pro 700
  • New Holland IntelliView II
  • New Holland IntelliView III
  • New Holland IntelliView IV

Not Compatible

  • Case IH AFS Pro / IntelliView Plus II – no video input support

Key features

  • Connect up to three REVCAMUK 4 pin cameras to your existing display
  • Direct connection via 26-pin rear socket
  • Dedicated labelled inputs for Camera 1, Camera 2 and Camera 3
  • Maintains full OEM screen functionality – no extra monitors needed
  • Pre-terminated 4-pin aviation connectors for secure links
  • Fully shielded cable for noise-free signal transmission

Specification snapshot

Connectors 26-pin monitor plug, 3 × 4-pin aviation female camera sockets, 1x BNC, 2x Pins, 2.1mmx5.5mm DC Power with Adaptor to Red and Black Wires included
Power support Video input only – cameras must be powered from the vehicle’s 12 V supply
Compatibility AFS Pro 200/300/700 and IntelliView II/III/IV

What’s in the box

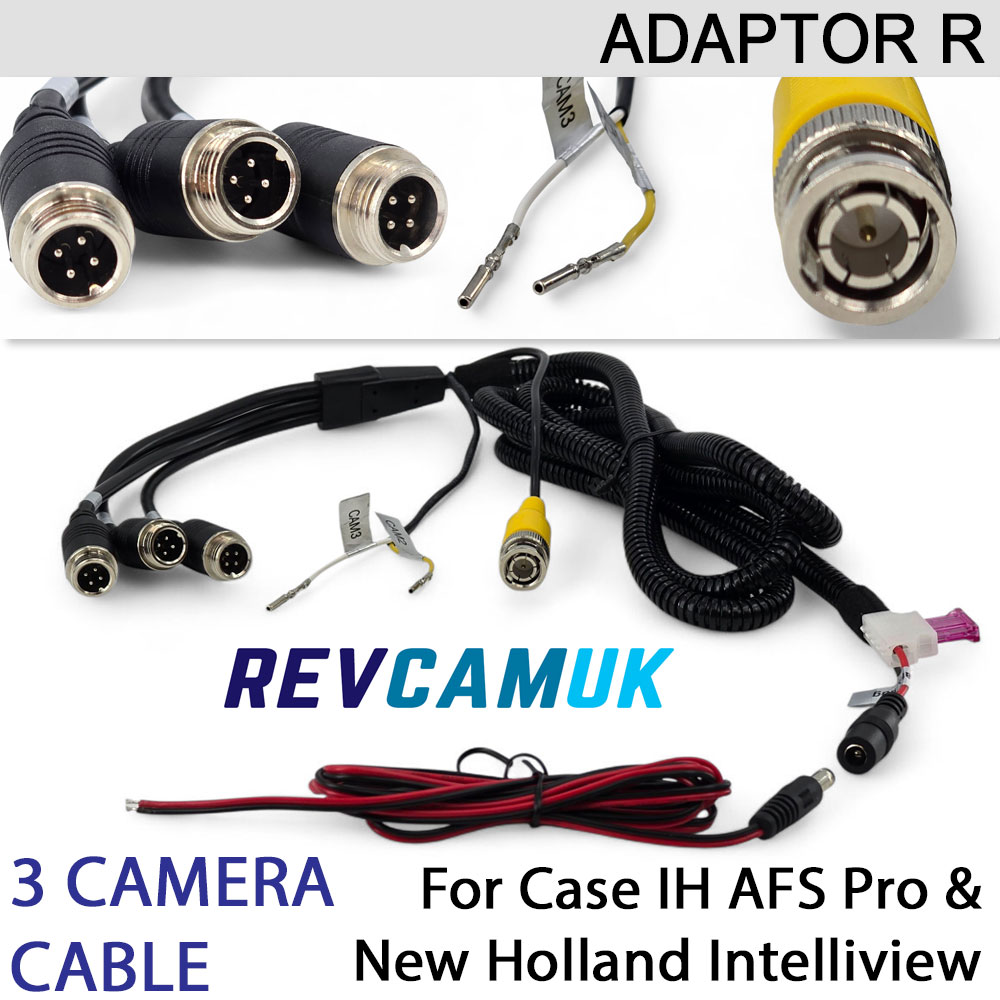

  • REVCAMUK Adaptor R 3-camera harness (26-pin & BNC to 3 × 4-pin)
  • Power Wire Adaptor to Red and Black Bare wire
  • Installation guide with pin reference and routing diagram
Detailed Images
Video

Product Guide

Hands on guide to installing the camera and discussing power options

Our instruction guide on how to modify the original 26 page connector for the Case IH AFS Pro & New Holland Intelliview Monitor Display to accept up to 3 cameras

Instructions thumbnail image for 3 channel case ih new holland adaptor camera
