Case IH / New Holland 3-Camera Adaptor Cable for AFS Pro and IntelliView Displays | Adaptor R

Availability 14 item(s) available
Weight 0.40 kg
Product Code: Adaptor R
Price: £36.00
VAT Included £6.00

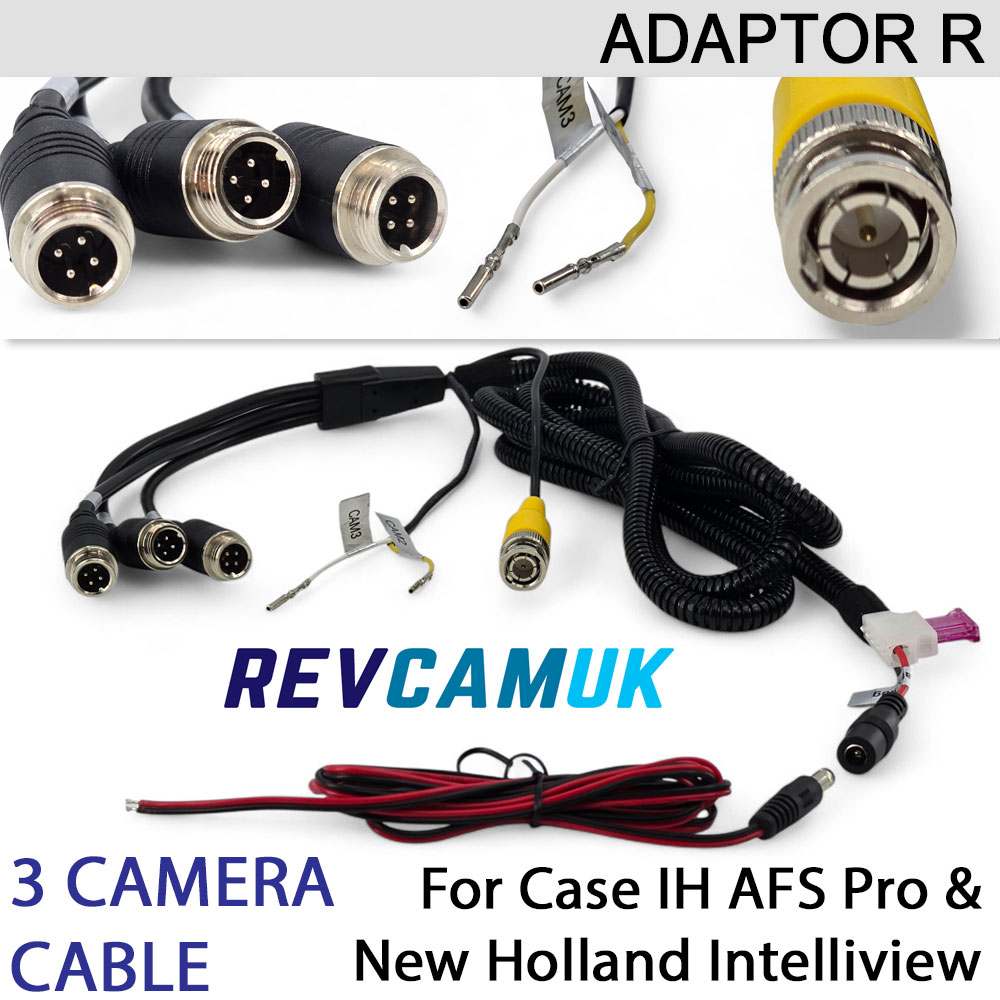

Case IH / New Holland 3-Camera Adaptor Cable for AFS Pro and IntelliView Displays | Adaptor R

The REVCAMUK Adaptor R cable enables you to connect up to three external cameras directly to selected Case IH and New Holland tractor displays. It plugs into both the BNC port and the 26-pin socket on the rear of the monitor, activating the built-in video inputs so that reversing, implement, or forward-view cameras can be viewed on the OEM screen without the need for a separate display. Full instructions provided for the addition of the Channel 2 and Channel 3 wires/pins in to the 26 socket connector.

Compatible Displays

  • Case IH AFS Pro 200
  • Case IH AFS Pro 300
  • Case IH AFS Pro 700
  • New Holland IntelliView II
  • New Holland IntelliView III
  • New Holland IntelliView IV

Not Compatible

  • Case IH AFS Pro / IntelliView Plus II – no video input support

Key features

  • Connect up to three REVCAMUK 4 pin cameras to your existing display
  • Direct connection via 26-pin rear socket
  • Dedicated labelled inputs for Camera 1, Camera 2 and Camera 3
  • Maintains full OEM screen functionality – no extra monitors needed
  • Pre-terminated 4-pin aviation connectors for secure links
  • Fully shielded cable for noise-free signal transmission

Specification snapshot

Connectors 26-pin monitor plug, 3 × 4-pin aviation female camera sockets, 1x BNC, 2x Pins, 2.1mmx5.5mm DC Power with Adaptor to Red and Black Wires included
Power support Video input only – cameras must be powered from the vehicle’s 12 V supply
Compatibility AFS Pro 200/300/700 and IntelliView II/III/IV

What’s in the box

  • REVCAMUK Adaptor R 3-camera harness (26-pin & BNC to 3 × 4-pin)
  • Power Wire Adaptor to Red and Black Bare wire
  • Installation guide with pin reference and routing diagram
