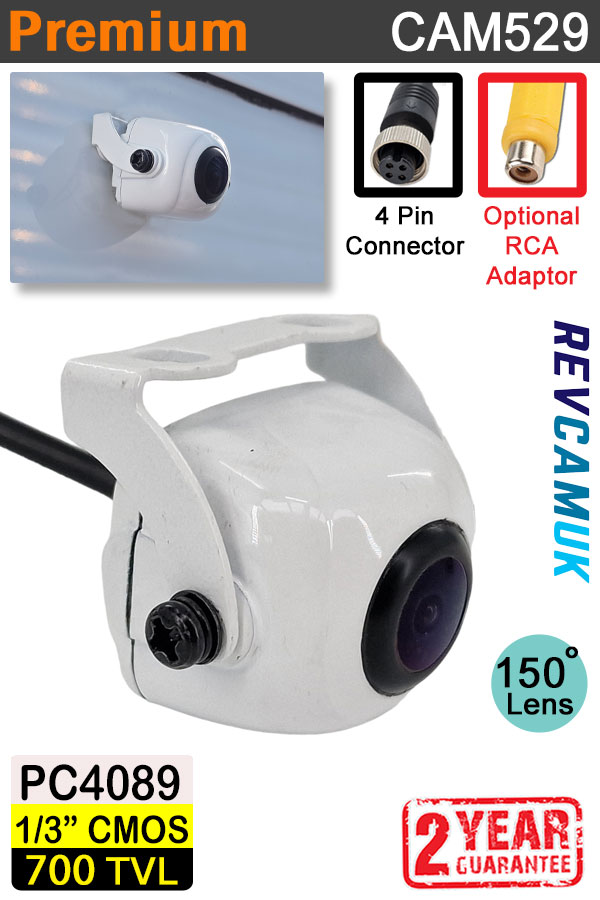

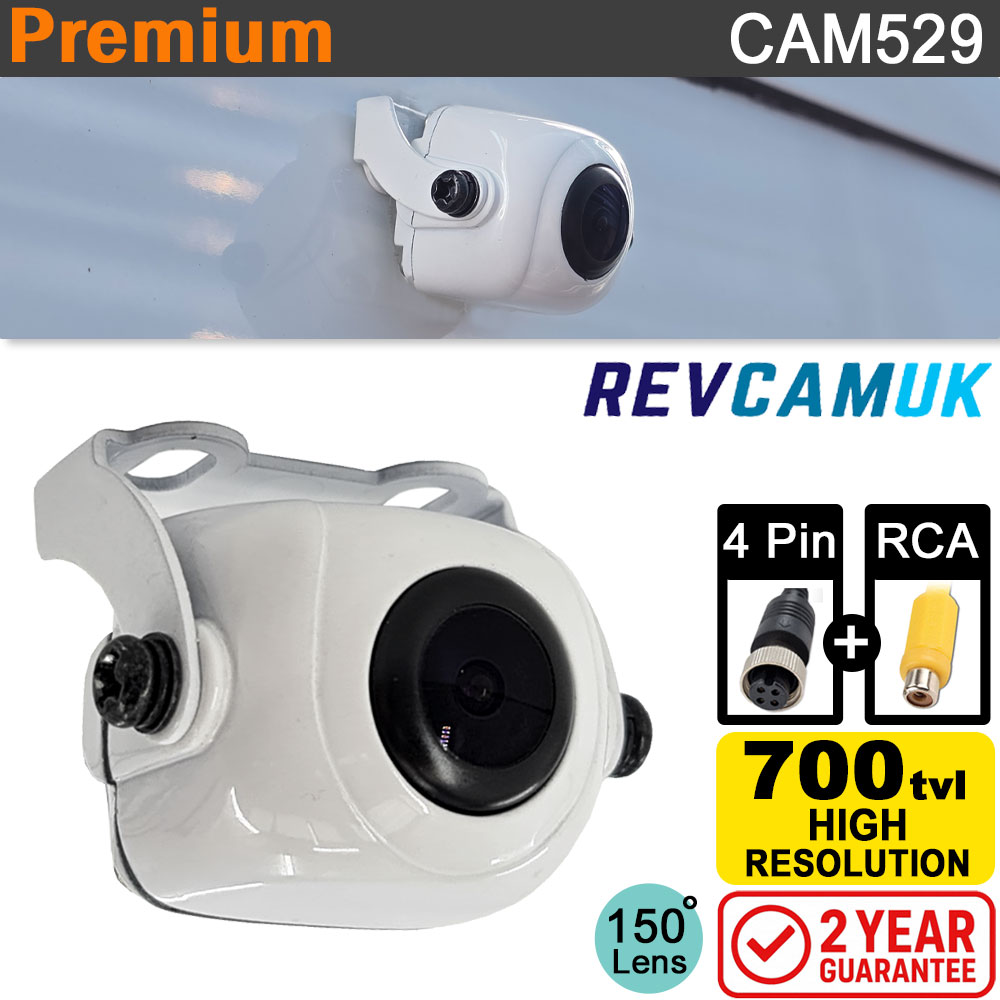

Small White Bracket Motorhome Reversing Camera | 700TVL CMOS | 4 Pin & RCA | CAM529

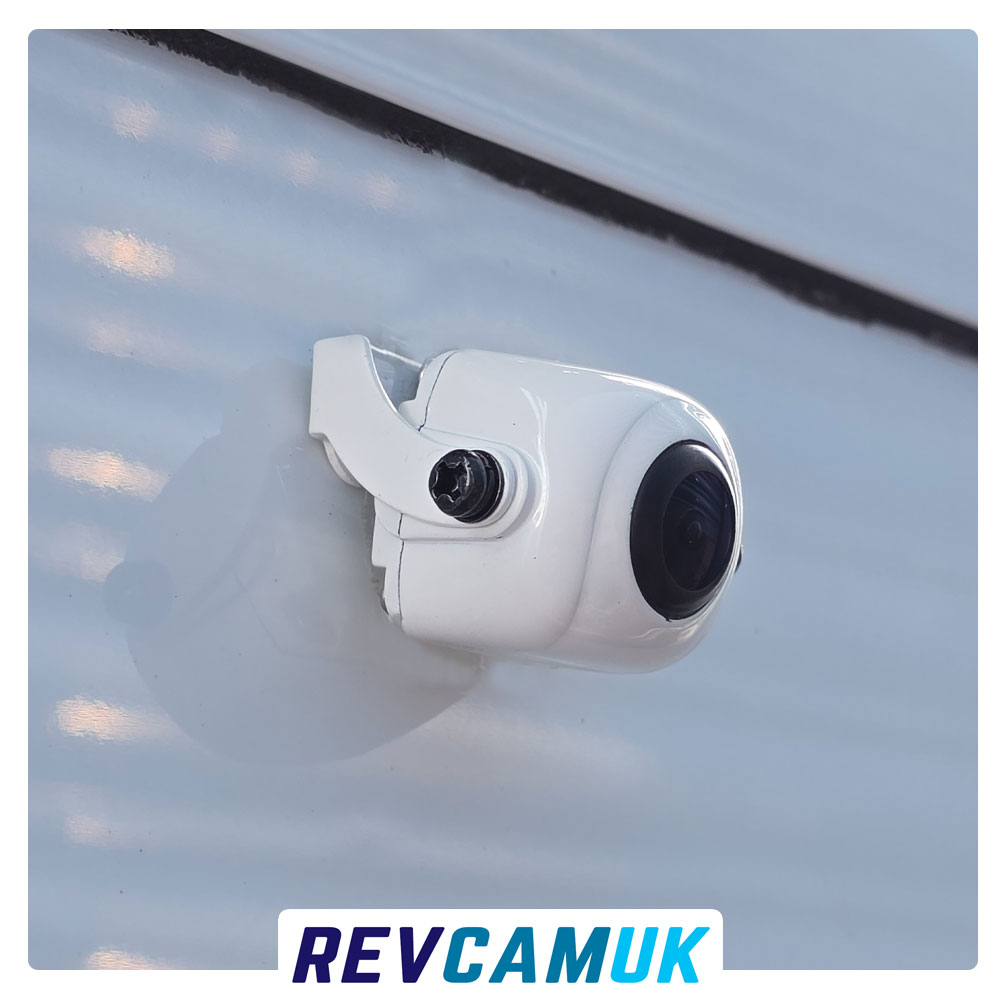

About the small white bracket reverse parking camera

This is one of our latest cameras in, we wanted to add a small flexible camera to our range, with a high resolution.  We asked for these cameras to be made with the PC4089 image sensor - the same sensor we use in our brake light cameras, we spent extra to spec the cameras out with 4 glass lenses, instead of the standard 2 glass/2 plastic that you would usually see on these type of cameras (we chose all glass lenses because the plastic lenses go cloudy over time, because of UV exposure from the sun).  The PC4089 image sensor is one of the modern latest generation of CMOS (not to be confused with the cheap and cheerful CMOS of the past).  As the price is lower than CCD, we have passed these savings on to you.

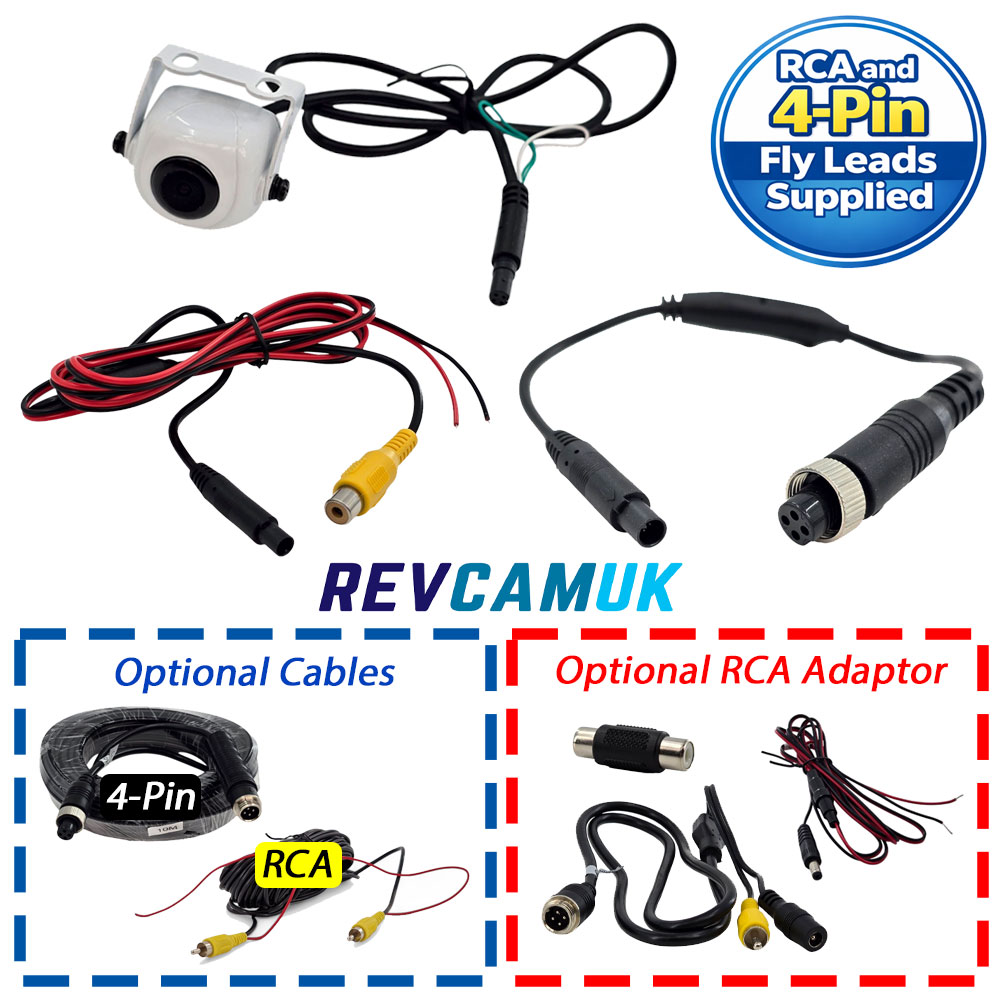

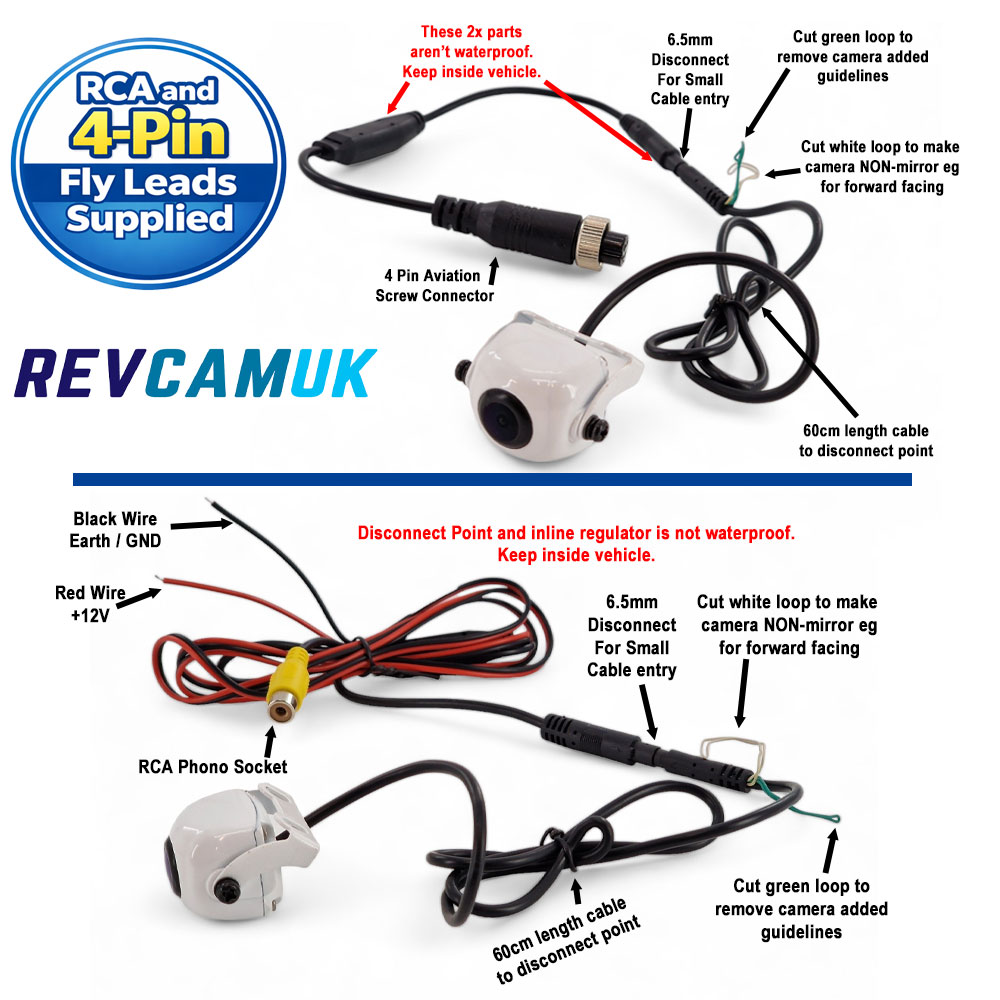

The camera is supplied with both a 4-pin screw connector and an RCA phono connector. You can select which to use by swapping at the 6.5 mm disconnect point located about 60 cm back from the camera. Please note the camera also has a non-waterproof power regulator at the same distance — this must be installed in a dry, protected area (for example, inside a tailgate) to prevent premature failure.

The camera is waterproof up to IP68.

There is a trigger loop which can turn guidelines on/off.

Camera works on 12V but if you use the 4 pin connector attachment with a 12V/24V monitor, the monitor reduces the voltage down to 12V. This is the norm, and most 24V systems actually only supply 12V to the camera.
