Ford Transit Connect 2013+ Brake Light Reversing Camera | CAM294
Description
Ford Transit Connect Brake Light Reversing Camera | CAM294This brake light reversing camera is designed specifically for the Ford Transit Connect (2013 – present). It replaces the original high-level brake light with a purpose-built housing that integrates a reversing camera, keeping a tidy factory-fitted appearance while adding a clear and reliable rear view. The camera uses our long-proven PC4089 image sensor, paired with a high-quality all-glass composite lens, producing a clear and reliable 700 TVL CVBS image with good colour and contrast. We’ve used this sensor for many years because we know it performs reliably to a high standard and outperforms many lower-down versions commonly found in brake light cameras. Designed to work with the vast majority of reversing camera monitors, dash displays and aftermarket head units. Key featuresTidy factory look – Designed to fit exactly into the original high-level brake light position, maintaining an OEM-style appearance. Easy installation using original mounting points – Reuses the vehicle’s factory fixing points, allowing straightforward installation with no drilling or permanent vehicle modification. Clear and reliable CVBS (NTSC) image from upgraded PC4089 sensor – Outputs a standard CVBS NTSC video signal compatible with most aftermarket reversing camera monitors and head units. The PC4089 sensor produces a clear and reliable 700 TVL high-resolution image with natural colour reproduction. High-quality all-glass composite lens – Uses a proper all-glass composite lens rather than cheaper plastic-glass combinations. This prevents UV-induced fading and clouding and helps maintain a clear image over time. 160° diagonal wide viewing angle – Provides a wide, usable reverse view to help spot obstacles, walls and posts when reversing. IP68 waterproof construction – Fully sealed IP68 housing, proven to withstand the worst the British weather can throw at it and suitable for vans that live outdoors all year round. 4-pin aviation connector – Supplied with a standard 4-pin aviation connector for use with aftermarket CVBS monitors and extension cables. Optional extension cables – 5 m to 15 m 4-pin extension cables are available to suit different vehicle layouts and monitor positions. UK tested and supplied with a 2-year Revcamuk guarantee – With almost 20 years in the reversing camera industry, we’ve worked with a wide range of factories. This brake light camera comes from one of the best manufacturers we use and is fully supported with our 2-year Revcamuk guarantee. If a non-user-damage fault develops within two years, we’ll replace the camera to keep you reversing safely. Vehicle fitment Compatible with the following vehicle model:
Designed to replace the standard brake light on the van. Important fitting noteOn a small number of Ford Transit Connect models, a slight residual current can remain present on the brake light positive wire. This may cause the LEDs in the brake light camera to glow faintly even when the brake pedal is not pressed. If this occurs, it can be easily resolved by adding a small amount of resistance to the circuit using either a standard bulb or a resistor. We can supply a suitable 3.2W resistor if required — just let us know. What’s in the box
Add a monitor and cable with one of our premium brake light reversing camera kitsIf you would like a complete reversing camera kit for your Ford Transit Connect, including a display and cabling, the kits below pair this camera with suitable monitors and are all backed by our 2-year guarantee.
|
Detailed Images

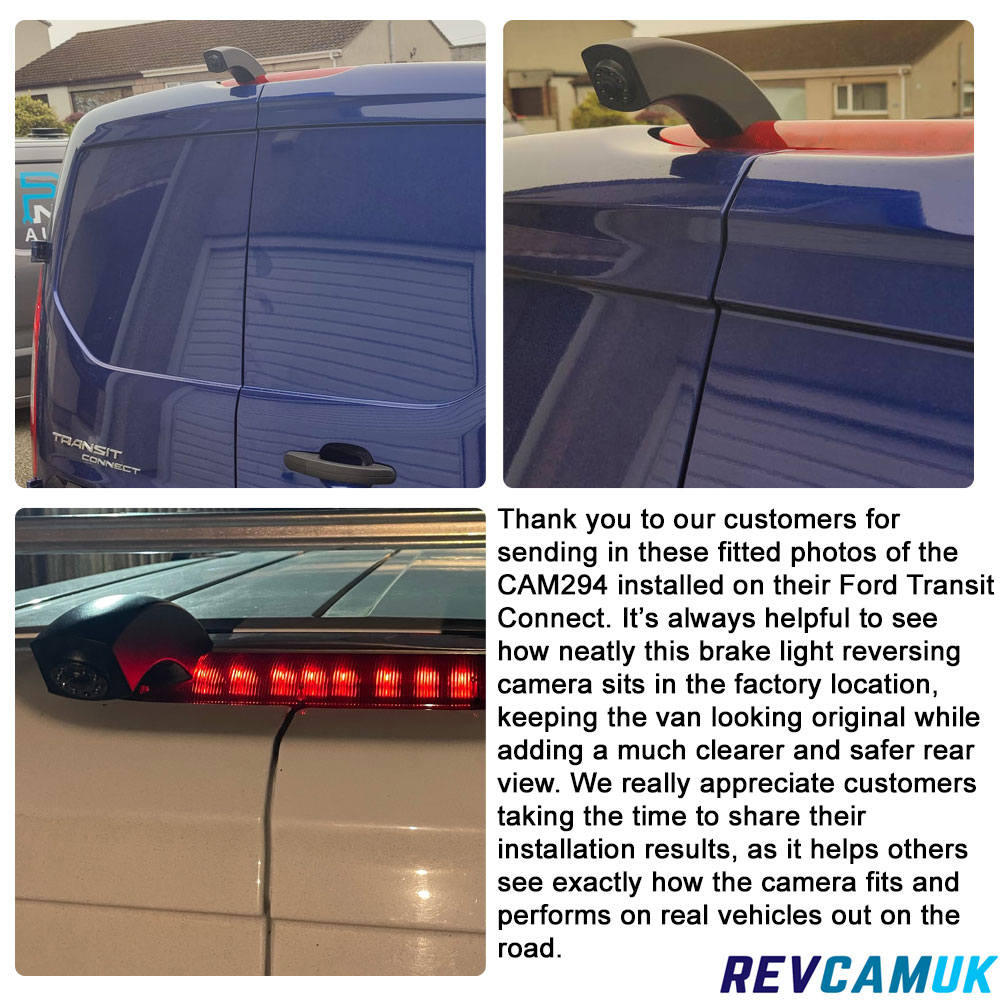

Customer-supplied fitted photos of the CAM294 brake light reversing camera on the Ford Transit Connect

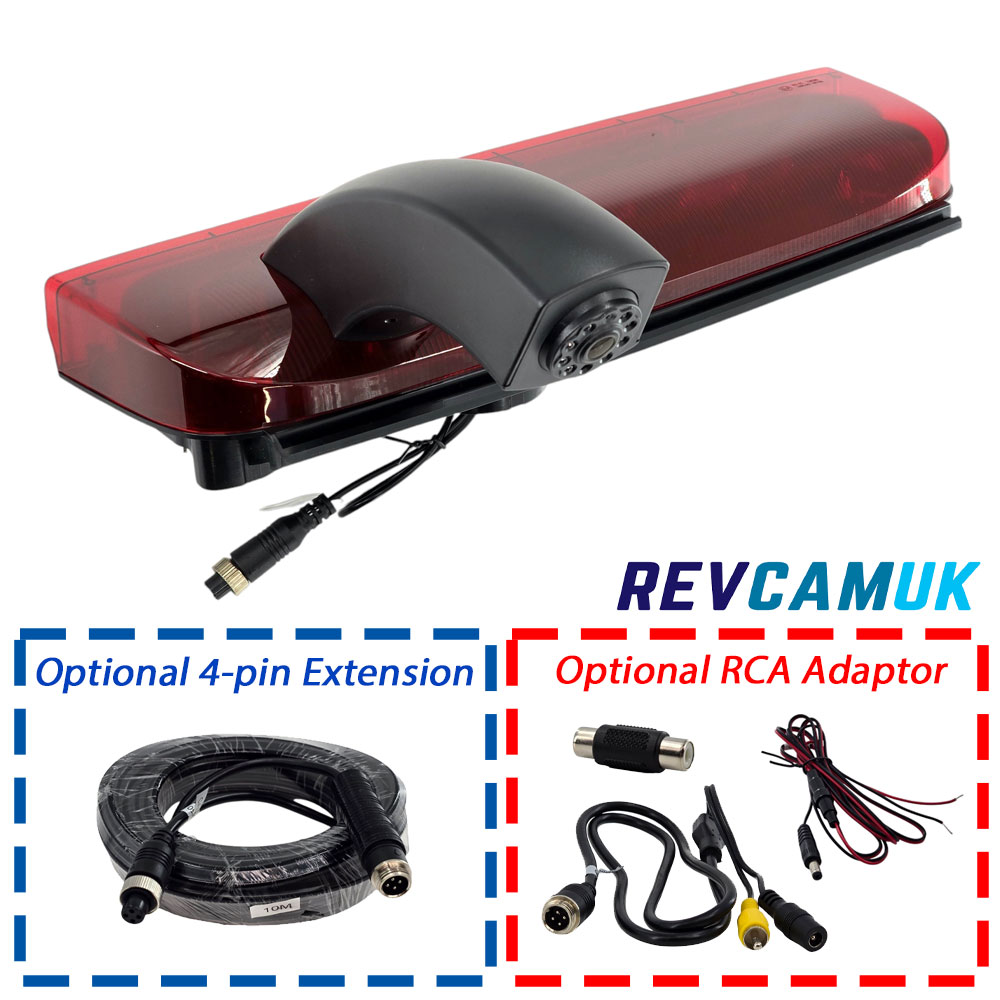

CAM294 brake light reversing camera for Ford Transit Connect 2013 onwards, shown with optional 4-pin extension cable and optional RCA adaptor

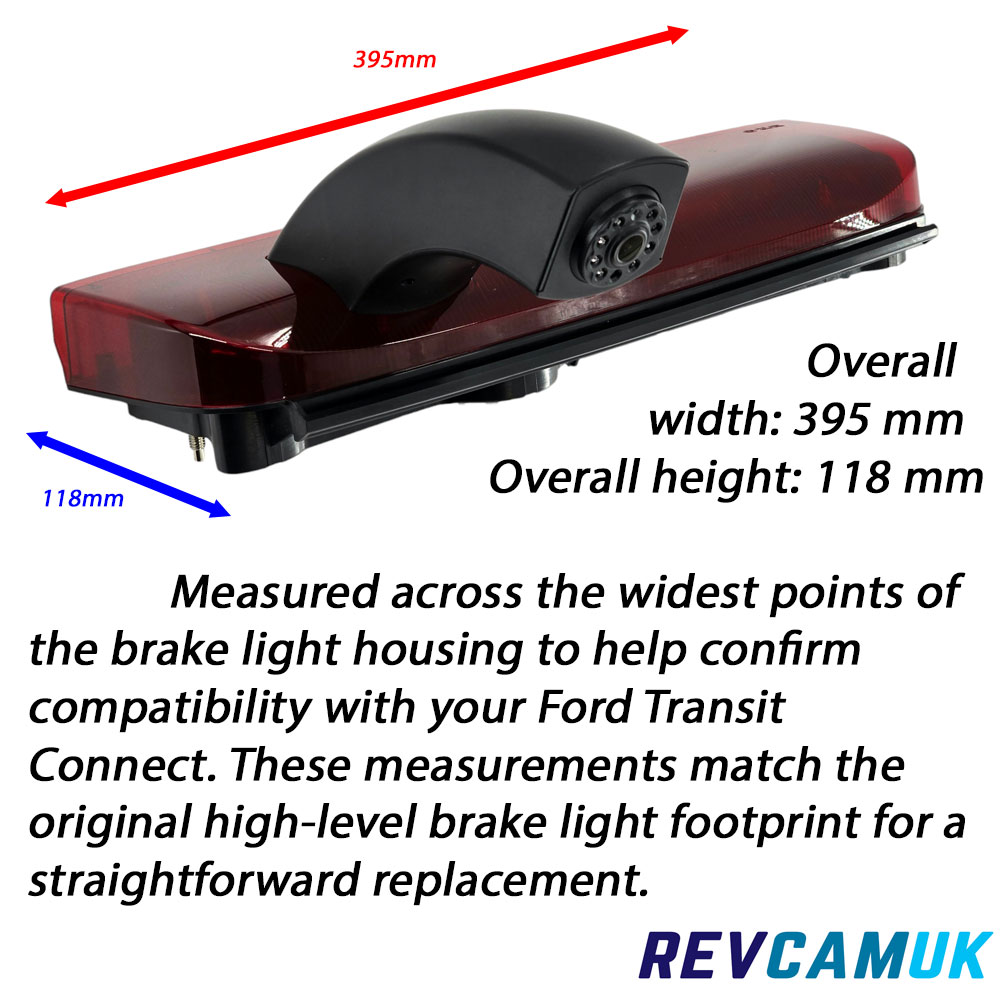

Dimensions of the CAM294 brake light reversing camera for the Ford Transit Connect showing overall width 395 mm and height 118 mm
Our reverse camera for the brake light will fit the same entry point as the original camera, and will still function as a high level stop lamp.
There could be a number of reasons they may be cheaper than us, the most common are below :
- Rejected Production Runs - This is more common on the marketplaces where there are a lot of non-UK businesses (although the stock is often in the UK). When one of the larger factories produces a camera they will age-test a batch to ensure that the quality is sufficiently high to be able to send to their big customers (like us). If a production run fails this test with a high enough number having issues, the whole batch is often sold off for "recycling" the components. Sadly, these get placed in a container setting sail to the UK and other destinations, and eventually listed on a marketplace at crazy low prices - lower than we can buy hundreds at a time for. Sometimes you are lucky, sometimes you are not, depending on how badly the batch failed.
- Cheaper Components Used - There are different standards of image sensor, support chips, lenses and camera bodies. We opt for better quality; the results speak for themselves. We didn't earn our reputation by buying as cheap as we could; it's not what our customers want. Although at the same time we really do keep our prices as low as possible. The cheaper prices help us to sell more volume, which means we can bring the cameras in by ocean shipping, saving freight costs, which we pass to the consumer.
- Produced by a "Factory for the day" - We have seen some shocking quality cameras sent to us over the years by customers. There is a phenomenon in China where someone can rent factory space for a day or two in order to complete a production run. Often this is a factory employee that is trying to go it alone and start his own business. Sadly, they don't often have the best engineers, they usually buy the lowest price/quality components, have the lowest standard of production line worker, and they can't afford to reject a bad production run. These usually either end up on a Marketplace or sold directly from a Chinese website.
In short, trust us to find the best quality and support you for safety and peace of mind.
See our general guide to installing 4 pin reversing cameras. This includes fitting to stereos inc Kenwood / Sony / Pioneer etc.
| Image Sensor: 1/3" CMOS |
