Black Bracket Sony 1080P AHD 60° Rear View Camera | CAM063AHD

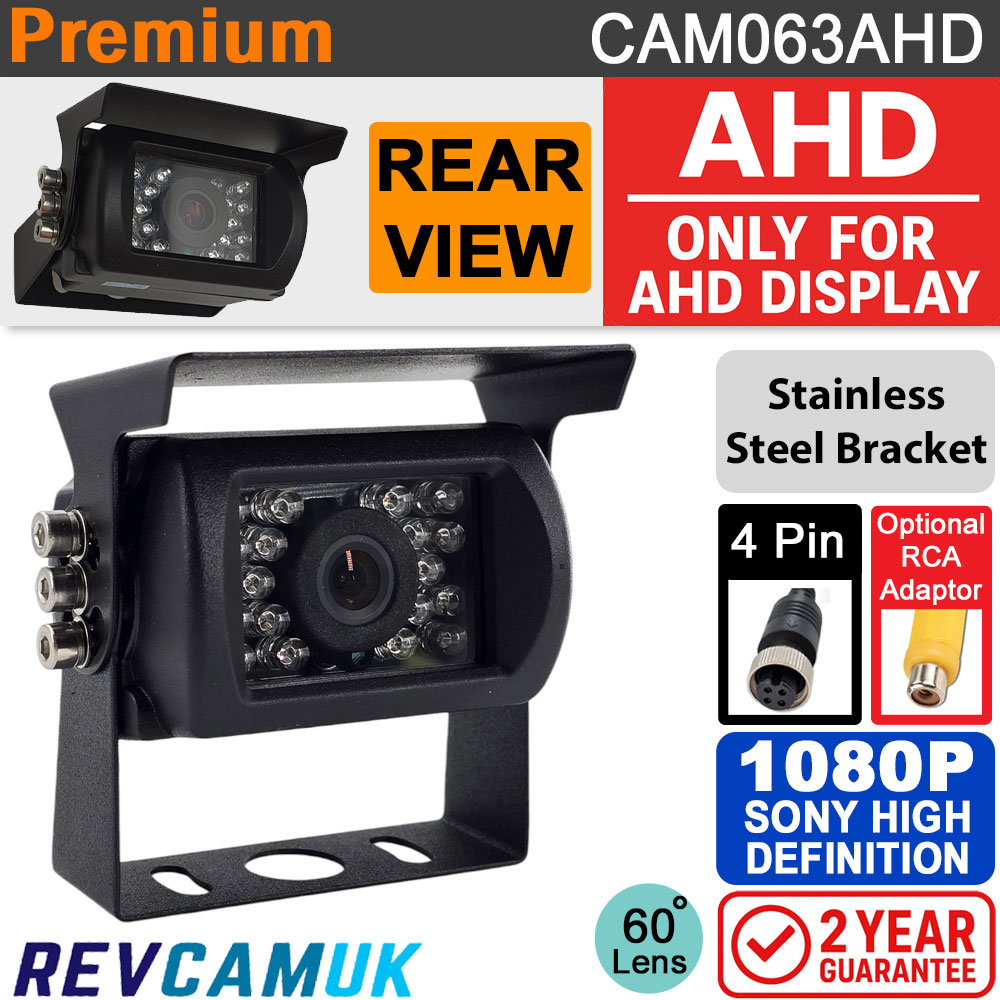

CAM063AHD – Black Bracket Sony 1080P AHD Rear View Driving Camera

This is our CAM063AHD, a narrow-angle rear view driving camera designed to give a clear, natural-looking view of the road behind you while driving. Instead of the typical wide-angle reversing lens, this model uses an 8 mm lens with an approximately 60° field of view, making vehicles appear closer to their true size on the screen. It is ideal for motorhomes, vans and lorries where you want an always-on rear view that behaves more like a traditional mirror. The camera uses the Sony IMX307 1/2.8" 1080P AHD sensor, providing excellent daytime clarity and strong low-light performance. It must be used with an AHD-compatible monitor and includes our two-year Reversing Cameras UK guarantee.

Key Features

Narrow-Angle Rear View Camera - Designed specifically for always-on driving use rather than as a parking camera. The narrower lens gives a more natural perspective, helping you see approaching traffic more realistically.

8 mm Lens with Approx. 60° Field of View - The 60° viewing angle allows you to judge distance far more accurately than with ultra-wide reversing lenses. It’s ideal for keeping an eye on traffic and the road behind while driving. If you’re after a wide-angle parking camera instead, our black bracket version is here: CAM022AHD – Wide Angle Parking Camera.

Sony IMX307 1/2.8" 1080P AHD Sensor - A highly regarded starlight sensor offering a sharp 1920×1080 image with very good colour accuracy in daylight and strong low-light performance at night.

18 IR LEDs for Night Vision - The built-in infrared LEDs provide additional illumination in darkness, giving up to around 30 ft of usable night vision when driving or reversing in poorly lit areas.

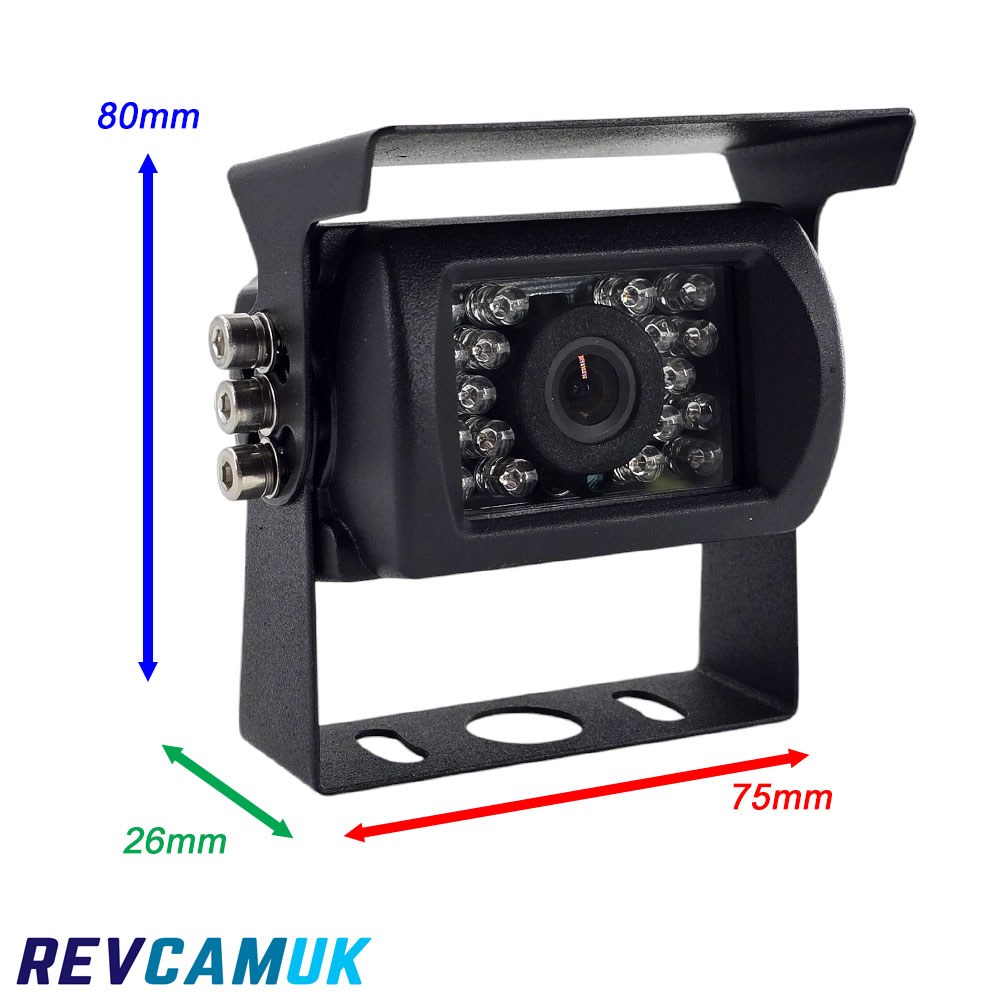

Black Painted Stainless Steel Bracket - The bracket is made from stainless steel for long-term rust resistance and painted black for a neat, factory-style appearance. It can be mounted on either horizontal or vertical surfaces and adjusted to suit your preferred view.

IP68 Waterproof Rating - IP68 waterproof housing, proven to withstand the worst the British weather can throw at it. Suitable for year-round use on motorhomes, vans, trailers and HGVs.

4-Pin Aviation Connector with Optional RCA Adaptors - Fitted with a standard 4-pin screw connector for secure video and power transmission. A discounted RCA adaptor bundle is available if you need to connect to an RCA-based display.

Two-Year Reversing Cameras UK Guarantee - Supplied with our two-year guarantee for peace of mind.

AHD compatibility notice

Extension cable options

We offer extension cables from 1 m to 20 m to suit different installation routes. Selected lengths are available with a slim 8 mm disconnect joint positioned approximately 1 m from the monitor end, making routing through tight areas such as grommets, headlining and factory trunking much easier. This joint is not waterproof and must remain inside the vehicle.

RCA adaptor set option

If your monitor or stereo head unit uses RCA inputs, an optional discounted adaptor bundle can be added. It includes:

• 1 × CAB0020 4-pin to RCA adaptor (video and power breakout)
• 1 × CAB101 1.5 m power lead with inline fuse (red +12 V and black earth)
• 1 × RCA/Phono coupler for male-to-male RCA connections

This provides everything needed to connect the camera to an RCA-based monitor.

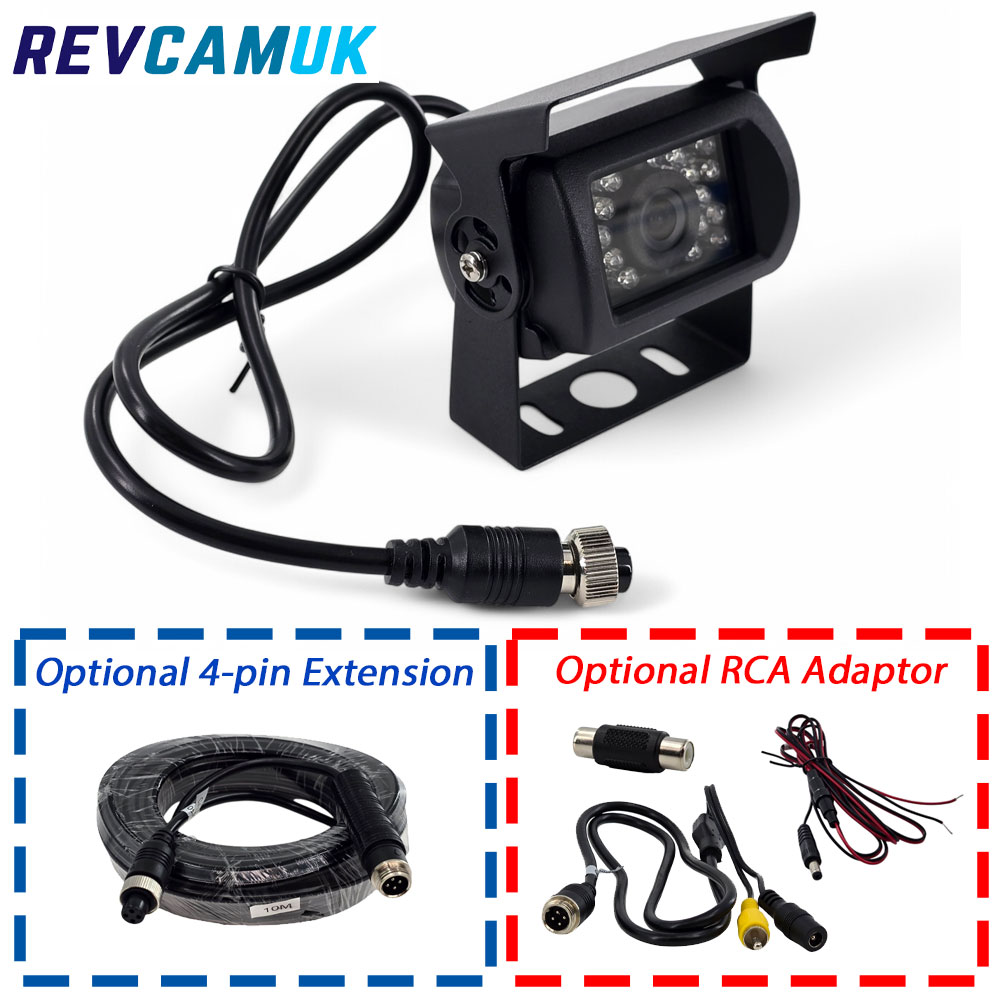

What’s in the box

• Black Bracket Sony 1080P AHD Rear View Camera (CAM063AHD)
• Black painted stainless steel mounting bracket
• 4-pin connector tail (camera side)
• Optional 4-pin → RCA adaptor (if selected)
• Optional 4-pin extension cable in chosen length (if selected)
