Budget White Bracket Reverse Camera - RCA (Phono) - Clearance

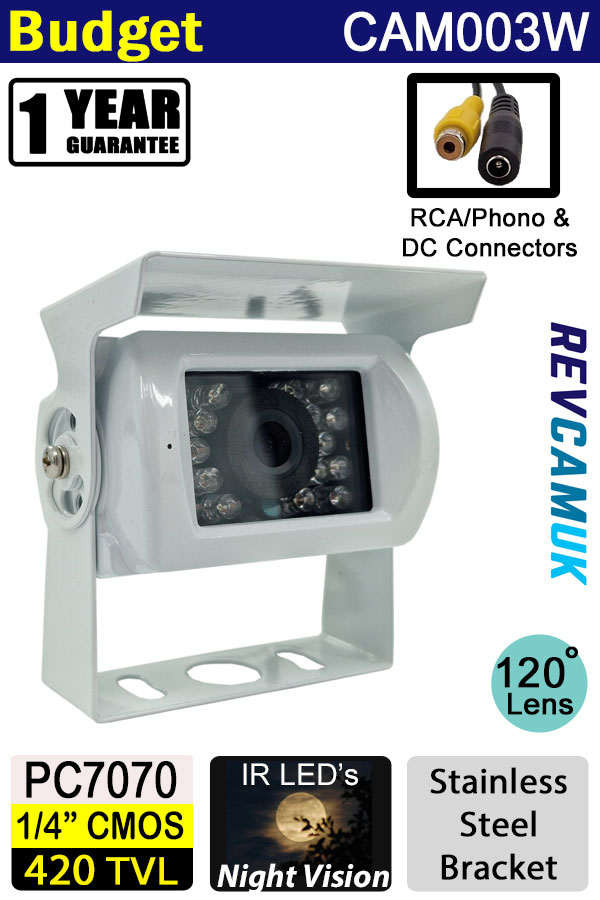

White Budget Bracket Reversing Camera with Stainless Steel Bracket (CVBS) | CAM003W

The CAM003W is a budget-rated white bracket-style reversing camera, offered at a reduced price as an end-of-line clearance model. It is intended for customers who want a simple, functional reversing camera in a white finish, without the image quality or colour accuracy found in our regular and premium camera range.

This model uses a 7070 image sensor, producing a basic CVBS image suitable for general reversing assistance. Compared with our higher-grade cameras, this sensor delivers lower resolution and weaker colour replication, which is reflected in both the pricing and the 1-year guarantee supplied with this model.

Once current stock is sold, this camera will not be restocked. It is priced to clear and is ideal for older vehicles, temporary installations, or customers simply looking for the lowest-cost white bracket camera solution.

Key features

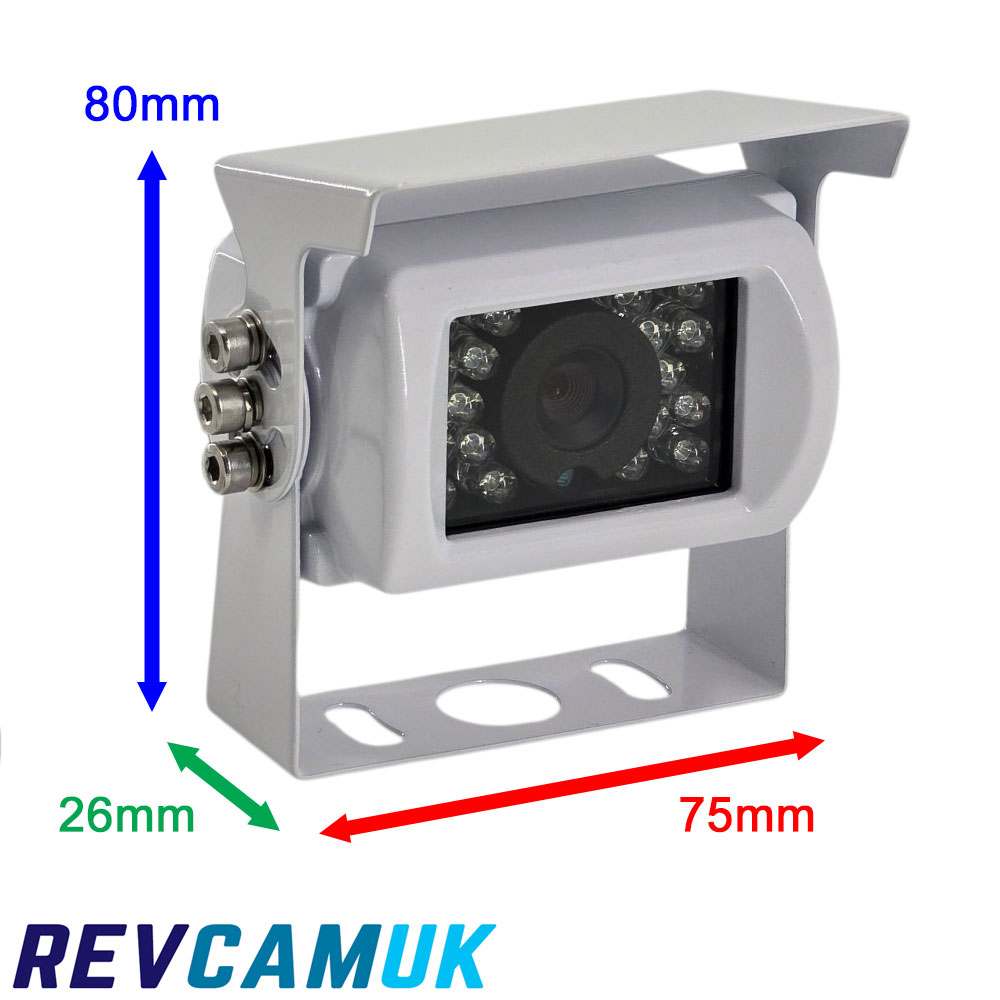

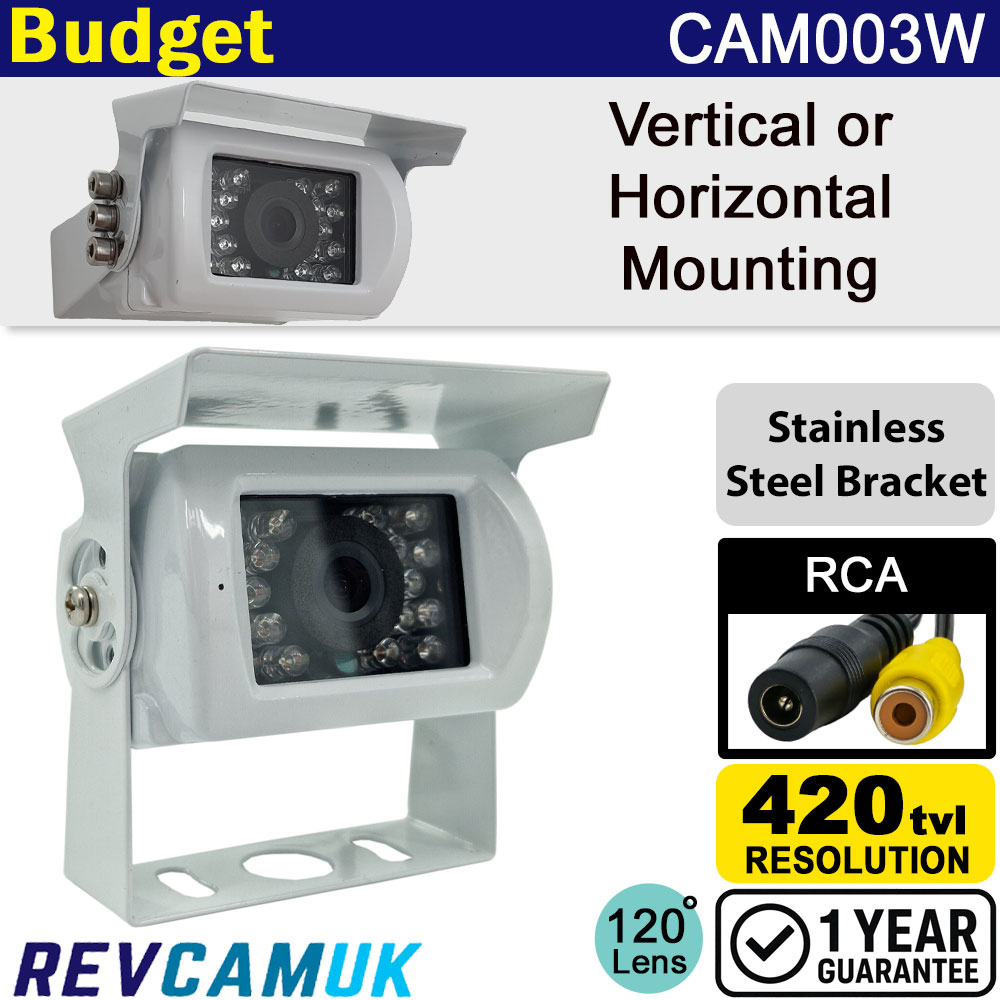

Bracket-style reversing camera – Traditional adjustable mounting bracket allows flexible positioning, commonly mounted higher up on a rear wall or on a horizontal surface such as the top of a door.

7070 image sensor – Provides a basic reversing image suitable for parking assistance. Image sharpness and colour accuracy are lower than our regular and premium Sony CCD camera range.

No reversing guidelines – This model outputs a clean image with no on-screen guidelines, making it suitable for customers who prefer an uncluttered display.

CVBS video output (RCA connection) – Outputs a standard CVBS signal via a yellow RCA/phono video connector, suitable for monitors and head units that accept RCA video input.

Separate DC power input – Power is supplied via a DC power socket, typically connected to a reversing light feed or ignition-switched supply depending on installation preference.

Rust-resistant stainless steel bracket – Supplied with a stainless steel mounting bracket finished in white paint. Unlike mild steel brackets, this avoids corrosion and unsightly rust streaks on the vehicle.

IP68 waterproof construction – IP68 waterproof housing, proven to withstand the worst the British weather can throw at it, whether the vehicle is parked outside year-round or used daily.

End-of-line clearance item – This model is being discontinued and is available only while stocks last.

1-year Revcamuk guarantee – As a budget-rated clearance camera, the CAM003W is supplied with a 12-month guarantee covering manufacturing faults (excluding user damage).

Important note – image quality and upgrade options

This camera is intentionally positioned as a budget option. Image quality, colour accuracy and low-light performance are lower than our regular and premium white bracket cameras.

If you are looking for sharper resolution, improved colour replication, enhanced night performance, or different connection options, we strongly recommend upgrading to one of the following models:

Upgrade to white 4-pin version (single combined cable):
CAM061 – White Sony CCD Bracket Reversing Camera (4-Pin Connector)

Upgrade to white RCA + DC Sony CCD version:
CAM062 – White Sony CCD Bracket Reversing Camera (RCA + DC)

What’s in the box

• White budget bracket-style reversing camera with stainless steel bracket (CAM003W)
