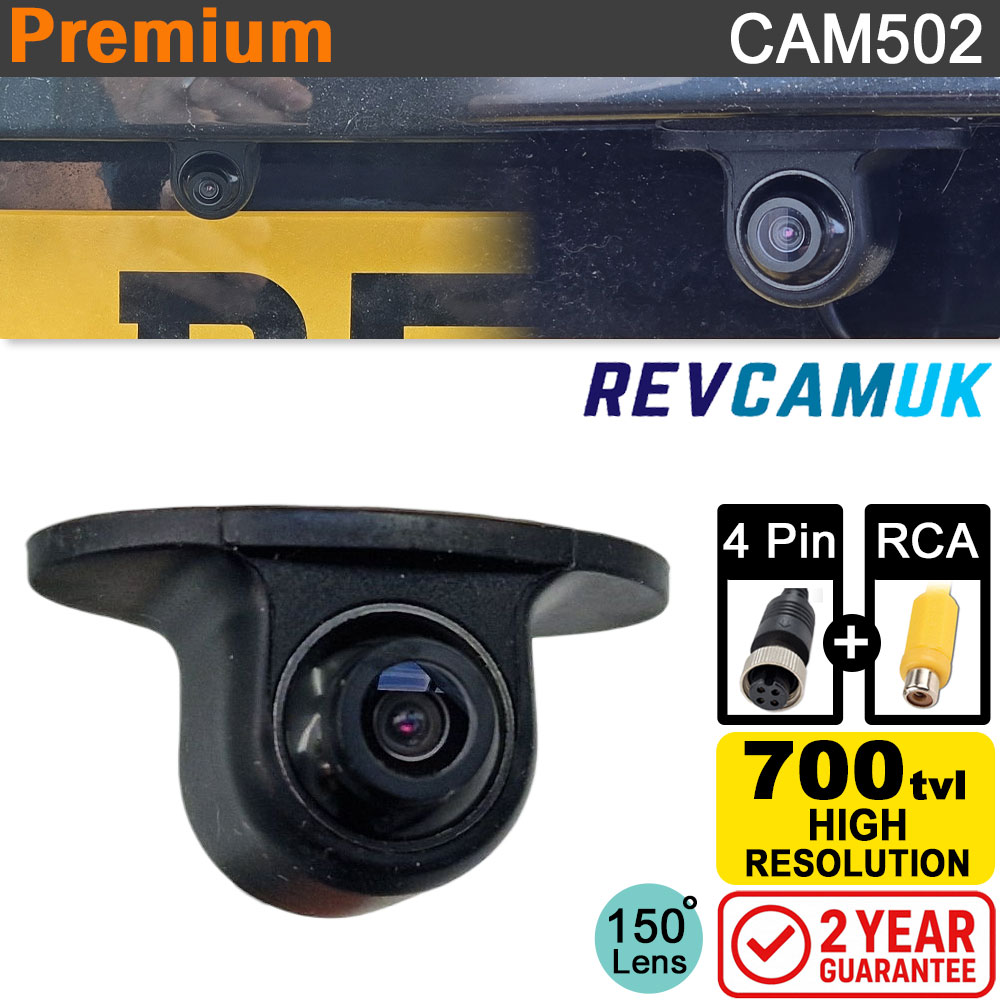

Numberplate Reversing Camera - 700TVL CMOS - 4-Pin & RCA
Category: Home
Description
Adjustable Number Plate Reversing Camera with Rubber Housing | CAM502This adjustable number plate reversing camera offers a neat, low-profile installation with a wide field of view. The camera module sits inside a flexible rubber housing which fits into the number plate light area and holds securely in place through friction, allowing a simple push-fit installation without drilling. An adjustable ball-style lens lets you fine-tune the viewing angle for the best rear-view image on your chosen monitor. Neat Push-Fit Installation - The flexible rubber housing allows the camera to be pushed into place without drilling large holes. This makes it ideal for discreet installations around the number plate area on cars, vans, and motorhomes. Adjustable Viewing Angle - The ball-style camera module can be adjusted once fitted, allowing you to dial in the perfect angle to suit your vehicle and mounting position. Wide 150° Viewing Angle - A wide-angle lens provides excellent rear coverage to help you spot obstacles, kerbs, and low hazards when reversing. IP68 Waterproof Housing - The camera body itself is rated to IP68, meaning it is fully sealed against water and dirt when mounted externally on the vehicle. Two-Year Guarantee - We focus on reliability and long-term performance when selecting our cameras. This model is backed by our full 2-year UK warranty for peace of mind. Fixing the reversing camera to vehicleThis reversing camera is designed to fit on the ledge above the number plate. To facilitate this, the camera is supplied with a double sided 3M adhesive pad, the correct cut-out for the camera. It also comes with 2x small screws (if needed)0.  Connector details and power information Connectors Info (RCA and 4 Pin) The camera is supplied with both a 4-pin screw aviation connector and an RCA phono connector. You can choose which to use by swapping at the small disconnect point located roughly 60 cm back from the camera. Please note there is also a non-waterproof inline voltage regulator at the same distance. This must be positioned in a dry, protected location (for example inside a tailgate or rear cupboard) to prevent premature failure. 4-Pin to RCA Adaptor Option Even though this camera is supplied with both connector types as standard, we still offer a discounted 4-pin to RCA adaptor for those who need it. This can be useful in two scenarios: 1) Modern vehicles with CANBUS or pulsed (PWM) reverse feeds Using a 4-pin cable plus this adaptor allows you to power the camera from an ignition feed at the front of the vehicle instead of relying on the reverse light circuit. A simple reverse trigger wire can still be used so the display only activates when reverse is selected. 2) Viewing the camera when not in reverse If you want to view the camera on demand (for example while towing or manoeuvring slowly), the adaptor allows independent power so the image can be displayed without engaging reverse gear. What’s in the box
|
Detailed Images

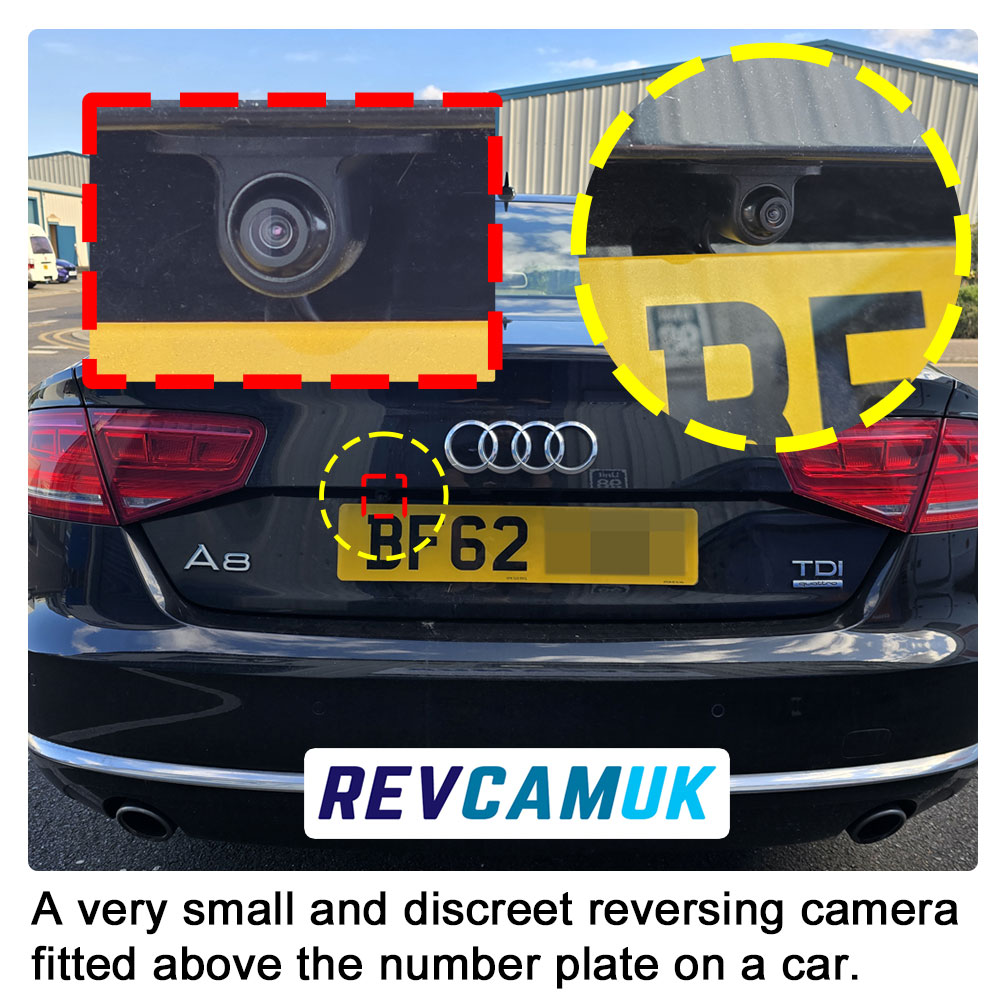

CAM502 ultra-small and discreet reversing camera fitted above a rear number plate, showing a subtle installation that blends neatly into the vehicle trim while providing a clear rear-view image.

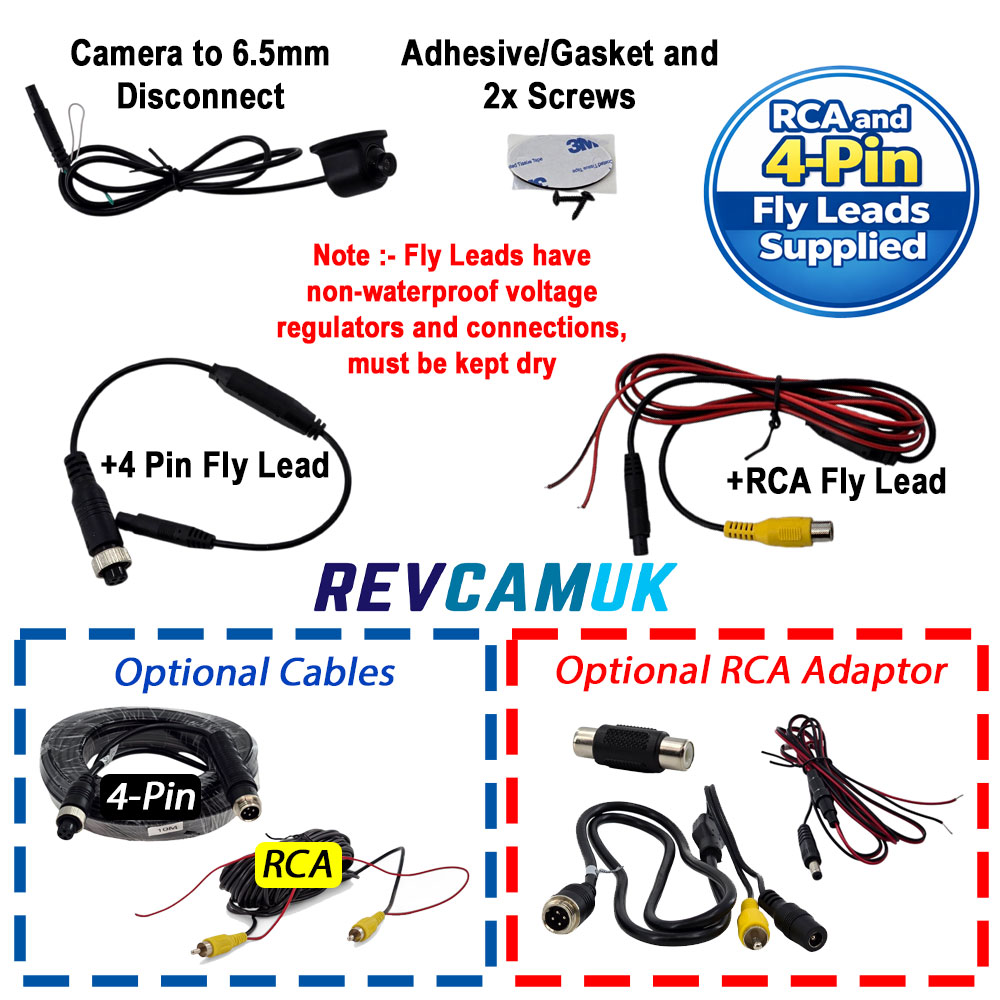

CAM502 small ball reversing camera contents image showing ball-style camera that fits into a rubber housing for number plate and reversing light areas, adhesive gasket and screws, 6.5mm disconnect, RCA and 4-pin fly leads, voltage regulator and optional e

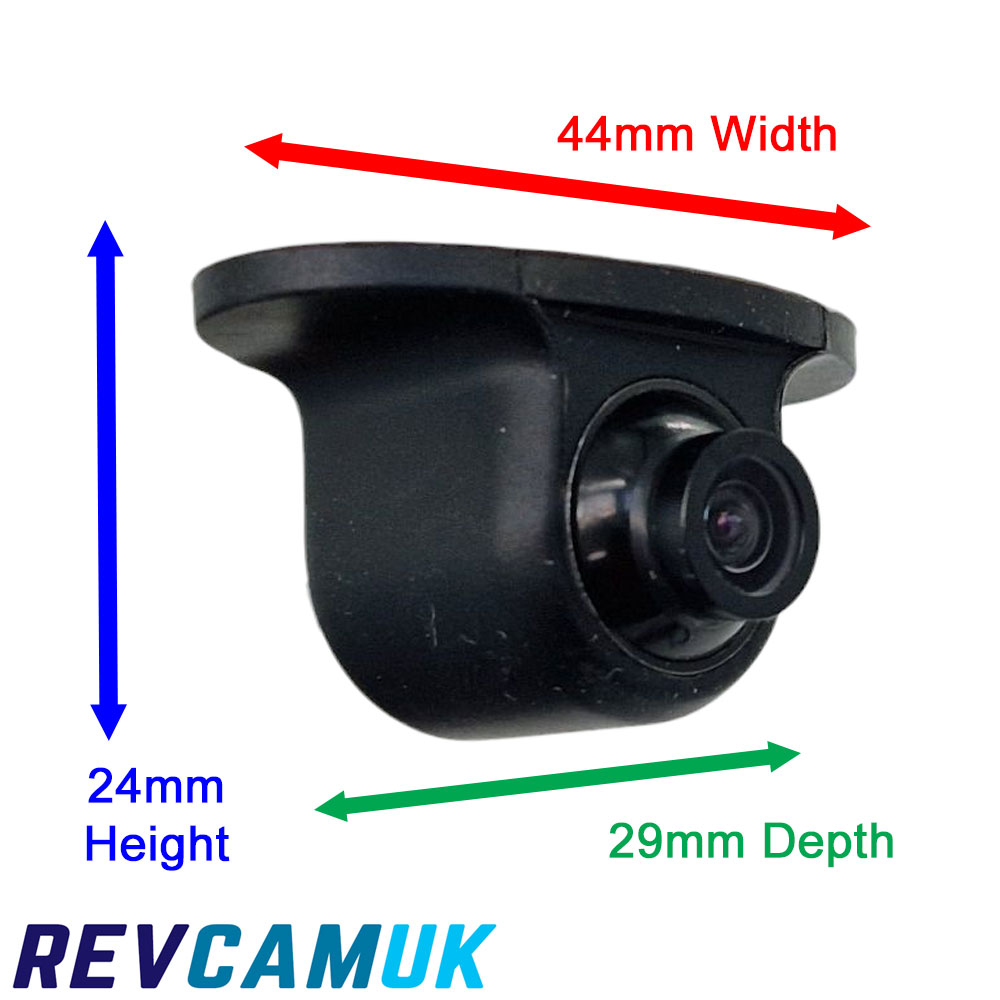

CAM502 small rubber body adjustable ball reversing camera dimensions image showing 44 mm width, 24 mm height and 29 mm depth.
See our general guide to installing 4 pin reversing cameras. This includes fitting to stereos inc Kenwood / Sony / Pioneer etc.
|
