7" Mirror monitor display for reversing camera - 2x 4 pin inputs | MON293GL

7 inch clip-over mirror reversing camera monitor - MON293

This 7-inch clip-over mirror monitor is one of our customers’ favourites, offering a high-quality 800 x 480 digital LCD panel. It clips securely over your vehicle’s existing interior mirror using strong, spring-loaded rubber-coated clamps. Supporting two channels for rear-view and reversing cameras, it works on both 12V and 24V vehicles. Using 4-pin aviation screw connectors, it is compatible with CVBS cameras in both PAL and NTSC formats. It includes a 3 metre wiring harness, optional power lead choices, and the ability to add parking guidelines in reverse. Backed by our respected Revcam UK 2-year guarantee and lifetime support.

Crisp 800x480 digital LCD panel for clear, colourful, detailed images – This monitor is produced by one of our top manufacturers and features an exceptionally bright and clear LCD panel. It delivers what we believe to be the clearest image we have seen on a standard definition mirror monitor. When paired with one of our Sony CCD image sensor cameras, it really shows the camera off to its full potential, giving you a stunning, colourful and sharp picture.

Two-channel input for rear-view and reversing cameras with automatic trigger switching – This monitor includes a short fly lead (approximately 1 foot long) which connects to a 3 metre wiring harness. The harness can be routed down the A-pillar towards the fuse box or dashboard area. At the end of the harness you will find two 4-pin aviation screw connector camera inputs, a power socket suitable for our optional power leads, and a green trigger wire. You can manually switch channels using the V1/V2 button on the monitor. The trigger wire is optional; if connected to a reverse light feed, it will automatically switch from channel 1 to channel 2 when reverse gear is selected, or turn the monitor on if it is currently off.

Advanced menu system with adjustable settings and optional guidelines – The menu system on this monitor is more advanced than many basic competitor products, yet still simple to operate. You can add parking guidelines to channel 2, adjust their height, make them wider or narrower, and number them if required. You can also individually adjust image settings for each channel. For example, if one camera appears brighter than the other, simply adjust that channel only. If required, you can change a mirrored image to a normal view using the menu settings.

12V/24V compatible with camera protection – This monitor is compatible with virtually all vehicles. It operates on 12V systems found in motorhomes, vans and cars, as well as 24V systems used in larger commercial vehicles such as HGVs and trucks. It provides a regulated 12V supply back to the camera, ensuring protection and reliable operation.

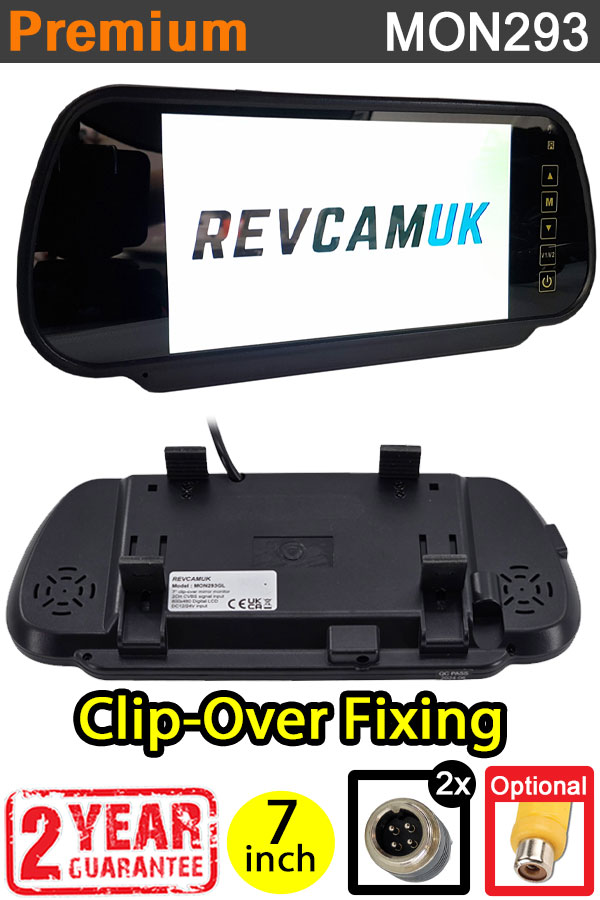

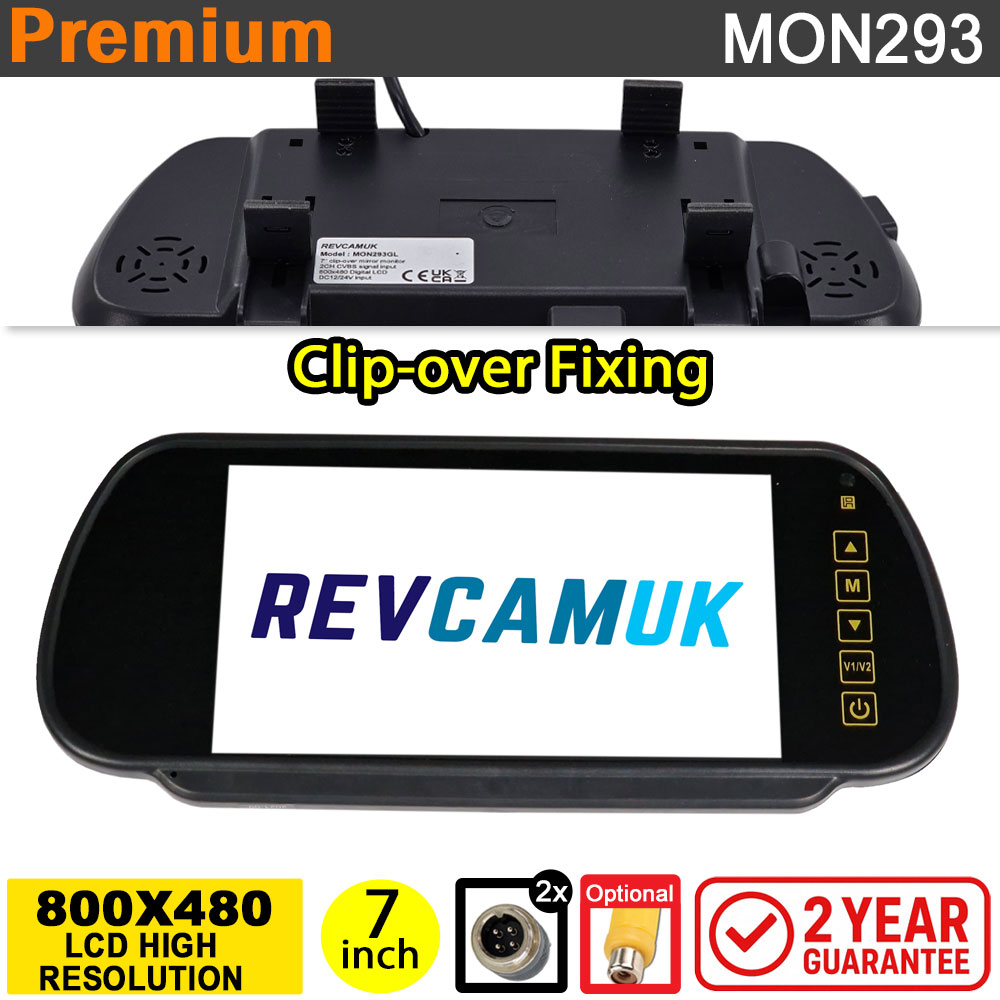

Secure clip-over design with rubber-coated clamps – This monitor is fitted with strong pre-loaded clamps, featuring an upper fixed rubber grip and a retractable lower spring-loaded rubber-covered grip. To fit, simply pull down the lower adjustable clamp, position the monitor over your existing interior mirror, and release. The monitor will grip firmly and securely to the original vehicle mirror.

Backed by Revcam UK 2-year guarantee and lifetime support – This monitor is covered by our well-respected Revcam UK 2-year guarantee. In the unlikely event of a fault during this period, we will repair or replace the unit. Beyond the two-year guarantee, we continue to offer support and keep spare parts available for many years to help keep your system running smoothly.

What’s in the box

• 7-inch clip-over mirror monitor (MON293)
• Short monitor fly lead (approx. 1 foot)
• 3 metre wiring harness with two 4-pin aviation camera inputs, power socket and green trigger wire
• Hardwire power lead terminating in red and black wires
• Printed fitting and operating instructions
• Optional accessories if selected, such as piggyback fuse taps, 12V lighter plug or RCA adaptor cables
