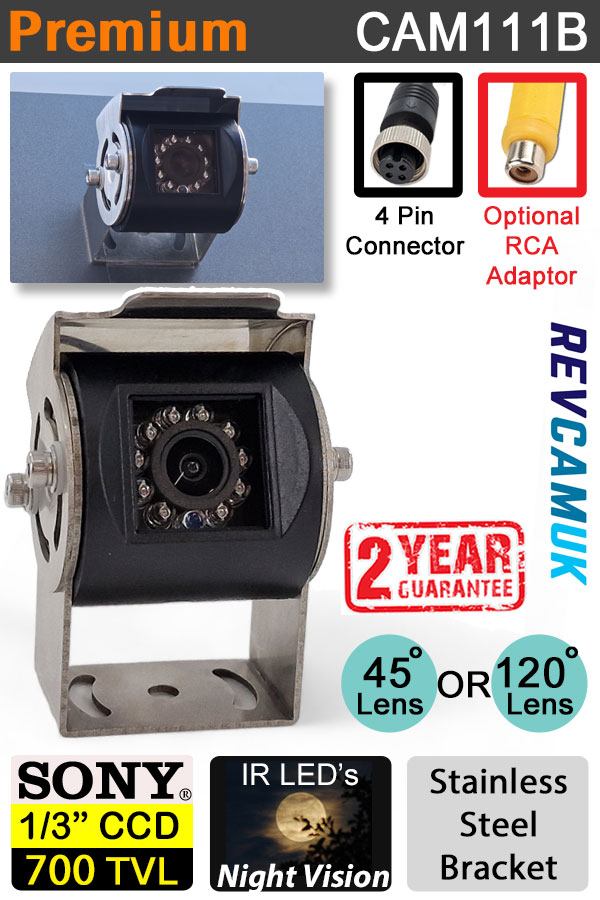

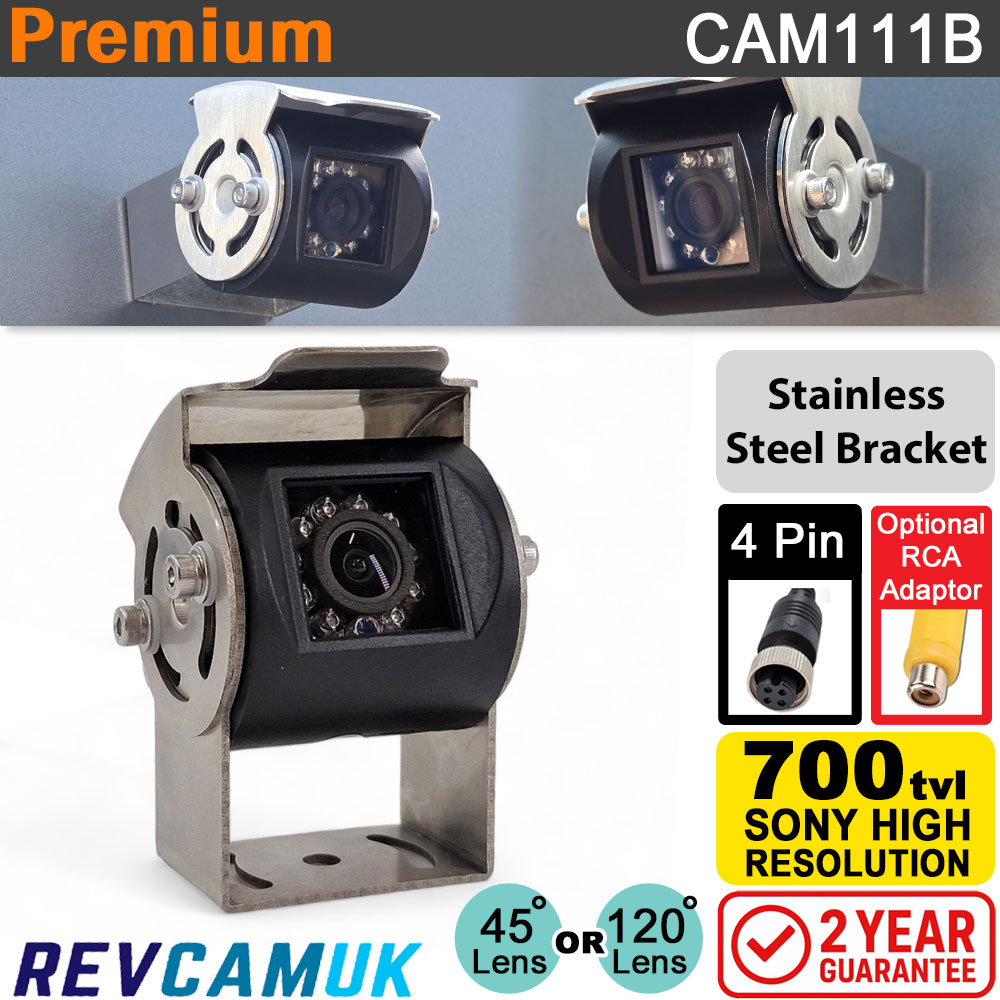

About the Compact Polished Stainless Steel Bracket with black Sony CCD Rear View or Reverse Camera with 4 pin Screw Connector - CAM111B

We have stocked a twin lens camera for more than a decade that uses two cameras with a compact 50mm width case. Because we frequently get asked by customers if they can use just the one in a small bracket, and because we like to listen and learn from customers, we decided to get a polished stainless steel bracket produced to house our large selection of twin lens camera units.

• Bracket reverse view cameras such as this one are still the most popular style of camera, especially with motorhomes, caravans, HGV, and vans.
• The camera bracket is made from corrosion resistant polished stainless steel.
• The image sensor is made by Sony, it is a 1/3" CCD 700TVL image sensor.  This means you get good day and night picture.
• There are night vision IR LED's fitted to allow you to see in the dark when parking.  These come on automatically as the light level drops.  The light is only visible to the camera, it won't shine distracting light at any vehicles behind you.
• The rear view camera will send a mirror image to the monitor.  This is essential for cameras pointing backwards, to ensure that the obstacles on your left are displayed to the left of the display - like a mirror does
• The camera has a fly lead with a 4 pin screw connector (also known as an aviation connector).  This is our preferred type of connector.
• The camera will cope with whatever the weather can throw at it as it is waterproof to IP68.
• Choice of lens angle for either parking view (120 degrees) or rear view (45 degrees).

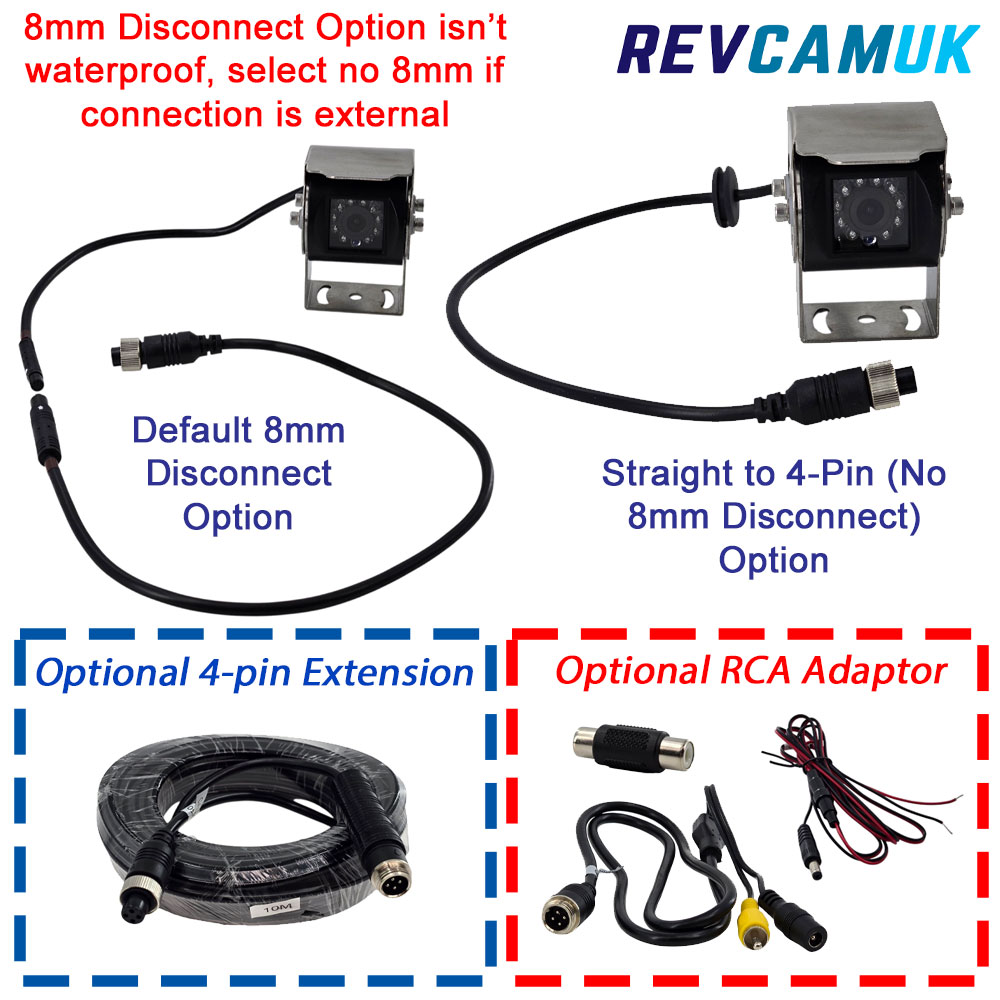

• As default we have placed a small 8mm disconnect point on the cable from the camera to the 4 pin screw connector.  This is so you can reduce the hole size drilled for cable entry. This 8mm disconnect must be inside as it is not waterproof like the 4 pin connector is.  If you plan to run the cable externally, please use the drop-down menu to select the "straight to 4 pin" option, and we will send the version that does not have this feature.

Anti-Corrosion Stainless Steel Camera Bracket

The camera has a stainless steel bracket, which is shown to last a very long time without corrosion, unlike mild steel we have seen from most other retailers, which tends to rust in a matter of a few months.

Image Sensor for Camera

An image sensor is the part of the camera that detects and captures information to make an image. In this reversing camera we are using the Sony 1/3" CCD 700TVL image sensor inside the camera.  We consider this the joint best image sensor in terms of picture quality you can get on a reversing camera on traditional CVBS technology.
