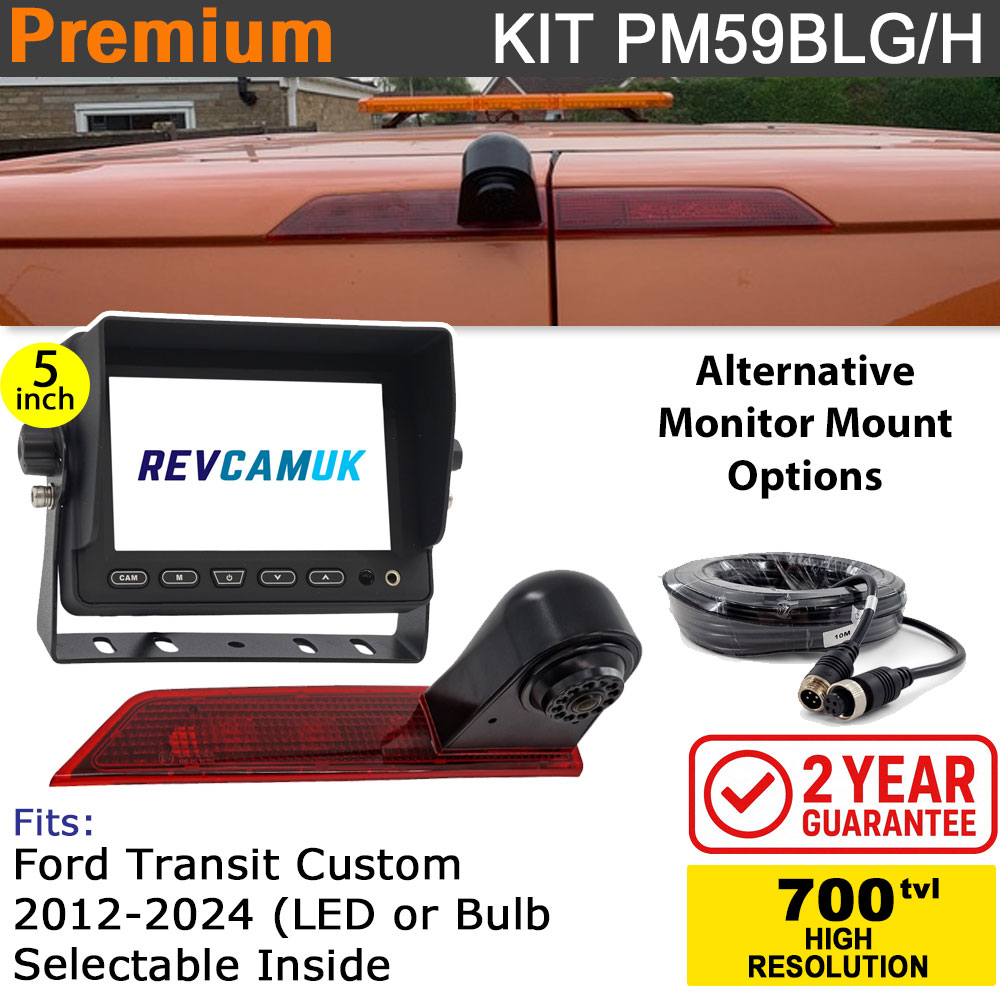

Ford Transit Custom (2012-05/2016) (Bulb Version) Brake Light Reversing Camera kit with 5" Monitor Display - PM59BLG
Description
About the Ford Transit Custom brake light reversing camera with 5 inch dash monitor kitWhen somebody wants a reversing camera for a van, the most popular option these days is a brake light reversing camera. This is because of the following reasons:
The reversing camera installed in this brake light camera has a ball design that has a very small adjustment up/down using a friction lock mechanism, it should be noted that this doesn't allow it to be angled to face upwards enough to view down the road as a driving camera. This particular camera kit is supplied with a 5 inch high resolution dash monitor, this is supplied with a U bracket mount as standard but a variety of other brackets can be selected here. What vehicle does this fit?Ford Transit Custom with bulb brake light 2012 - May 2016 Add an additional monitor bracket/mountWe can supply a discounted additional mount/bracket for the monitor when ordered at the same time as the kit. Please see the photo below, and make your selection using the drop down menu above the add to cart button. See our video below for details about the brackets in the photo above. Choice of kit power options
Easy-Fit Wiring
2 Year GuaranteeWe supply with a 2 year Guarantee with us, meaning we will repair or replace any non-user damaged parts that are deemed faulty. Our failure rate is very low even beyond these two years, if you have a problem outside of 2 years we should still have compatible parts and possible repairs for reasonable amounts. Parts Tested in the UKThe parts of this kit will have been tested twice, once by the factory and once by us. We check all the items in the kit including all cables, trigger wires, IR leds and menu functions to reduce any chance of having a non working part. Our fault rate is extremely low, and we just like to ensure that we avoid any imperfection slipping past. This is why professional fitters love us. |
Detailed Images
Picture of brake light camera mounted
Advice if you have an aftermarket spoiler
Monitor Dimensions
Wiring Layout (monitor side)
Yes you can, the monitor powers the camera, this means you can choose to watch the camera at any point, you can drive with it "always on". However, most of our single brake light reversing cameras have limited adjustability - so you might only be seeing the ground near the bumper whilst driving (not traffic).
Our easy wire fuse tap options are new for 2023. We designed a fuse tap that plugs in to a socket that is present on all of our monitor wiring harnesses. The other side has a "piggyback" fuse holder aka fuse tap. You identify a fuse in the fuse box that comes on/off with the ignition (see piggyback fuse holder / fuse tap instructions here - PDF download). The original fuse is placed in to the new fuse tap, plus there is a new fuse already present for the reverse camera kit. On the same wiring there is an earth terminal connector, simply attach this to a chassis bolt (usually near the fuse box, or add your own).
Rough guide:
- 5M is good for the small courier/car size vans
- 7.5M is good for shorter wheelbase vans
- 10M is good for a medium to long wheelbase vans (around 6M)
- 12.5M is good for most vans up to around 8.5M long
- 15M is good for even the longest vans on the market
Yes, as standard the reversing camera is set to display static coloured guidelines on to the image produced. These can be removed if you prefer. Simply cut the small trigger loop close to the brake light camera connection. See sticker on box for more details as some models have more than one function loop available.
Our general 4 pin cable reversing camera kit based fitting instructions.
Our compact-sized heavy-duty monitor display. Guide to fitting and the on-screen menu.
|
