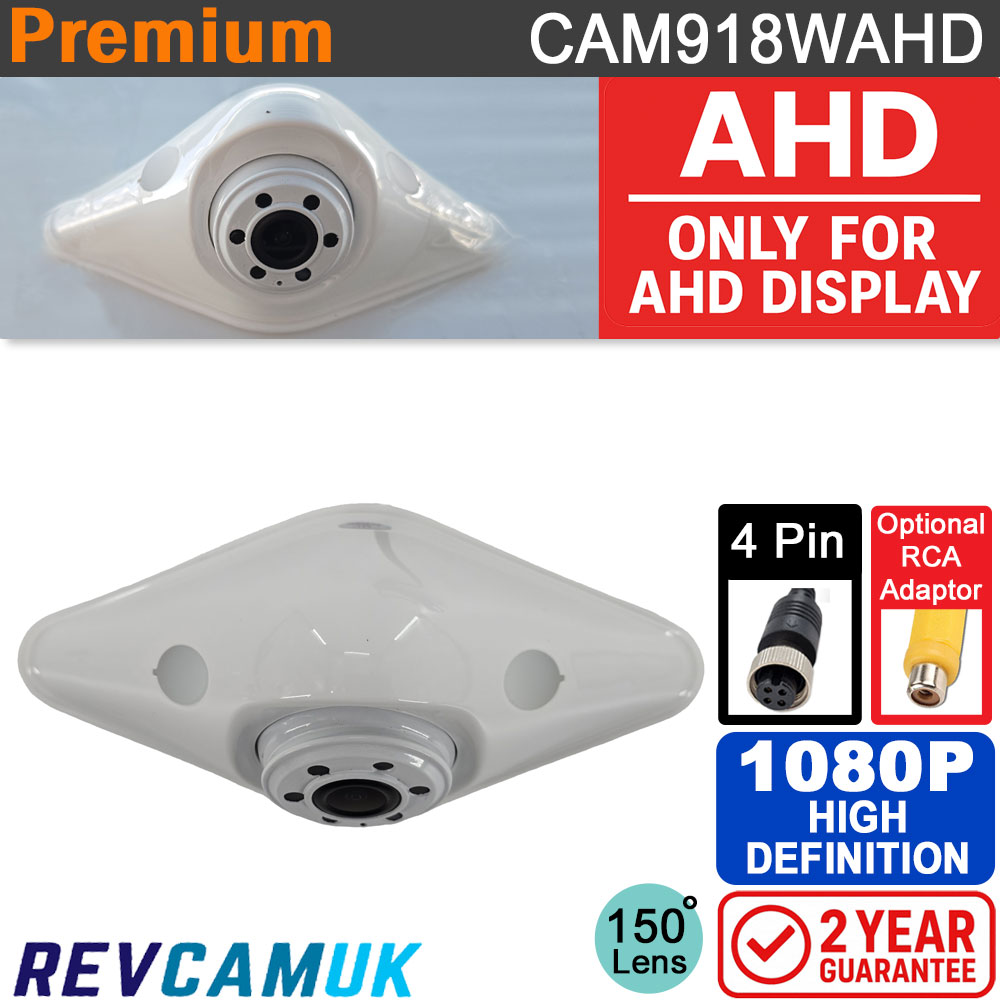

CAM918WAHD - White "Diamond" 1080P AHD Reversing Camera - (Only works with 1080P AHD compatible monitors/DVR's)

Gallery Ask a question about this product

Description

About the 1080P AHD White Diamond Shaped Reversing Camera

AHD signal cameras will NOT work with 99% of monitors and car stereos currently in use. This camera requires a special AHD monitor that can read the AHD signal produced by the camera. Ensure your AHD monitor or recorder can handle 1080P AHD inputs. If you do not have a confirmed AHD monitor, then please purchase instead from our large range of high resolution traditional cameras.

The diamond shaped reversing camera is designed to sit on a vertical wall and can be angled down to see the back of the vehicle whilst parking, or angled up slightly to see close following traffic (not all the way down the road).

If you are looking for an AHD monitor then please see our AHD monitors category.

Detailed Images

Image from this camera shown on one of our 7 inch AHD monitors

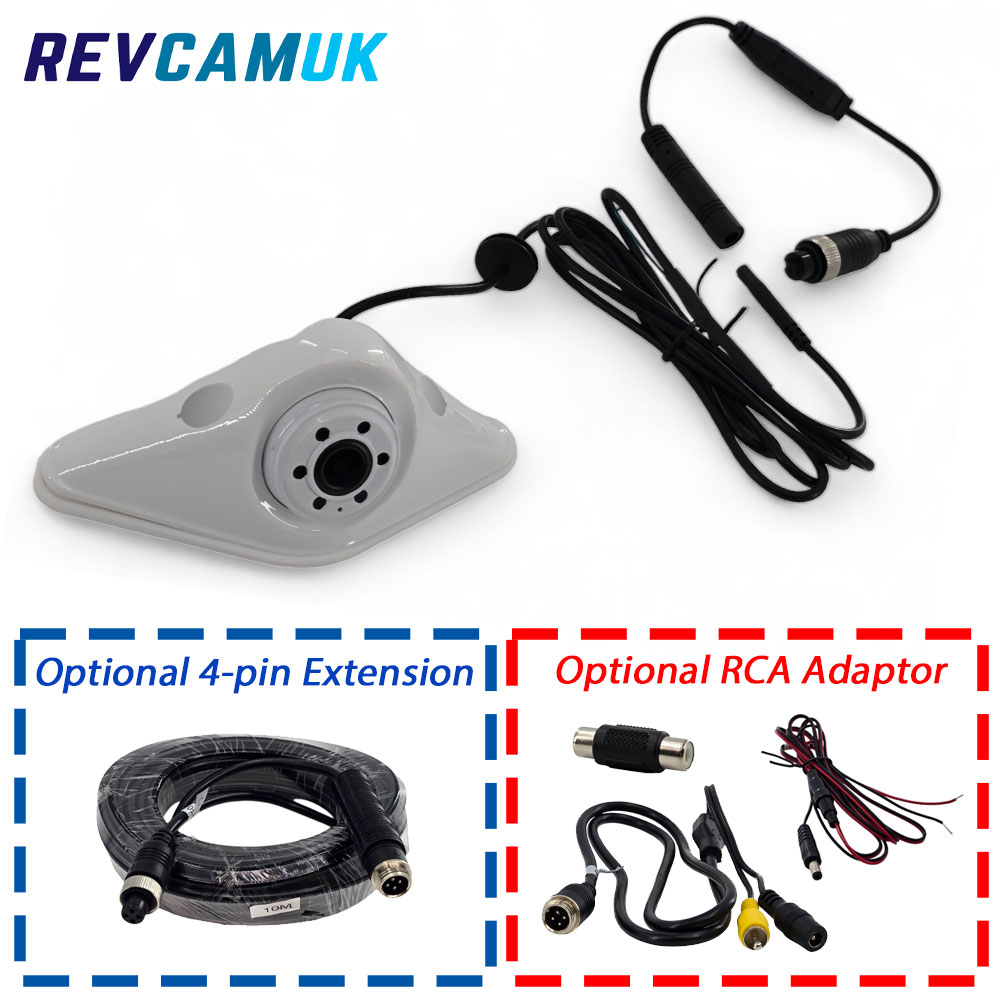

Wiring layout of white reversing camera

Technical Specs

Image Sensor : CMOS2399
Effective Pixels : 1920(H) * 1080(V)
TV System : PAL
Lens : 1.9mm
Min illumination 0Lux (LED ON)
IR LED's : 6pcs
Night Vision Distance : 30ft
Waterproof : IP68
Viewing angle : 150°(D)

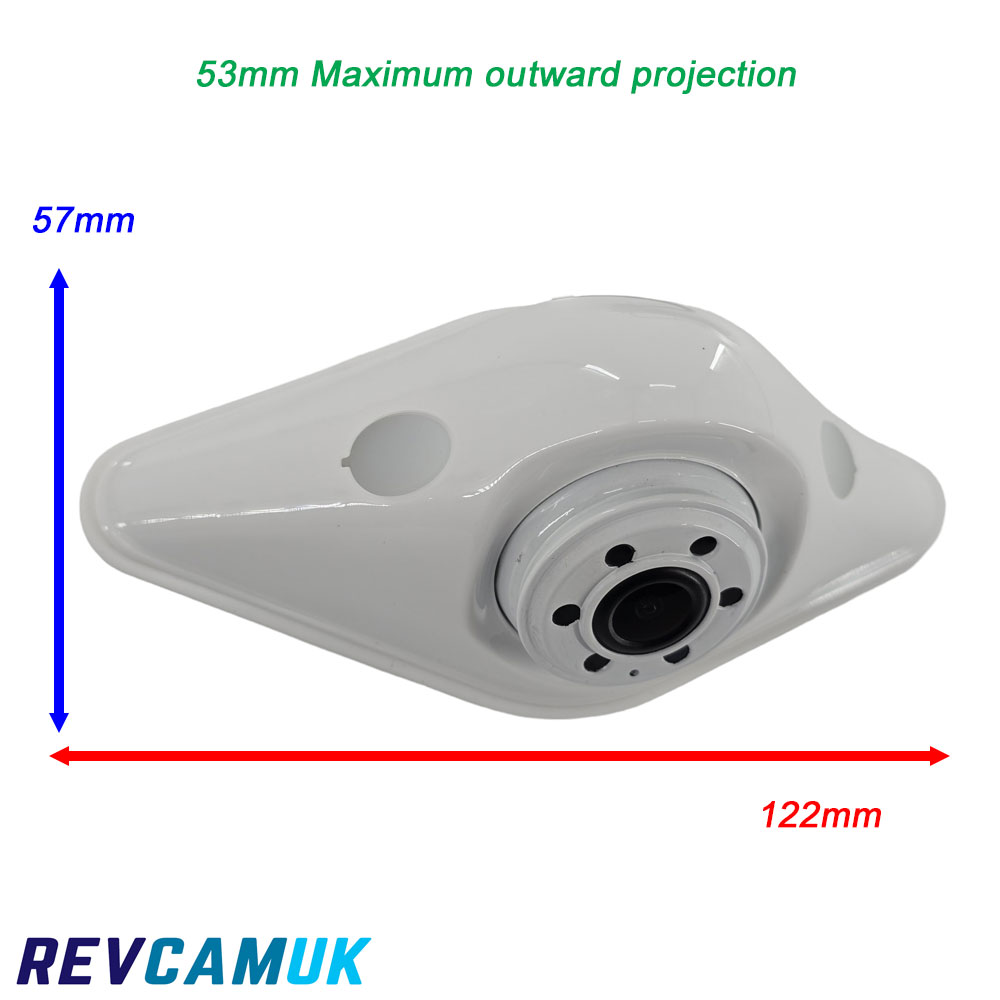

Dimensions : 122*57*49.4 (mm)
Camera lens adjustable : 20° (up&down)
Power Voltage : 12V
(our monitors supply 12V despite input voltage being 24V)
Current Consumption : 150mA
Operating temperature : -20℃~+70℃
